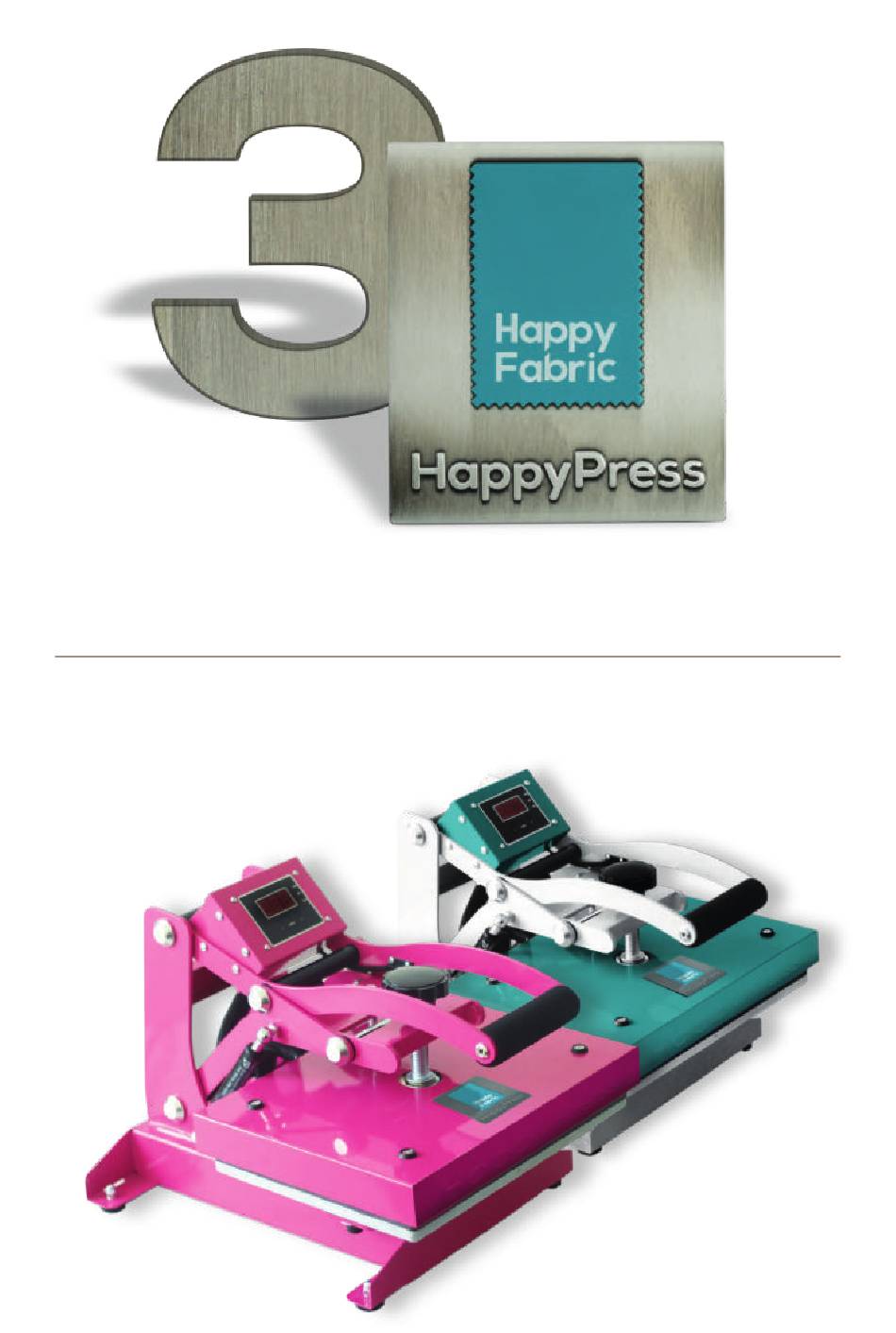

- Page 1 BEDIENUNGSANLEITUNG OPERATING MANUAL...
- Page 2 April 2019...
- Page 3 Thank you for purchasing a HappyPress. We hope you will be happy with your new HappyPress and have even more fun on textile printing and implementing your designs. For any questions about your HappyPress, you can enter the serial number of your HappyPress here.
- Page 4 OPERATING MANUAL EN - ENGLISH...
-
Page 5: Table Of Contents
CONTENTS Introduction to the Manual Important Safety Instructions Detail Picture Commissioning Control Panel Setting the Temperature and Time Adjusting the pressure Printing / Pressing CE Declaration of Conformity Warranty Terms... -
Page 6: Introduction To The Manual
INTRODUCTION TO THE MANUAL Introduction to the Manual This manual has been designed to be user friendly. Read it carefully, and follow the step-by-step instructions to get the best possible printing results. • Work very carefully and avoid contact with the hot plate to avoid serious burns. Keep hands clear of heat platen while closing the press to prevent bruises and burns. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTROUCTIONS Important Safety Instructions Before you use your press, you should follow some basic precautions, including the following: Read the complete manual before you start to use your press. Use the press exclusi- vely for printing textiles, or other suitable products that do not contain heat sensitive components, and have not been treated with chemical additives. -
Page 8: Detail Picture
DETAIL PICTURE LED-Display Pressure Adjustment Knob Lift Handle Power ON/Off Switch Power Supply Fuse 4 A HappyFabric HappyFabric.de HappyFabric.de... -
Page 9: Commissioning
• Turn the switch to ON. If your HappyPress 3 switches itself off, restart the machine by pressing the power switch twice to turn it off and back on again. Proceed by closing and opening your press once before continuing to print. -
Page 10: Control Panel
CONTROL PANEL Digitales Display Temp Indicator Set Indicator Time Indicator „Increase“ & „Decrease“ Button „Mode“Button Technical Specifications Power: 230 Volt, 700 Watt Digital timer: 1-999 seconds Digital temperature control: 96-221 °C Measurements: Press, closed: approx. 45cm x 32cm x 30cm (length x width x height;18“... -
Page 11: Setting The Temperature And Time
USER MANUAL Temperature and time setting Press the mode button on your control panel. The (SET) and (TEMP) lights located next to the display will illuminate indicating you are in the Adjust Temperature Mode. Use the Minus (-) button or the Plus (+) button to lower or raise the temperature until the desired temperature appears in the display. -
Page 12: Adjusting The Pressure
USER MANUAL Adjusting the pressure The pressure adjustment knob is located in the centre of the heat platen. Adjust the pressure by turning the screw clockwise to increase pressure and coun- ter-clockwise to decrease pressure. If you are not satisfied with the printing results, change the pressure. Remember: Adjust the pressure with the garment inside the closed press to get exact results Pressure... -
Page 13: Printing / Pressing
USER MANUAL Printing / Pressing • Heat up: It takes around 12 minutes to reach 150° C. • Once your machine has reached the designated temperature, position the gar- ment and application and proceed to press. • Lower and lock the heat platen into the press position. This procedure will start the automatic timing process. -
Page 14: Ce Declaration Of Conformity
EC DECLARATION OF CONFORMITY In relation to the EC Machinery Directive 98/37/EC, Annexe II A and the EC Low Voltage Directi- ve 73/23 EEC and the EC EMC Directive 89/336 We as the European Importer declare that our product: Transfer Press for ironing of thermal printing Make: Happy Press Is delivered matching the latest relevant provisions. -
Page 15: Warranty Terms
WARRANTY TERMS Contact: GSE TexPrint Solutions GmbH Telephone: +49 30 897 47 348 Kablower Weg 89 Fax: +49 30897 47 348 12526 Berlin Web: www.happyfabric.de Germany E-Mail: kontakt@happyfabric.de Warranty Policy GSE TexPrint Solutions GmbH provides the following warranty subject to the following terms: Duration The warranty period of 2 years commences from the date of receipt by the buyer of the heat press machine, which can be verified by the invoice or similar documents. - Page 16 WARRANTY TERMS Return of the machines manufactured by GSE TexPrint Solutions GmbH for disposal GSE TexPrint Solutions GmbH agrees to take back all machines manufactured by GSE TexPrint Solutions GmbH which are clearly marked as manufactured by them. Machines must be returned in complete condition, at the customer‘s expense, in order that they can be pro- perly disassembled and disposed of by GSE TexPrint Solutions GmbH.
- Page 17 For further questions call +49 ( 0 ) 30 897 47 348 or send us an e-mail to kontakt@happyfabric.de www.happyfabric.de | GSE TexPrint Solutions GmbH | Kablower Weg 89 | 12526 Berlin HappyFabric HappyFabric.de HappyFabric.de...
