IMPORTANT: An ADULT must make all repairs. Thoroughly inspect all parts after making modi cations. DO NOT RIDE until
you are sure the proper repairs have been made and the unit is assembled according to the manufacturer's speci cations.
NOTE: BEFORE BEGINNING, ENSURE THE UNIT IS TURNED OFF.
1
Use the included large Allen wrench to loosen the bolts from
the bottom of the handlebar. Use the included small Allen
wrench to loosen the bolt on the front of the handlebar.
3
Use scissors (not included) to carefully remove the zip ties
that attach the cables to the handlebar. Do not cut the brake
cable or electronic wire.
5
Push up rmly on the brake to remove the handlebar grip
and slide the brake o of the handlebar.
If you are unsure of any repairs, contact consumer service.
2
Remove the handlebar.
4
Use an Allen wrench to remove the screw from the brake.
6
Use an Allen wrench to remove the screw from the throttle.
Advertisement
Table of Contents
Related Manuals for Viro VR 550E
Summary of Contents for Viro VR 550E
- Page 1 IMPORTANT: An ADULT must make all repairs. Thoroughly inspect all parts after making modi cations. DO NOT RIDE until you are sure the proper repairs have been made and the unit is assembled according to the manufacturer’s speci cations. If you are unsure of any repairs, contact consumer service. NOTE: BEFORE BEGINNING, ENSURE THE UNIT IS TURNED OFF.
- Page 2 Push up rmly on the throttle to remove the handlebar grip Take the new handlebar and slide on the throttle. Then, slide the new grip all the way onto the handlebar. and slide the throttle o of the handlebar. Replace the throttle screw, and tighten it with an Allen On the opposite side of the handle, slide on the brake.
Need help?
Do you have a question about the VR 550E and is the answer not in the manual?
Questions and answers

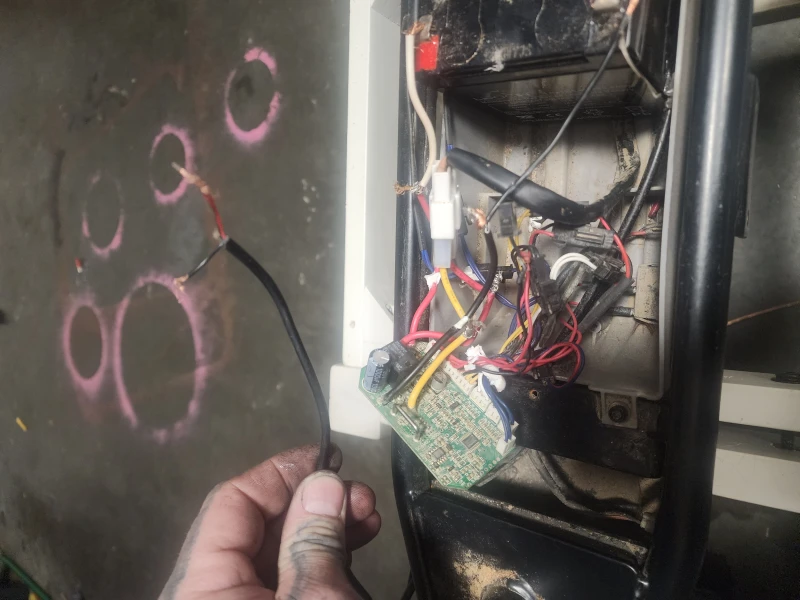

I need the wire diagram for the electrical controller module on a viro 550 scooter
