ASSEMBLY AND MOUNTING INSTRUCTION

For 31909
Please read the Assembly lnstruction sheet carefully before proceeding.Carefully unpack and
identify all parts prior to building the unit. Each part is identified on the drawingfor reference.
DO NOT DISCARD THE ORIGINAL PACKAGING. If after careful inspection and you must returnthe item
for any reason. Please repack the unit using the original carton and inserts.

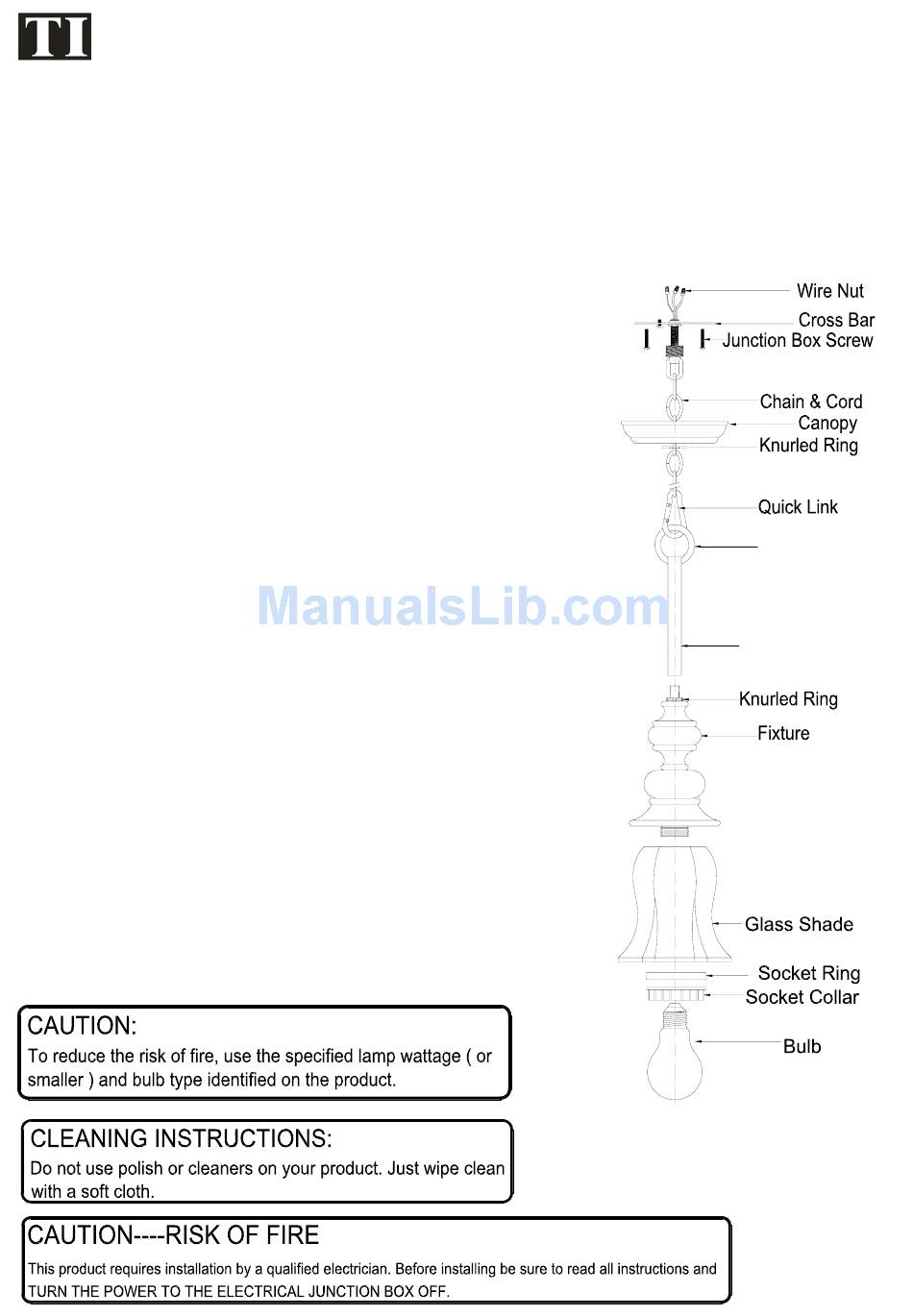

STEP 1:Unpack all the parts and Classify them
according to the illustration shown at the side.
Place the parts on a scratchfree surface;
STEP 2: Make sure the power is turned off at
the junction box where the fixture is to be
installed. Secure the cross bar to the ceiling
junction box using junction box screws;
STEP 3: Use the wire nuts to connect the
Loop
positive and negative wires. connect the
ground wire to the junction box ground port;
Center Rod

STEP 4: Secure the canopy to the ceiling

with the knurled ring.
STEP 5:Install the Loop to the fixture;

STEP 6: Buckle the quick link to the loop;

STEP 7: Attach the glass shade to the fixture

and fix it using the check ring and the Socket
ring;

STEP 8: Install the correct bulb (not provided);
