Summary of Contents for Limerick PJ’s Comfort

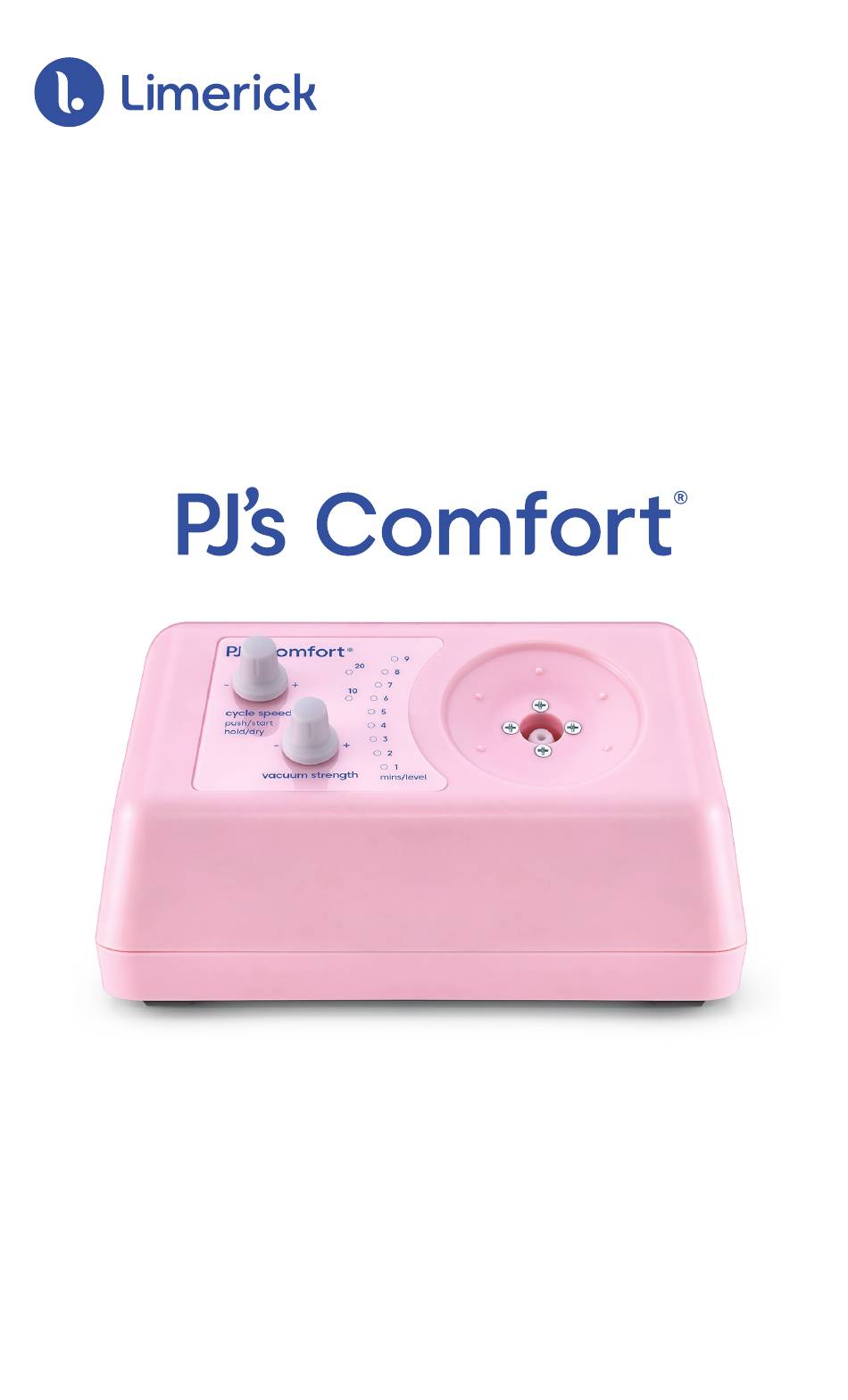

  • Page 1 Owners Manual...
  • Page 2 Overview Using your new PJ’s Comfort Multi- User hospital grade breast pump READ THE ENTIRE MANUAL BEFORE OPERATING PUMP *This overview is not intended to provide complete user instructions. 1. Sanitize before use See page 8 2. Pump setup and assembly See page 11 3.
  • Page 3 Symbols and the meaning Warning! Caution! Sterile Class B Caution: If the accessory kit is not labeled sterile, see page 10-5 for instructions on sanitizing the accessory kit. Sanitizing the accessory kit needs to be done before the first time you use it. After the first time you use the pump, the accessory kit will only need a simple cleaning procedure found on page...

  • Page 4: Table Of Contents

    Contents Health and Safety Important Safeguards Pump Components Accessory Kit Components Introduction to Your PJ’s Comfort Breast Pump Pump Description Purpose of PJ’s Comfort multi-user hospital grade breast pump Reasons to use a breast pump Benefits of using PJ’s Comfort electric breast pump Accessory Kit Sanitizing Before using the accessory kit for the first time Disassemble the following parts as shown and boil them according...
  • Page 5 Display Functions and Indications Functions Timer display Problem indication Flashing 1, 2, 3 Lights Flashing 4, 5, 6 Lights Flashing 7, 8, 9 Lights Flashing 10, 20 Lights Other problems that may occur without a fault message Situation “A” Situation “B” Situation “C”...
  • Page 6 Pump Care and Cleaning When to change the filter How to change the filter Transportation Information Accessory Care and Cleaning After each use Wash these parts Don’t wash these parts Troubleshooting Ordering Replacement Parts or Optional Accessories Warranty Register your pump at limerickinc.com Customer Service...

  • Page 7: Health And Safety

    Health and Safety Important Safeguards When using your PJ’s Comfort multi-user hospital grade breast pump, basic safety precautions should always be followed, including the following. READ ALL INSTRUCTIONS BEFORE USE Caution: Every electrical devise has a potential for danger. To reduce the risk of burns, electrocution, fire, injury, or infection to persons, take these procautions: 1.
  • Page 8 If you plan to use this pump in another country where voltage and outlet plugs may differ, a plug adapter may be required. Please contact Limerick, Inc., for recommendations. 11. Do not use while sleeping or when overly drowsy.
  • Page 9 2. Use the pump only for its intended use as described in this manual. 3. Use ONLY Accessory Kits manufactured by Limerick, Inc. Your PJ’s Comfort breast pump operates differently than other pumps, so other kits will not work properly with it. Use of incorrect parts voids warranty.

  • Page 10: Pump Components

    Pump Components Filter Timer 10 & 20 min (4) connector (5) power/cycle knob (1) Timer 1-9 (3) Storage container holder (7) Vacuum adjustment knob (2) Storage container holder slot (6) Power supply (8) The pump, power supply, and storage container holders may be shared by two or more women.

  • Page 11: Accessory Kit Components

    This Accessory Kit with filter has been designed for single- personal use and should not be shared between mothers. Use ONLY Limerick parts; other brands will not work properly with this pump. The use of other brands’ accessories will void the warranty.

  • Page 12: Introduction To Your Pj's Comfort Breast Pump

    Introduction to Your PJ’s Comfort Breast Pump Pump Description The PJ’s Comfort® hospital grade multi-user breast pump is intended to express and collect milk from a lactating woman’s breast. This action helps to alleviate engorgement of the breast, maintain the woman’s ability to lactate, and provide mother’s milk for future feedings when mother and baby are separated.

  • Page 13: Benefits Of Using Pj's Comfort Electric Breast Pump

    For information on reasons to use a breast pump, please go to bfmed.org or find this book at your library or bookstore: Lawrence, RA, Lawrence, RM: Breastfeeding: A Guide for the Medical Profession, Edition 8, Missouri, 2016, Mosby Benefits of using PJ’s Comfort electric breast pump •...

  • Page 14: Accessory Kit Sanitizing

    Accessory Kit Sanitizing Before using the accessory kit for the first time Caution! Unless there is a label stating sterile on the kit, the accessory kit is not supplied sterile. It’s not necessary that the parts be sterile, but some must be sanitized before the first time you use the pump.

  • Page 15: Disassemble The Following Parts As Shown And Boil Them According To The Instructions

    Disassemble the following parts as shown and boil them according to the instructions 1. Remove filter with tubing assembly (9-13) from both breast cup assemblies (23) 2. Unscrew breast cup assembly (23) from storage container (18). 3. Remove the gaskets (17). It’s not necessary to remove the breast cups (15) and breast cup braces (16) from the breast cup assembly caps (14) 4.
  • Page 16 8. Drain water and remove parts from pan using tongs. 9. Place on a clean towel and allow to air dry. 10. Before each use, visually inspect the individual components for cracks, chips, tears, discoloration, or deterioration. In the event that damage to the device is observed, please discontinue use until the parts have been replaced.

  • Page 17: Pump Setup And Assembly

    Pump Setup and Assembly 1. Place pump on a level surface. 2. Insert the two storage container holders (6) into the storage container holder slots ( 7 ) on either side of the base of the pump. 3. Connect the power supply cord (8) to the back of the pump and the wall outlet.

  • Page 18: Controls And Features

    Controls and Features The pump has two control knobs. Rotating the knobs adjusts the settings. When a knob is adjusted, the time display automatically changes to show the setting value, then switches back to time shortly after the adjustment has stopped. The knobs increase/ decrease a displayed value.

  • Page 19: Vacuum Adjustment Knob

    and feel comfortable with your PJ’s Comfort breast pump. The cycle speed is used to fine-tune the suction rhythm to best mimic your baby’s suckling. Vacuum adjustment knob vacuum adjustment knob controls the suction strength (vacuum) for balancing effectiveness and comfort and will also slow vacuum down cycle speed as vacuum is increased.

  • Page 20: Secondary Features

    Note: When vacuum strength is increased, the cycle speed will decrease slightly. Secondary Features Dry Mode: Mode, turn the pump on and hold down the To enter cycle speed/power knob (1) until the number 5 light turns on (this will take about 5 [five] seconds).

  • Page 21: Turning Off Pump

    with the vacuum at a comfortable level for you. To fine-tune suction rhythm, turn knob to the left to slow cycle speed. Turning off pump Turn off pump prior to removing the breast cups from breast. WARNING! In the event of a problem or malfunction, it’s possible to ex perience a higher than normal suction strength (vacuum).

  • Page 22: Display Functions And Indications

    This fault means that the temperature inside the pump enclosure is higher than expected. After the pump cools, it may be used again. This is not typical, so if it happens repeatedly contact Limerick as the pump may need to be returned for repair.

  • Page 23: Flashing 4, 5, 6 Lights

    (1). If problem persists, contact Limerick as the pump may need to be returned for repair. Flashing 7, 8, 9 Lights This fault means that the vacuum increased to a level higher than expected.

  • Page 24: Situation "B

    breast. This will minimize risk for back flow of milk. Situation “B” You may see moisture accumulate in the tubing. This is normal due to the difference in body temperature versus room temperature. If this occurs after you have finished pumping, remove tubing from breast cup assembly caps, let the tubing hang down, and use Mode.

  • Page 25: Accessory Kit Setup And Assembly

    Accessory Kit Setup and Assembly Caution! Use only Accessory Kits made by Limerick, Inc. The PJ’s Comfort pump operates differently than other pumps so other kits manufactured by another company will not work properly with PJ’s Comfort breast pump and will void warranty.
  • Page 26 Step 3 Attach white silicone tube (10) to bottom of the “Y” connector (11) push in securely. Step 4 Attach the ends of the clear tubes (12) to ends of “Y” connector (11) as shown. Step 5 Attach a white tube connector (13) to the other end of each of the long clear tubes (12).
  • Page 27 Step 6 Attach white silicone tube (10) to narrow end of filter (9). End of filter (9) must touch Y connector (11) inside tubing (10). If not, tubing can kink and stop vacuum. Step 7 Insert the wide end of the filter (9) into the filter connector (5) on the front of the pump.

  • Page 28: Double Pumping Setup

    Double Pumping Setup Expressing milk from both breasts For the amount of time it takes to double pump, see page 27-5. Place storage container in storage container holders on the sides of the pump until you are ready to express your milk. Step 8 Attach white tube connectors (13) to the breast cup assembly caps (14).

  • Page 29: Single Pumping Setup

    Single Pumping Setup Expressing milk from one breast at a time For the amount of time it takes to single pump, see page 27-5. Step 8 Open tube clamp (19) wide to slide the tube connector (13) and clear tubing (12) through one end of the filter assembly. Then squeeze the tube clamp until it clicks closed to prevent the loss of vacuum.

  • Page 30: Expressing Your Milk

    Expressing Your Milk Preparing to express breast milk • The environment and your frame of mind are very important when you are getting ready to express your breast milk. • Wash your hands thoroughly with soap and water before expressing your milk. •...

  • Page 31: Expressing Breast Milk

    Expressing breast milk For assembling pump and accessories, see page 11-5. 1. Plug cord into outlet. 2. Center the breast cups over the nipples and turn the pump on by pressing the cycle speed/power knob (1). 3. Once you’ve begun pumping, you can adjust vacuum strength and cycle speed to your comfort.
  • Page 32 containers for collection and storage of milk. Also supplied are caps to hold the white seal for storage of breast milk (parts 20-21, on page 5. For information on purchasing additional storage containers and accessories, see “Ordering Replacement Parts or Optional Accessories”...

  • Page 33: Pumping Methods And Patterns

    Pumping Methods and Patterns Follow one of these pumping methods and follow the pattern unless otherwise prescribed by your physician or health care professional. Double pumping Pumping both breasts at the same time is recommended as it yields higher milk volume. This method takes approximately 15-20 minutes. See “Double Pumping Setup”...
  • Page 34 Caution! Do not allow storage containers to overfill If overfilled, milk can enter the tubing and filter. In that case, filter and tubing must be replaced (see page 30-5). Page 28 Pumping Methods and Patterns...

  • Page 35: Multiple User Instructions

    EACH WOMAN MUST HAVE HER OWN ACCESSORY KIT WITH FlLTER (pictured below). Contact your retail merchant or Limerick, Inc., to purchase additional accessory kits with filters. See page 36 for contact information.

  • Page 36: Pump Care And Cleaning

    Pump Care and Cleaning When pump is shared by multiple users, such as in the hospital, wipe unit with a damp cloth containing a germicidal detergent. Dry with a soft cloth. Wash holders in detergent, using germicide when more than one person uses them. DO NOT IMMERSE PUMP IN WATER.

  • Page 37: Accessory Care And Cleaning

    Accessory Care and Cleaning Before the first time you use your pump, you must sanitize the parts that come into contact with your milk. See “Accessory Kit Sanitizing” on page After each use 1. Remove tube connector/clear tubing assembly (10-13) from both breast cup assemblies (14-16).

  • Page 38: Wash These Parts

    that damage to the device is observed, please discontinue use until the parts have been replaced. Wash these parts Storage Breast cup assembly (23), parts (14 - 16) container (18) Breast cup Assembly Silicone cap (14) breast x2 storage cup (15) container cap (20) Breast cup...

  • Page 39: Troubleshooting

    2. Unplug the power adapter completely from the pump and wall outlet; inspect the cords for any signs of damage. 3. Try plugging power adapter into another wall outlet. 4. Call Limerick Customer Service. Problem B: Not cycling; there is suction but no releases...
  • Page 40 14. Turn pump on, place both of the breast cups onto a hard smooth surface, such as a tabletop. 15. Both breast cups should be compressing and releasing. 16. If pump is still not working, call Limerick Customer Service. Problem C: Suction has become weak Instruction: 1.
  • Page 41 • For other difficulties, contact Limerick, Inc. for assistance. • You may also try calling the location where you obtained your breast-feeding product.

  • Page 42: Ordering Replacement Parts Or Optional Accessories

    Ordering Replacement Parts or Optional Accessories For replacement parts or a catalog, go to limerickinc.com or call +1 818-566-3060. To identify parts, see page 4-5. • Filter with tubing • Breast cup assembly • Cleaning brush • Storage container • Clamp (for single pumping) •...

  • Page 43: Warranty

    Before you make a claim under this warranty, it may save time and expense to call Limerick’s Customer Service toll-free: +1 818-566-3060 If you wish to make a claim under this warranty, first call Limerick’s Customer Service to get a Return Merchandise Authorization number.

  • Page 44: Customer Service

    Customer Service Limerick, Inc. 2150 N. Glenoaks Blvd. Burbank, CA 91504 Available by phone 8:30 AM - 5:00 PM PST +1 818-566-3060 limerickinc. com/support Page 38 Customer Service...
  • Page 45 Index Accessories Replacement parts Accessory care and cleaning Returning Accessory kit iii, 2, 6, 8, 17, 33 Safety 1, 6, 17, 33 Benefits Sanitizing ii, iii, 8 Breast cup 9, 10, 32, 36 Share 19, 29 Breast cup assembly 5, 9, 10, 32, Single pumping Storage container 9, 10, 31, 32, 36...
