Triarch 31631 Assembly Instructions

For semi-flush

Advertisement

ITEM NO.:

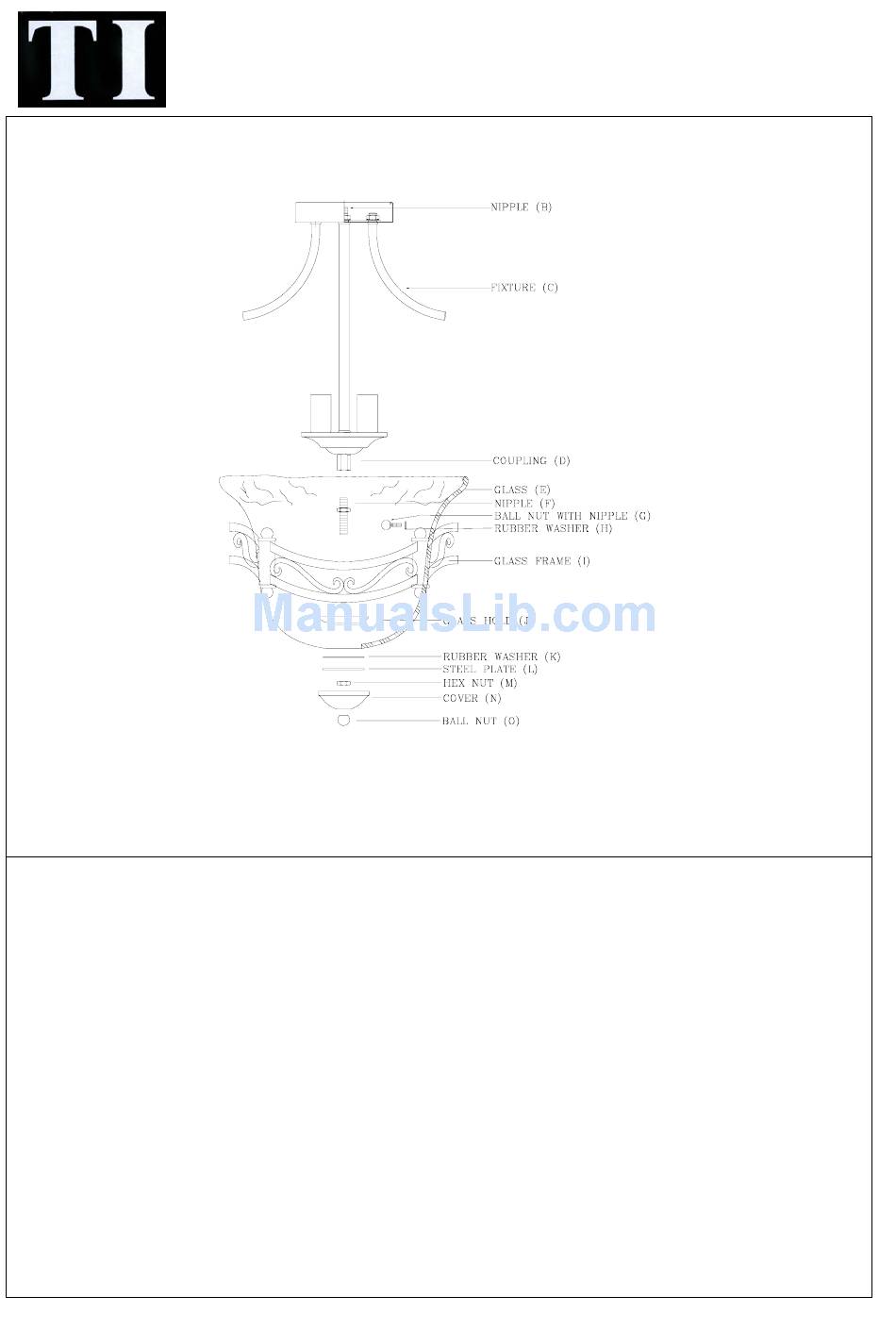

1. Unfold the arms to the correct place!
2. Place the GLASS FRAME (I) onto the GLASS (E). Attach the nipple hole on the
glass flame to the holes on the glass!
3. Thread the BALL NUT WITH NIPPLE (G) onto the GLASS FRAME (I) through
the RUBBER WASHER (H) & hole on the glass. Until tighten!
4. Thread the NIPPLE (F) onto the COUPLING (D). Secured by the hex nut!
5. Place GLASS HOLD (J) GLASS (E) RUBBER WASHER (K) & STELL PLATE (L)
onto the NIPPLE (F). Secured by the HEX NUT (M).
6. Place the COVER (N) onto GLASS (E). Secured by the BALL NUT (O)
7. Follow the wattage label on the socket cover and install correct wattage and type
bulb (no provide) onto the socket.
8. For mounting and wiring step please follow the mounting instruction sheet
enclosed.
Assembly Instructions
31631 FOR SEMI-FLUSH
