Triarch 31630/2 Assembly Instructions

ITEM NO. 31630/2
1. For mounting and wiring step please follow the mounting instruction sheet
enclosed.

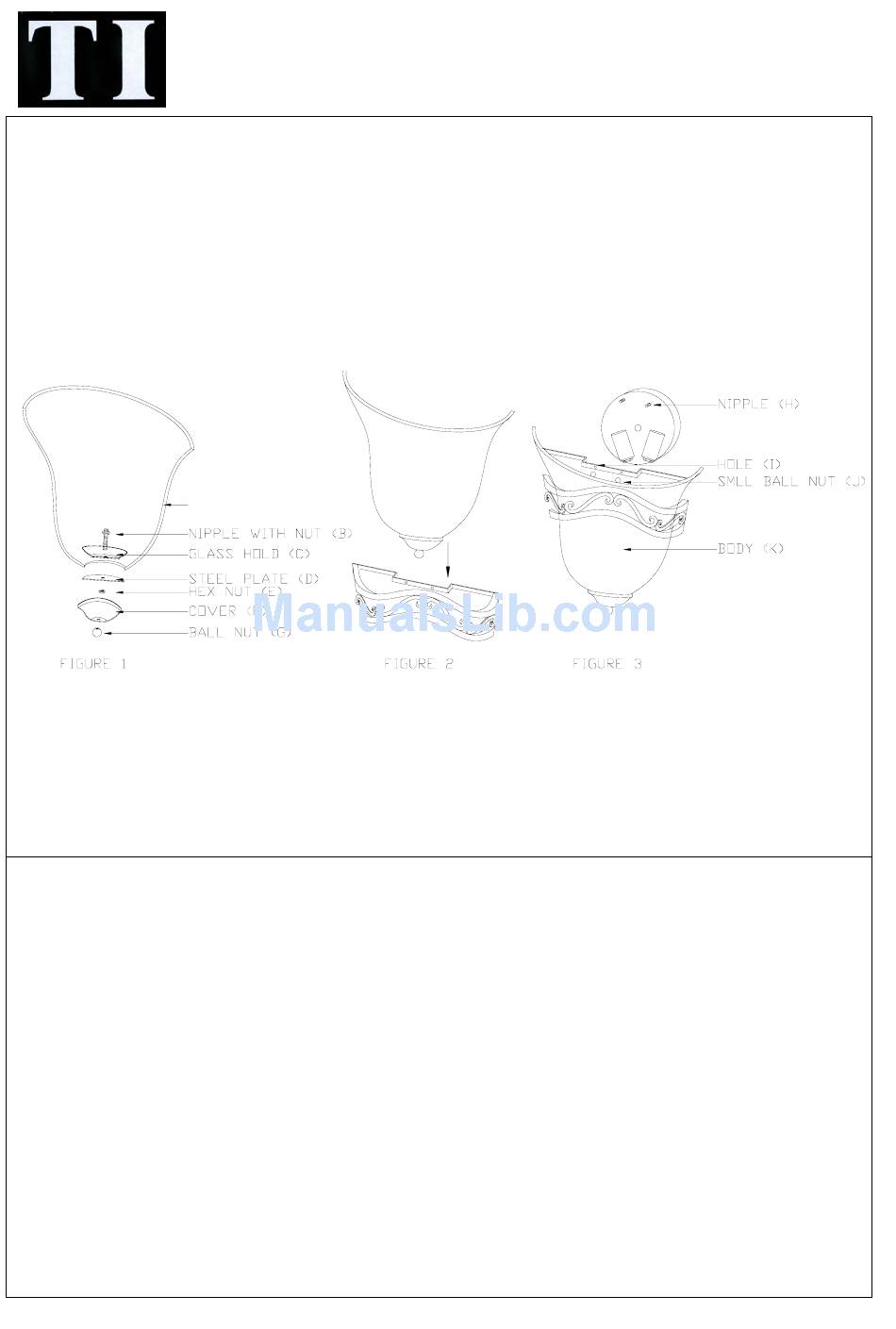

2. Through the NIPPLE WITH NUT (B) to GLASS HOLD (C).Then place the
GLASS HOLD (C) onto the GLASS (A).
3. Place STEEL PLATE (D) onto the GLASS (A). Secured by the HEX NUT (E).
4. Place COVER (F) onto GLASS (A). Then locked by the BALL NUT (G).Please
see the FIGURE 1.
5. Insert the GLASS (A) onto the glass frame! See the FIGURE 2.
6. Place the BODY (K) onto the wall bracket! Make sure the HOLE (I) on the frame
matched the NIPPLE (H) on the wall bracket! Then secured by the SMALL BALL
NUT (J). See FIGURE 3.
7. Follow the wattage label on the socket cover and install correct wattage and type
bulb (no provide) onto the socket.
Assembly Instructions
GLASS (A)
