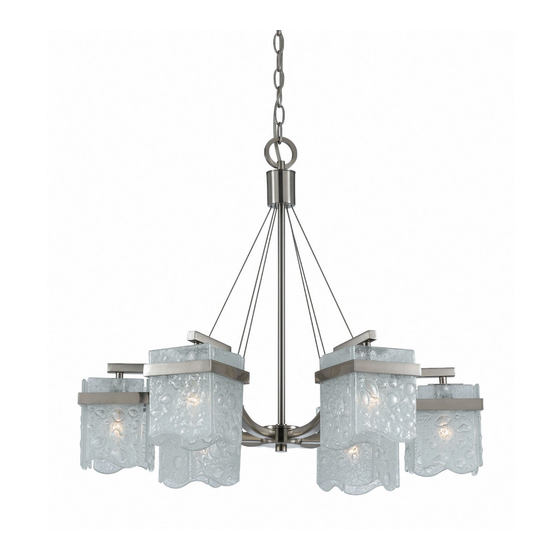

Triarch 31373 Assembly Instructions

Assembly Instructions
ITEM NO: 31378 31373 31374
1. Carefully remove the fixture out of the carton. and check that all parts are included referring to
the above illustration. Make sure not to misplace any parts that are needed for the installation;
2. Connecting the lamp body(2) and arm connector(4) by revolving the centre tube according to show the dir
3. Lock the cable with revolving the Metal part (3) according to show direction on the drawing.
4.Attached the glass(9) to frame(10) with ball screw(7) and washer(8).
5.After finished the step four,and fix them into socket frame with ball screw(5).
6.Insert the socket into the socket frame(11) and fix them with socket ring.
