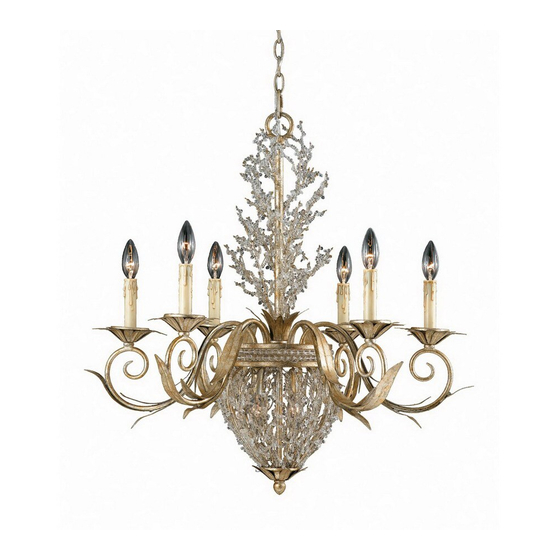

Triarch 29233 Assembly Instructions

1. Before beginning the assembly, carefully unpack and identify all parts referring to the illustration.
2. Turn power to the installation point OFF.
3. Unravel the supply power and ground wires and pass the holes of leaves (a) and tree with loop.
4. Unfold the arm of fixture body to proper position.
5. Thread the top side of stem into the coupling at the bottom of fixture body.
6. Slip cage up against the bottom of fixture body with the stem through it, and secure with hex nut.
7. Locate cap and leaves (b) carefully, place them over the stem and secure with finial.
8. Install proper bulbs (not provided) to each socket referring to the markings and labels on fixture
for maximum wattage.
9. Restore power to the installation point ON. Retain this sheet for future reference.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
ASSEMBLY INSTRUCTIONS FOR 29233
Tree with
loop
Leaves (a)
Stem
Cage
Hex nut
Cap
Leaves (b)
Finial
Fixture body
07.07
