Traulsen UHT27 Owner's Manual
  1. Manuals
  2. Brands
  3. Traulsen Manuals
  4. Refrigerator
  5. UHT27
  6. Owner's manual

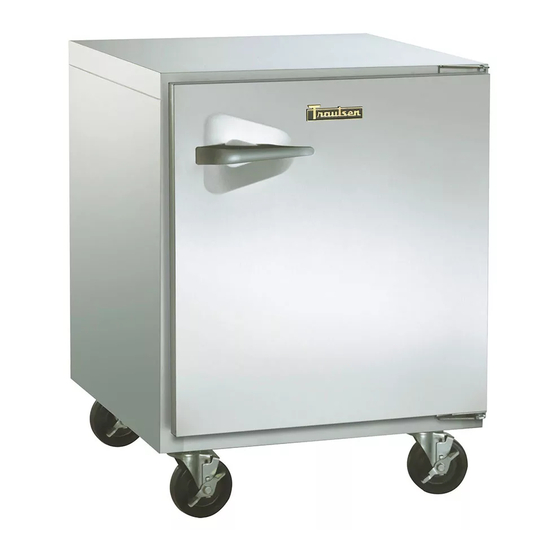

Traulsen UHT27 Owner's Manual

Compact undercounter and prep table
Hide thumbs Also See for UHT27:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Traulsen & Co., Inc.
OWNER'S MANUAL
Instructions for the installation, operation,
and maintenance of all Compact Undercounter
UHT27
UHT48
UHT60
This Traulsen unit is built to our highest quality standards. We build our refrigerators, freezers and heated
cabinets this way as a matter of pride. This philosophy has made Traulsen the leader in commercial refrig-
eration since 1938. We thank you for your choice and confidence in Traulsen equipment and we know you
will receive many years of utility from this equipment.
All Traulsen units are placed on a permanent record file with the service department. In the event of any
future questions you may have, please refer to the model and serial number found on the name tag affixed
to the unit. Should you need service, however, call us on our toll free number, 800-825-8220 between 7:30
am and 4:30 pm CST, Monday thru Friday. It is our pleasure to help and assist you in every possible way.
COMPLETE THE FOLLOWING INFORMATION PRIOR TO UNIT INSTALLATION
INITIAL START DATE:
MODEL TYPE:
COMPANY/INDIVIDUAL NAME:
INSTALLER:
FORM NUMBER TR35746 REV. 5/03
Quality Refrigeration
Quality Refrigeration
and Prep Table Models:
ULT27
UPT276 UPT488
ULT48
UPT279 UPT4812
ULT60
INSTALLER
UPT6012
UPT6018
UPT4818
UPT6024
SERIAL NO.
P/N 375-60179-00
