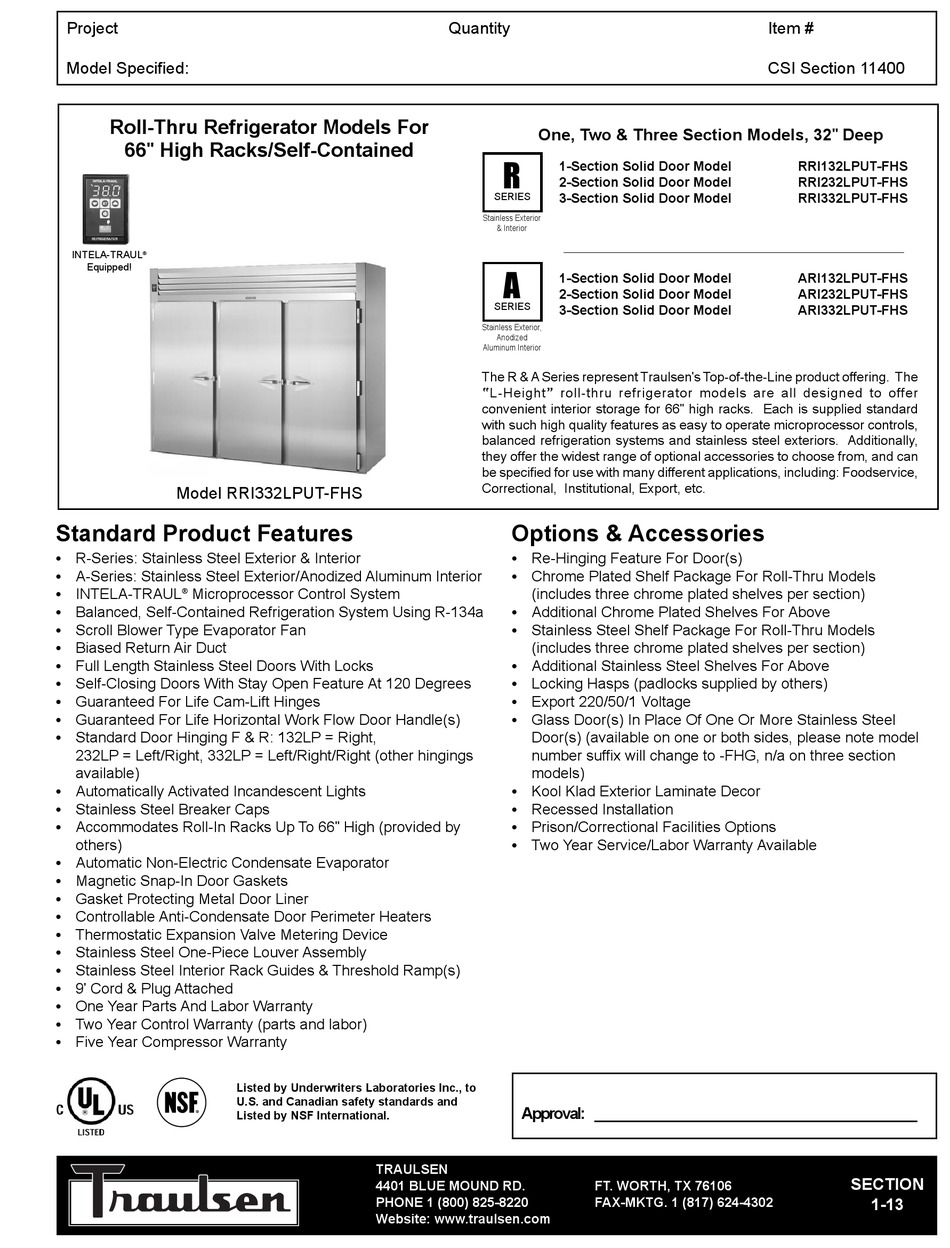

Traulsen RRI332LPUT-FHS Specification Sheet

Traulsen RRI332LPUT-FHS Specification Sheet

Roll-thru refrigerator models for 66" high racks/self-contained

Advertisement

Project
Model Specified:
Roll-Thru Refrigerator Models For
66" High Racks/Self-Contained
INTELA-TRAUL
®
Equipped!

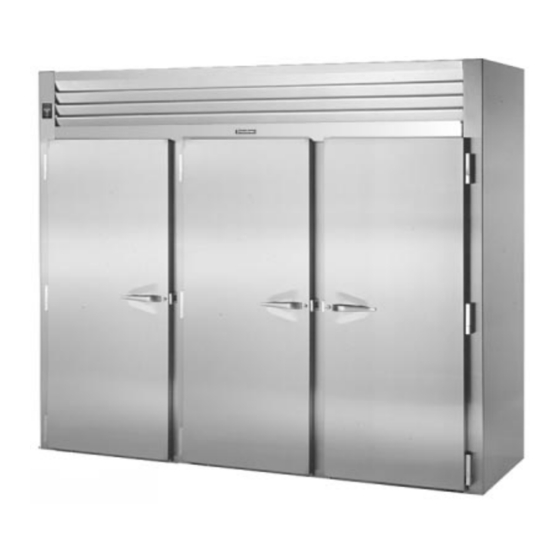

Model RRI332LPUT-FHS

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• INTELA-TRAUL
Microprocessor Control System
®
• Balanced, Self-Contained Refrigeration System Using R-134a
• Scroll Blower Type Evaporator Fan
• Biased Return Air Duct
• Full Length Stainless Steel Doors With Locks
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Guaranteed For Life Cam-Lift Hinges
• Guaranteed For Life Horizontal Work Flow Door Handle(s)
• Standard Door Hinging F & R: 132LP = Right,
232LP = Left/Right, 332LP = Left/Right/Right (other hingings
available)
• Automatically Activated Incandescent Lights
• Stainless Steel Breaker Caps
• Accommodates Roll-In Racks Up To 66" High (provided by
others)
• Automatic Non-Electric Condensate Evaporator
• Magnetic Snap-In Door Gaskets
• Gasket Protecting Metal Door Liner
• Controllable Anti-Condensate Door Perimeter Heaters
• Thermostatic Expansion Valve Metering Device
• Stainless Steel One-Piece Louver Assembly
• Stainless Steel Interior Rack Guides & Threshold Ramp(s)
• 9' Cord & Plug Attached
• One Year Parts And Labor Warranty
• Two Year Control Warranty (parts and labor)
• Five Year Compressor Warranty
Listed by Underwriters Laboratories Inc., to
U.S. and Canadian safety standards and
Listed by NSF International.
TRAULSEN
4401 BLUE MOUND RD.
PHONE 1 (800) 825-8220
Website: www.traulsen.com
Quantity
One, Two & Three Section Models, 32" Deep
1-Section Solid Door Model
R
2-Section Solid Door Model
3-Section Solid Door Model
SERIES
Stainless Exterior
& Interior
1-Section Solid Door Model
A
2-Section Solid Door Model
SERIES
3-Section Solid Door Model
Stainless Exterior,
Anodized
Aluminum Interior
The R & A Series represent Traulsen's Top-of-the-Line product offering. The
"L-Height" roll-thru refrigerator models are all designed to offer
convenient interior storage for 66" high racks. Each is supplied standard
with such high quality features as easy to operate microprocessor controls,
balanced refrigeration systems and stainless steel exteriors. Additionally,
they offer the widest range of optional accessories to choose from, and can
be specified for use with many different applications, including: Foodservice,
Correctional, Institutional, Export, etc.
Options & Accessories
• Re-Hinging Feature For Door(s)
• Chrome Plated Shelf Package For Roll-Thru Models
(includes three chrome plated shelves per section)
• Additional Chrome Plated Shelves For Above
• Stainless Steel Shelf Package For Roll-Thru Models
(includes three chrome plated shelves per section)
• Additional Stainless Steel Shelves For Above
• Locking Hasps (padlocks supplied by others)
• Export 220/50/1 Voltage
• Glass Door(s) In Place Of One Or More Stainless Steel
Door(s) (available on one or both sides, please note model
number suffix will change to -FHG, n/a on three section
models)
• Kool Klad Exterior Laminate Decor
• Recessed Installation
• Prison/Correctional Facilities Options
• Two Year Service/Labor Warranty Available
Approval: ___________________________________
FT. WORTH, TX 76106
FAX-MKTG. 1 (817) 624-4302
Item #
CSI Section 11400
RRI132LPUT-FHS
RRI232LPUT-FHS
RRI332LPUT-FHS
ARI132LPUT-FHS
ARI232LPUT-FHS
ARI332LPUT-FHS
SECTION
1-13
