OWNER'S MANUAL
OWNER'S MANUAL
OWNER'S MANUAL
OWNER'S MANUAL
OWNER'S MANUAL
Instructions for the installation, operation
and maintenance of all Traulsen:

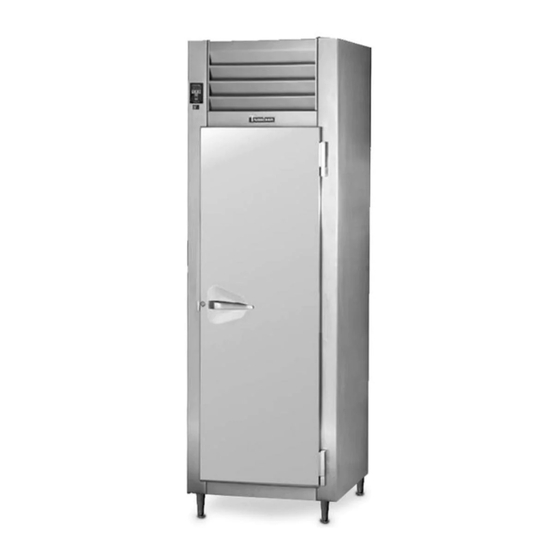

Reach-In Even Thaw Refrigerator Models
RET132EUT-FHS, RET132EUT-HHS, RET232EUT-FHS, RET232EUT-HHS,
*For roll-in even-thaw models please refer to form number TR35867.
This Traulsen unit is built to our highest quality standards. We build our refrigerators, freezers and heated
cabinets this way as a matter of pride. This philosophy has made Traulsen the leader in commercial
refrigeration since 1938. We thank you for your choice and confidence in Traulsen equipment and we know
you will receive many years of utility from this equipment.
All Traulsen units are placed on a permanent record file with the service department. In the event of any
future questions you may have, please refer to the model and serial number found on the name tag affixed
to the unit. Should you need service, however, call us on our toll free number, 800-825-8220 between 7:30
am and 4:30 pm CST, Monday thru Friday. It is our pleasure to help and assist you in every possible way.
COMPLETE THE FOLLOWING INFORMATION PRIOR TO UNIT INSTALLATION
INITIAL START DATE:
MODEL TYPE:
COMPANY/INDIVIDUAL NAME:
INSTALLER:
FORM NUMBER TR35849 REV. 7/05
Quality Refrigeration
Reach-In Models*
RET232NUT-FHS & RET232NUT-HHS
INSTALLER
SERIAL NO.
*
P/N 375-60214-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RET132EUT-FHS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Traulsen RET132EUT-FHS

Summary of Contents for Traulsen RET132EUT-FHS

  • Page 1 All Traulsen units are placed on a permanent record file with the service department. In the event of any future questions you may have, please refer to the model and serial number found on the name tag affixed to the unit.

  • Page 2: Table Of Contents

    The serial tag is a permanently affixed sticker on which is recorded vital electrical and refrigeration data about your Traulsen product, as well as the model and serial number. This tag is located in the upper right interior compartment on all reach-in/pass-thru and roll-in/roll-thru refrigerator, freezer and dual-temp models.

  • Page 3: Ii. Receipt Inspection

    ° (self-closing Please note that Traulsen units are not designed to be moved while on legs. If the unit requires moving, a pallet jack or forklift should be used to prevent dam- age.

  • Page 4: H-Clearance

    III. h - CLEARANCE: In order to assure optimum performance, the condens- ing unit of your Traulsen unit MUST have an adequate supply of air for cooling purposes. Therefore, the oper- ating location must either have a minimum of 12” clear- ance overhead of the condensing unit or allow for unre- stricted air flow at the back of the unit.

  • Page 5: G-Adjusting The Temperature Scale

    V. CARE & MAINTENANCE V. a - CLEANING THE CONDENSER: The most important thing you can do to insure a long, reliable service life for your Traulsen is to regularly clean the condenser coil. The condensing unit requires regularly scheduled clean- ing to keep the finned condenser clean of lint and dust accummulation.

  • Page 6: C-Replacing The Gaskets

    VI. c - WARRANTY REGISTRATION: For your convenience, the warranties on your new Traulsen unit may be registered with us by one of two methods. Completing the enclosed warranty card (shipped with the unit), or by filling out the on-line warranty registration form located on the Technical Service page of our website (www.traulsen.com).

  • Page 7: Gen'l Use, Operation & Service Summary

    VII. GENERAL USE, OPERATION & SERVICE SUMMARY VI. a - INTRODUCTION/OVERVIEW: The Traulsen Even Thaw is designed to be used as a thawing cabinet. While it may be utilized in a refrigeration mode, that is not its intended use. Its...

  • Page 8: Expected Thaw Performance/Operational Troubleshooting

    VIII. b - TEST PARAMETERS: To provide a general performance baseline, Traulsen performed some controlled testing in our lab which may provide the operator with an approximate idea on what to expect from their Even-Thaw unit.

  • Page 9: G-Other Causes Of Extended Thaw Times

    VIII. OPERATIONAL TROUBLESHOOTING (cont’d) VIII. g - OTHER CAUSES OF EXTENDED THAW TIMES (cont’d): evaporator exit air can be short circuited on to the top two or three upper right hand levels and be routed right back to the return evaporator inlet duct. Therefore, those upper shelves could get very cold and perhaps a substantial amount of product on the right side could become very cold and possibly even refreeze (as the evaporator outlet air temperature is 20 degrees F).

  • Page 10: Spare Parts List

    PART NUMBER APPLIES TO MODEL(S) 341-60105-00 RET132EUT-FHS SFO-17357-00 RET232EUT-FHS 341-60060-00 RET232NUT-HHS 341-09501-00 RET232NUT-FHS 325-60003-00 RET132EUT & RET232EUT 325-60003-03 RET232NUT 325-60080-08 RET132EUT 325-60080-07 RET232NUT & RET232EUT 337-60006-00 RET132EUT & RET232NUT 337-60006-02 RET232EUT 378-29776-00 RET132EUT & RET232NUT 378-40414-00 RET232EUT 324-60027-00 All Models 337-60324-00 RET132EUT &...

  • Page 11: Wiring Diagram - All One Section Models

    XI. WIRING DIAGRAM ALL ONE SECTION MODELS ONLY -10-...
  • Page 12 XII. WIRING DIAGRAM MODELS RET232NUT-FHS & RET232NUT-HHS ONLY -11-...
  • Page 13 XIII. WIRING DIAGRAM MODELS RET232EUT-FHS & RET232EUT-HHS ONLY -12-...

  • Page 14: Warranty Information

    TRAULSEN’S standard warranty does not apply to Export Sales. Rather, for a period of one (1) year from date of original installation not to exceed Fifteen (15) months from date of shipment from factory, TRAULSEN: will replace, F.O.B.

  • Page 15: Xv. Index

    Batch Loading Blower Switch Call Service Light Cleaning 5 - 6 Casters Cord & Plug Clearance Condenser, Cleaning The Even-Thaw Operation Evaporator Outlet Extended Thaw Times, Causes Of Fan Switch Gasket Assembly Gaskets, Replacing The Heaters Hinge, Replacement Inside Door Pan Interior Arrangements LED Lights Legs...

  • Page 16: Hours Of Operation

    HOURS OF OPERATION: Monday thru Friday 7:30 am - 4:30 pm CST Quality Refrigeration Traulsen 4401 Blue Mound Road Fort Worth, TX 76106 Phone: (800) 825-8220 Fax-Svce: (817) 740-6757 Website: www.traulsen.com © 2005 Traulsen - All Rights Reserved...
