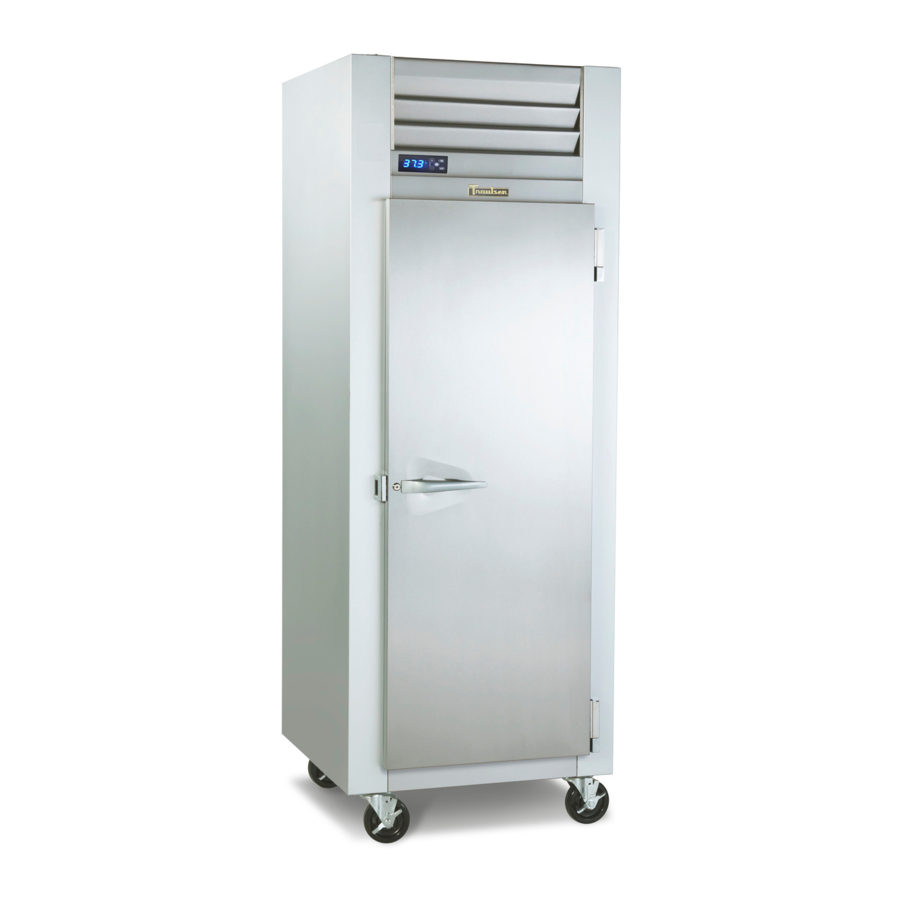

Traulsen G-Series Owner's Manual

Convertible freezer
Hide thumbs Also See for G-Series:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Traulsen & Co., Inc.
OWNER'S MANUAL
Instructions for the installation, operation
and maintenance of all Traulsen:
R & A Series Convertible Freezer Models
This Traulsen unit is built to our highest quality standards. We build our refrigerators, freezers and heated
cabinets this way as a matter of pride. This philosophy has made Traulsen the leader in commercial refrig-
eration since 1938. We thank you for your choice and confidence in Traulsen equipment and we know you
will receive many years of utility from this equipment.
All Traulsen units are placed on a permanent record file with the service department. In the event of any
future questions you may have, please refer to the model and serial number found on the name tag affixed
to the unit. Should you need service, however, call us on our toll free number, 800-825-8220 between 7:30
am and 4:30 pm CST, Monday thru Friday. It is our pleasure to help and assist you in every possible way.
COMPLETE THE FOLLOWING INFORMATION PRIOR TO UNIT INSTALLATION
INITIAL START DATE:
MODEL TYPE:
COMPANY/INDIVIDUAL NAME:
INSTALLER:
FORM NUMBER TR35851 REV. 4/03
Quality Refrigeration
INSTALLER
SERIAL NO.
P/N 375-60216-00

Advertisement

Table of Contents
loading

Related Manuals for Traulsen G-Series

Summary of Contents for Traulsen G-Series

  • Page 1 All Traulsen units are placed on a permanent record file with the service department. In the event of any future questions you may have, please refer to the model and serial number found on the name tag affixed to the unit.

  • Page 2: Table Of Contents

    The serial tag is a permanently affixed sticker on which is recorded vital electrical and refrigeration data about your Traulsen product, as well as the model and serial number. This tag is located in the upper right interior compartment on all reach-in/pass-thru and roll-in/roll-thru refrigerator, freezer and dual-temp models.

  • Page 3: Receipt Inspection

    ° (self-closing Please note that Traulsen units are not designed to be moved while on legs. If the unit requires moving, a pallet jack or forklift should be used to prevent dam- age.

  • Page 4: E-Cord & Plug

    III. h - CLEARANCE: In order to assure optimum performance, the condens- ing unit of your Traulsen unit MUST have an adequate supply of air for cooling purposes. Therefore, the operating location must either have a minimum of 12”...

  • Page 5: Care & Maintenance

    DISCONNECT ELECTRICAL POWER SUPPLY BEFORE CLEANING ANY PARTS OF THE UNIT. V. a - CLEANING THE CONDENSER: The most important thing you can do to insure a long, reliable service life for your Traulsen is to regularly clean the condenser coil. The condensing unit requires regularly scheduled cleaning to keep the finned condenser clean of lint and dust accummulation.

  • Page 6: D-Cleaning The Exterior

    VII. MICROPROCESSOR CONTROL Your new Traulsen R or A Series Convertible Refrigerator or Freezer is equipped with an electronic microprocessor control, which precisely regulates opera- tion. It is supplied from the factory completely ready for use. See pages 5 thru 14 for more information.

  • Page 7: B-Control Panel

    TRANSFORMER/RS485 ° ° FREEZER CABINET SENSOR* 337-60069-00 EVAP COIL CABINET AIR ° LED For HOLDER CLIP* 377-60038-00 TRAULSEN VERTICAL CONTROLLER** 337-60064-00 INCLUDES ALL SHOWN HOLDER CLIP *= Can be ordered separately **=Requires unit Model No. & S/N to place order.

  • Page 8: D-Notes To The User

    VII. MICROPROCESSOR CONTROL (continued) VII. d - NOTES TO THE USER: You only have 20-30 seconds between button pushes. If you take longer than 30 seconds, the controller will revert back to displaying the cabinet temperature.If you enter the wrong security code, the controller will revert back to displaying the cabinet temperature.

  • Page 9: F-Customer Service Parameters

    VII. MICROPROCESSOR CONTROL (continued) VII. f - CUSTOMER SERVICE PARAMETERS: Listed below are the available parameters in the order they appear, using the down arrow key on the controller. You can use either the up or down arrow keys to scroll through the options. Thermostat Set Point High* Thermostat Set Point Low Temperature Scale...

  • Page 10: H-Adjusting Thermostat Set Point Low

    VII. MICROPROCESSOR CONTROL (continued) VII. h - ADJUSTING THE THERMOSTAT SET POINT LOW: This parameter sets the low point of the desired cabinet temperature range. Typically, freezers will range from -6° F to -4° F (-21° C to -20° C) and refrigerators will range from 32° F to 34° F ( 0° C to 1° C) for this parameter setting.

  • Page 11: J-Setting The 24-Hour Clock

    VII. MICROPROCESSOR CONTROL (continued) VII. j - SETTING THE 24-HOUR CLOCK: The internal timeclock must be set in order for the data storage memory to correctly log events and to allow any defrost lock out to occur at the correct time of day. If the clock is not set, the control assumes the time is 12 a.m.

  • Page 12: K-Setting The Date

    VII. MICROPROCESSOR CONTROL (continued) VII. k - SETTING THE DATE: The date must be set in order for the data storage memory to correctly log events. Follow the instruc- tions to enter the customer access code on page 7. When the control displays Set Point High, press the down arrow key the set button .

  • Page 13: M-Starting A Manual Defrost

    FREEZER NOTE: Traulsen refrigerator units also have an off-cycle defrost once an hour, at which time the control will read . This defrost is temperature terminated and can last from 3 - 10 minutes (dEF will be displayed for 22-27 minutes).

  • Page 14: N-Setting Defrost Lockouts

    VII. MICROPROCESSOR CONTROL (continued) VII. n - SETTING THE DEFROST LOCKOUTS: The defrost lockout parameters allow the customer to prevent the unit from going into a defrost cycle for two hours during a set timeframe. Customers can set up to four defrost lockout parameters. They are all programmed the same way.

  • Page 15: O-Adjusting The Room Temperature Offset

    VII. MICROPROCESSOR CONTROL (continued) VII. o - ADJUSTING THE ROOM TEMPERATURE OFFSET: The room temperature offset parameter allows a service technician or end user the ability to have the display show a temperature that is within three degrees of the actual temperature being read by the cabinet air sensor.

  • Page 16: Trouble Shooting Guide

    VIII. TROUBLE SHOOTING GUIDE FIND YOUR PROBLEM HERE 1. Condensing unit fails to start. 2. Condensing unit operates for prolonged periods or continuously. 3. Food compartment is too warm. 4. Food compartment is too cold. 5. Condensation on the exterior surface. 6.

  • Page 17: Warranty Information

    “Defective Part Return” – All claimed defective part(s) must be returned to TRAULSEN for defect validation within 30 days from the date of the repair. Failure to return all claimed defective part(s) to TRAULSEN will invalidate the war- ranty claim, this warranty statement, and forfeit payment for those repairs effected.

  • Page 18: Other

    @ www.traulsen.com. X. c - WARRANTY REGISTRATION: For your convenience, the warranties on your new Traulsen unit may be registered with us by one of two methods. Completing the enclosed warranty card (shipped with the unit). XI. PARTS LIST...

  • Page 19: Index

    Cleaning 4, 5 Casters Cord & Plug Clearance Conversion Key Switch Customer Access Code Customer Service Parameters Daylight Savings Time Defrost Defrost Lockouts Data Storage Gaskets Hinge Internal Time Clock Legs Louver Assembly Manual Defrost Cycle Power Supply XII. INDEX Return Authorization Room Temperature Offset Serial Tag...
  • Page 20 HOURS OF OPERATION: Monday thru Friday 7:30 am - 4:30 pm CST Quality Refrigeration Traulsen 4401 Blue Mound Road Fort Worth, TX 76106 Phone: (800) 825-8220 Fax-Svce: (817) 740-6757 Website: www.traulsen.com...
