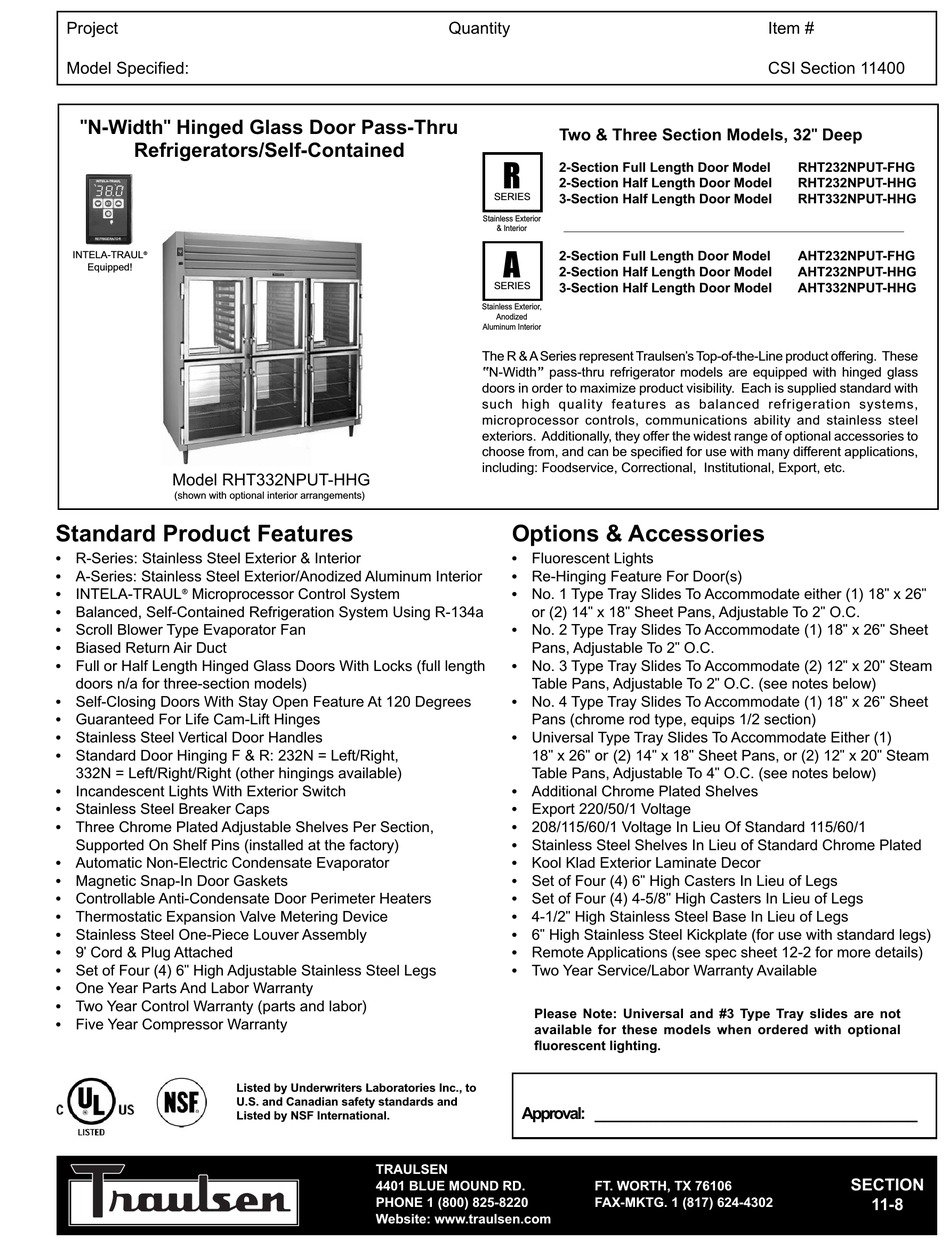

Traulsen AHT232NPUT-FHG Specification Sheet

Project
Model Specified:
"N-Width" Hinged Glass Door Pass-Thru
Refrigerators/Self-Contained
®
INTELA-TRAUL
Equipped!

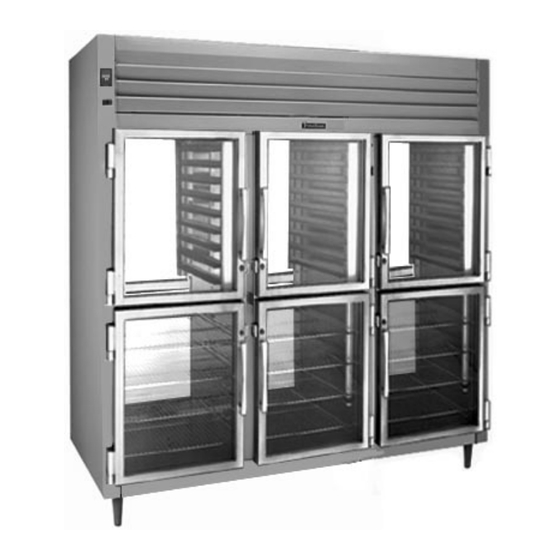

Model RHT332NPUT-HHG
(shown with optional interior arrangements)
Standard Product Features
• R-Series: Stainless Steel Exterior & Interior
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• INTELA-TRAUL ® Microprocessor Control System
• Balanced, Self-Contained Refrigeration System Using R-134a
• Scroll Blower Type Evaporator Fan
• Biased Return Air Duct
• Full or Half Length Hinged Glass Doors With Locks (full length
doors n/a for three-section models)
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Guaranteed For Life Cam-Lift Hinges
• Stainless Steel Vertical Door Handles
• Standard Door Hinging F & R: 232N = Left/Right,
332N = Left/Right/Right (other hingings available)
• Incandescent Lights With Exterior Switch
• Stainless Steel Breaker Caps
• Three Chrome Plated Adjustable Shelves Per Section,
Supported On Shelf Pins (installed at the factory)
• Automatic Non-Electric Condensate Evaporator
• Magnetic Snap-In Door Gaskets
• Controllable Anti-Condensate Door Perimeter Heaters
• Thermostatic Expansion Valve Metering Device
• Stainless Steel One-Piece Louver Assembly
• 9' Cord & Plug Attached
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• One Year Parts And Labor Warranty
• Two Year Control Warranty (parts and labor)
• Five Year Compressor Warranty
Listed by Underwriters Laboratories Inc., to
U.S. and Canadian safety standards and
Listed by NSF International.
TRAULSEN
4401 BLUE MOUND RD.
PHONE 1 (800) 825-8220
Website: www.traulsen.com
Quantity
Two & Three Section Models, 32" Deep
2-Section Full Length Door Model
R
2-Section Half Length Door Model
SERIES
3-Section Half Length Door Model
Stainless Exterior
& Interior
2-Section Full Length Door Model
A
2-Section Half Length Door Model
SERIES
3-Section Half Length Door Model
Stainless Exterior,
Anodized
Aluminum Interior
The R & A Series represent Traulsen's Top-of-the-Line product offering. These
"N-Width" pass-thru refrigerator models are equipped with hinged glass
doors in order to maximize product visibility. Each is supplied standard with
such high quality features as balanced refrigeration systems,
microprocessor controls, communications ability and stainless steel
exteriors. Additionally, they offer the widest range of optional accessories to
choose from, and can be specified for use with many different applications,
including: Foodservice, Correctional, Institutional, Export, etc.
Options & Accessories
• Fluorescent Lights
• Re-Hinging Feature For Door(s)
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"
or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.
• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam
Table Pans, Adjustable To 2" O.C. (see notes below)
• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans (chrome rod type, equips 1/2 section)
• Universal Type Tray Slides To Accommodate Either (1)
18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam
Table Pans, Adjustable To 4" O.C. (see notes below)
• Additional Chrome Plated Shelves
• Export 220/50/1 Voltage
• 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
• Stainless Steel Shelves In Lieu of Standard Chrome Plated
• Kool Klad Exterior Laminate Decor
• Set of Four (4) 6" High Casters In Lieu of Legs
• Set of Four (4) 4-5/8" High Casters In Lieu of Legs
• 4-1/2" High Stainless Steel Base In Lieu of Legs
• 6" High Stainless Steel Kickplate (for use with standard legs)
• Remote Applications (see spec sheet 12-2 for more details)
• Two Year Service/Labor Warranty Available
Please Note: Universal and #3 Type Tray slides are not
available for these models when ordered with optional
fluorescent lighting.
Approval: ___________________________________
FT. WORTH, TX 76106
FAX-MKTG. 1 (817) 624-4302
Item #
CSI Section 11400
RHT232NPUT-FHG
RHT232NPUT-HHG
RHT332NPUT-HHG
AHT232NPUT-FHG
AHT232NPUT-HHG
AHT332NPUT-HHG
SECTION
11-8
