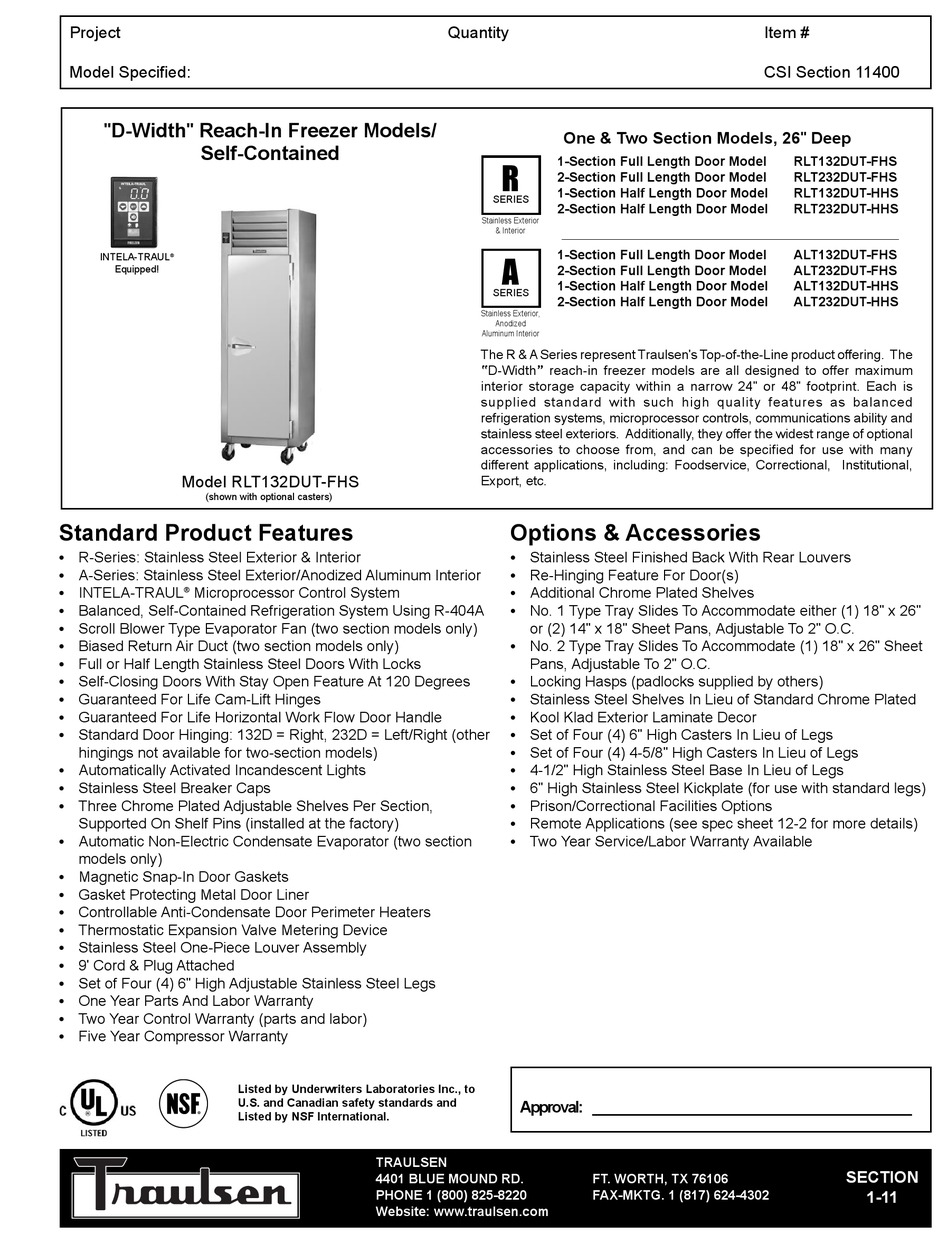

Traulsen A Series ALT132DUT-FHS Specification Sheet

Project
Model Specified:
"D-Width" Reach-In Freezer Models/
Self-Contained
INTELA-TRAUL
®
Equipped!
Model RLT132DUT-FHS
(shown with optional casters)
Standard Product Features
• R-Series: Stainless Steel Exterior & Interior
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• INTELA-TRAUL Microprocessor Control System
®
• Balanced, Self-Contained Refrigeration System Using R-404A
• Scroll Blower Type Evaporator Fan (two section models only)
• Biased Return Air Duct (two section models only)
• Full or Half Length Stainless Steel Doors With Locks
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Guaranteed For Life Cam-Lift Hinges
• Guaranteed For Life Horizontal Work Flow Door Handle
• Standard Door Hinging: 132D = Right, 232D = Left/Right (other
hingings not available for two-section models)
• Automatically Activated Incandescent Lights
• Stainless Steel Breaker Caps
• Three Chrome Plated Adjustable Shelves Per Section,
Supported On Shelf Pins (installed at the factory)
• Automatic Non-Electric Condensate Evaporator (two section
models only)
• Magnetic Snap-In Door Gaskets
• Gasket Protecting Metal Door Liner
• Controllable Anti-Condensate Door Perimeter Heaters
• Thermostatic Expansion Valve Metering Device
• Stainless Steel One-Piece Louver Assembly
• 9' Cord & Plug Attached
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• One Year Parts And Labor Warranty
• Two Year Control Warranty (parts and labor)
• Five Year Compressor Warranty
Listed by Underwriters Laboratories Inc., to
U.S. and Canadian safety standards and
Listed by NSF International.
TRAULSEN
4401 BLUE MOUND RD.
PHONE 1 (800) 825-8220
Website: www.traulsen.com
Quantity
One & Two Section Models, 26" Deep
1-Section Full Length Door Model
R
2-Section Full Length Door Model
1-Section Half Length Door Model
SERIES
2-Section Half Length Door Model
Stainless Exterior
& Interior
1-Section Full Length Door Model
A
2-Section Full Length Door Model
1-Section Half Length Door Model
SERIES
2-Section Half Length Door Model
Stainless Exterior,
Anodized
Aluminum Interior
The R & A Series represent Traulsen's Top-of-the-Line product offering. The
"D-Width" reach-in freezer models are all designed to offer maximum
interior storage capacity within a narrow 24" or 48" footprint. Each is
supplied standard with such high quality features as balanced
refrigeration systems, microprocessor controls, communications ability and
stainless steel exteriors. Additionally, they offer the widest range of optional
accessories to choose from, and can be specified for use with many
different applications, including: Foodservice, Correctional, Institutional,
Export, etc.
Options & Accessories
• Stainless Steel Finished Back With Rear Louvers
• Re-Hinging Feature For Door(s)
• Additional Chrome Plated Shelves
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"
or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.
• Locking Hasps (padlocks supplied by others)
• Stainless Steel Shelves In Lieu of Standard Chrome Plated
• Kool Klad Exterior Laminate Decor
• Set of Four (4) 6" High Casters In Lieu of Legs
• Set of Four (4) 4-5/8" High Casters In Lieu of Legs
• 4-1/2" High Stainless Steel Base In Lieu of Legs
• 6" High Stainless Steel Kickplate (for use with standard legs)
• Prison/Correctional Facilities Options
• Remote Applications (see spec sheet 12-2 for more details)
• Two Year Service/Labor Warranty Available
Approval: ___________________________________
FT. WORTH, TX 76106
FAX-MKTG. 1 (817) 624-4302
Item #
CSI Section 11400
RLT132DUT-FHS
RLT232DUT-FHS
RLT132DUT-HHS
RLT232DUT-HHS
ALT132DUT-FHS
ALT232DUT-FHS
ALT132DUT-HHS
ALT232DUT-HHS
SECTION
1-11
