The Transition Networks CPSFM-200 fan module is a slide-in-module that provides
optional additional cooling to the CPSMC18xx-xxx (18-slot) and the CPSMC19xx-
100 (19-slot) PointSystem™ chassis and any installed media converter slide-in-
modules and management modules.
The CPSFM-200 may be installed in either the AC-powered or the DC-powered,
18-slot or 19-slot, PointSystem™ chassis. The drawing below shows the CPSFM-
200 installed in the back of a AC-powered PointSystem™ chassis.
AC-Powered PointSystem Chassis
NOTE: The CPSFM-200 fan module is required in PointSystem™ applications
where the ambient temperatures approach 60°C.

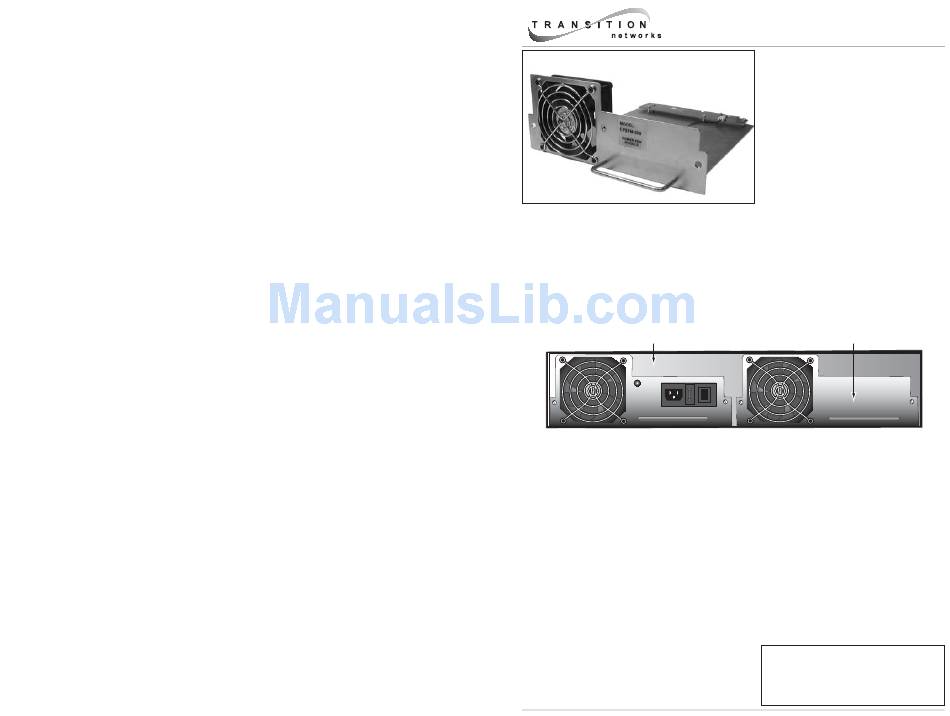

USER'S GUIDE
CPSFM-200
Fan Module
• PointSystem™
• CPSMC18xx-xxx Accessory
• CPSMC19xx-100 Accessory
CPSFM-200 Fan Module
I
0
Installation . . . . . . . . . . . . . . . .2
Technical Specifications . . . . . .3
Contact Us . . . . . . . . . . . . . . . .3
Compliance Information . . . . . .4
