Transcend TS4/8GUSDHC6-P3 Specifications

T S 4 / 8 G U S
T S 4 / 8 G U S
T S 4 / 8 G U S
Description
Transcend High Capacity microSD Card series are
specifically designed to meet the High Capacity, High
Definition Audio and Video requirement for the latest
Digital Cameras, DV Recorders, Mobile Phones, etc.
The new defined Speed Class enables the host to
support AV applications to perform real time
recording to the microSD memory card.

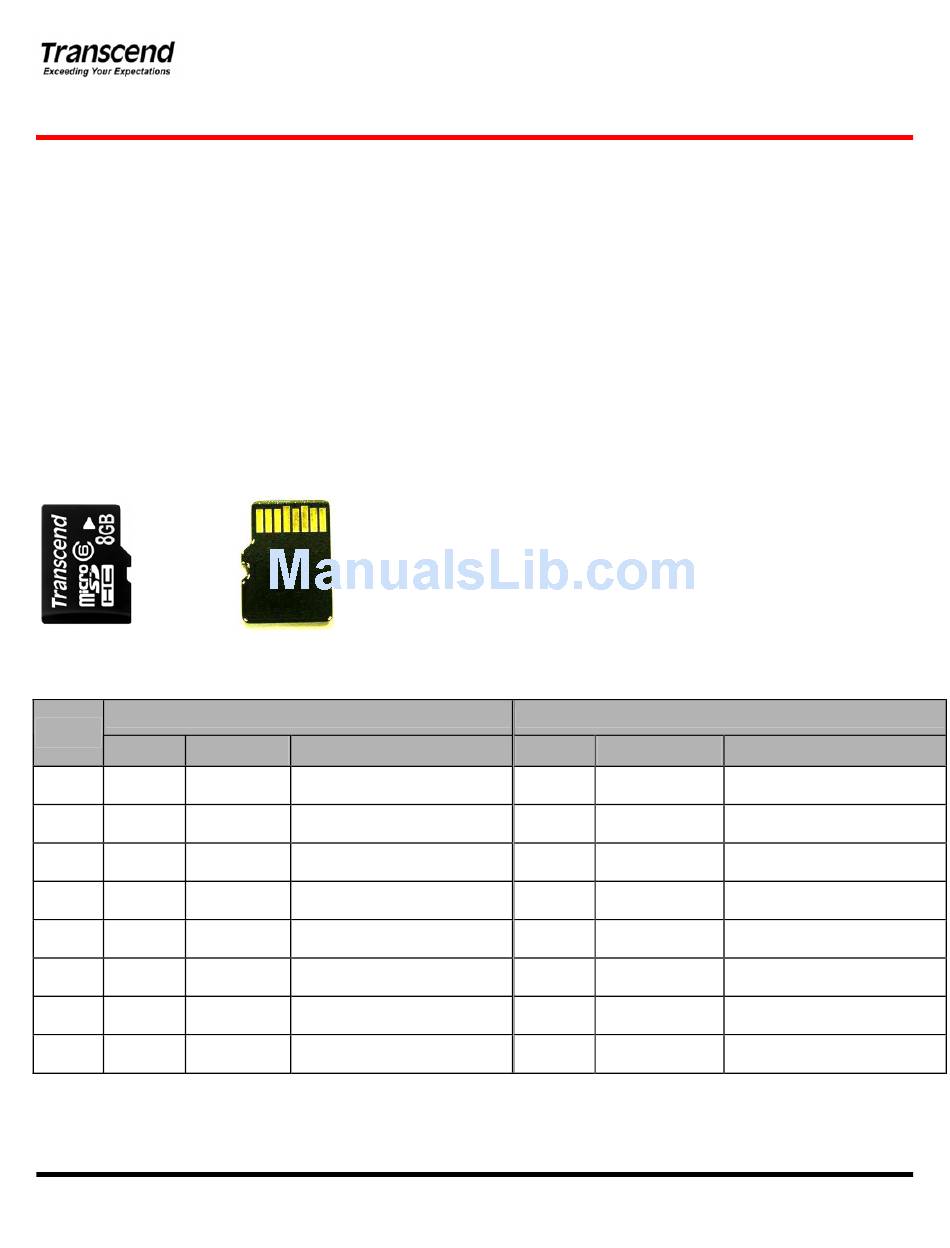

Placement
Front
Pin Definition
Pin No.
Name
1
DAT2 I/O/PP
2
CD/DAT3 I/O/PP
3
CMD PP
4
V S
DD
5
CLK I
6
V S
SS
7
DAT0 I/O/PP
8
DAT1 I/O/PP
Transcend Information Inc.
D H C 6 - P 3
D H C 6 - P 3
D H C 6 - P 3
1 2 3 4 5 6 7 8
Back
SD Mode
Type Description
Data Line [Bit2]
Card Detect / Data Line [Bit3]
Command / Response
Supply voltage
Clock
Supply voltage ground
Data Line [Bit0]
Data Line [Bit1]
S: Power Supply; I:Input; O:Output; PP:Push-Pull
4/8GB microSDHC Class 6 Card + Reader P3
Features
•
RoHS compliant product.
• Operating Voltage: 2.7 ~ 3.6V
• Operating Temperature: -25 ~ 85°C
• Durability: 10,000 insertion/removal cycles
• Compatible with SD Specification Ver. 2.0
• Comply with SD File System Specification Ver. 2.0
• Mechanical Write Protection Switch with microSD adapter
• Supports Speed Class Specification Class 6
• Supports Copy Protection for Recorded Media (CPRM)
for SD-Audio
• Seamless compatibility with SDMI-compliant digital audio
devices
• Form Factor: 11mm x 15mm x 1mm
Name Type
RSV
CS I
DI I
S
V
DD
SCLK I
V S
SS
DO O/PP
RSV
1
SPI Mode
Description
Reserved
Chip Select
Data In
Supply voltage
Clock
Supply voltage ground
Data out
Reserved
