Gima 25583 Manual

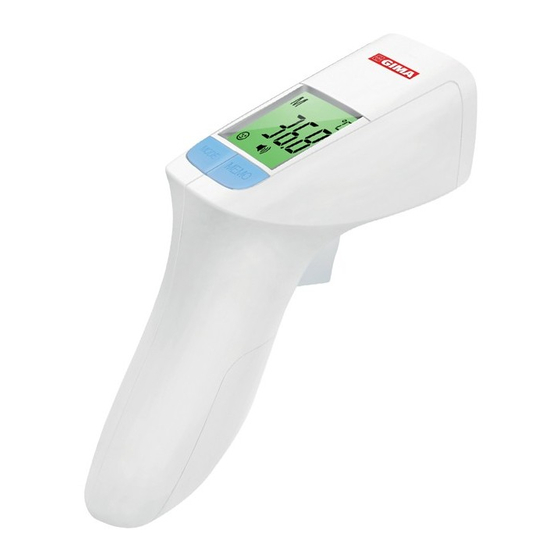

Infrared non contact thermometer
Hide thumbs Also See for 25583:
Table of Contents

Advertisement

Quick Links

Download this manual
PROFESSIONAL MEDICAL PRODUCTS
TERMOMENTRO A DISTANZA A INFRAROSSI
INFRARED NON CONTACT THERMOMETER
THERMOMÈTRE À INFRAROUGES
SANS CONTACT
TERMÓMETRO INFRARROJO
SIN CONTACTO
25583 / HTD8816C
Hetaida Technology Co., Ltd.
4F, BaiShiDa High-Tech Park, XiangDong
Industrial Area, DaLingShan Town, DongGuan City,
Guangdong, China
Made in China
WellKang Ltd,
16 Castle St, Dover, CT16 1PW Dover,
CT16 1PW, UK
Importato da / Imported by / Importé de / Importado de:
Gima S.p.A.
Via Marconi, 1
20060 Gessate (MI) Italy
0598
IP22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25583 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gima 25583

Summary of Contents for Gima 25583

  • Page 1 TERMOMENTRO A DISTANZA A INFRAROSSI INFRARED NON CONTACT THERMOMETER THERMOMÈTRE À INFRAROUGES SANS CONTACT TERMÓMETRO INFRARROJO SIN CONTACTO 25583 / HTD8816C Hetaida Technology Co., Ltd. 4F, BaiShiDa High-Tech Park, XiangDong Industrial Area, DaLingShan Town, DongGuan City, Guangdong, China Made in China...

  • Page 2: Safety Information

    ENGLISH Safety Information This device may only be used for the purposes described in these instructions. The manufacturer cannot be held liable for damage caused by incorrect application. The non contact infrared body thermometer is designed to minimize the possibility of hazards from errors in the software program by following sound and light engineering design processes, Risk Analysis and Software Validation.
  • Page 3 ENGLISH perspiration, cap or scarf. • The measuring result of this product is only for your reference. If you have any doubt, please measure the temperature in other methods. - The device should be kept out of the reach of children/pets. When not in use, store the device in a dry room and protect it against extreme moisture, heat, lint, dust and direct sunlight.
  • Page 4 ENGLISH value and display it on the LCD. • Description on Controls and Indicators. 1. IR sensor 9. Data indicator 2. Liquid crystal display(LCD) 10. Indicator of measurement result 3. MODE button 11. Low Battery indicator 4. Memo button 12. Voice on/off indicator 5.
  • Page 5 ENGLISH Technical Specifications Measurement Unit ℃/℉ Operating mode Adjusted mode (Body mode) Direct mode (surface mode) Reference Body Site Axillary Rated output range Body mode: 34.0℃~43.0℃ / 93.2°F -109.4°F Surface mode: 0℃~100℃ / 32℉~212℉ Output Range Body mode: 34.0℃~43.0℃/ 93.2°F -109.4°F Surface mode: 0℃~100.0℃/ 32°F -212°F Laboratory Accuracy Body mode:...
  • Page 6 ENGLISH Environmental Operating Condition Operating Temperature: 15℃~40℃ (59°F ~104°F), Relative Humidity ≤85%, atmospheric pressure:70 Kpa -106 Kpa Transport and Storage Storage Temperature:-20°C -55°C / Condition (-4°F - 131°F), Relative Humidity ≤93%, Atmospheric pressure:70 Kpa -106 Kpa Dimension and Weighting Weight (without batteries) Size L:122mm X W:96mm X H:42mm Compliance...

  • Page 7: Operation

    ENGLISH 2. Operation 2.1 Battery installation Caution: The Non Contact Infrared Body Thermometer does not operate with dead batteries and does not input outer power. Install new batteries. 1. Pull the battery downward, toward the bottom of the Non Contact Infrared Body Thermometer, and remove the battery access door;...
  • Page 8 ENGLISH • You cannot use the thermometer in place where the sun is strong. • If for some reason the low forehead temperature measurement can try to align behind the ears. See figure 3. Figure 3- Align behind the ears to measurement General Setup and Use Start measuring...
  • Page 9 ENGLISH As below step: 1. In the boot or shutdown state, short press the MEMO button to view the history of measured values. 2. An empty memory cell shows “---℃” or “---℉”. 3. Temperature readings can be stored in memory. Up to 50 temperature readings can be stored into the memory cells and automatically overwrite historical data.

  • Page 10: Troubleshooting

    ENGLISH 3. Troubleshooting MESSAGE SITUATION SOLUTION Temperature taken in not within Make sure the forehead Typical human temperature thermometer is for forehead range. measurement, not other human (34.0~43.0℃ or body site. 93.2℉~109.4℉). Measured over the distance 1-5 Optimum measurement distance cm (0.4-2in).

  • Page 11: Replacing The Battery

    ENGLISH 1) Power is off. 1) Press ON button again. 2) Improper battery installation. 2) Check the battery polarity. 3) The battery is exhausted. 3) Replace with a new battery. 4) Display remains blank. 4) Contact the retailer or service center.
  • Page 12 ENGLISH temperature, allow the thermometer to remain in a room for 30 minutes where the temperature is between 15℃ to 40℃. EMC Declaration 1. This equipment needs to be installed and put into service in accordance with the information provided in the ACCOMPANYING DOCUMENTS; This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment.
  • Page 13 ENGLISH Guidance and manufacture’s declaration – electromagnetic immunity The Non Contact Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of Non Contact Infrared Body Ther- mometer should assure that it is used in such an environment. Immunity test IEC 60601 test Compliance...
  • Page 14 ENGLISH Guidance and manufacture’s declaration – electromagnetic immunity The Non Contact Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user ofthe Non Contact Infrared Body Thermometer should assure that it is used in such an environment. Immunity test IEC 60601 test Compliance...
  • Page 15 ENGLISH a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be consid- ered.
  • Page 16 Disposal: The product must not be disposed of along with other domestic waste. The users must dispose of this equipment by bringing it to a specific recycling point for electric and electronic equipment. GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies.
