Description
Transcend High Capacity miniSD Card series are
specifically designed to meet the High Capacity, High
Definition Audio and Video requirement for the latest
Digital Cameras, DV Recorders, Mobile Phones, etc,.
The new defined Speed Class enables the host to
support AV applications to perform real time
recording to the miniSD memory card.

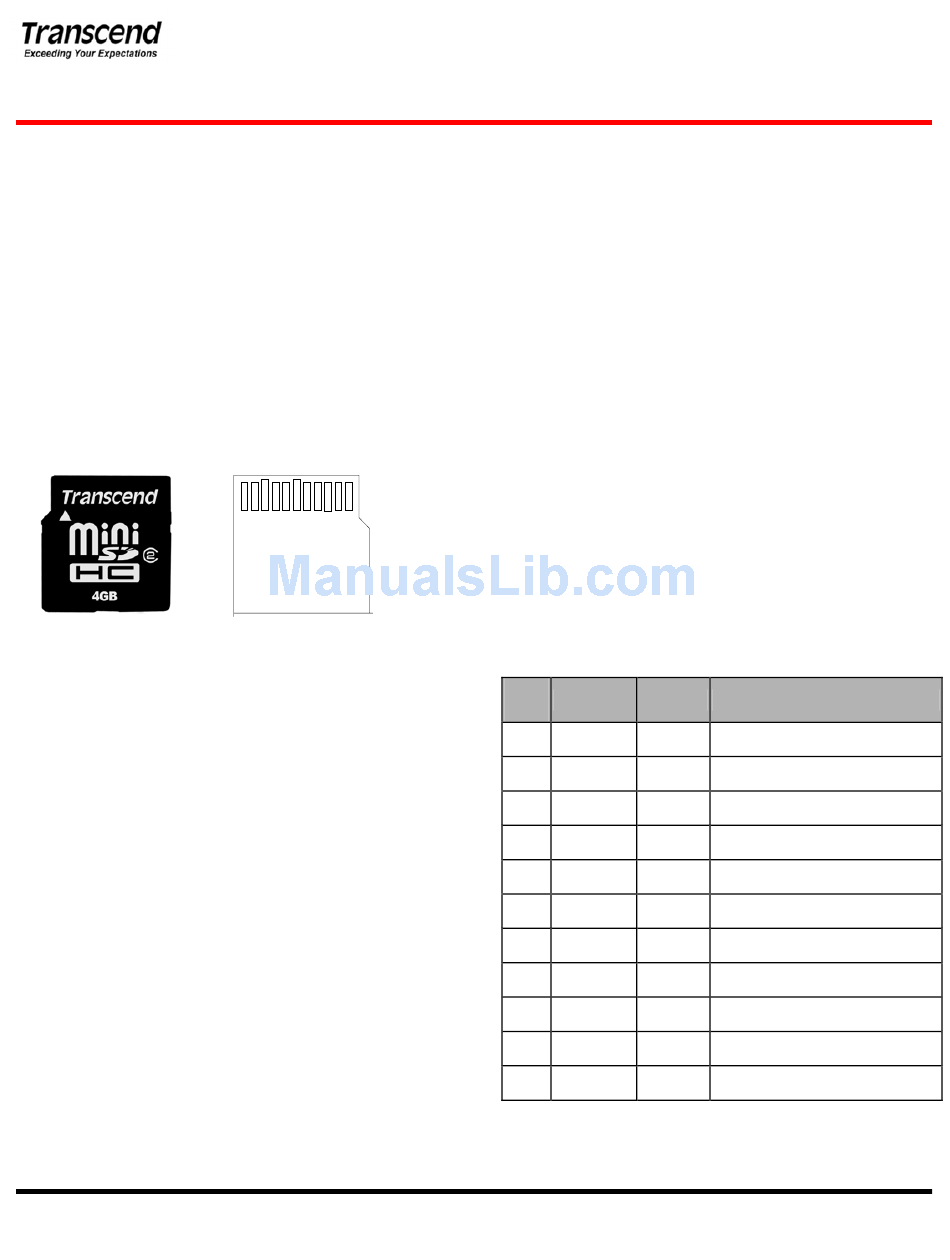

Placement
Front
Transcend Information Inc.
C
a
r
d
s
e
r
i
e
s
C
a
r
d
s
e
r
i
e
s
C
a
r
d
s
e
r
i
e
s
9
1
2
3 10 11
4
5
6
7
8
Back
4GB High Capacity miniSD Card
Features
• ROHS compliant product.
• Card Lid material: PC (comply with UL94,Flame
Class:HB)
• Operating Voltage: 2.7 ~ 3.6V
• Operating Temperature: -25 ~ 85°C
• Durability: 10,000 insertion/removal cycles
• Compatible with SD Specification Ver. 2.0
• Comply with SD File System Specification Ver. 2.0
• Mechanical Write Protection Switch
• Supports Speed Class Specification Class 2
• Supports Copy Protection for Recorded Media(CPRM) for
SD-Audio
• Seamless compatibility with SDMI-compliant digital audio
devices
• Form Factor: 21.5mm x 20mm x 1.4mm
Pin
Name
No.
1
CD/DAT3 I/O/PP
2
CMD
3
V
SS1
4
V
DD
5
CLK
6
V
SS2
7
DAT0
8
DAT1
9
DAT2
10
4
NC
11
4
NC
Pin Definition
1
Type
Description
3
Card Detect/Data Line [Bit3]
PP
Command/Response
S
Supply voltage ground
S
Supply voltage
I
Clock
S
Supply voltage ground
I/O/PP Data Line [Bit0]
I/O/PP Data Line [Bit1]
I/O/PP Data Line [Bit2]
I/O/PP For Future Use
I/O/PP For Future Use
