T
S
4
G
S
D
O
M
T
S
4
G
S
D
O
M
T
S
4
G
S
D
O
M
Description
Serial-ATA is designed as a successor to the
legacy SATA standard. The new standard is
dedicated to achieve higher transfer rate with thinner
cables and more reliable operation than Parallel ATA
interface.
SATA
Flash
replacement storage device for PCs, Laptops,
gaming systems, and handheld devices.

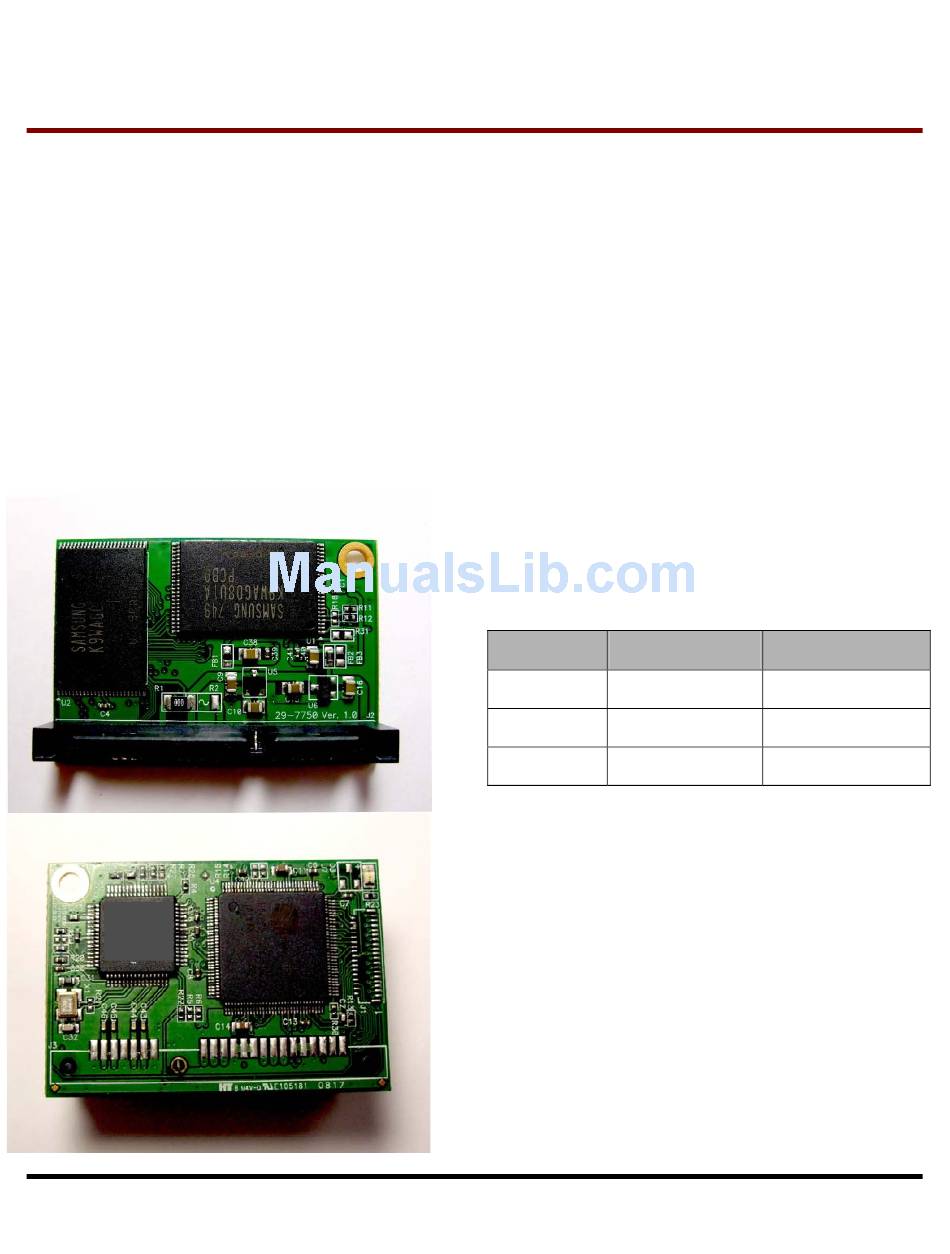

Placement
Transcend Information Inc.
2
2
H
2
2
H
2
2
H
Modules
is
perfect
Features
•
RoHS compliant
•
Fully compatible with devices and OS that support the
SATA 1.0a 1.5Gbps standard
•
Non-volatile Flash Memory for outstanding data
retention
•
Supports up to Ultra DMA Mode 4
•
Built-in ECC (Error Correction Code) functionality and
wear-leveling algorithm ensures highly reliable of data
transfer
•
7P Signal + 15P Power male SATA connector
•
Low Power Consumption
•
Shock resistance
Dimensions
Side
Millimeters
44.00 ± 0.15
A
33.57 ± 0.15
B
10.98 ± 0.20
C
* Please refer to Mechanical Drawing
1
22P Horizontal Type
SATA Flash Modules
Inches
1.732 ± 0.006
1.322 ± 0.006
0.432 ± 0.008
V1.1
Advertisement
Table of Contents
Related Manuals for Transcend TS4GSDOM22H
Summary of Contents for Transcend TS4GSDOM22H
- Page 1 Parallel ATA interface. SATA Flash Modules replacement storage device for PCs, Laptops, gaming systems, and handheld devices. Placement Transcend Information Inc. Features • RoHS compliant • Fully compatible with devices and OS that support the SATA 1.0a 1.5Gbps standard •...
-
Page 2: Specifications
Storage Temperature Power Requirements Input Voltage 4GB SATA Flash Modules Power Consumption ℃ (DC 5V Transcend Information Inc. SATA Flash Modules Vertical Type 4GB(T.B.D) 44.00 ± 0.15 33.57 ± 0.15 10.98 ± 0.20 5V ± 10%(default) / 3.3V ± 5%(option) SATA 7+15 pins combo connector ℃... - Page 3 Actual Capacity Model P/N Capacity 4GB SATA Flash Module * Note: FAT32 format Regulations CE, FCC and BSMI Compliance Transcend Information Inc. Built-in 4 symbol/page correction ECC 10 years 500 mating cycles Read (KB/s) Write (KB/s) 47473 18050 C/H/S Capacity (BIOS) DOS Format (Bytes) Windows Format (Bytes)
-
Page 4: Mechanical Drawing
Mechanical Drawing Transcend Information Inc. (Normal Type) (Reversed Type) 22P Horizontal Type SATA Flash Modules V1.1... -
Page 5: Pin Assignments
Pin Assignments Pin No. Pin Layout Transcend Information Inc. Pin Name Pin No. 22P Horizontal Type SATA Flash Modules Pin Name Pin 1 V1.1... -
Page 6: Block Diagram
Parameter Supply Voltage High level output voltage Low level output voltage High level input voltage Low level input voltage Pull up resistance Pull down resistance Transcend Information Inc. Data bus PATA Control Signal SATA IDE / PATA Bridge Flash Disk Controller 3.3V/1.8V... -
Page 7: Command Set
Read Multiple Read Sector(s) Read Verify Sector(s) Recalibrate Request Sense Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Lock Security Set Password Transcend Information Inc. Code E5 or 98h – – – – – – – –... - Page 8 CY = Cylinder Low/High register DH = Head No. (0 to 15) of Drive/Head register LBA = Logic Block Address Mode Support – = Not used for the command Y = Used for the command Transcend Information Inc. – – – –...
-
Page 9: Smart Command Set
SMART Data Structure BYTE F / V 2-361 364-365 368-369 375-385 386-395 397+(n*6) 398+(n*6) Transcend Information Inc. SMART Feature Register Values Execute OFF-LINE Immediate Enable SMART Operations Disable SMART Operations Return Status Decription Revision code Vendor specific Off line data collection status... - Page 10 X=the content of the byte is vendor specific and may be fixed or variable. R=the content of the byte is reserved and shall be zero. * 4 Byte value : [MSB] [2] [1] [LSB] Transcend Information Inc. MU spare block Init. Bad block...
-
Page 11: Ordering Information
2. For specific capacity, performance, and reliability requirement, please contact with sales. TAIWAN No.70, XingZhong Rd., NeiHu Dist., Taipei, Taiwan, R.O.C TEL +886-2-2792-8000 Fax +886-2-2793-2222 E-mail: sales@transcend.com.tw www.transcend.com.tw Transcend Information Inc. TS XG SDOM XX Los Angeles: E-mail: sales@transcendusa.com Maryland: E-mail: sales_md@transcendusa.com www.transcendusa.com CHINA E-mail: sales@transcendchina.com...
