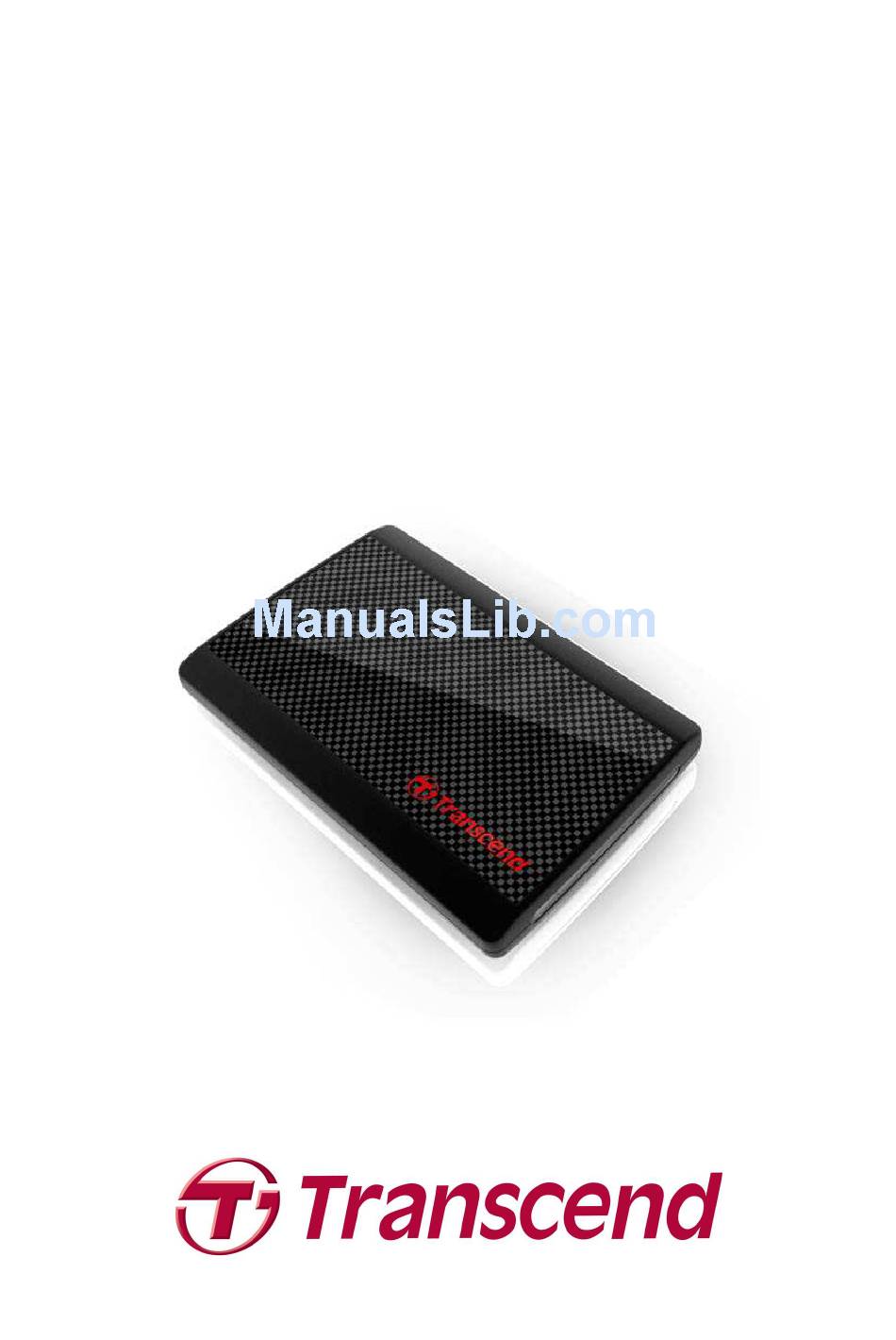

- Page 1 ® StoreJet User’s Manual (Version 1.2)
-
Page 2: Table Of Contents
Introduction︱ ︱ ︱ ︱ ...1 Package Contents︱ ︱ ︱ ︱ ...1 Features︱ ︱ ︱ ︱ ...3 System Requirements︱ ︱ ︱ ︱ ...3 Safety Precautions︱ ︱ ︱ ︱ ...4 General Use... 4 Backing Up Data ... 4 Transporting... 4 Power... 4 Reminders ... -
Page 3: Introduction
Introduction︱ Congratulations on purchasing Transcend’s StoreJet 25P. This lightweight, ultra-portable, high-speed USB storage device is the perfect data management system for uploading, downloading, storing and transferring your vital data and information.In addition, the StoreJet 25 comes with very useful software* that can increase your mobile productivity. This User’s Manual is designed to help you get the most from your new device, please read both in detail before using the StoreJet 25. - Page 4 Quick Start Guide...
-
Page 5: Features
Features︱ Racing-inspired lightweight slim design with checkered front panel Protective soft travel pouch Slide-open case for easy hard drive installation and removal High-speed USB 2.0 compliant and backwards compatible with USB 1.1 Easy Plug and Play operation – no drivers required Completely USB powered. -
Page 6: Safety Precautions
Safety Precautions︱ These usage and safety guidelines are IMPORTANT! Please follow them carefully. Please ensure that you connect the USB cable to the StoreJet 25 and your computer correctly (small end General Use Carefully unpack the contents of the StoreJet 25 package. During operation, avoid exposing your StoreJet 25 to extreme temperatures above 55℃, or below 5℃. -
Page 7: Reminders
Please use the Mini USB to USB A-Type cable that came with the StoreJet 25 to connect it to a computer, and always ensure that the cable you are using is in good condition. NEVER use a cable that is frayed or damaged. Ensure nothing is resting on the USB cable and that the cable is not located where it can be tripped over or stepped on. -
Page 8: Product Overview
Product Overview︱ Figure 1: StoreJet 25P Case Screw Mini USB Port... -
Page 9: Installing A Hard Drive
Installing a Hard Drive︱ The StoreJet 25 hard drive enclosure only works with 2.5” SATA Hard Disk Drives. Installing a Hard Drive If you purchased a Transcend StoreJet 25 hard drive enclosure that does not have an SATA hard disk drive already installed, please read this section for installation instructions. If a hard drive is already installed, you can skip to the “Connecting to a Computer”... - Page 10 Reattach the front cover and slide it back into place Reattach the case screw.
-
Page 11: Connecting To A Computer
Connecting to a Computer︱ If you want to use the StoreJet 25 as an external hard drive to upload/download data to and from your computer, you will need to connect it to a USB port on the computer using the provided USB Y-cable. - Page 12 When the StoreJet 25 is successfully connected to a computer, the StoreJet’s Power LED will light up, a new Local Disk drive with a newly-assigned drive letter will appear in the My Computer window, and a Removable Hardware icon System Tray. The StoreJet 25’s internal hard drive comes pre-formatted for FAT32. Figure 4: *F: is an example drive letter, the letter in your "My Computer"...
-
Page 13: Disconnecting From A Computer
Disconnecting from a Computer︱ NEVER disconnect the StoreJet from a Computer when its LED is flashing. Windows 1. Select the Hardware 2. The Safely Remove Hardware pop-up window will appear. Select it to continue. 3. A window will appear stating, “The ‘USB Mass Storage Device’ device can now be safely removed from the system.”... -
Page 14: Linux ® Kernel 2.4 Or Later
Figure 7: Drag StoreJet 25 drive icon into the Trashcan ® Linux Kernel 2.4 or Later Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet 25 from the USB port. -
Page 15: Formatting The Hard Drive
Formatting the Hard Drive︱ WARNING! Formatting the disk will erase all of the data on your StoreJet 25. You must have Administrator Rights to format in Windows. ® Windows 2000/XP 1. Download the StoreJet Format Utility from Transcend’s online Download Center at http://www.transcendusa.com/Support/DLCenter/index.asp selecting “Storage Devices ->... -
Page 16: Windows 7/Vista
8. A confirmation window will appear. Press OK to begin formatting the drive. 9. The format process may take a few minutes. When complete, an “O.K.” message will appear in the bottom right hand corner of the window. 10. Click the “Close” button to finish and exit. ®... - Page 17 ® 3. Plug the StoreJet 25 into an available USB port on your Windows 7/Vista computer. 4. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive. 5. Right-click “StoreJetFormatter.exe” and select “Run as Administrator.” Figure 11: Run as administrator 6.
- Page 18 Figure 13: The Utility will automatically detect the StoreJet 25 drive 9. Press “Start”. Figure 14: Press “Start” 10. A confirmation window will appear. Press OK to begin formatting the drive.
-
Page 19: Mac ® Os
11. The format process may take a few minutes. When complete, an “O.K.” message will appear in the bottom right-hand corner of the window. 12. Click the “Close” button to finish and exit. ® 1. Plug the StoreJet 25 into an available USB port on your MAC computer. 2. - Page 20 Figure 17: Select a Volume Format (file system) 7. Input a name for your new drive (otherwise, your drive will be named “Untitled”) 8. Click the “Erase” button in the bottom right corner of the window Figure 18: Name your drive (optional) 9.
-
Page 21: Linux
Figure 19: “Erase Disk” confirmation window 10. Click the “Close” button to finish and exit. ® Linux 1. Plug the StoreJet 25 into an available USB port on your Linux computer. 2. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive. -
Page 22: Troubleshooting
Troubleshooting︱ If a problem occurs with your StoreJet 25, please first check the information listed below before taking your StoreJet 25 in for repair. If you are unable to solve a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our website. - Page 23 2. Ensure that the USB port is working properly. If not, try using an alternate USB port. I cannot detect the StoreJet 25 on my Mac If you installed a drive into the StoreJet 25P that was previously used in a Windows most likely formatted with NTFS, which is not compatible with Mac ®...
-
Page 24: Specifications
StoreJet 25P Specifications︱ Size (L x W x H) Weight (with hard drive) Storage Media Power Supply Connection Interface Operating Temperature Certificates Warranty 127.4mm × 81.25mm × 14.5mm 158g 2.5-inch SATA Hard Disk Drive 5V DC supplied from the USB port(s) USB 2.0 5℃... -
Page 25: Recycling & Environmental Considerations
Recycling & Environmental Considerations︱ ︱ ︱ ︱ Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste. -
Page 26: Three-Year Limited Warranty
To expedite warranty service, please access www.transcend.com.tw/register to register your Transcend product within 30 days of the purchase date. Transcend Information, Inc. www.transcend.com.tw *The Transcend logo is a registered trademark of Transcend Information, Inc. *All logos and marks are trademarks of their respective compespective companies.
