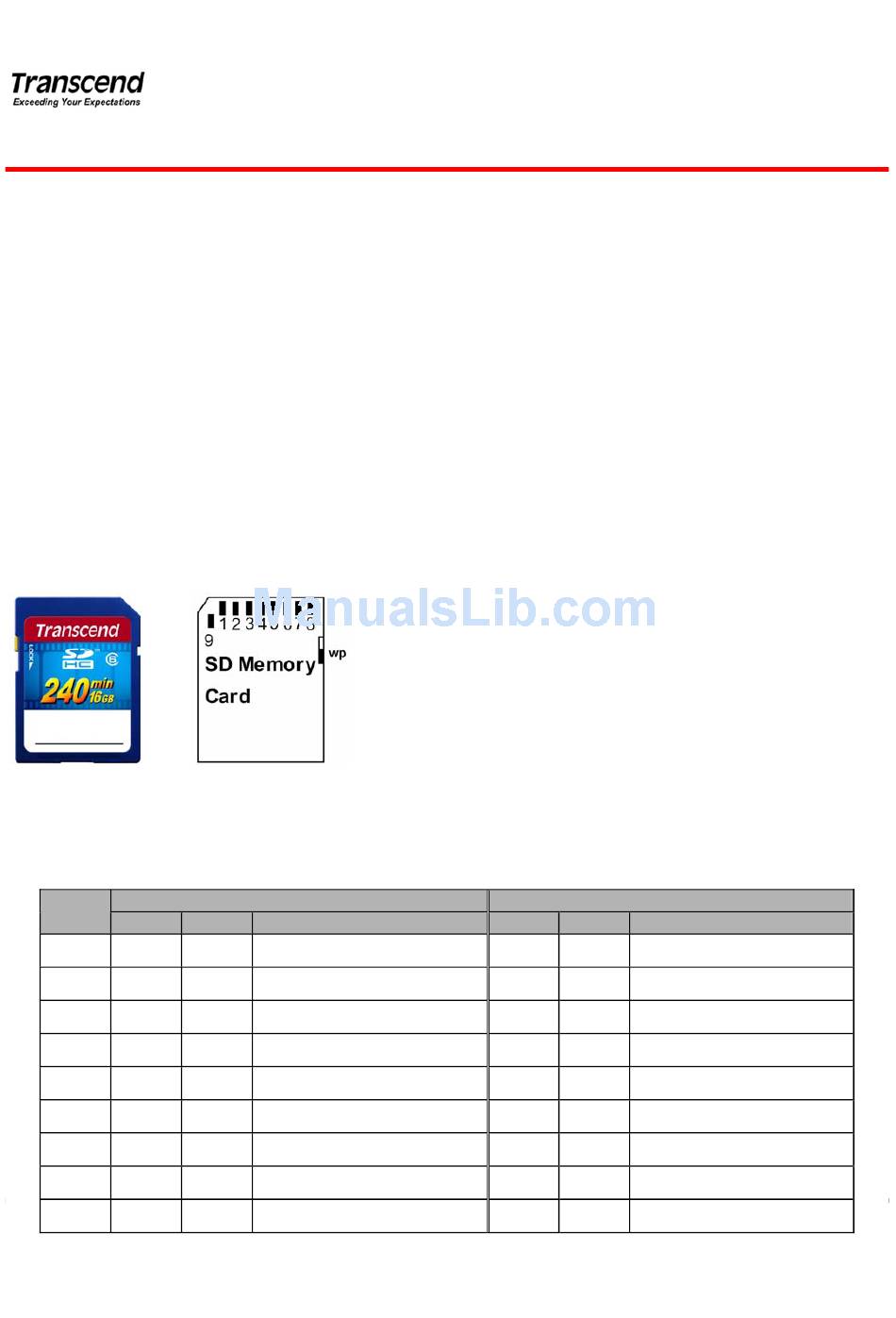

HD Video Card Series
Description
Transcend HD Video Card is rated SDHC Class 6
to provide extremely fast data transfer speeds
(guaranteed minimum write speed of 6MB/s) and
assure quick reaction time when used in digital
cameras and camcorders. This card is optimized for
Full HD 1080p video recording, which allows users to
capture every moment in breathtaking detail!
Transcend HD Video Cards also feature a useful
space for labeling and organizing recorded video
content.
Placement
Front
Pin Definition
Pin No.
Name
1
CD/DAT I/O/PP
2
CMD
3
V
SS1
4
V
DD
5
CLK
6
V
SS2
7
DAT0
8
DAT1
Transcend Information Inc.
9
DAT2
Back
SD Mode
Type
Description
3
Card Detect/Data Line [Bit3]
PP
Command/Response
S
Supply voltage ground
S
Supply voltage
I
Clock
S
Supply voltage ground
I/O/PP Data Line [Bit0]
I/O/PP Data Line [Bit1]
I/O/PP Data Line [Bit2]
4GB~16GB SDHC6 HD Video Card
Features
• RoHS compliant product.
• Card Lid material: PC (comply with UL94,Flame
Class:HB)
• Operating Voltage: 2.7 ~ 3.6V
• Operating Temperature: -25 ~ 85°C
• Durability: 10,000 insertion/removal cycles
• Compatible with SD Specification Ver. 2.0
• Comply with SD File System Specification Ver. 2.0
• Mechanical Write Protection Switch
• Supports Speed Class Specification up to Class 6
• Supports Copy Protection for Recorded Media (CPRM)
for SD-Audio
• Seamless compatibility with SDMI-compliant digital audio
devices
• Form Factor: 24mm x 32mm x 2.1mm
Name
Type
CS
I
DI
I
VSS
S
VDD
S
SCLK
I
VSS2
S
DO
O/PP
RSV
1
RSV
SPI Mode
Description
Chip Select (neg true)
Data In
Supply voltage ground
Supply voltage
Clock
Supply voltage ground
Data Out
