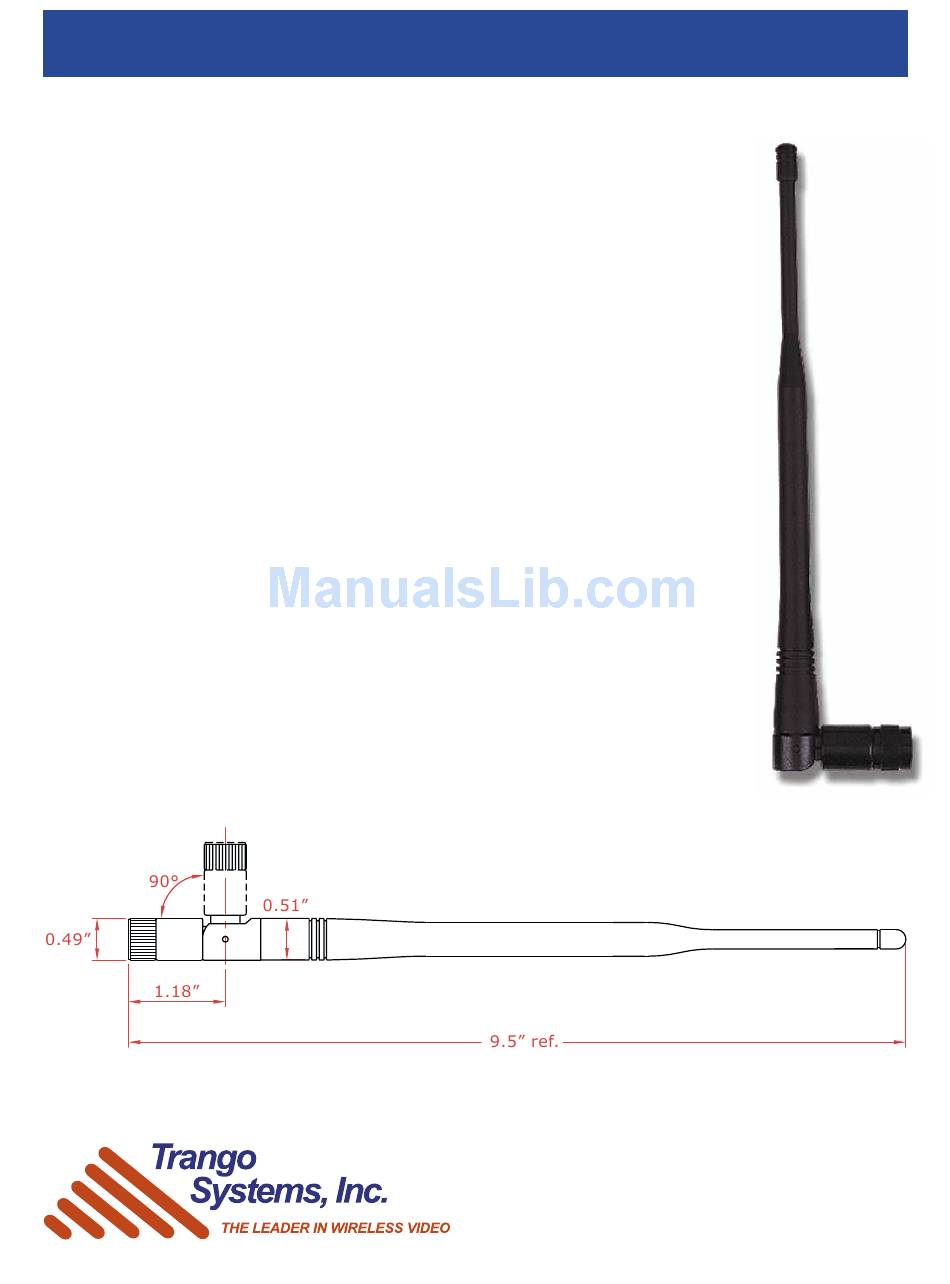

AO2500-3-P
2.4 GHz Omnidirectional Antenna
! High-gain, linear polarized antenna is ideal
for point-to-multipoint applications.
! Uses custom connector that attaches directly
to the Eagle Plus transmitter.
! Independent swivel for adjustable
orientation.
! Dipole design for ground-plane
independence.
! FCC Part 15 and DOC (Canada) compliant.
Æ
DATASHEET
™
Æ
Advertisement
Table of Contents
Related Manuals for Trango Systems AO2500-3-PTM
Summary of Contents for Trango Systems AO2500-3-PTM
- Page 1 AO2500-3-P 2.4 GHz Omnidirectional Antenna ! High-gain, linear polarized antenna is ideal for point-to-multipoint applications. ! Uses custom connector that attaches directly to the Eagle Plus transmitter. ! Independent swivel for adjustable orientation. ! Dipole design for ground-plane independence. ! FCC Part 15 and DOC (Canada) compliant. Æ...
- Page 2 AO2500-3-P AO2500-3-P Electrical Properties FREQUENCY RANGE 2.4–2.5 GHz IMPEDANCE 50Ω nominal GAIN 3 dBi RADIATION omnidirectional VSWR < 2.0 : 1 ELECTRICAL WAVE half-wave dipole, elevated feed POLARIZATION vertical AO2500-3-P Mechanical Properties LENGTH 9.5 inches or 241 mm ANTENNA WHIP polyurethane SWIVEL MECHANISM polycarbonate...
