Trango Systems M900S User Manual

900 mhz wireless broadband system
Hide thumbs Also See for M900S:
Table of Contents

Advertisement

Quick Links

Download this manual
M900S™
900 MHz Wireless Broadband System

USER MANUAL

March 24, 2005
Revision C
for Firmware Version 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M900S and is the answer not in the manual?

Questions and answers

Related Manuals for Trango Systems M900S

Summary of Contents for Trango Systems M900S

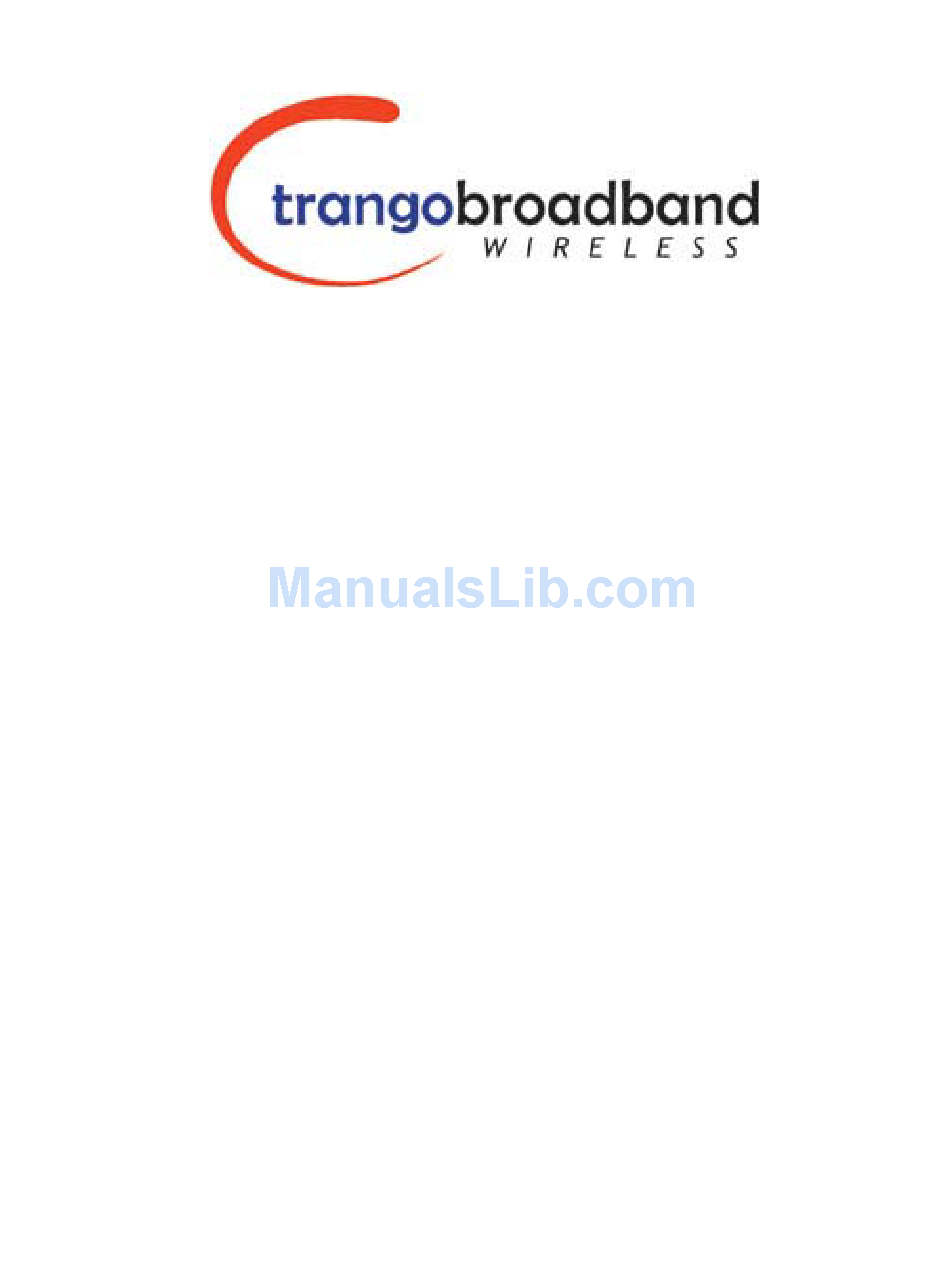

  • Page 1: User Manual

    M900S™ 900 MHz Wireless Broadband System USER MANUAL March 24, 2005 Revision C for Firmware Version 1.3...

  • Page 2: Table Of Contents

    Loading Multiple SUs into the SUDB using DLOAD Command ... 40 SNMP ... 40 Objects for Monitoring and Control ... 41 SNMP Setup ... 42 Appendix A Command Set Reference ... 43 Appendix B Specifications ... 47 Trango Broadband Wireless — M900S User Manual Rev. C page ii...
  • Page 3 Figure 9: M900S Mounting Hardware Assembly ... 28 Figure 10: Alternative Mounting ... 29 Figure 11: Articulation for M900S with Mono Pod Mount (not supplied) ... 30 Figure 12: Grounding of the Radio ... 30 Trango Broadband Wireless — M900S User Manual Rev. C...

  • Page 4: Preface

    Preface Preface This manual covers basic configuration and installation of the M900S Wireless Broadband System and applies to the following radio part numbers: M900S-AP 900 MHz Access Point M900S-SU 900 MHz Subscriber Unit with integrated antenna and connector for external antenna...

  • Page 5: Section 1 Introduction

    Technical Support for access to the Professional Installation Guide. The M900S system consists of two types of radios: Access Points (APs) and Subscriber Units (SUs). Up to 126 subscriber units can be supported by a single AP, which acts as a hub in a star configuration. The AP delivers wireless broadband service (Ethernet connectivity) to one or more SUs according to a proprietary adaptive dynamic polling algorithm called SMARTPolling™.

  • Page 6: Smartpolling™ & Bandwidth Throttling

    SmartPolling™ & Bandwidth Throttling One of the major advantages of the M900S system is the ability of the AP to handle multiple SU connections and share the 3 Mbps data throughput efficiently. Bandwidth allocation is managed by the AP’s SMARTPolling algorithm according to provisioning rules set up by the system administrator.

  • Page 7: Section 2 Hardware Overview

    Figure 3: Bottom of Radio At the bottom of the M900S are two access ports: a twist-on weatherproof cable port for RJ-45 Ethernet (and PoE), and a translucent access cover plug over the unit’s diagnostic LEDs and reset button. The LEDs will be discussed later in this text.

  • Page 8: Section 3 Getting Started

    HTTP browser and the command line interfaces. Connections and Power Connections and powering of the radios is the same for APs and SUs. Trango Broadband Wireless — User Manual M900S Rev. C Trango Broadband Wireless M9000S-AP Rev. A...

  • Page 9: Radio Management Concepts

    SU) is enabled on the AP. Switches will be covered later in this text. Opmode To fully understand radio management of the M900S system, it is important to be familiar with the concept of operation mode or “Opmode.” Trango Broadband Wireless — User Manual M900S Rev. C...

  • Page 10: Switch Settings

    Passwords In order to login to an M900S radio (either through telnet or through the web browser interface), the user must know the IP address and password. Both APs and SUs feature two levels of passwords, Read Write (RW) and Read Only (RO).

  • Page 11: Browser Interface Login Page

    Type the password (default trango) and continue. This will bring up the radio’s System Information page. Web Browser System Information Page Note: System Information page for the SU is similar and is covered in detail later in this text. Trango Broadband Wireless — User Manual M900S Rev. C Page 7...

  • Page 12: Command Line Interface

    To terminate a CLI session (Telnet or Serial) type the command logout. Note: Type help or ? for a listing of all the CLI commands. Type help <command>, for the syntax of a particular command. Trango Broadband Wireless — User Manual M900S Rev. C Page 8...

  • Page 13: Troubleshooting

    PC’s subnet is routable to radio’s IP address. If you still cannot access the radio’s management interfaces, consult the troubleshooting guide that is available at www.trangobroadband.com in the Technical Support area of the website. Trango Broadband Wireless — User Manual M900S Rev. C Page 9...

  • Page 14: Section 4 Basic Configuration Via Browser Interface

    Evaluate Link Quality The M900S uses the concept of “association” to indicate that the APs and SUs are communicating. If all parameters are properly set, the AP will begin actively searching for the SUs in its SUDB. Once an active SU is detected, the authentication and association process will begin.

  • Page 15: Creating An Su In The Su Database

    4. If SU will be part of an SU to SU group, enter the SU to SU group number. 5. CIR up: (SU to AP Committed Information Rate) – minimum upstream bandwidth for the SU in Kbps. Trango Broadband Wireless — User Manual M900S Rev. C Page 11...

  • Page 16: Configure Other Basic Ap Parameters

    The current channel and antenna polarization of the unit when in Opmode "ON." To configure the AP’s other basic settings, complete the following steps: 1. Connect to the AP (see Getting Started) and open the Configuration page. Trango Broadband Wireless — User Manual M900S Rev. C Page 12...
  • Page 17 HTTP session when you Save and Activate Settings. 5. Choose Active Channel (1-4). 6. Choose Antenna Polarization (H or V), or choose E for an external antenna. Only use E for M900S-SU- EXT model.

  • Page 18: Configure Basic Su Parameters

    Allow approximately 60 seconds for the radios to complete the boot-up cycle and to associate. If the AP is busy servicing many SUs, the association process may take slightly longer. Trango Broadband Wireless — User Manual M900S Rev. C Page 14...

  • Page 19: Led Summary

    Figure 7: LED Summary LED / RESET BUTTON WINDOW Figure 8: LED and Reset Button Window Trango Broadband Wireless — User Manual M900S Rev. C ASSOCIATION LED (GREEN) Blinking once every second in Opmode "OFF" (AP and SU). Twice per second Opmode "ON" and scanning for an AP (SU Only).

  • Page 20: Rf Link Loopback Test

    1600 byte packets are sent and received between the SU and AP at 50 millisecond intervals over the time specified. Trango Broadband Wireless — User Manual M900S Rev. C Page 16...

  • Page 21: Su Ranging Test

    Channel Table: Assigns channel numbers to actual frequencies of operation. Default settings allow the largest number of channels (4) within the band, while still maintaining 6 MHz channel spacing. Trango Broadband Wireless — User Manual M900S Rev. C Page 17...

  • Page 22: Other Key Parameters

    TCP/IP Service for SU: If enabled, the AP can be accessed via TCP/IP (Telnet or HTTP) from the SU side of the network via the wireless link. Remarks: User definable radio information (i.e. customer name, address of installation, etc). A maximum of 28 characters can be stored. Trango Broadband Wireless — User Manual M900S Rev. C Page 18...

  • Page 23: Site Survey Page

    Click "Start Survey." A survey of the default 4 channels will be performed. Results are reported in dBm per channel as average and peak. A channel is reported to be "Clear" if the peak and average are below the RF RX Threshold by more than 8 dB. Trango Broadband Wireless — User Manual M900S Rev. C Page 19...

  • Page 24: Section 5 Basic Configuration Via Cli

    AP belongs. Base ID must match in AP and SU in order to establish a wireless link. Trango Broadband Wireless — User Manual M900S Rev C 912 Mhz [Ch#03] 918 Mhz [Ch#04] [Active Channel] 1 h Related CLI Command set baseid <baseid>...
  • Page 25 (such as new firmware). Default is off. TFTPD will revert to Off after rebooting. Trango Broadband Wireless — User Manual M900S Rev C Related CLI Command set apid <apid> (00-FF in HEX) Example: #>set apid 33 opmode on y This sets the radio to Opmode “ON.”...
  • Page 26 ICMP and ARP, to reduce the amount of unnecessary overhead introduced to the wireless link. SU to SU This software switch (3) Trango Broadband Wireless — User Manual M900S Rev C Related CLI Command mirth [<0..3, Mbps>] Example: #>mirth 2 freq [<ch#>] Example: #>freq 3...

  • Page 27: Subscriber Unit Database (Sudb) Settings

    The default CIR/MIR setting is 3000 kbps for upstream and downstream. To change the SU’s CIR/MIR settings, use the following command: sudb cirmir <suid|all> <cir dn> <cir up> <mir dn> <mir up> Trango Broadband Wireless — User Manual M900S Rev C Related CLI Command Example: #>sw 3 on...

  • Page 28: Subscriber Unit Basic Settings

    If you do not type the save ss command, the settings will be lost the next time the radio is rebooted or power cycled. Trango Broadband Wireless — User Manual M900S Rev C 912 Mhz [Ch#03]...
  • Page 29 Basic Configuration via CLI Trango Broadband Wireless — User Manual M900S Rev C Page...
  • Page 30 Active Channel Shows the channel used in the current association, and "Associated" or "Disconnected" depending on the association status. Trango Broadband Wireless — User Manual M900S Rev C Related CLI Command set baseid <baseid> Example: #>Set baseid aa12 targetap <apid>...
  • Page 31 RF TX RF RX and wireless, transmit and Eth TX Eth RX received traffic in kilobits per second. Trango Broadband Wireless — User Manual M900S Rev C Related CLI Command polarization. antenna [<h | v |e>] sw 0 [<on|off>] Example: #>sw 0 on...

  • Page 32: Section 6 Mounting Hardware

    Mounting Hardware ITEM PART NUMBER Radio #10 x 3" Threaded Rod #10 Keps Nut "V" Bracket Mono Pod Mount (Not Supplied) Figure 9: M900S Mounting Hardware Assembly Trango Broadband Wireless — User Manual M900S Rev C Not Supplied QTY. Page...

  • Page 33: Figure 10: Alternative Mounting

    Alternate Mounting Configuaration ITEM PART NUMBER Radio #10 x 3" Threaded Rod #10 Keps Nut "V" Bracket Mono Pod Mount (Not Supplied) Figure 10: Alternative Mounting Trango Broadband Wireless — User Manual M900S Rev C 5 Not Supplied QTY. Page...

  • Page 34: Figure 11: Articulation For M900S With Mono Pod Mount (Not Supplied)

    4 X M u s t B e l o o s e n e d f o r U p / D o w n T i l t Figure 11: Articulation for M900S with Mono Pod Mount (not supplied) Cabling and Grounding Considerations...
  • Page 35 Leave approximately 1 mm around the cat-5. It is important to provide strain relief and a drip loop for STP Cat-5 cables. Do not mount the radio upside down. Trango Broadband Wireless — User Manual M900S Rev C Page...

  • Page 36: Section 7 Deployment

    If it is not possible to use a clean channel/polarization combination, there are various methods available to mitigate the affects of interference. These methods include the use of the RFRX Threshold settings, or the use of external shields and external narrower beam antennas. Trango Broadband Wireless — User Manual M900S Rev C Page...

  • Page 37: Ap Search And Su Antenna Alignment

    AP, and to precisely align the SU antenna for maximum signal strength. Although it is possible to rely upon the SU’s LEDs for alignment, more precise RSSI readings are available from the command ssrssi. Trango Broadband Wireless — User Manual M900S Rev C -99 dBm -99 dBm -99 dBm...
  • Page 38 -75 dBm 2 LED -70 dBm Trango Broadband Wireless — User Manual M900S Rev C In this example, an AP is detected on channel 1, polarization horizontal. Further, the Base ID is 1234, and the MAC address is 00 01 DE 15 5C D0.

  • Page 39: Link Management Commands

    Collocation and Channel Planning With proper channel planning and adherence to installation guidelines, multiple M900S APs may co-exist and operate interference-free on the same tower or building. The main consideration when collocating APs is to ensure at least 10 ft.
  • Page 40 SU from AP, SU temperature, etc. . Example: > su 88 88] pr [as] y [d] 0.0 [rssi at ap] -60 dBm [rssi at su] -33 dBm Trango Broadband Wireless — User Manual M900S Rev C 0.0 mi 0.0 mi 0.0 mi 0.0 mi...
  • Page 41 For thorough results, it is recommended that you run the command repeatedly for at least 1 minute or more to determine if packets are passing without error consistently over time. Trango Broadband Wireless — User Manual M900S Rev C [SU Tx] 100 [SU Rx] 100 [SU RxErr] 0...

  • Page 42: Arq With Selected Repeat And Multirate Feature

    ARQ with Selected Repeat and Multirate Feature The M900S features ARQ or “Automatic Request for Re-transmission,” which provides the ability to correct for missing or corrupted packets of data by asking the sender to re-transmit the data. Both the AP and SU units implement a form of ARQ known as “ARQ with Selected Repeat.”...

  • Page 43: Section 8 Management

    Radio Management Access Via TCP/IP The IP Address of an M900S radio is for management purposes only. The IP address is not used for purposes of routing or passing traffic. Users should take care to set appropriate IP schemes for all management activities including upgrading the radio’s firmware.

  • Page 44: Loading Multiple Sus Into The Sudb Using Dload Command

    Run command save sudb to write the SUDB to non-volatile memory. SNMP The M900S supports Simple Network Management Protocol (SNMP) for network management. Network management consists of the following 4 categories: configuration, accounting, alarm, and monitoring and control. These capabilities allow the network operator to provide superior services through higher network availability and integrated accounting systems.

  • Page 45: Objects For Monitoring And Control

    Users interested in using the SNMP functionality should review the entire M900S MIB for a complete understanding of its features. The M900S MIB is available for download at: http://www.trangobroadband.com/support/downloads.htm The following is an overview of a few of the more commonly used SNMP objects in the M900S system. Objects for Monitoring and Control SU Bandwidth Monitoring •...

  • Page 46: Snmp Setup

    SNMP Setup Trango Broadband provides only the MIB portion of the SNMP Management system. The radios act as individual agents, and it is up the user to provide an SNMP Manager software from a third party vendor. Below is an example of the setup process for SNMPc from Castle Rock™.

  • Page 47: Appendix A Command Set Reference

    [<y>] password <rw|ro> <new pwd> <new pwd> ping <ip address> power power set <min|max|<dBm> Trango Broadband Wireless — User Manual M900S Rev. C Command Set Reference Radio Description AP/SU Display complete list of commands and syntax AP/SU...
  • Page 48 <min, 1..60> su password <suid | all> <rw | ro> <new password> <new password> su <all | suid> su info <suid> Trango Broadband Wireless — User Manual M900S Rev. C Radio Description (power leveling) Display current PPPoE filter setting...
  • Page 49 <mac1, hex> [<mac2, hex>] targetrssi Trango Broadband Wireless — User Manual M900S Rev. C Radio Description 21. TX power 22. Remarks 23. RF TX retry at AP, RF TX retry maxed out at AP...
  • Page 50 <systemsetting | ss> updateflash <mainimage | fpgaimage> <current chscksum> <new checksum> updateflash sudb Trango Broadband Wireless — User Manual M900S Rev. C Radio Description Change target RSSI. Note: Target RSSI must be +5 dB more than rfrxth (RFRX Threshold).

  • Page 51: Appendix B Specifications

    Appendix B Specifications All specifications apply to the M900S-AP and M900S-SU, unless otherwise noted. Radio Transmit Specifications Storable Channels: 4 memory locations Agility: 906 to 924 MHz in 1 MHz increments Default channels: Channel 1: 906 MHz Channel 2: 912 MHz...
  • Page 52 5mm DC Barrel-type Plug Standard External Power-over-Ethernet Junction Box Type: In-line female-to-female RJ-45 adapter for CAT-5 Ethernet cable Connectors: Eth. In: Shielded RJ-45 Jack DC Input: 5mm DC Barrel-type Jack Trango Broadband Wireless — User Manual M900S Rev. C Page 48...
  • Page 53 +10 +/- 1 dBiL Az Beamwidth: 60º (3 dB pts) El Beamwidth: 60º (3 dB pts) Cross Pol: >15 dB Front/Back Ratio: 12 dB VSWR: < 2.0:1 over Bandwidth Trango Broadband Wireless — User Manual M900S Rev. C Page 49...
