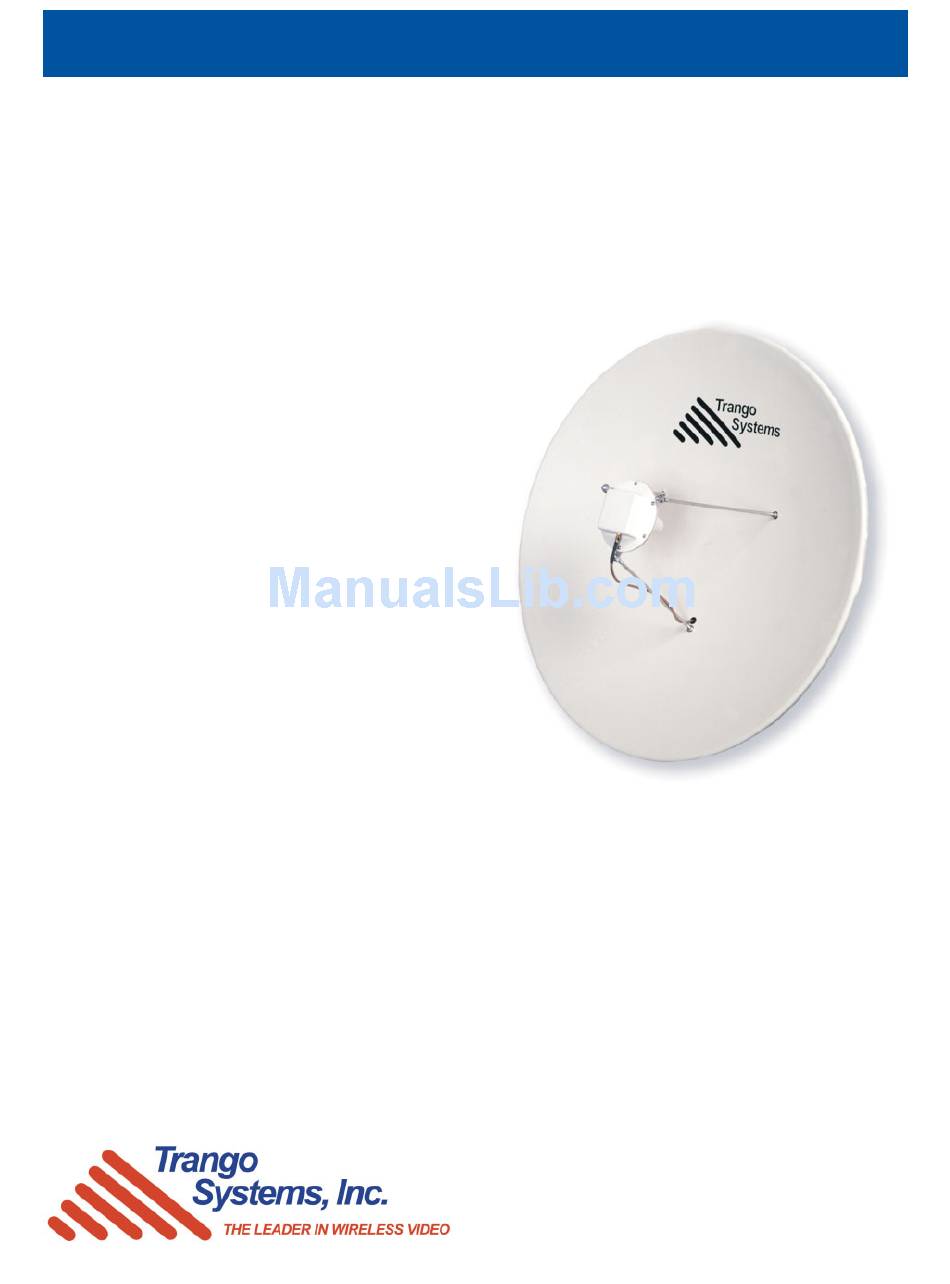

AD5900-27
27dB Circular Polarized Dish Antenna
5.725 to 5.875 GHz
! Sturdy Mounting system - ideal
for tower/pole mounting
! Allows a 4-mile range with the
FalconPlus
TM
! Circular polarized for the best
propagation in weather
! Includes low-noise amplifier and
filter in feedhorn assembly
! Aluminum construction
! Includes cable
! Designed for use with FalconPlus
VRX5900
receivers
TM
! Available in right or left hand
circular polarization
TM
DATASHEET

Advertisement

loading
Need help?

Need help?

Do you have a question about the AD5900-27 and is the answer not in the manual?

Questions and answers

Related Manuals for Trango Systems AD5900-27

Summary of Contents for Trango Systems AD5900-27

  • Page 1 AD5900-27 27dB Circular Polarized Dish Antenna 5.725 to 5.875 GHz ! Sturdy Mounting system - ideal for tower/pole mounting ! Allows a 4-mile range with the FalconPlus ! Circular polarized for the best propagation in weather ! Includes low-noise amplifier and...
  • Page 2 AD5900-27 AD5900-27-R Electrical Properties Dish Parameters FREQUENCY RANGE 5725-5875 MHz ELEMENT GAIN > 27 dBiC FRONT-TO-BACK RATIO > 25 dB E-PLANE BEAMWIDTH typical H-PLANE BEAMWIDTH typical POLARIZATION Right-hand circular (-R), Left-hand circular (-L) CROSS-POLARIZATION REJECTION > 15 dB AXIAL RATIO <...
