Trane SS-PRC003-EN Owner's Manual

Split system cooling units
Hide thumbs
Table of Contents

Advertisement

Quick Links

Split System
Cooling Units
Split System Cooling Units
7 .5 to 20 Tons
Air Handlers
7 .5 to 20 Tons
50 Hz
June 2006
SS-PRC003-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-PRC003-EN and is the answer not in the manual?

Questions and answers

Related Manuals for Trane SS-PRC003-EN

Summary of Contents for Trane SS-PRC003-EN

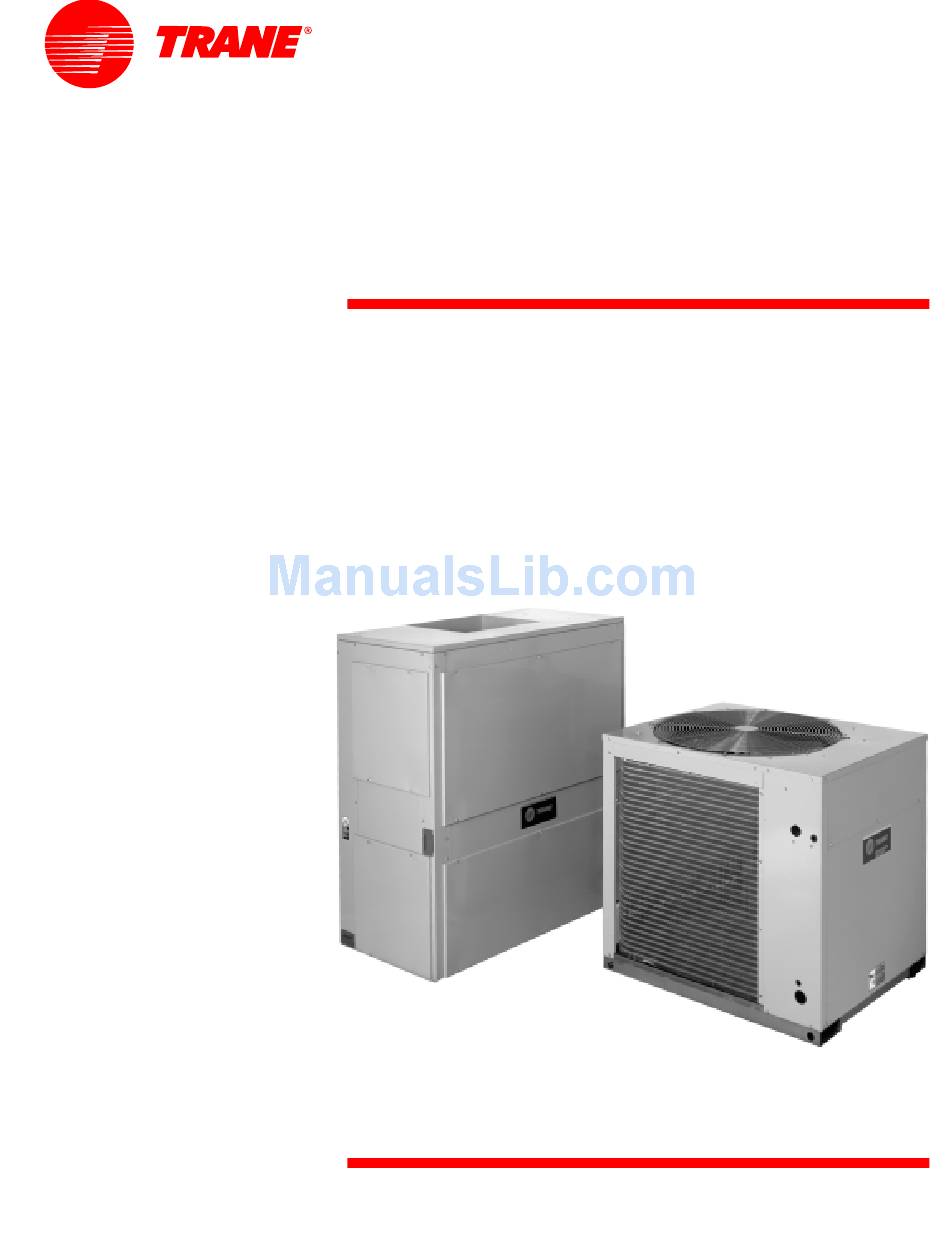

  • Page 1 Split System Cooling Units Split System Cooling Units 7 .5 to 20 Tons Air Handlers 7 .5 to 20 Tons 50 Hz June 2006 SS-PRC003-EN...

  • Page 2: Introduction

    Split System Cooling Units . . . Designed With Your Needs In Mind. The Trane reputation for quality and reliability in air conditioning continues with the Odyssey™ family of light commercial split systems. Trane paid attention to your needs to make sure you get a system that will meet your job requirements every time...and at a...

  • Page 3: Table Of Contents

    SS-PRC003-EN Contents Introduction Features and Benefits Application Considerations Selection Procedure Model Number Description General Data Performance Data Cooling Performance Fan Performance Electrical Controls Dimension and Weights Mechanical Specifications...

  • Page 4: Features And Benefits

    This lighter, compact design will save time and money for rigging and installation. And the compactness will permit Trane’s unit to replace almost any unit — effortlessly. Low Ambient Cooling Operation Each condensing unit can operate to 50°F (10°C) as standard.
  • Page 5 Heat pumps can also be matched with Trane built-up air handlers. Also, these matched systems can be quickly engineered for specific applications using Trane’s computerized selection and load programs.
  • Page 6 Features and Benefits Micro Controls Several years ago, Trane was the first to introduce microprocessor controls into the Light Commercial Market. That design, along with immeasurable experience, has provided the technology for Trane’s second-generation ReliaTel™ microprocessor controls in Odyssey split unit systems —...
  • Page 7 Sub-standard parts are identified and rejected immediately. • Every unit receives a 100% unit run test before leaving the production line to make sure it lives up to rigorous Trane requirements. We test designs at our factory not on our customers! ™...

  • Page 8: Application Considerations

    Actual clearances which appear inadequate should be reviewed with the local Trane Representative. 180° Blower Rotation The TWE050, 075, and 100 air handler blower section can be rotated 180° to change the discharge pattern.

  • Page 9: Selection Procedure

    Procedure Cooling Capacity Step 1 — Calculate the building’s total and sensible cooling loads at design conditions. Use the Trane calculation form or any other standard accepted method. Step 2 — Size the equipment using Table PD-1. Match the cooling loads at design conditions.

  • Page 10: Model Number Description

    Digit 12- Service Digit A = First Digit 8 - Electrical Characteristics 0 = 380-415/3/50 Digit 9, 10 - Factory - Installed Options Packed Stock Digit 11- Minor Design Sequence E = Current Design Sequence Digit 12- Service Digit A = First SS-PRC003-EN...

  • Page 11: General Data

    General Data TTA075A TTA085A 84,000(24.60) 90,000(26.35) 84,000(24.60) 93,000(27 .23) 81,000(23.72) 88,000(25.77) 7 .81 7 .867 7 .05 7 .07 Trane 3-D® Scroll Trane 3-D® Scroll 6.25 (4.7) 6.91(5.15) 2875 2875 1.375(34.9) 1.375(34.9) 0.500(12.7) 0.500(12.7) Plate Fin Plate Fin 0.375(9.5) 0.375(9.5) 19.25(1.79)
  • Page 12 33.33(3.1 0) 50.2(4.66) 52.9(4.91 ) P ro peller P ropeller P ro peller 26.00(660.4) 28.00(71 1 .2) 28.00(71 1 .2) Direct Direct Direct 9400(1 5970.60) 1 3400(22766.60) 1 21 00(20558) 0.33(.25) 0.75(.56) 0.75(.56) 28.0(12.70) 39.5(1 7.92) 41 .3(1 8.7)-R41 0A SS-PRC003-EN...

  • Page 13: Air Handler

    SS-PRC003-EN General Data Table GD-3 — General Data TWE050A System Data No. Refrigerant Circuits Suction Line in. (mm) OD 1.120(28.4) Liquid Line in. (mm) OD 0.38(9.7) Indoor Coil — Type Plate Fin Tube Size in. (mm) OD 0.375(9.5) Face Area sq. ft (m 5.00(.47)

  • Page 14: Performance Data

    25.8 25.8 25.8 27.8 21.6 24.9 24.9 24.9 24.9 26.7 21.1 23.9 23.9 23.9 23.9 25.4 20.6 System (I-P) (SI) 46.1 22.8 16.1 19.4 22.8 20.0 16.5 22.1 13.7 24.3 20.4 17.2 22.5 13.4 24.7 20.7 18.0 22.8 13.8 24.9 21.0 18.7 23.0 14.3 25.2 SS-PRC003-EN...
  • Page 15 All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling capacities subtract indoor fan heat. TGC = Total Gross Cooling Capacity SHC = Sensible Heat Capacity SS-PRC003-EN Performance Data Ambient Temperature (°F) Entering Wet Bulb (°F) SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC 79.5...
  • Page 16 26.0 27.4 23.3 30.2 18.8 25.1 25.1 26.4 22.8 29.1 18.4 24.3 24.3 25.3 22.3 27.8 17.8 27.4 27.4 27.8 27.0 30.3 22.4 26.5 26.5 26.8 26.6 29.1 21.9 25.6 25.6 25.7 25.7 27.9 21.5 System (I-P) (SI) 40.6 46.1 19.4 22.8 16.1 19.4 22.8 SS-PRC003-EN...
  • Page 17 All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling capacities subtract indoor fan heat. TGC = Total Gross Cooling Capacity SHC = Sensible Heat Capacity SS-PRC003-EN Performance Data Ambient Temperature (°F) Entering Wet Bulb (°F) SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC 84.5...
  • Page 18 33.0 34.4 30.2 37.7 24.1 31.9 31.9 33.0 29.6 36.1 23.5 30.7 30.7 31.6 29.0 34.5 22.8 34.7 34.7 34.8 34.8 37.7 28.9 33.6 33.6 33.6 33.6 36.2 28.3 32.4 32.4 32.4 32.4 34.6 27.7 System (I-P) (SI) 40.6 46.1 19.4 22.8 16.1 19.4 22.8 SS-PRC003-EN...
  • Page 19 All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling capacities subtract indoor fan heat. TGC = Total Gross Cooling Capacity SHC = Sensible Heat Capacity SS-PRC003-EN Performance Data Ambient Temperature (°F) Entering Wet Bulb (°F) SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC 99.4...
  • Page 20 32.9 34.3 30.2 37.4 24.0 31.9 31.9 33.0 29.6 35.9 23.4 30.7 30.7 31.6 29.0 34.4 22.8 34.7 34.7 34.7 34.7 37.6 28.9 33.6 33.6 33.6 33.6 36.1 28.3 32.4 32.4 32.5 32.5 34.6 27.7 System (SI) 40.6 46.1 19.4 22.8 16.1 19.4 22.8 SS-PRC003-EN...
  • Page 21 All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling capacities subtract indoor fan heat. TGC = Total Gross Cooling Capacity SHC = Sensible Heat Capacity SS-PRC003-EN Performance Data Ambient Temperature (°F) Entering Wet Bulb (°F) SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC 61.3...
  • Page 22 33.7 36.6 29.1 40.3 23.8 32.6 32.6 35.2 28.4 38.7 23.2 31.5 31.5 33.7 27.7 37.0 22.5 35.4 35.4 36.7 33.3 40.3 28.0 34.3 34.3 35.3 32.6 38.8 27.4 33.1 33.1 33.9 31.9 37.1 26.7 System (I-P) (SI) 40.6 46.1 19.4 22.8 16.1 19.4 22.8 SS-PRC003-EN...
  • Page 23 All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling capacities subtract indoor fan heat. TGC = Total Gross Cooling Capacity SHC = Sensible Heat Capacity SS-PRC003-EN Performance Data Ambient Temperature (°F) Entering Wet Bulb (°F) SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC 119.5...
  • Page 24 48.6 50.5 44.6 55.0 35.4 46.9 46.9 48.3 43.6 52.6 34.4 44.9 44.9 45.9 42.5 50.0 33.4 51.2 51.2 51.2 51.2 55.3 42.7 49.3 49.3 49.4 49.4 52.9 41.7 47.3 47.3 47.3 47.3 50.3 40.7 System (I-P) (SI) 40.6 46.1 19.4 22.8 16.1 19.4 22.8 SS-PRC003-EN...
  • Page 25 All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling capacities subtract indoor fan heat. TGC = Total Gross Cooling Capacity SHC = Sensible Heat Capacity SS-PRC003-EN Performance Data Ambient Temperature (°F) Entering Wet Bulb (°F) SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC 152.4 121.5 168.0 100.6 183.7 68.2 145.9 118.2 160.7 97.7 175.3 65.3 138.5 114.5 152.5 94.4 166.2 62.2...
  • Page 26 48.7 50.6 44.6 55.2 35.5 47.0 47.0 48.4 43.7 52.8 34.5 45.0 45.0 46.0 42.6 50.1 33.4 51.3 51.3 51.3 51.3 55.5 42.8 49.4 49.4 49.5 49.5 53.1 41.8 47.4 47.4 47.4 47.4 50.4 40.8 System 40.6 46.1 19.4 22.8 16.1 19.4 22.8 SS-PRC003-EN...
  • Page 27 All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling capacities subtract indoor fan heat. TGC = Total Gross Cooling Capacity SHC = Sensible Heat Capacity SS-PRC003-EN Performance Data Ambient Temperature (°F) Entering Wet Bulb (°F) SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC 91.7...
  • Page 28 64.6 66.8 59.8 72.9 47.4 62.3 62.3 64.1 58.6 69.9 46.2 60.0 60.0 61.3 57.3 66.8 44.9 68.0 68.0 68.1 68.1 73.3 57.3 65.7 65.7 65.8 65.8 70.3 56.1 63.3 63.3 63.4 63.4 67.2 54.9 System (I-P) (SI) 40.6 46.1 19.4 22.8 16.1 19.4 22.8 SS-PRC003-EN...
  • Page 29 1. All capacities show n are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat. 2. MBH = Total Gross Capacity 3. SHC = Sensible Heat Capacity SS-PRC003-EN Performance Data Ambient Temperature (C)

  • Page 30: Cooling Performance

    22.8 24.8 26.9 29.0 6.91 7 .05 7 .19 7 .34 2007 2055 2104 2156 21.5 23.4 25.3 27 .3 7 .66 7 .80 7 .94 8.09 2251 2301 2353 2407 20.0 21.8 23.6 25.5 8.48 8.62 8.76 8.91 SS-PRC003-EN...
  • Page 31 SS-PRC003-EN Performance Data Table PD-18 — Cooling Performance (MBh) TTA085A Condensing Unit Only (I-P) OD Temp °F Head press PSIG Cap. Btuh/1000 82.0 90.5 OD Unit KW 4.93 5.03 Head press PSIG Cap. Btuh/1000 78.5 86.5 OD Unit KW 5.41 5.51...
  • Page 32 8.79 1802 1854 1910 1969 30.8 33.6 36.6 39.7 9.04 9.27 9.50 9.75 2030 2085 2144 2205 29.0 31.7 34.6 37 .6 10.10 10.34 10.59 10.84 2277 2335 2397 2461 27 .2 29.8 32.5 35.4 11.28 11.54 11.79 12.05 SS-PRC003-EN...
  • Page 33 SS-PRC003-EN Performance Data Table PD-20 — Cooling Performance (MBh) TTA100B Condensing Unit Only (I-P) OD Temp °F Head press PSIG Cap. Btuh/1000 99.0 108.9 OD Unit KW 6.08 6.30 Head press PSIG Cap. Btuh/1000 94.4 103.9 OD Unit KW 6.66 6.90...
  • Page 34 36.3 39.2 8.68 8.98 9.31 9.67 10.06 1994 2045 2099 2154 2212 26.2 28.8 31.5 34.3 37 .1 9.60 9.91 10.24 10.60 10.98 2240 2294 2349 2407 2466 24.6 27 .1 29.7 32.3 34.9 10.63 10.93 11.25 11.60 11.98 SS-PRC003-EN...
  • Page 35 SS-PRC003-EN Performance Data Table PD-22 — Gross Cooling Capacities (MBh) - Single Compressor - (I-P) TTA100C Condensing Unit Only OD Temp °F Head press PSIG 138.6 Cap. Btuh/1000 51.3 OD Unit KW Head press PSIG 161.5 Cap. Btuh/1000 48.9 OD Unit KW Head press PSIG 186.8...
  • Page 36 10.48 10.75 11.02 1905 1958 2013 2071 35.2 38.3 41.5 44.9 11.25 11.52 11.80 12.09 2148 2203 2261 2322 33.1 36.0 39.1 42.3 12.37 12.66 12.95 13.26 2409 2466 2527 2591 30.9 33.7 36.7 39.7 13.59 13.89 14.20 14.52 SS-PRC003-EN...
  • Page 37 SS-PRC003-EN Performance Data Table PD-24 — Cooling Performance (MBh) TTA155B Condensing Unit Only OD Temp °F Head press PSIG Cap. Btuh/1000 144.5 159.5 OD Unit KW 9.84 10.10 Head press PSIG Cap. Btuh/1000 140.1 154.4 OD Unit KW 10.85 11.13 Head press PSIG Cap.
  • Page 38 57 .4 13.62 13.94 14.28 14.63 15.01 2028 2084 2143 2205 2269 38.6 42.3 46.1 50.0 54.0 15.12 15.44 15.78 16.14 16.51 2270 2328 2389 2454 2520 35.8 39.3 42.9 46.6 50.5 16.77 17 .08 17 .41 17 .77 18.14 SS-PRC003-EN...
  • Page 39 SS-PRC003-EN Performance Data Table PD-26 — Cooling Performance (MBh) - Single Compressor - (I-P) TTA155C Condensing Unit Only OD Temp °F Head press. PSIG 139.0 Cap. Btuh/1000 71.8 OD Unit KW Head press. PSIG 163.0 Cap. Btuh/1000 70.8 OD Unit KW Head press.
  • Page 40 17 .48 1836 1888 1943 2000 59.3 64.6 70.1 75.9 18.12 18.56 19.02 19.50 2072 2128 2185 2246 55.7 60.8 66.1 71.6 20.31 20.78 21.26 21.75 2327 2386 2448 2511 52.1 57 .0 62.1 67 .3 22.73 23.23 23.74 24.23 SS-PRC003-EN...
  • Page 41 SS-PRC003-EN Performance Data Table PD28: Gross Cooling Capacities (MBH) - 20 Ton TTA200F Condensing Unit Only (I-P) Saturated Suction Temperature (F) Outdoor Air Temperature Head Pressure (psig) 292.4 302.4 Capacity (MBH) 208.2 227.3 Unit KW 11.40 11.73 Head Pressure (psig) 331.2...

  • Page 42: Fan Performance

    — — — — — — — — — — — — — — — — — — — — — Motor DriveTurns Open 1009 SS-PRC003-EN — — — — — — — — — — — — — —...
  • Page 43 3. Factory setting of motor sheave is 1.5 turns open. Adjustments are made in 0.5 turn increments. Table PD-32 — Blower Speeds — TWE075A Motor Drive Turns Open Drive Standard Low Static High Static SS-PRC003-EN Performance Data External Static Pressure (In. Of Water Column) 0.20 0.30 0.40 0.50 0.60...
  • Page 44 884 1.01 938 1.13 5012 886 1.05 939 1.17 5309 889 1.1 941 1.22 5607 892 1.15 945 1.29 5904 897 1.22 950 1.38 6201 902 1.29 955 1.48 6499 912 1.41 960 1.63 6796 922 1.52 965 1.72 SS-PRC003-EN...
  • Page 45 1. Performance based on a wet coil and 2 inch (51 mm) throwaway filters. 2. Tabulated brake horsepower is the motor shaft output required. 3. Factory setting of motor sheave is 1.5 turns open. Adjustments are made in 0.5 turn increments. SS-PRC003-EN Performance Data External Static Pressure (Inches of Water Column) .30"...
  • Page 46 952 2.21 997 2.48 9939 961 2.36 1006 2.64 10491 970 2.52 1015 2.8 11044 978 2.68 1023 2.95 11596 986 2.83 — — 12148 994 2.99 — — 12700 1003 3.17 — — 13252 1012 3.36 — — SS-PRC003-EN...
  • Page 47 TWE200B,E 1. Return air filter ESP included in Fan Performance Table data. 2. At louver opening angle of 42°F (5.5°C). For ESP at other angle openings, see accessory Installer’s Guide. SS-PRC003-EN Performance Data Table PD-39— Discharge Plenum And Grille Assembly Throw Distance — Air Handle — ft (m) Unit Model No.
  • Page 48 14.96 51,058 34.88 34,130 — — 10.00 67 ,987 — — 19.92 67 ,987 10.00 34,130 29.92 102,117 19.92 67 ,987 49.84 Voltage Rated kW. Rated Voltage SS-PRC003-EN Output 17 ,065 33,993 51,058 85,051 119,045 34,130 67 ,987 102,117 170,104...

  • Page 49: Electrical

    Table ED-3 — Electrical Characteristics — Motors — Air Handler Unit Model No. Volts Phase TWE050 380/415 TWE075 380/415 TWE100 380/415 TWE155 380/415 TWE200 380/415 SS-PRC003-EN Electrical Data Table ED-1 — Unit Wiring — Condensing Units Unit Unit Operating Model No. Voltage TTA075A 380/415 TTA085A 380/415 TTA100A 380/415 TTA100B...

  • Page 50: Electric Heat Data

    4. Field wire must be rated at least 194°F (90°C). Electric Heat Data To Use Control with Unit Stages TWE050AD TWE075AD TWE100AD, TWE100BD TWE155BD TWE200BD TWE200FD Voltage x Rated Capacity and kW = Rated Voltage Minimum Maximum Circuit Ampacity Fuse Breaker Size Rated kW. SS-PRC003-EN...

  • Page 51: Jobsite Connections

    1 additional wire, 24 volts. — Two-stage electric heat: add 2 additional wires, 24 volts. D — 2 wires, 24 volts to outdoor section ‘’A’’ — 2 wires, 24 volts to outdoor section ‘’B’’ SS-PRC003-EN Jobsite Connections TTA075A/TWE075A; TTA085/TWE075A; TTA085/TWE100A; TTA100A/TWE100A Field Wiring: A —...
  • Page 52 Air Handler Typical wiring diagram. For specific wiring, see isee wire diagram manual online. Typical Wiring Air Handler SS-PRC003-EN...
  • Page 53 Air Handler Typical unit wiring diagram. For specific wiring, see see wire diagram manual online. SS-PRC003-EN Typical Wiring Condensing Unit...
  • Page 54 Condensing Unit — Single Compressor Typical wiring diagram. For specific wiring, see wire diagram manual on- line. Typical Wiring Condensing Unit SS-PRC003-EN...
  • Page 55 Condensing Unit — Single Compressor Typical wiring diagram. For specific wiring, see wire diagram manual on- line. SS-PRC003-EN Typical Wiring Condensing Unit...
  • Page 56 Condensing Unit — Dual Compressor Typical wiring diagram. For specific wiring, see wire diagram manual on- line. Typical Wiring Condensing Unit SS-PRC003-EN...

  • Page 57: Typical Wiring

    Condensing Unit — Dual Compressor Typical wiring diagram. For specific wiring, see wire diagram manual on- line. SS-PRC003-EN Typical Wiring...

  • Page 58: Dimensional Data

    Figure DD-1 — TTA075 Condensing Units All dimensions are in inches and millimeters. Dimensional Data SS-PRC003-EN...
  • Page 59 Figure DD-2 — TTA085A and 100A Condensing Units All dimensions are in inches and millimeters. SS-PRC003-EN Dimensional Data...
  • Page 60 Figure DD-3 — TTA100C Condensing Units All dimensions are in inches and millimeters. Dimensional Data SS-PRC003-EN...
  • Page 61 Figure DD-4 — TTA100B and TTA125B Condensing Units All dimensions are in inches and millimeters. SS-PRC003-EN Dimensional Data...
  • Page 62 Figure DD- 5— TTA155B Condensing Unit All dimensions are in inches and millimeters. Dimensional Data SS-PRC003-EN...
  • Page 63 Figure DD-6 — TTA155C Condensing Units All dimensions are in inches and millimeters. SS-PRC003-EN Dimensional Data...
  • Page 64 Figure DD-7 — TTA200B Condensing Unit All dimensions are in inches and millimeters. Dimensional Data SS-PRC003-EN...
  • Page 65 Figure DD-8 — TTA200F Condensing Unit All dimensions are in inches and millimeters. SS-PRC003-EN Dimensional Data...
  • Page 66 Model No. TWE050A Table DD-1 — (Continued) Model No. TWE050A Dimensional Data (1219.20) (965.20) (558.80) 1-7/8 42-1/8 34-5/8 (47 .63) (1069.98) (879.48) 19-1/2 15-7/8 14-1/8 (203.20) (495.30) (660.40) (403.23) (358.78) — — 1-1/8 1-7/8 (9.53) — — (28.58) (47 .63) SS-PRC003-EN...
  • Page 67 Table DD-2 — Air Handler Dimensions — in. (mm) Tons TWE075A TWE100A TWE100B Table DD-2 — (Continued) Model No. TWE075A TWE100A TWE100B SS-PRC003-EN Dimensional Data Figure DD-10— TWE075A; TWE100A, 100B Air Handlers All dimensions are in inches and millimeters. Model No. 47-1/2 (1371.60) (1206.50) (635.00) 63-12 (1371.60) (1612.90)
  • Page 68 (819.15) 36-7/8 6-5/8 45-1/8 16-1/8 41-3/4 (936.63) (168.28) (1146.18) (409.58) (1060.45) (412.75) 36-7/8 6-5/8 61-1/8 16-1/8 57-3/4 (936.63) (168.28) (1552.58) (409.58) (1466.85) (412.75) 12-1/2 7-5/8 (317 .50) (193.68) (50.80) 16-1/4 6-7/8 1-3/4 (174.63) (44.45) 16-1/4 6-7/8 1-3/4 (174.63) (44.45) SS-PRC003-EN...
  • Page 69 Figure DD-12— TWE155B and 200B Air Handlers All dimensions are in inches and millimeters. SS-PRC003-EN Dimensional Data...
  • Page 70 49-1/8 56-1/4 15-1/2 (638.18) (1247 .78) (1428.75) (393.70) 51-7/8 59-1/8 18-1/8 (711.20) (1317 .63) (1501.78) (460.38) 2-7/8 73-7/8 3-3/4 3-3/8 (73.03) (1876.43) (95.25) (85.73) 4-7/8 82-7/8 4-5/8 3-1/8 (123.83) (2105.03) (117 .48) (79.38) (889.00) (889.00) 39-1/8 39-1/8 (993.78) (993.78) SS-PRC003-EN...
  • Page 71 (775) (479) Table DD-5 — (Continued) Model No. TWE200E 39 1/8" 4 7/8" 82 7/8" 4 5/8" (994) (124) (2105) (118) SS-PRC003-EN Dimensional Data 4 1/2" 28 1/2" 28" 51 7/8" 59 1/8" (114) (724) (711) (1318) (1502) 3 1/8"...
  • Page 72 Figure DD-15— Electric Heater for TWE050, 075, 100 Air Handlers All dimensions are in inches and millimeters. Figure DD-16 — Electric Heater for TWE155 and 200 Air Handlers Dimensional Data 18 1/8” SS-PRC003-EN...
  • Page 73 (2349.5) (771.5) (889) Figure DD-18 — Subbase Table DD-8 — Subbase Dimensions — in. (mm) Model Model No. TWE050 BAYBASE001 (965.2) (558.8) TWE075 BAYBASE002 (1206.5) (635) TWE100 BAYBASE003 (1612.9) (635) TWE155 BAYBASE004 (2019.3) (701.7) TWE200 BAYBASE005 (2349.5) (771.5) SS-PRC003-EN Dimensional Data...
  • Page 74 20 (9.1) 1 (.5) 23 (10.4) 1 (.5) 22 (10.0) 1 (.5) 23 (10.4) 1 (.5) 34 (15.4) 1 (.5) 23 (10.4) 1 (.5) 45 (20.4) 1 (.5) 42 (19.1) SS-PRC003-EN 77 (34.9) 85 (38.6) 95 (43.1) 85 (38.6) 140 (64)
  • Page 75 TWE100B 97 (44.0) TWE155B — TWE200B, E — NOTES: 1. For use when no heat is supplied. 2. For use with electric heat. SS-PRC003-EN Weights (kg) Corner Weights — Vertical 59 (26.8) 59 (26.8) 59 (26.8) 59 (26.8) 79 (35.8) 79 (35.8)

  • Page 76: Mechanical Specifications

    TTA100B,TTA125, TTA155B, TTA200B TTA100B,TTA125B, TTA155B, and units shall have two Trane direct-drive, TTA200B units shall have two Trane hermetic scroll compressors with direct-drive hermetic scroll centrifugal oil pump and provide positive compressors with centrifugal oil pump lubrication to all moving parts.

  • Page 77: Condensing Units

    Time delay timers shall be provided to help prevent compressors in dual compressor units from simultaneous start-up. An anti-short cycle timer shall be available as an optional accessory. SS-PRC003-EN Mechanical Specifications Zone Sensor This field installed control shall be provided to interface with the Micro...

  • Page 78: Air Handlers

    Programmable Electronic Night Setback Thermostat — The option shall provide heating setback and cooling setup with 7-day programming capability. SS-PRC003-EN...

  • Page 79: Ss-Prc003-En

    Stocking Location For more information contact your local district office, or e-mail us at Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice. comfort@trane.com SS-PRC003-EN PL -UN-SS-PRC003-EN-0606...
