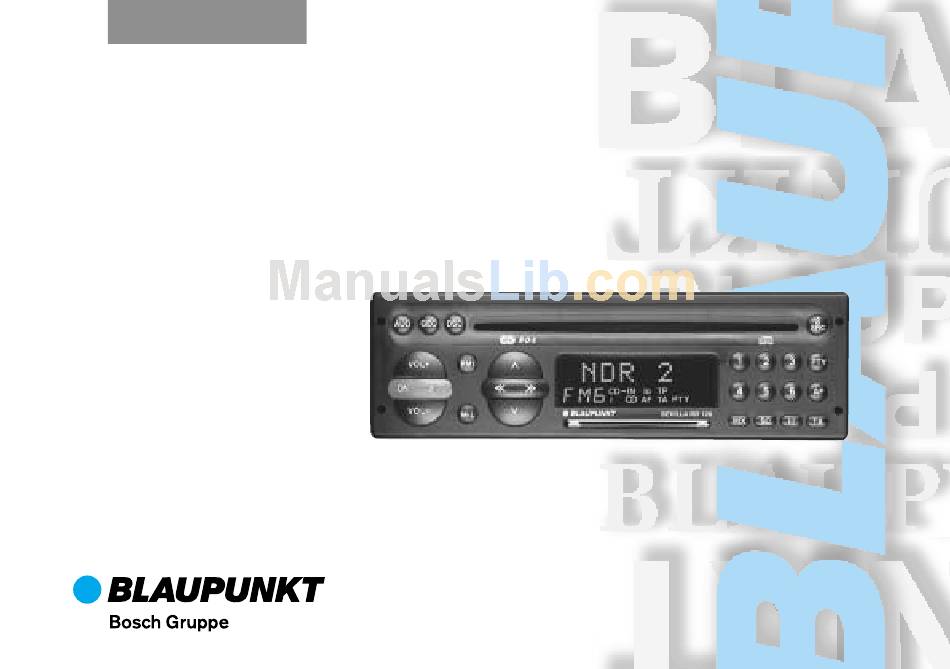

  • Page 1 Radio / CD Sevilla RD 126 Operating instructions...

  • Page 3: Table Of Contents

    Contents Quick reference ... 26 Important notes ... 31 Precautions ... 31 Traffic safety ... 31 Installation ... 31 Telephone mute ... 31 Accessories ... 31 KeyCard theft protection system ... 32 Putting the unit into operation ... 32 Removing the KeyCard ... 32 “Training”...

  • Page 4: Quick Reference

    Quick reference 1 Switching on/off with the ON button: Press ON. When switching the set on with the ON button, the KeyCard has to be insert- ed. The unit will play with the pre-ad- justed volume. Switching on/off with the KeyCard: The set has to be turned on via the ON button.
  • Page 5 6 Rocker switch Radio operation Station search Down <</>> Up/Down in short intervals when AF is off <</>> To scroll through the station net- works when AF is on, e.g. NDR 1, 2, 3, 4, N-JOY, FFN, ANTENNE ..CD operation Title selection Down...
  • Page 6 k) TA - Priority for traffic stations l) TP - A traffic station is being re- ceived m) PTY - Programme type function n) MIX - CD playback in random or- o) T5 - Track no. 5 is played back 8 KeyCard theft protection system To operate the set it is necessary that the KeyCard is inserted.
  • Page 7 < TA (priority for traffic announcements) When “TA” lights up in the display, the system will play traffic stations only. Priority on/off: Press TA. = AF Radio operation Alternative frequency during RDS op- eration: When “AF” lights up in the display, the system will automatically seek a fre- quency offering better reception of the same RDS programme.
  • Page 8 C GEO To adjust the balance (left/right) and fader (front/rear) with the rocker switch. Fader front Fader rear Balance left Balance right The last setting will be stored automat- ically. To switch off GEO: Press button once again. If the setting remains unchanged with- in four seconds, the display will switch back to the previous condition.

  • Page 9: Important Notes

    The announcement will be aborted by pressing the TA button. Accessories Use only the accessories and spare parts approved by Blaupunkt. You can use the following Blaupunkt prod- ucts with this car stereo: Amplifier All Blaupunkt amplifiers...

  • Page 10: Keycard Theft Protection System

    KeyCard theft protection system This car radio is supplied with one KeyCard as standard, though it can also be operated with a second card. If you have lost your KeyCard or if it was damaged, you can buy a new one from your specialised dealer.

  • Page 11: Short Additional Memory (S.a.m.)

    Short Additional Memory (S.A.M.) The second KeyCard available from your specialised dealer offers you the possibility to read out any short information, which will be moved through the display, such as, for example, the phone number of your car deal- er or the emergency call number of your automobile association.

  • Page 12: Radio Operation With Rds

    Radio operation with RDS (Radio Data System) The Radio Data System offers you more convenience when listening to FM radio sta- tions. More and more radio stations have begun to broadcast RDS information alongside their programmes. As soon as a programme has been identi- fied, the station name including a regional identifier, if applicable, will appear in the dis- play, for example, NDR1 NDS (regional pro-...

  • Page 13: Manual Tuning With

    Seek tuning Down Down in short intervals (“AF” must be switched off) Up in short intervals (“AF” must be switched off) Manual tuning with << >> You can also tune in a station manually. Condition: AF and PTY must be switched off (i.e. the symbols do not light up in the display).

  • Page 14: Automatically Storing The Strongest Stations With Travelstore

    Automatically storing the stron- gest stations with Travelstore You can automatically store the six most powerful FM stations of your current recep- tion area sorted according to their signal strength. This function is particularly con- venient on longer trips. • Press the FM button for two seconds.

  • Page 15: Switching From Stereo To Mono

    Switching from stereo to mono If reception is poor, you may get better sound quality by switching to mono: • Press the lo button for approximately two seconds. With mono playback, the stereo sign disappear from the display. Each time the radio is switched on, stereo playback is activated.

  • Page 16: Storing Programme Types

    If the system is unable to find a station of- fering the selected programme type, the dis- play will show “NO PTY” and a beep tone will be released. The station received be- fore starting seek tuning will be tuned in. You can assign different programme types to each preset position.

  • Page 17: Receiving Traffic Programme Stations With Rds-Eon

    NDR2 airs a PTY-POP programme. The system will switch to the linked station NDR2 for the duration of the “POP” programme. During CD operation, the set will also switch to the programme offering the selected PTY within the broadcasting network. After the PTY programme the system will remain in the radio mode.

  • Page 18: Switching The Warning Beep Off

    Switching the warning beep off a) Tune into another station offering traf- fic information: • Press the rocker switch or • press a preset button which has a traffic programme station allocated to it. Alternatively: b) Switch off the priority for traffic an- nouncements: •...

  • Page 19: Cd Operation

    CD operation This car stereo is equipped with a CD drive. Switching to CD operation Make sure that a disc is inserted, “CD IN” shows on the display panel. Press SRC to go through the available au- dio sources: • Press as many times until the display briefly shows “CD”.

  • Page 20: Scan Operation

    • press AF as many times until the de- sired setting is displayed. • Hold down the AF button until you hear a beep. SCAN operation Use this function to scan all of the CD tracks. To start the Scan function: •...
  • Page 21 SPEECH In future many RDS radio stations will differentiate be- tween music and speech programmes. You can alter the tone for speech programmes from between “SPEECH 0 ... 4”. SPEECH 0: Music/speech off SPEECH 1: Linear reproduction (bass, treble and Loudness set to “0”) SPEECH 2-4: Different settings for vol-...

  • Page 22: Overview Of The Dsc Factory Settings

    PTY LANG To select the programme type language: DEUTSCH or ENGLISH SCANTIME Use this function to set the scan time for the radio or CD player from between five and 30 seconds. S-DX To adjust the seek tuning sensitivity for distant recep- tion.

  • Page 23: Blaupunkt Telephone Hotline

    Address of the next service centre in your vicinity (only for Germany) If you would like to know the address of the next Blaupunkt service centre of your area without having our service list at hand: Find out your area code.
  • Page 24 Blaupunkt-Werke GmbH Bosch Gruppe 5/96 Pf K7/VKD 8 622 400 773...
