Arkon RCBTABLED Manual

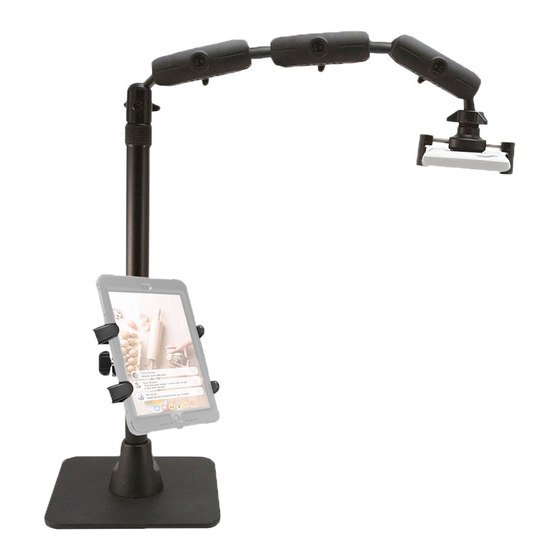

RCBTABLED | Remarkable Creators Video Phone Stand Bundle

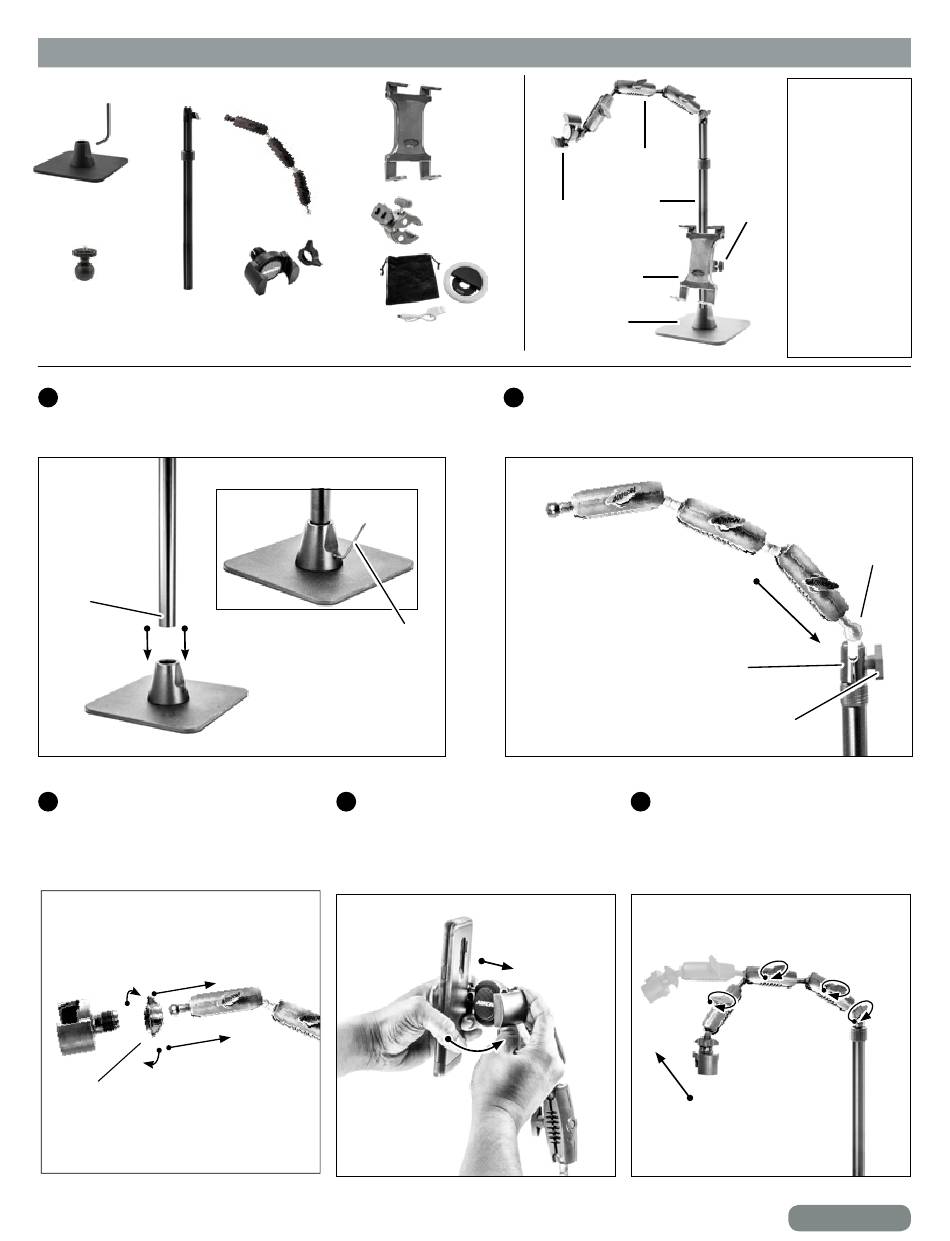

Your Remarkable Creators Bundle will arrive in eight pieces:
SP3RMPR0
Overhead Arm
SPHD8BASE
Weighted Base
with Allen Wrench
SP25MMCAM
SPHD8L29
25mm to 1/4"-20
Camera Bolt Adapter Telescoping Pole
(optional)
Insert pole into base.
1
PLEASE NOTE—this will be a tight fit and will require some force.
Telescoping
Pole
Unscrew tightening ring from holder.
3
Place ring over the 17mm end of mount
then snap the holder onto the ball. Set to
desired position, then tighten ring.
Tightening Ring
Assembly
RV001WR-B
Phone Holder
LED Ring Light
Tighten clockwise
to secure.
Allen
Wrench
Using two hands, insert phone into the
4
holder by pushing the device into one of the
spring-loaded support arms. Expand the other
support arm and fully insert device until it lays
flat against the blue rubber pad.
TAB001
Tablet Holder
GN031-SBH-B
RV001WR-B
Clamp Post Mount
SPHD8BASE
SPLEDRING
Attach overhead arm assembly by unscrewing the collar at the top of
2
the pole until the metal ball side of the overhead arm assembly fits
into the collar. Tighten collar clockwise to secure.
SP3RMPR0
SPHD8L29
GN031-SBH-B
TAB001
Assembled Mount
Collar
Tightening
Knob
Shafts can be adjusted by unscrewing
5
the shafts' knobs to loosen. Tighten
knobs to set.
rev.053118
Telescoping pole extends
upward from 17 inches to
29 inches.
Compatibility:
Fits smartphones with
cases weighing up to 2
pounds and measuring
up to 4" wide.
IMPORTANT:
Do not overtighten ring.
Overtightening may
damage threads on
holder and also make it
difficult to adjust phone
and tablet holders.
Metal
Ball side
Continued on page 2
