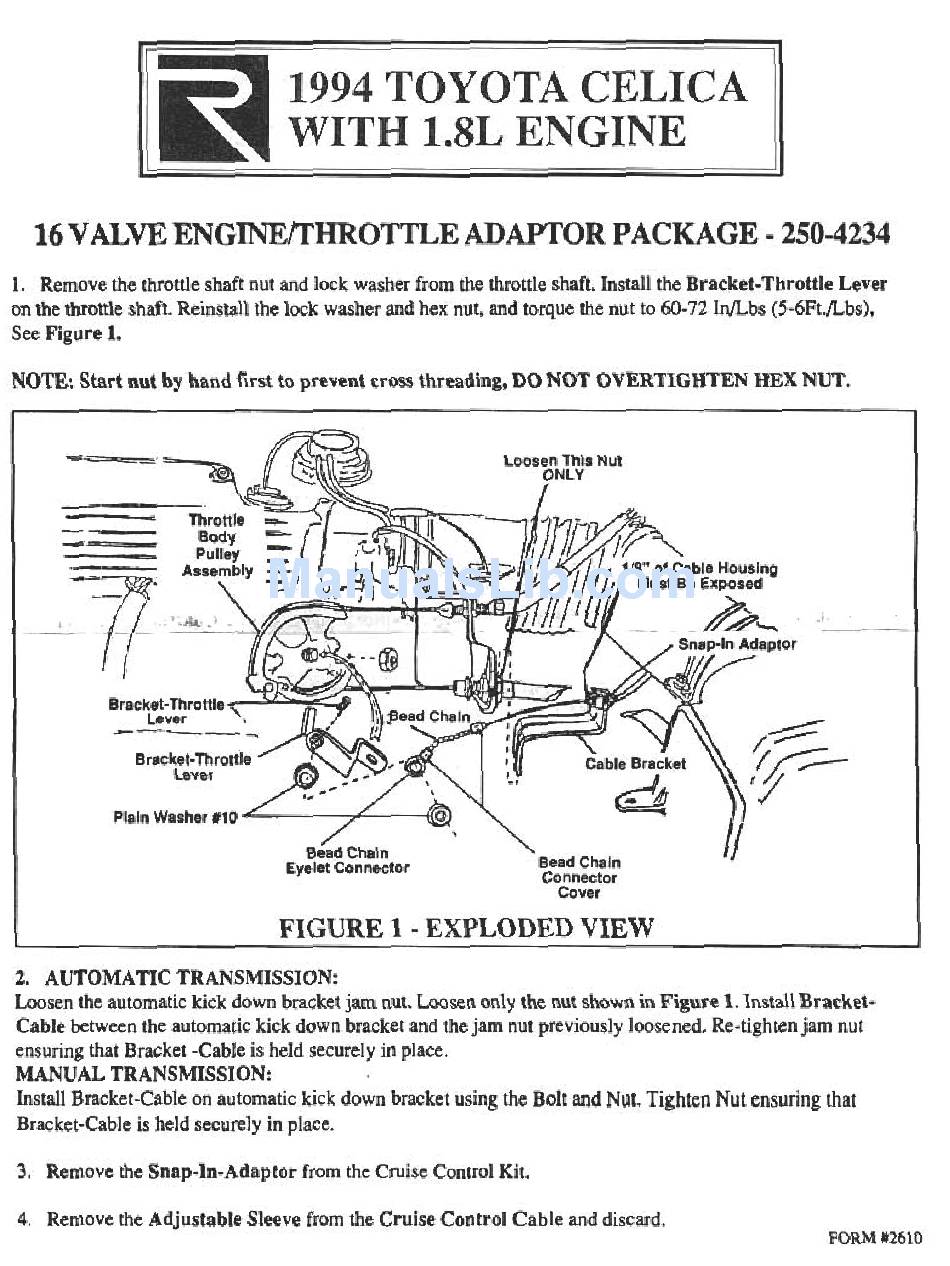

I. Remove the throttle shaft nut and lock washer from the throttle shaft. Install the Bracket- Throttle Lever
on the throttle shaft. Reinstall the lock washer and hex nut, and torque the nut to 60-72 In/Lbs (5-6Ft./Lbs),
See Figure I.
NOTE: Start nut by hand first to prevent cross threading, DO NOT OVERTIGHTEN
HEX NUT .
-=c:~
Loosen
This
Nut
ONLY
Throttle
~
Body
=-
(
Pulley
=
.
Assembly
-
~,I-
~(-
i~'
I!
/h
118" of Cable Housing
1ff~:st
B.~,-.
~ Snap-In
Adaptor
~
Vi
LL,..
~
T-"--.
--~
\~ead
Chain
/'~t
: ~ble
Bracket
/-1
~
\\
Bracket- Throttle-\..
-~~
Lever
,
~
--~~~~i:!
'
~~
Lever
~ ~
~;~
.~
Plain Washer #10
Bead Chain
Eyelet Connector
I
Bead Chain
Connector
Cover
FIGURE
1 .EXPLODED
VIEW
2. AUTOMATIC
TRANSMISSION:
Loosen the automatic kick down bracket jam nut. Loosen only the nut shown in Figure I. Install Bracket-
Cable between the automatic kick down bracket and the jam nut previously loosened. Re-tighten jam nut
ensuring that Bracket -Cable is held securely in place.
MANUAL TRANSMISSION:
Install Bracket-Cable on automatic kick down bracket using the Bolt and Nut. Tighten Nut ensuring that
Bracket-Cable is held securely in place.
3. Remove the Snap-In-Adaptor
from the Cruise Control Kit.
4.
Remove the Adjustable Sleeve from the Cruise Control Cable and discard.
FORM #2610
