16 V ALVE ENGlNEtrHROTTLE
ADAPTOR
PACKAGE
-250-4235
I. Remove the throttle shaft nut and lock washer from the throttle shaft. Install the Bracket- Throttle Lever
on the throttle shaft. Reinstall the lock washer and hex nut, and torque the nut to 60-72 In/Lbs (5-6Ft./Lbs),
See Figure I.
NOTE: Start nut by hand first to prevent cross threading, DO NOT OVERTIGHTEN
HEX NUT .
Throttle Body
Pulley Assembly
Loosen This Nut
ONLY
) l
~
-,\
~,\i
I-.
~
IJlj
-.
~
~
-~
-
T
Cable Bracket
Bead Chain
Connector
Cover
Snap-In Adaptor
~'
~
Pin -Self
Locking
~\
Bead Chain
Bracket- Throttle
-Lever
~
\
W
\
\ I
Plain
Washer
#10
\
118" of Cable Housing
Must Be Exposed
Bead Chain
.
Eyelet Connector

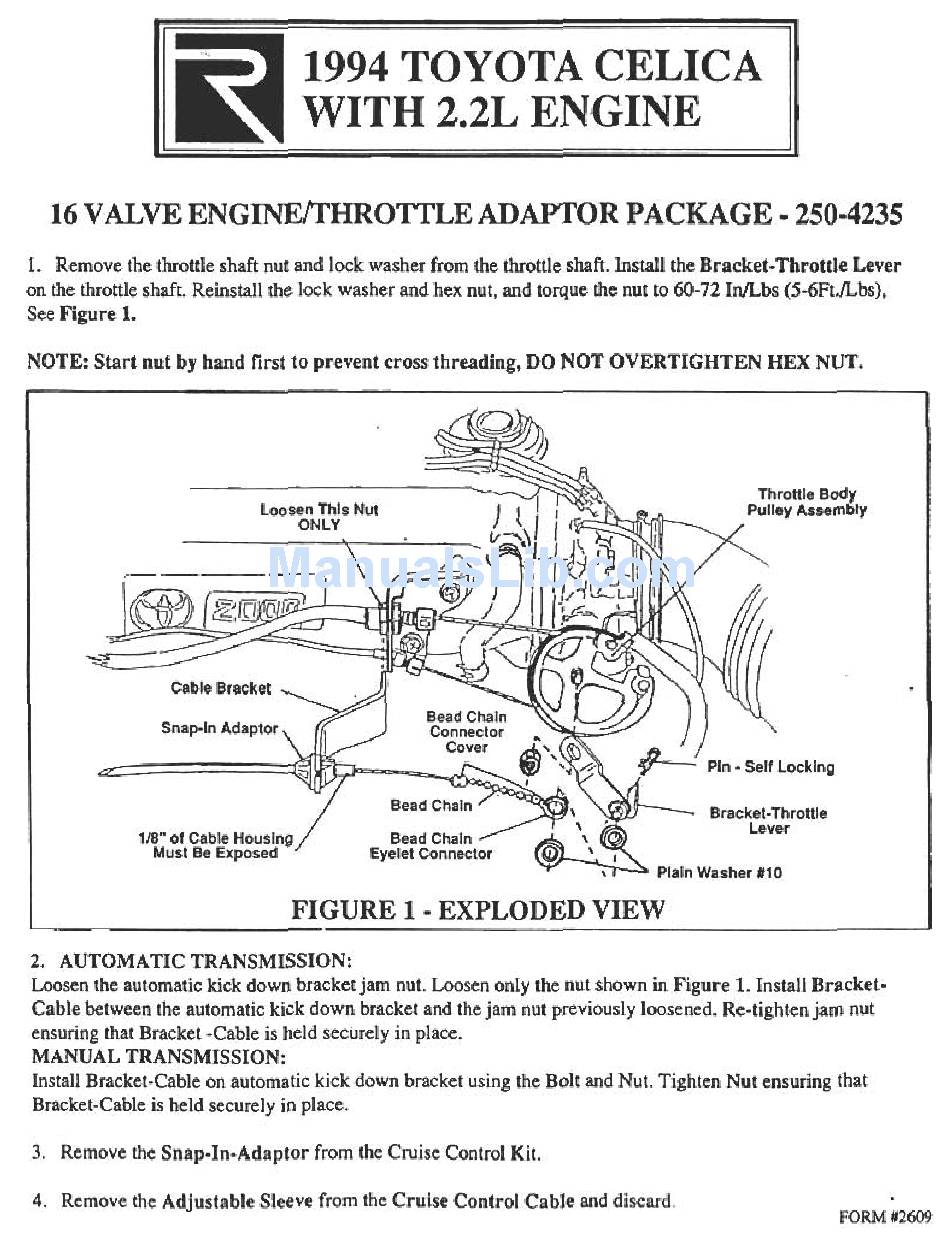

FIGURE
1 .EXPLODED
VIEW
2. AUTOMATIC
TRANSMISSION:
Loosen the automatic kick down bracket jam nut. Loosen only the nut shown in Figure 1. Install Bracket-
Cable between the automatic kick down bracket and the jam nut previously loosened. Re-tighten jam nut
ensuring that Bracket -Cable is held securely in place.
MANUAL
TRANSMISSION:
Install Bracket-Cable on automatic kick down bracket using the Bolt and Nut. Tighten Nut ensuring that
Bracket-Cable is held securely in place.
3. Remove the Snap-In-Adaptor
from the Cruise Control Kit.
4.
Remove the Adjustable
Sleeve from the Cruise Control Cable and discard
FORM
#2609
