91/92
TOYOTA
TERCEL
WITH
1.5L
FOUR
CYLINDER
ENGINE
THROTTLE
LEVER
ADAPTOR
PACKAGE
250-4211
1)
Remove the throttle shaft nut and lock washer from the throttle shaft. Install the Bracket- ThroUle
Lever on the throttle shaft. Reinstall the lock washer and hex nut, and torque the nut to 60- 72 In/
Lbs (5-6 Ft./Lbs), See Figure 1.
NOTE: START NUT BY HAND FIRST TO PREVENT CROSS THREADING.
DO NOT
OVERTIGHTEN
HEX NUT.
Th
ttl
B d
Pln-Self
ro
e
o y
Locking"
Bracke~- Throttle
Pulley Assembly
'\\
Lever
-I
(
Accelerator
Cable
Bracket
Washer
Plain
#10
~
~
.
,
Loosen This
, Nut.Qnly
v
Bead Chain Eyelet
Connector
Bead Chain
Adaptor
~
1/8"
of Cable
Must
Be Exposed
Bracket-Cable

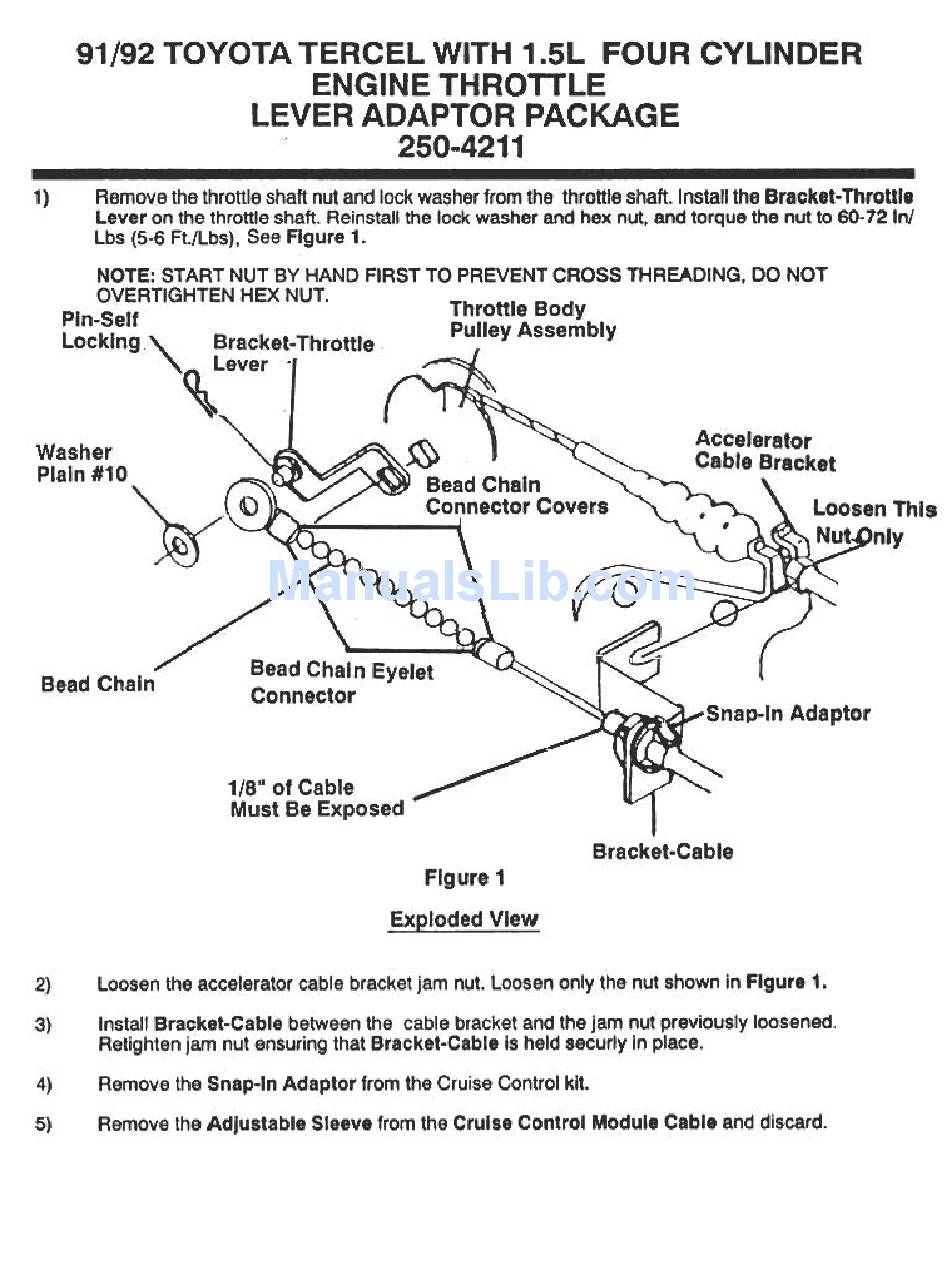

Figure 1
Exploded
View
Loosen the accelerator cable bracket jam nut. Loosen only the nut shown in Figure 1.
2)
Install Bracket-Cable
between the cable bracket and the jam nut previously loosened.
Retighten jam nut ensuring that Bracket-Cable
is held securly in place.
3)
Remove the Snap-In Adaptor from the Cruise Control kit.
4)
Remove the Adjustable
Sleeve from the Cruise Control
Module Cable and discard.
5)
Bead Chain
Connector Covers
