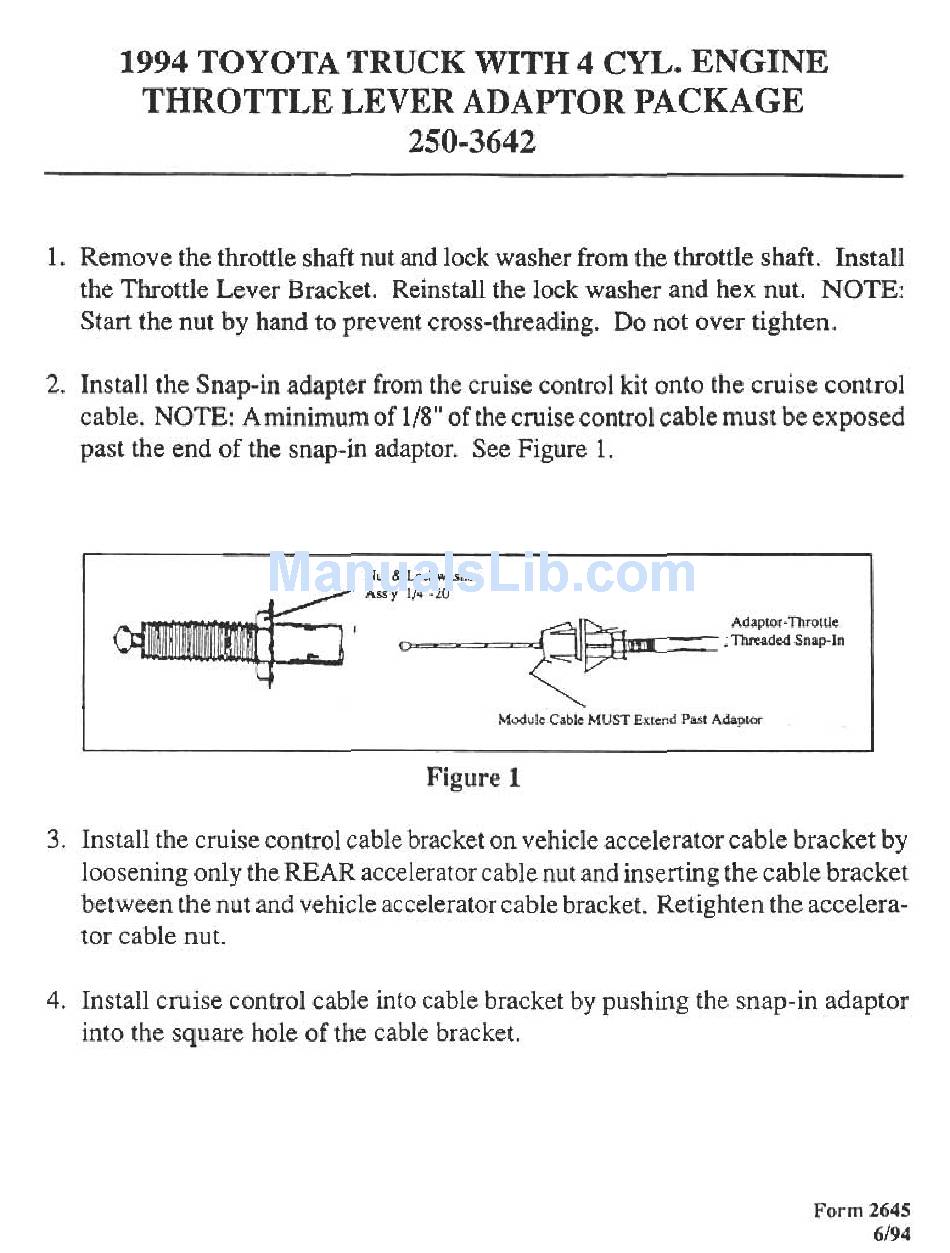

Rostra 250-3642 User Manual

Toyota truck 1994 with 4 cyl. engine throttle lever adaptor package

Advertisement

1994 TOYOTA
TRUCK
WITH
4 CYL.
ENGINE
THROTTLE
LEVER
ADAPTOR
PACKAGE
250-3642
1. Remove
the throttle
shaft nut and lock washer from the throttle
shaft.
Install
the Throttle
Lever Bracket.
Reinstall
the lock washer and hex nut.
NOTE:
Start the nut by hand to prevent cross-threading.
Do not over tighten.
2. Install
the Snap-in
adapter from the cruise control kit onto the cruise control
cable. NOTE:
A minimum
of 1/8" of the cruise control cable must be exposed
past the end of the snap-in adaptor.
See Figure
1.
Nut & Lockwashel
Ass'y
1/4"-20
Adaptor-Throttle
~ Threaded
Snap-In
Module Cable MUST Extend Past Ada?tor
3. Install the cruise control cable bracket on vehicle accelerator
cable bracket
by
loosening
only the REAR accelerator cable nut and inserting
the cable bracket
between the nut and vehicle accelerator cable bracket.
Retighten
the accelera-
tor cable nut.
4. Install
cruise control
cable into cable bracket by pushing
the snap-in
adaptor
into the square hole of the cable bracket.
Form 2645
6/94
