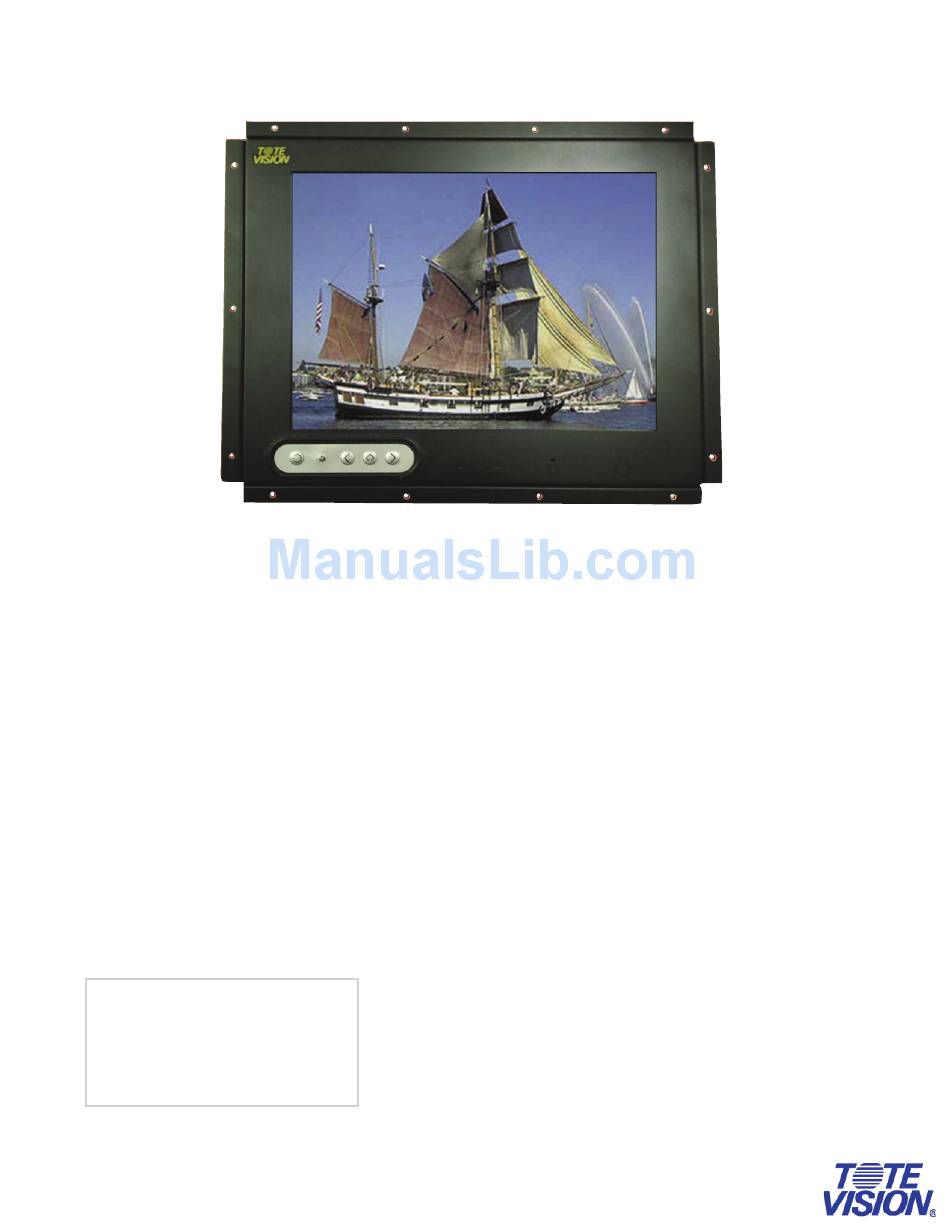

Tote Vision LCD-1211VB Specifications

12" Sunlight Readable LCD Monitor
LCD-1211VB
• LED backlight provides longer life, uses less
power and provides better color saturation
• Ultra-bright technology provides
sunlight readability
• Mercury and lead free green design
• High shock and vibration resistance
• On-screen display for: brightness, contrast, back light, hue
• Composite, S-Video, PC capability
• Low power consumption
• Case made of durable steel
• Active matrix technology allows wide viewing angle
• Front controls for power, menu, up/down
• Built-in interface for wall or arm mounting
VESA 75mm FPMPI compliant
• Response Time: 23ms

Optional Accessories

DC-1500 Factory approved car cord
HM-400 Under-cabinet hinge mount bracket
WM-30 Wall mount bracket (fixed and locking)
WM-31 Wall mount bracket (fixed)
WM-302 Wall mount with swing arm & 4-way
WMC-1015 Ceiling mount
Specifications subject to change without notice
P.19
Actual visible screen size (WH):
Includes switching power supply:
Rear Terminal Connections:
©2009 ToteVision
70K
Display:
12.1" TFT LCD active matrix
Back Light:
LED
Input Signal:
Composite NTSC/PAL (menu select),
S-Video, analog RGB
Pixel Pitch:
0.24(H) x 0.24(V)mm
Resolution:
1024(H) x 768(V)
Display Modes:
VGA, SVGA
Brightness rating:
1000 Nit
Contrast Ratio:
700:1
Pixel Configuration:
Stripe
Colors:
262,144
Number of Pixels:
786,432
Viewing angle L/R/T/B
70/70/70/70
Input Signal Level:
1.0V P-P (positive) 75 Ohm
Dimensions (WHD):
338 x 278 x 59mm / 13.3" x 10.9" x 2.3"
246 x 184.5mm/ 9.7" x 7.3"
Operating temperature:
32 ~ 122°F or 0 ~ 50°C, 95 % RH
Storage temperature:
-4 ~ 140°F or -20 ~ 60°C, 95% RH
Power Requirement:
Regulated 12VDC, 5A, negative ground
Part No. DC-1500 required for use in vehicles
Power Consumption:
18.5 W (max)
110 ~ 240VAC, 5 A / 47 ~ 63Hz
Composite BNC video IN/OUT jacks,
S-Video IN jack
PC: 15-pin mini D-sub (female),
Power: 2.1mm DC IN jack
Weight:
Net: 3.4 kg. / 7.5 lbs.
Gross: 4.5 kg. / 10 lbs.
1319 Dexter Ave. N. • Ste. 020• Seattle, WA 98109
Tel: 206-623-6000 • FAX: 206- 623-6609
E-mail: sales@totevision.com
http://www.totevision.com
