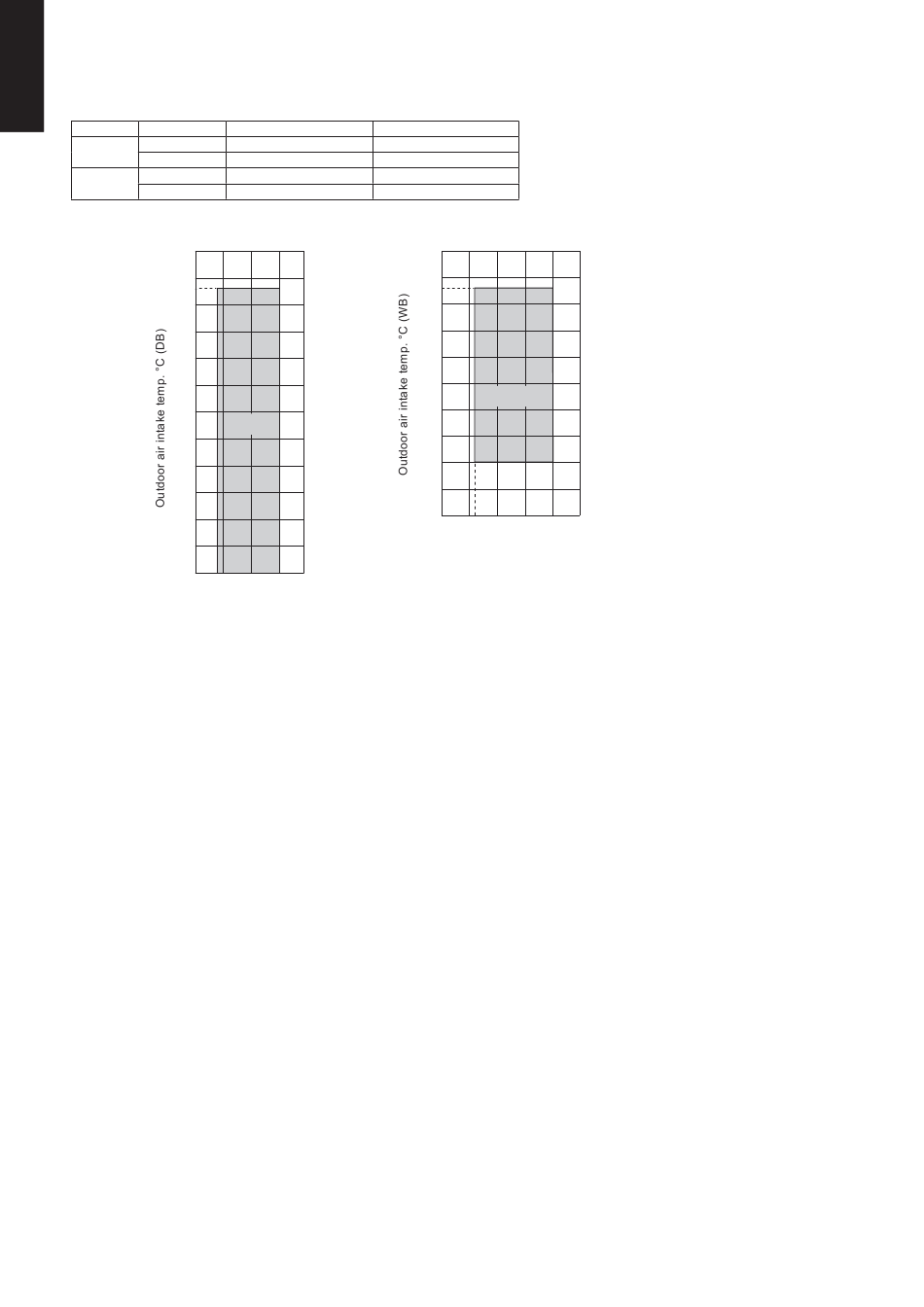

1-4. Operating Range

Type PZ3
Temperature
Maximum
Cooling
Minimum
Maximum
Heating
Minimum
50
45
43
40
35
30
25
20
15
10
5
0
–5
–10
Indoor air intake temp. °C (WB)
Indoor air intake temp.
32°C DB / 25°C WB
18°C DB / 14°C WB
30°C DB / − WB
16°C DB / − WB
Cooling
Operating
range
14
10 15 20 25 30
Outdoor air intake temp.
43°C DB
-10°C DB
24°C DB/18°C WB
-15°C DB / -15°C WB
Heating
25
20
18
15
10
5
0
Operating
range
–5
–10
–15
–20
–25
16
10 15 20 25 30
Indoor air intake temp. °C (DB)
