5 Disassembly/Reassembly
<A torque for tightening screws>
Please refer to the torque described on Exploded View.
1.

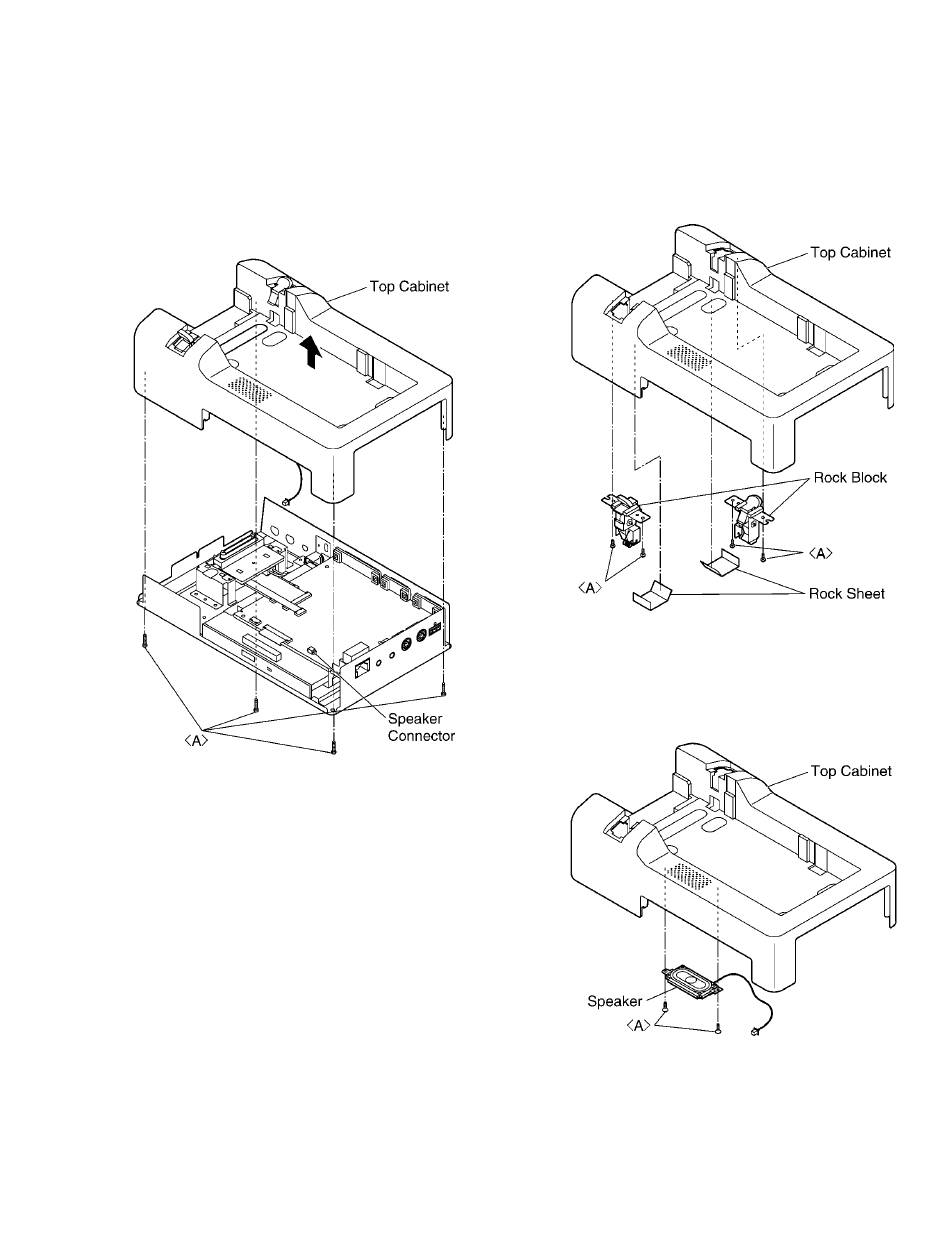

Removing the Top Cabinet
1. Remove the 4 screws.
2. Disconnect the speaker connector and remove the top
cabinet.
Screw
<A>:XTB26+8GFZ
1.1.
Removing the left and right Rock
Blocks
1. Remove the left and right retaining sheets.
2. Remove the 4 screws and release the left and right rock
blocks.
Screw
<A>:XTN26+J6FN
1.2.
Removing the speaker
1. Remove the 2 screws and release the speaker.
Screw
<A>:XTB2+5GFZ
8-1
