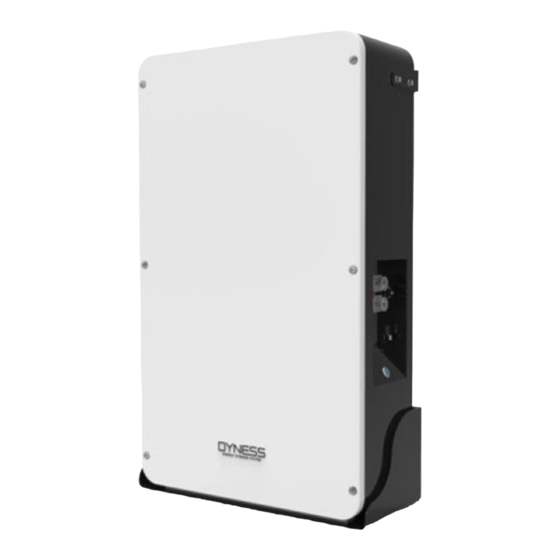

Dyness Powebox F Series User Manual
  1. Manuals
  2. Brands
  3. Dyness Manuals
  4. Camera Accessories
  5. Powebox F Series
  6. User manual

Dyness Powebox F Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

POWERBOX F
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powebox F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dyness Powebox F Series

Summary of Contents for Dyness Powebox F Series

  • Page 1 POWERBOX F User Manual...

  • Page 2: Table Of Contents

    Content Statement of Law ........................1 Safety Precautions ........................2 Preface ............................3 1 Introduction ......................... 4 1.1 Brief Introduction ......................4 1.2 Product Properties ......................4 1.3 Product identity definition ................... 5 2 Product Specification ......................6 2.1 Size and Weight ......................6 2.2 Performance Parameter ....................

  • Page 3: Statement Of Law

    Statement of Law Copyright of this document belongs to Jiangsu Daqin New Energy Technology Co., Ltd. No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means without the prior written permission of Jiangsu Daqin New Energy Technology Co., Ltd.

  • Page 4: Safety Precautions

    Safety Precautions Warning ⚫ Please do not put the battery into water or fire, in case of explosion or any other situation that might endanger your life. ⚫ Please connect wires properly while installation, do not reverse connect. To avoid short circuit, please do not connect positive and negative poles with conductor (Wires for instance).

  • Page 5: Preface

    Preface Manual declaration POWERBOX F Lithium Iron Phosphate Battery is external battery module which can storage the power for home use. When the grid is on, it supplies the home loads and charges the battery meantime. When grid off, the battery discharges to power up the home loads. POWERBOX F User manual systematically elaborates device structure, parameters, basic procedure and method of installation, operation, maintenance.

  • Page 6: Introduction

    1 Introduction Brief Introduction POWERBOX F series lithium iron phosphate home battery is newly power storage products designed according to market demands, supplies reliable power for all kinds of home equipment. It is especially suitable for situations with higher temperatures, less space, higher demand of weight and life span.

  • Page 7: Product Identity Definition

    Product identity definition FIG1-1 Battery Energy Storage System nameplate Battery voltage is higher than safe voltage, direct contact with electric shock hazard. Be careful with your actions and be aware of the dangers. Read the user manual before using. The scrapped battery cannot be put into the garbage can and must be professionally recycled.

  • Page 8: Product Specification

    2 Product Specification 2.1 Size and Weight Table 2-1 POWERBOX F Series Device Model Specification Nominal Nominal Dimension Weight Product Series Model Voltage Capacity (mm) (kg) Level POWERBOX POWERBOX F-10 200Ah 928×555×210 IP65 POWERBOX POWERBOX F-7.5 150Ah 928×555×210 IP65 POWERBOX POWERBOX F-5.0 100Ah 928×555×210...
  • Page 9 Figure2- POWERBOX F the sketch of front interface. Table 2-3 Interface Definition Item Name Definition The battery DC output positive pole, which is connected to the Positive socket positive pole of the inverter through the cable The CAN/RS485 socket is connected to the inverter CAN/RS485 interface through the network wire (Factory default CAN communication mode) The battery DC output negative pole, which is connected to...

  • Page 10: Battery Management System(Bms)

    Item Name Definition Press the switch and the battery system turn on. When the battery is in the nonuse state such as storage, transportation etc., it needs to be turn off by pressing the Reset switch Reset/on-off button, and the battery system will automatically sleep after the device without external load and power for 24 hours.

  • Page 11: Current Protection

    2.4.2 Current Protection Over Current Protection in Charging： Device stops charging when charging current exceeds the protection value. Protection is over after rated time delaying. Over Current Protection in Discharging： Device stops discharging when discharging current exceeds the protection value. Protection is over after rated time delaying.

  • Page 12: Installation And Configuration

    Caution Battery’s maximum discharging current should be more than load’s maximum working current 3 Installation and Configuration 3.1 Ready for installation Safety Requirement This system can only be installed by personnel who have been trained in the power supply system and have sufficient knowledge of the power system.

  • Page 13: Tools And Data

    • The optimal ambient temperature is 15 C ~ 30 • Keep away from dust and messy zones 3.1.2 Tools and data Hardware tool Tools and meters that may be used are shown in table 3-1. Table 3-1 Tool instrument Name Screwdriver (word, cross) AVO meter...

  • Page 14: Open The Box To Have Inspection

    3.1.4 Open the box to have inspection ⚫ When the equipment arrives at the installation site, loading and unloading should be carried out according to the rules and regulations, so as to prevent from being exposed to sun and rain. ⚫...

  • Page 15: Engineering Coordination

    OT6-6 terminal×1 Positioning cardboard×1 Expansion screw ×8 3.1.5 Engineering coordination Attention should be paid to the following items before construction: ⚫ Power line specification. ⚫ The power line specification shall meet the requirements of maximum discharge current for each product. ⚫...

  • Page 16: Floor Installation

    Step1 System outage Ensure that the battery is in a shutdown state 1. Hanger mounting Mechanical Step 2 installation 2.Equipment installation 1. Connect the ground cable 2 Electrical installation Electrical Step3 installation 3.connect inverter 4.Communication interface connection 3.2.1 Floor installation When the battery system is placed directly on the ground, a fixed support must be used to fix the top of the battery box with the wall.

  • Page 17: Mounted On The Wall

    Fix the expansion bolt M6 into the 4． bottom of the hole on the wall. The bracket is fixed to the wall with M6 5． bolts to control the torque of 6NM. 6． Carry the battery box to the installation site, and put the battery to the wall of 15mm, fixing the hanger and the upper part of the battery box with M6 bolts.
  • Page 18 1． Drawing on the screw opening position by cardboard, such as the left picture. The cardboard must be 2． perpendicular to the ground while drawing the holes. The bottom of the cardboard is 3． about 300mm from the ground. According to the position of the mark, 8 holes in diameter 10mm and depth of more than 70mm are hit on the wall with an electric drill,...

  • Page 19: Electrical Installation

    3.2.3 Electrical installation Before connecting the power cables, using multimeter to measure cable continuity, short circuit, confirm positive and negative, and mark well the cable labels. Measuring methods： ⚫ Switch off cables: select the buzzer and use the probe to measure the ends of the same color cable.
  • Page 20 The battery output terminal is the fast connector of Amphenol company, the power cable (positive pole, negative pole) plug can be directly inserted into the battery socket. Power cable section 25mm The battery is connected to the inverter--Negative cable The battery is connected to the inverter-- Positive cable CAN communication interface Battery+...
  • Page 21 Hybrid Off-grid B4850 Powerbox Inverter Inverter EPS(backup Min. System System port) Output parallel Energy Type Energy AC Output Power number (kWh) (kWh) power ≤2.5kW Powerbox F-5.0 2.5~5.0 kW Powerbox F-5.0 5.0~7.5 kW Powerbox F-7.5 7.5~10.0 kW Powerbox F-10.0 10~12.5 kW 12.0 Powerbox F-5.0+Powerbox F-7.5 12.0...
  • Page 22 Foot position Color Definition PIN1 Orange/white 485A PIN2 Orange XGND PIN3 Green/white 485B PIN4 Blue CANH PIN5 Blue/white CANL PIN6 Green NC/NULL PIN7 Brown/white PIN8 Brown NC/NULL...

  • Page 23: Use, Maintenance And Troubleshooting

    Use, maintenance and troubleshooting 4.1 Battery system usage and operation instructions After completing the electrical installation, follow these steps to start the battery system. Check whether the breaker is in disconnection. Press the battery power button, the power button LED light is on, and 4 LED indicator light will turn on the green color after self-check.

  • Page 24: Alarm Description And Processing

    input polarity of the inverter. If the battery circuit breaker is connected with a voltage output greater than 37V, the battery has begun to work normally. After confirming that the battery output voltage and polarity are correct, turn on the inverter, then close the circuit breaker switch. Check whether the indicator light of the inverter and the battery connection (the communication indicator and the battery access status indicator) is in normal condition.

  • Page 25: Analysis And Treatment Of Common Faults

    Maintenance personnel should check the equipment according to the prompt information, determine the type and location of the fault, and take appropriate measures to ensure the system in the best working condition, so as not to affect the system output. This phenomena and measures are shown in table 4-2 Table 4-2 minor alarm Alert category...
  • Page 26 Jiangsu Daqin New Energy Tech Co., Ltd Address: 158# South Ji'an Road, Hi-Tech District, Yangzhou City, Jiangsu Province, China, 211400. Email: Sales@dyness.net Website: www.dyness.net...
