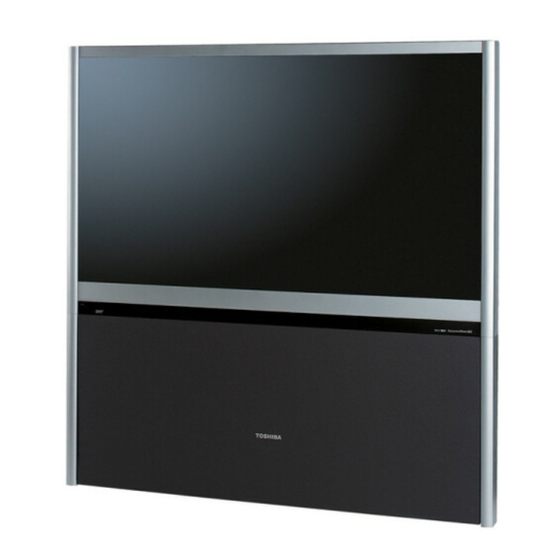

Toshiba TheaterWide 51H94 Owner's Manual

Integrated hd projection television
Hide thumbs Also See for TheaterWide 51H94:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
O
WNER'S
Integrated HD Projection Television
51H94
57H94
© 2004 TOSHIBA CORPORATION
All Rights Reserved
H94(E)001
1
M
ANUAL
Owner's Record
The model number and serial number are on the back
of your TV. Record these numbers in the spaces below.
Refer to these numbers whenever you communicate
with your Toshiba dealer about this TV.
Model number:
Serial number:
For an overview of steps for
installing, setting up, and using
your new TV, see page 8.
®
8/3/04, 8:01 AM
23566378
