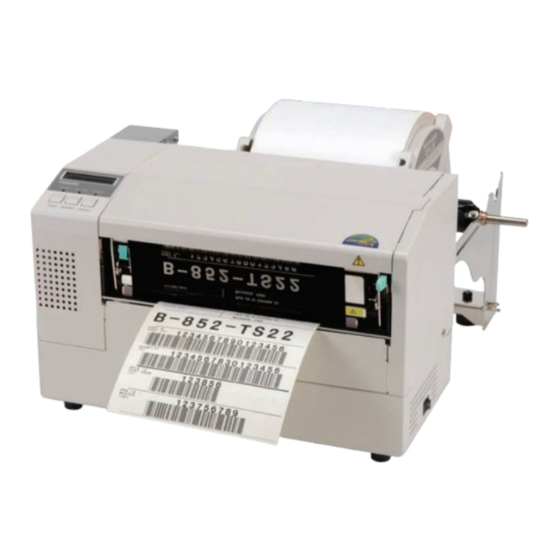

Toshiba B-852 Advance Specification Sheet

Specifications

Model B-852 Advanced
Technology Thermal transfer / Direct thermal
Printhead
Flat type
Resolution 12 dots/mm (305dpi)
Print width
Maximum 216.8mm
Print length Maximum 819mm
Print speed
Up to 101.4mm/s
Interfaces Bidirectional parallel port, USB 2.0, LAN (100BASE),
serial port*, wireless LAN*
Barcodes UPC/EAN/JAN,Code 39,Code 93,Code 128,EAN 128,
NW7,MSI,Industrial 2 of 5,ITF,Postnet,RM4SCC,
KIX-code,RSS14,Customer Bar Code
2D codes Data Matrix, PDF 417, Maxicode,
QR code, Micro PDF 417, CP Code
Fonts Bitmap font (21 fonts), Outline font (4 types),
Price font (3 types)
Optional
Cutter module, wireless LAN module, serial interface
board, expansion I/O board, RTC (real time clock)
Dimensions 385(W) x 180(D) x 243(H)mm
Weight 15.6 kg (without media and ribbon)
* Option
Your Toshiba dealer:
B-852 Advance
Customers' Benefits
The B-852 Advanced wide web printers have been
designed to benefit the end user with:
•
New and improved connectivity features
•
Increased expandability options
•
Higher processing speed to improve data
processing of large files
•
Easy maintenance and low cost of ownership
•
Capability to replace legacy systems and
competitors' products.
TOSHIBA TEC EUROPE RETAIL INFORMATION SYSTEMS
Austria Spain
Handelskai 388/Top 621 C/Doctor Esquerdo 207
Donau Business Center ES - 28007 MADRID
AT - 1020 WIEN T. +34 91 502 15 90
T. +49 (0)2151 838 01
F. +34 91 501 81 00
F. +49 (0)2151 838 480 retail@toshibatec-eu.es
info@toshibatec-eu.de
UK
Belgium & Headquarters Campus 300, Spring Way
Rue de la Célidée, 33 - Celideestraat Maylands Avenue, Hemel Hempstead
33BE - 1080 BRUXELLES/BRUSSEL
GB - HERTFORDSHIRE, HP2 7GG
T. +32 (0)2 410 21 00 T. +44 (0)870 890 7200
F. +32 (0)2 410 68 69 F. +44 (0)870 890 7350
F. HQ: +32 (0)2 410 79 87 marketing@toshibatec-eu.co.uk
info@toshibatec-eu.be
France
23/25 Avenue Jeanne d'Arc GROUP Companies
FR - 94117 ARCUEIL Cedex
T. +33 (0)1 58 07 20 00
TOSHIBA TEC NETHERLANDS
F. +33 (0)1 58 07 20 01
RETAIL INFORMATION SYSTEMS B.V.
info@toshibatec-eu.fr
Postbus 2510, NL - 3800 GB AMERSFOORT
Softwareweg 3, NL - 3821 BN AMERSFOORT
Germany
T. +31 (0)33 453 81 00
Europark Fichtenhain B15
F. +31 (0)33 455 44 11
DE - 47807 KREFELD
info@toshibatec-eu.nl
T. +49 (0)2151 838 01
F. +49 (0)2151 838 480
TEC Polska Sp. z.o.o.
info@toshibatec-eu.de
ul. Marynarska 21PL - 02-674
WARSZAWA
Ireland
T. +48 (0)22 640 48 58
Unit 7, Crumlin Business Centre
F. +48 (0)22 640 48 53
Stannaway Drive
info@tec.pl
IE - DUBLIN 12
T. +353 (0)1 465 22 20
All company and/or
F. +353 (0)1 465 22 29
product names are
info@toshibatec-eu.ie
trademarks and/or
registered trademarks
Portugal
of their respective
Taguspark - Parque de Ciência
owners. All features and
e Tecnologia
specifications described
Nucleo Central - Sala 268
on this brochure are
PT - 2780-920 OEIRAS (Lisboa)
subject to change
T. +351 21 422 20 64
without notice.
F. +351 21 424 02 11
comercial@toshibatec-eu.pt
www.toshibatec-eu.co.uk
With powerful networking capabilities, the B-852 Advance wide web
printer from Toshiba delivers outstanding performance for a wide variety
of environments and applications. This innovative industrial printer offers
superior features including extremely fast processing, large internal
memory, web printer controls and outstanding SNMP networking tools*.
*Also links to other Toshiba products including the e-studio series, an evolutionary family of
information devices that fit perfectly within commercial information environments.
H i g h P e r f o r m a n c e ,
B-852 Advance
Q u a l i t y I n d u s t r i a l P r i n t e r s
