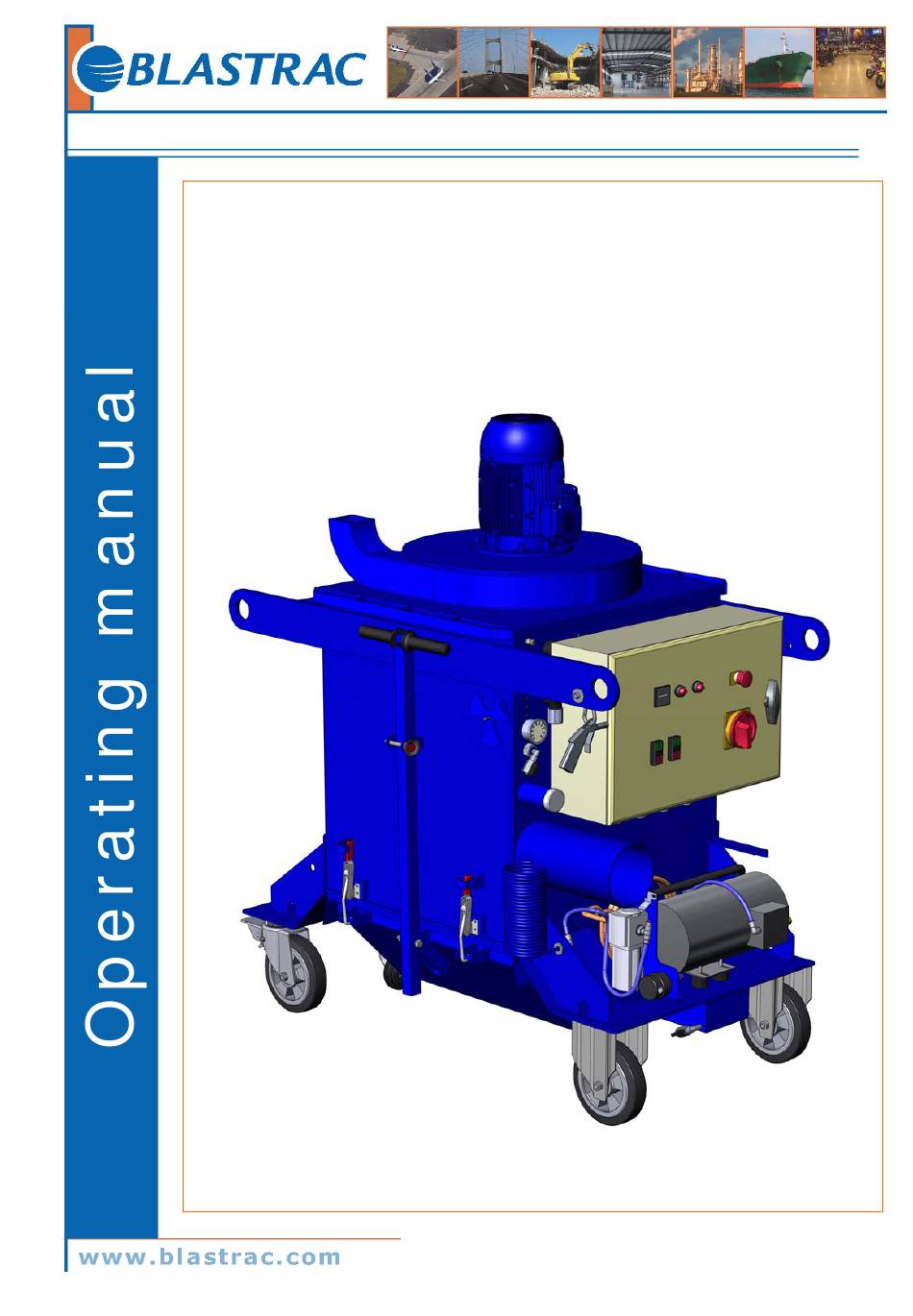

- Page 1 Operating manual BDC-654 BDC-654 EN - Version 1.1 info@blastrac.eu...
-
Page 2: Ec Declaration Of Conformity
Operating manual BDC-654 2/16 EC DECLARATION OF CONFORMITY in accordance with Appendix II sub A of Directive 98/37/EC BLASTRAC B.V. Utrechthaven 12 NL - 3433 PN NIEUWEGEIN Tel: 0031 (0)30 601 88 66 Fax: 0031 (0)30 601 83 33 Info@Blastrac.nl... -
Page 3: Table Of Contents
Operating manual BDC-654 3/16 Table of contents EC Declaration of Conformity 1. Introduction 2. Machine description 3. Safety Safety precautions - general Safety precautions - with regard to transport Safety regulations – with regard to maintenance 4. Before operation Checkpoints of electrical safety 5. -
Page 4: Introduction
Retains at least 99,9 % of particles measuring ≥ 3 µm Class H13 HEPA filter in accordance with EN1822 Application The BDC-654 is especially designed to be used in combination with Blastrac machines. Contact Blastrac B.V. for the correct execution and combinations. info@blastrac.eu... - Page 5 Operating manual BDC-654 5/16 ITEM DESCRIPTION ITEM DESCRIPTION 63A, 5 pole Hour counter Shows the working time of the Dust collector in hours. Registration of the working hours enables to follow a correct maintenance schedule. Motor failure light Manometer, shows the pressure of the air tank.
-
Page 6: Safety
It should only be used for removing inflammable dust or substances. The unit should not be used near flammable gasses or substances. The BDC-654 must not be applied for carcinogenic or asbestos substances. The voltage on the identification plate must comply with the power supply. - Page 7 Operating manual BDC-654 7/16 These elements must be disposed of in sealed bags according to the applicable regulations and in accordance with the local laws governing the disposal of such material. This procedure must also be followed when the filters have to be disposed.
-
Page 8: Before Operation
Operating manual BDC-654 8/16 4. Before operation Before using the machine it is essential to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints of electrical safety Use only extension cables for extending the main cable that are sized and marked in accordance with the overall power consumption of the machine. -
Page 9: Maintenance
Operating manual BDC-654 9/16 6. Maintenance Pay attention to Chapter 3 "Safety" during maintenance and repair works. Failures due to inadequate or incorrect maintenance may generate very high repair costs and long standstill periods of the dust collector. Regular maintenance therefore is imperative. - Page 10 Store the cleaned and dry machine in a dry and humid free room. Protect the electrical motors from moisture, heat, dust and shocks. All repair work must to be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine.
-
Page 11: Filter Replacement
When there is pressure but the pulse system does not function, there might be a problem in the electrical system which controls the pulsing system. Check the wiring and the PLC- settings. Advised is to take contact with Blastrac Support in order to prevent operational problems. info@blastrac.eu... -
Page 12: Water Separator
Operating manual BDC-654 12/16 Water separator Periodically check the level indicator of the water separator. If there is condensate level approximately 10 mm below the level indicator marking (see figure below) then either press in or turn the outlet ring as shown on figure below. - Page 13 Operating manual BDC-654 13/16 Turn the filter screw loose and replace the dirty filter by a new one as shown on figure below. Hold the new filter element only at the lower end . Fasten the filter screw and place the filter bowl back . Make sure the locking pin points towards the large recess.
-
Page 14: Compressor
Operating manual BDC-654 14/16 Compressor Replacement or cleaning of the air filter of the compressor is depending on the environment in which the Dust collector is operating. info@blastrac.eu... -
Page 15: Technical Data
87.5 L Filter surface 27.6m Length 1332 mm Width 855 mm Height 1500 mm Weight 370 kg Noise level (at 1 mtr. distance) Up to 80 dB(A) Design and specifications are subject to change without notice by Blastrac B.V. info@blastrac.eu... -
Page 16: Contact
Operating manual BDC-654 16/16 HEADQUARTER Blastrac BV The Netherlands Utrechthaven 12 NL - 3433 PN Nieuwegein Tel: 0031 (0)30 601 88 66 Fax: 0031 (0)30 601 83 33 info@blastrac.nl Blastrac United Kingdom Unit 2, Outgang Lane, Dinnington Sheffield, South Yorkshire GB –...
