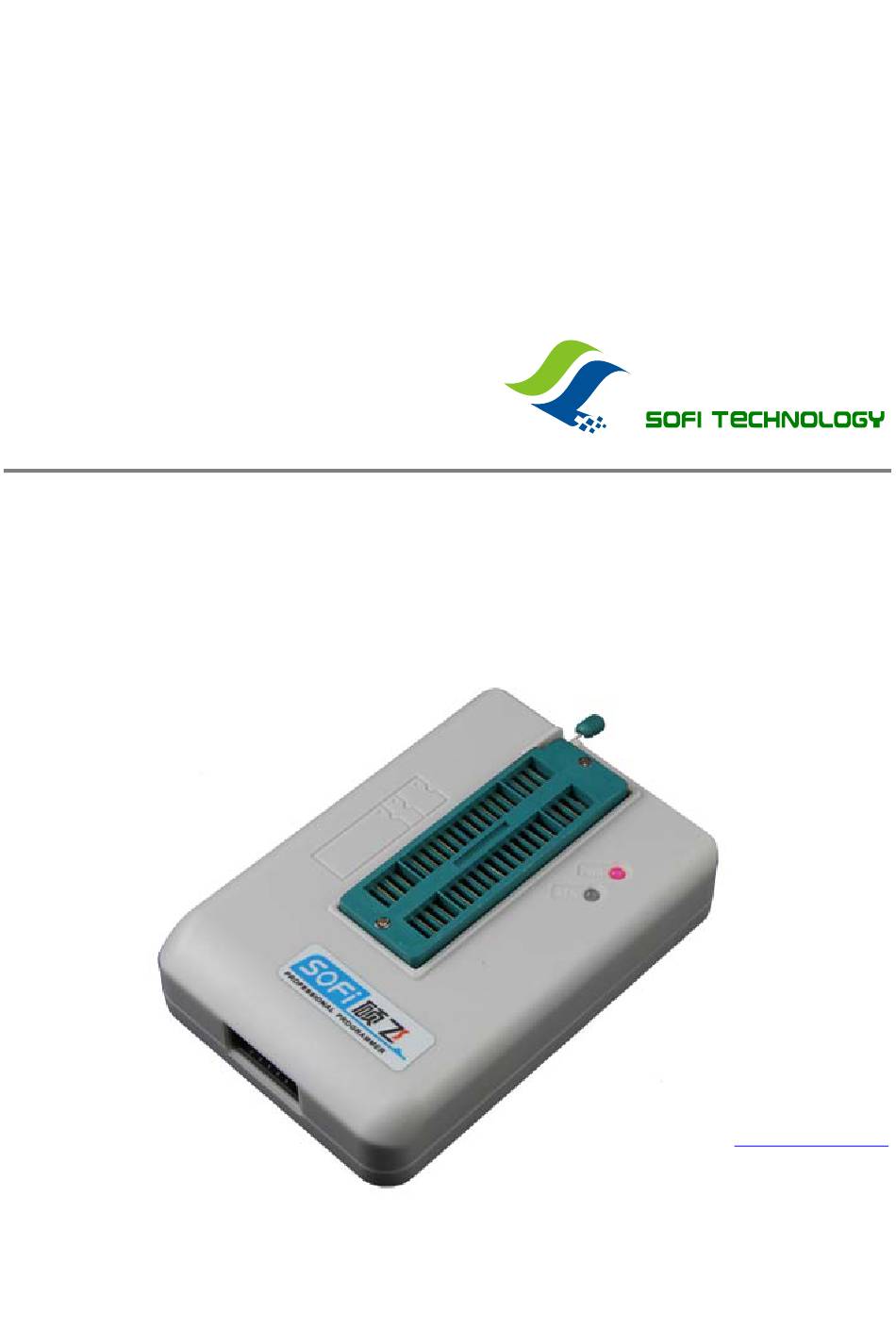

硕飞科技
SP8 Programmers
User's Guide
深圳硕飞科技有限公司
SHENZHEN SOFI TECHNOLOGY CO.,LTD.
TEL: 0755 - 8486 7757
FAX: 0755 - 8486 7941
WEB:
www.sofi-tech.com
Publication Release Date: August 2011
Revision A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP8 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sofi SP8 Series

  • Page 1 硕飞科技 SP8 Programmers User's Guide 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY CO.,LTD. TEL: 0755 - 8486 7757 FAX: 0755 - 8486 7941 WEB: www.sofi-tech.com Publication Release Date: August 2011 Revision A1...
  • Page 2: Table Of Contents

    Buffer Compile  25 Chip Configuration  27 Chip Information  28 Pin Detection29 Download Offline Data  30 Examine Offline Data  31 Appendix one, Frequently Asked Questions 32 Appendix two, Common Prompt Messages in Programming 33 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 3: Chapter 1. Introduction Into Products

    Note: 1. These functions are designed according to specific types, and only SP8-F has all these functions. For details, please refer to the attached correlation table for types. 2. ISP mode does not support offline program. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 4: Correlation Table Of Sp8 Performance

    User's Guide SP8 Seriel programmer Correlation Table of SP8 Performance SP8 Series includes three types, and their comparisons of functions are as follows: SP8-B (mass Types SP8-A (popular edition) SP8-F (offline edition) production edition) ISP supportive √ √ √ Offline mass production ×...

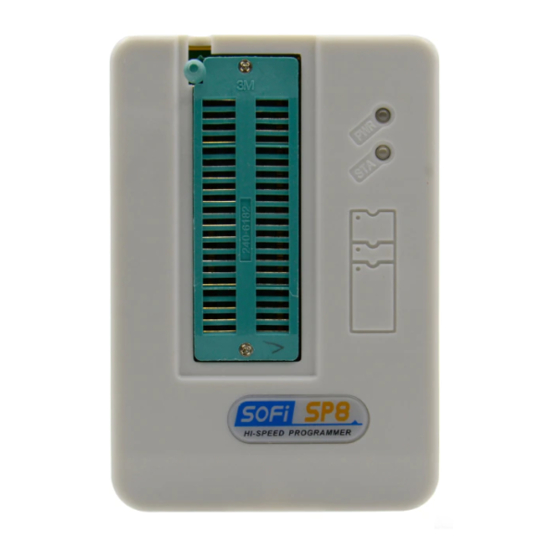

  • Page 5: Hardware Of Sp8 Programmers

    Chip Information. USB interface  Used to connect the computer's USB port for communication, and supply power to the programmer Used to connect special power adapters in offline mode (only for SP8-F) 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 6: Chapter 2. Software Installation

    Get the software  The installation program is included in the product CD, under the directory SETUP. And it can also be downloaded from SOFI's web (We recommend this, so you can get the newest version). Link for the newest software: http://www.sofi-tech.com/upload/Software/FlyPRO_Setup.rar Start to install ...
  • Page 7 User's Guide SP8 Seriel programmer Choose the directory to install  Choose the folder for Start Menu  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 8 User's Guide SP8 Seriel programmer Set whether to create shortcut on desktop  Prepared to install  Installing  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 9 User's Guide SP8 Seriel programmer Completed  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 10: Install Usb Driver

    The first time to connect the programmer to a computer, the computer automatically prompts "Found New  Hardware" and requires to install driver. Choose "No, not this time", and click "next"  Choose "Install From a list or specify location (advanced)", and click "Next"  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 11 The folder selected must be USB_DRIVER , not its sub-folder (such as x86 or amd64). Finally, click "OK", and go back to the previous picture. If this button is gray, there must be something wrong with folder you selected. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 12 User's Guide SP8 Seriel programmer Starts to install USB driver  In installing, Windows prompts that the software hasn't passed Windows Micro scale test, so choose "Still go  on" USB driver installed  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 13: Chapter 3. Rapid Use

    Erase/Program (Write)/ Click [Automatic The software prompts to Check Operation] put in a chip Waiting for the chip to be Put the chip in socket programmed Waiting for the chip to be programmed Program the next chip 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 14: Place Chips

    SP8 adopts 40pin sockets for wide/narrow dual uses which support inline chips and adapters with 8 to 40 pins. Placement for common chips: Pin 1 To see placement for other chips (including adapter information), please open Chip Information in FlyPRO 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 15: Isp Program

    10 DuPont heads on the other end to connect to corresponding pins on the target board. Correlations between colors of connecting lines and serial numbers of pins are: Color Serial number of pins Color Serial number of pins Brown Blue Purple Orange (or pink) Grey Yellow White Green Black 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 16 Keep impending the pins not used, and don't connect them to any information from target boards.  After programming, all ISP interfaces present high-impedance except VCC and GND.  In application, only connect any of the GND pins 4, 6, 8, 10 to target board.  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 17: Offline Program

    SP8-F (offline edition) also provides the control signals for automatic program devices. Please call us if you need. Examine offline data The offline data downloaded to the programmer can be examined by FlyPRO. For details, please refer to Examine Offline Data in Chapter 4. Software Performance. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 18: Chapter 4. Software Performance

    Chapter 4. Software Performance Introduction into software FlyPRO is the driver software for SOFI programmers and provides all kinds of program operations for chips, such as "Erase", "Read", "Program", "Test" and "Encrypt ". With this software, you can program single chip in socket and ISP download for target boards.
  • Page 19: Choose Chips

    Some chips have the suffix [ ], indicating the encapsulation type, or program mode (For instance, chips programmed in ISP mode have the suffix [ISP]). You can see the adapter or ISP program connection picture through the chip information window. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 20: Load Files

    After data are loaded, the main window presents corresponding message whether the file has been successfully loaded. If the loaded file exceeds the capacity of the buffer, the software also shows corresponding message for warning. In this case, you must check whether the loaded file is wrong. Declaration 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 21: Save Files

    If the value is not set 0, the data before this address will not be saved to the file. Data size The number of bytes to be saved. Input format is hex. Note: All data to be entered must be hex. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 22: Operation Options

    [ISP program] supply power to target boards In ISP (chips with suffix [ISP]) program, the programmer can supply power to the target boards (target chips), with a voltage of 3.3V or 5V. Current limit is 250mA, above which over-current protection occurs. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 23: Automatic Serial Number

    In BCD format, upper data are located at lower address. Every byte contains two BCD data-- 4bit represents a decimal number. For instance, data in the serial area of the buffer 23 45 67 89 indicate that the current serial number is 23456789. After renewed, the data will be 23 45 67 90. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 24 After FlyPRO has been installed, there will be, under FlyPro\SampleSN\VC7, an example project code based on the DLL of VS2003(VC70). Declaration Automatic serial number is effective only in automatic program mode.  Some programmers don't support the function of automatic serial number.  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 25: Buffer Compile

    Data display area in the buffer – area for ASCII Display. Position Set the cursor's address, and enter in the dialog that bumps out the address to arrive at, and click "Enter", as showed below: Attention: Address to be entered is hex. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 26 In this function, up and low data will be exchanged. That is, data at odd addresses will be exchanged with data at corresponding even addresses. For instance, data at 0x0000 will be exchanged with data at 0x0001, and data at 0x0002 with data at 0x0003, and so on. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 27: Chip Configuration

    Click [Chip] -> [Chip Configuration], or "configuration options" in the toolbar to open the device configuration dialog. Declaration Some chips don't have configuration options.  Different types of chips have different configuration functions. For details, please refer to corresponding chip  manual. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 28: Chip Information

    SP8 Seriel programmer Chip information Click "Information" in the toolbar, or menu [Chips] -> [Chip information] to see information of the current chip's adapter, placement, and ISP connection This dialog can be resized through the mouse 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 29: Pin Detection29

    The user can choose to terminate this operation according to his needs, or try again, or skip pin detection and directly go on to program. Declaration Pin detection can be closed. Refer to operation options for details.  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 30: Download Offline Data

    "Chip configuration"). 5. Set operation content and accessory options for the chip 6. Click "Download Data" button to download offline data. When it succeeds, the programmer works on its own, without the help from the computer. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 31: Examine Offline Data

    Examine offline data When the programmer is connected with FlyPRO, click [Chips] -> [Offline Data Manage] -> [Examine Offline Data] to see the offline data, as showed below: No function of upload offline data for the moment 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 32: Appendix One, Frequently Asked Questions

    Reasons that the chip to be programmed cannot work normally are: Failed in loading data file before programming  Built-in problem with the chip  Mistakes in the program steps  Problem with the working circuit or voltage  深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
  • Page 33: Appendix Two, Common Prompt Messages In Programming

    In loading a file, if data amount exceeds the chip's capacity, it presents such a prompt. For HEX files, there is no direct relation between file size and data amount. Therefore, it might be that file size is only 1K, but data size exceeds this extent. 深圳硕飞科技有限公司 SHENZHEN SOFI TECHNOLOGY...
