TOSHIBA

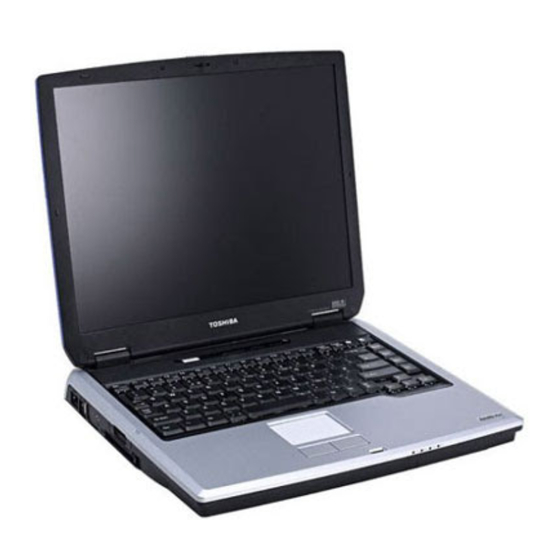

Satellite A40 Series

Portable Personal Computer

User's Manual

Table of Contents

Summary of Contents for Toshiba A40 Series

Page 1 TOSHIBA Satellite A40 Series Portable Personal Computer User’s Manual...
Page 2 © 2003 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the informa- tion contained herein.
Page 3 WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment. Operation with non-compliant peripher- als or peripherals not recommended by TOSHIBA is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s external monitor port,...
Page 4: Fcc Conditions
9740 Irvine Boulevard Irvine, California 92618-1697 Telephone: (949) 583-3000 TOSHIBA declares, that the product: PSA40* conforms to the following Standards: Supplementary Information: “The product complies with the requirements of the This product is carrying the CE-Mark in accordance with the related European Directives.
Page 5 Modem warning notice Conformity Statement The equipment has been approved to [Commission Decision “CTR21”] for pan- European single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries/regions the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.
Page 6: Region Selection
Japan regulations Region selection If you are using the computer in Japan, technical regulations described in the Telecommunications Business Law require that you select the Japan region mode. It is illegal to use the modem in Japan with any other selection. Redial Up to two redial attempts can be made.
Page 7 FCC. In the event repairs are ever needed on your modem, they should be performed by TOSHIBA Corporation or an authorized representative of TOSHIBA Corporation.
Page 8 Fax branding The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity or individual sending the message and the telephone number of the sending machine or such business, other...
Page 9 NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termina- tion on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.
Page 10 Notes for use of this device in New Zealand The grant of a Telepermit for a device in no way indicates Telecom acceptance of responsibility for the correct operation of that device under all operating conditions. In particular the higher speeds at which this modem is capable of operating depend on a specific network implementation which is only one of many ways of delivering high quality voice telephony to customers.
Page 11 When used in the Auto Answer mode, the S0 register must be set with a value of 3 or 4. This ensures: (a) a person calling your modem will hear a short burst of ringing before the modem answers. This confirms that the call has been successfully switched through the network.
Page 12: General Conditions
General conditions As required by PTC 100, please ensure that this office is advised of any changes to the specifications of these products which might affect compliance with the relevant PTC Specifications. The grant of this Telepermit is specific to the above products with the marketing description as stated on the Telepermit label artwork.
Page 13: Optical Disc Drive Safety Instructions
Optical disc drive safety instructions NOTE: Be sure to check the international precautions at the end of this section. TEAC CD-RW/DVD-ROM DW-224E CAUTIONS: 1. The CD-RW/DVD-ROM drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference.
Page 14 DVD Multi DV-W22E CAUTIONS: 1. The DVD Multi drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an autho- rized service location.
Page 15 Location of the required label PRODUCT IS CERTIFIED BY THE MANUFACTURER TO COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT THE DATE OF MANUFACTURE. MANUFACTURED: TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME MINATO-KU, TOKYO 105-8001, JAPAN...
Page 16 Location of the required label PRODUCT IS CERTIFIED BY THE MANUFACTURER TO COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT THE DATE OF MANUFACTURE. MANUFACTURED: TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME MINATO-KU, TOKYO 105-8001, JAPAN...
Page 17 Location of the required label PRODUCT IS CERTIFIED BY THE MANUFACTURER TO COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT THE DATE OF MANUFACTURE. MANUFACTURED: TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME MINATO-KU, TOKYO 105-8001, JAPAN...
Page 18 Location of the required label PRODUCT IS CERTIFIED BY THE MANUFACTURER TO COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT THE DATE OF MANUFACTURE. MANUFACTURED: TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME MINATO-KU, TOKYO 105-8001, JAPAN...
Page 19 DVD±RW GWA-4040N CAUTIONS: 1. The DVD±RW drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an autho- rized service location. 2.
Page 20 Pioneer DVD±RW DVR-K12D CAUTIONS: 1. The DVD±RW drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an autho- rized service location. 2.
Page 21 Panasonic DVD Multi UJ-811B CAUTIONS: 1. The DVD Multi drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an autho- rized service location.
Page 22 CD-RW/DVD-ROM UJDA750 CAUTIONS: 1. The CD-RW/DVD-ROM drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location. 2.
Page 23 International precautions CLASS 1 LASER PRODUCT LASERSCHUTZKLASSE 1 PRODUKT TO EN60825 ADVERSEL: USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAF-BRYDER ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING CAUTION: This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.”...
Page 24 OBS! Apparaten innehåller laserkomponent som avger laserstråining överstigande gränsen för laserklass 1. VAROITUS. Suojakoteloa si saa avata. Laite sisältää laserdiodin, joka lähetää näkymätöntä silmilie vaarallista lasersäteilyä. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Page 25: Table Of Contents
PC card overheating ... xxxviii Mobile phone ... xxxviii Central Processing Unit ("CPU") Performance Disclaimer ... xxxviii The cautions on use of a Satellite A40 series computer..xxxix Open the keyboard brace ... xl Chapter 1 Introduction Equipment checklist ... 1-1 Hardware ...
Page 26 Slots ... 1-7 Multimedia ... 1-7 Communications ... 1-8 Security ... 1-9 Software ... 1-9 Special features ... 1-9 Utilities ... 1-11 Options ... 1-13 Chapter 2 The Grand Tour Front with the display closed ... 2-1 Left side ... 2-2 Right side ...
Page 27 Connecting the AC adaptor ... 3-5 Opening the display ... 3-6 Turning on the power ... 3-7 Starting up for the first time ... 3-8 Turning off the power ... 3-8 Shut Down mode (Boot mode) ... 3-8 Hibernation mode ... 3-9 Standby mode ...
Page 28 CD/DVDs... 4-16 Diskettes ... 4-17 Sound System ... 4-17 Volume control ... 4-17 Microphone level ... 4-17 SoundMAX Control Panel ... 4-18 Microphone Enhancements ... 4-18 Power management ... 4-18 Modem ... 4-19 Region selection ... 4-19 Properties menu ... 4-20 Connecting ...
Page 29 Chapter 6 Power and Power-Up Modes Power conditions ... 6-1 Power indicators ... 6-2 Battery indicators ... 6-2 DC IN 15V indicator ... 6-3 Power indicator ... 6-3 Battery types ... 6-3 Battery pack ... 6-4 Real Time Clock battery ... 6-4 Care and use of the battery pack ...
Page 30 Removing an SD card ... 8-5 SD card care ... 8-6 Memory expansion ... 8-6 Installing memory module ... 8-7 Removing memory module ... 8-10 Battery pack ... 8-11 AC adaptor ... 8-11 USB diskette drive ... 8-12 External monitor ... 8-12 i.LINK (IEEE1394) ...
Page 31 Standby/Hibernation ... 9-27 LAN ... 9-27 Wireless LAN ... 9-27 i.LINK (IEEE1394) ... 9-28 Real Time Clock ... 9-28 Printer ... 9-29 TOSHIBA support ... 9-30 Before you call ... 9-30 Where to write ... 9-30 Appendixes Appendix A Specifications ... A-1 Appendix B Display Controller and Modes ...
Page 32 xxxii...
Page 33: Preface
This manual tells how to set up and begin using your TOSHIBA Satellite A40 computer. It also provides detailed information on configuring your computer, basic operations and care, using optional devices and troubleshooting.
Page 34: Conventions
Chapter 6, Power and Power-Up resources and battery save modes. Chapter 7, HW Setup and Passwords, explains how to configure the computer using the HW Setup program. It also tells how to set a password. Chapter 8, Optional Devices, describes the optional hardware available. Chapter 9, Troubleshooting, provides helpful information on how to perform some diagnostic tests, and suggests courses of action if the computer doesn’t seem to be working properly.
Page 35: Key Operation
Key operation Some operations require you to simultaneously use two or more keys. We identify such operations by the key top symbols separated by a plus sign (+). For example, Ctrl + C means you must hold down Ctrl and at the same time press C. If three keys are used, hold down the first two and at the same time press the third.
Page 36 User's Manual xxxvi...
Page 37: General Precautions
General Precautions TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury, damage to the computer or impaired performance. Be certain to read the general precautions below and to note the cautions included in the text of the manual.
Page 38: Pc Card Overheating
For optimum performance, use your computer product only under recommended conditions. Read additional restrictions in bundled documents. Contact TOSHIBA Service and Support for more information. xxxviii...
Page 39: The Cautions On Use Of A Satellite A40 Series Computer
The cautions on use of a Satellite A40 series computer. 1. Cleaning of the dust accumulated on the cooling vent of the computer. CAUTION: When you use your computer in a dusty area, the dusts accumulate on a cooling vent at the under side of your computer. The accumulated dusts cause insufficient heat dissipation.
Page 40: Open The Keyboard Brace
User's Manual Open the keyboard brace CAUTION: Memory module and the work of the replacement of the internal modem etc. detach keyboard brace, bases such as speakers and Power buttons become baring. Never touch substrates such as speakers and Power buttons of baring. It causes the breakdown when touching. Open the keyboard brace PEAKERS OF BARING OWER OF BARING...
Page 41 Chapter 1 Introduction Equipment checklist ... 1-1 Hardware ... 1-1 Software ... 1-1 Windows XP Home Edition/Professional ... 1-1 Features ... 1-2 Processor ... 1-2 Memory ... 1-3 Power ... 1-3 Disks ... 1-4 Display ... 1-6 Keyboard ... 1-6 Pointing device ...
Page 43: Chapter 1 Introduction
Carefully unpack your computer. Save the box and packing materials for future use. Hardware Check to make sure you have all the following items: ❑ Satellite A40 Series Portable Personal Computer ❑ Universal AC adaptor and power cord ❑ USB diskette drive (Provided with some models) ❑...
Page 44: Features
❑ Product Recovery DVD-ROM Features The computer uses TOSHIBA’s advanced Large Scale Integration (LSI), Comple- mentary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage, and high reliability. This computer incorporates the following features and benefits:...
Page 45: Memory
Mobile Intel which incorporates a 512KB level 2 cache memory. Mobile Intel Hyperthreading Technology(*1) Mobile Intel Hyperthreading Technology(*1) Mobile Intel Hyperthreading Technology(*1) Mobile Intel Hyperthreading Technology(*1) (*1)Hyper-Threading Technology requires a computer system with an Intel Technology and a Hyper-Threading Technology enabled chipset, BIOS and operating system.
Page 46: Disks
User's Manual Because it is universal, it can receive a range of AC voltage from 100 to 240 volts; however, the output current varies among different models. Using the wrong model can damage your computer. See the Chapter 2, The Grand Tour. Disks Hard disk drive Available in four sizes.
Page 47 • CD-ROM XA Mode 2 (Form1, Form2) • Enhanced CD (CD-EXTRA) • CD-G (Audio CD only) • Addressing Method 2 DVD-R/-RW drive Some models are equipped with a full- size DVD-R/-RW drive module that lets you record data to rewritable CD/ DVDs as well as run either 12cm (4.72") or 8cm (3.15") CDs/12cm(4.72") DVDs without using an adaptor.
Page 48: Display
User's Manual DVD±RW drive Some models are equipped with a full- size DVD±RW drive (DVD Dual drive) module that lets you record data to rewritable CD/DVDs as well as run either 12cm (4.72") or 8cm (3.15") CD/DVDs without using an adaptor. It reads DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed.
Page 49: Pointing Device
Pointing device Built-in Touch Pad A Touch Pad and control buttons in the palm rest enable control of the on-screen pointer. Ports Parallel Some models are equipped with a parallel port for parallel printer or other parallel device (ECP compatible).Note that some models are not equipped with this port.
Page 50: Communications
User's Manual Communications Modem An internal modem provides capability for data and fax communication. It supports V.90 (V.92). Refer to E. The speed of data transfer and fax depends on analog telephone line conditions. It has a modem jack for connect- ing to a telephone line.
Page 51: Security
Special features The following features are either unique to TOSHIBA computers or are advanced features, which make the computer more convenient to use. Hot keys Key combinations let you quickly modify the system configuration directly from the keyboard without running a system configuration program.
Page 52 This feature turns power to the computer off when the display panel is closed and turns it back on when the panel is opened. You can specify the setting in the When I close the lid item of the Setup Action tab in TOSHIBA Power Saver. Low battery...
Page 53: Utilities
This section describes preinstalled utilities and tells how to start them. For details on operations, refer to each utility’s online manual, help files or readme.txt files. TOSHIBA Power Saver To access this power savings management program, click the Control Panel and select the TOSHIBA Power Saver icon.
Page 54 Touch Pad function. When you press these hot keys, the current setting will change and be displayed as an icon. TOSHIBA Touch and TOSHIBA Touch and Launch is a tool that allows you to Launch perform various tasks easily using Touch pad. TOSHIBA Touch and Launch is useful in the following conditions.
Page 55: Options
Battery pack (Black) An addition Battery pack can be purchased from your TOSHIBA dealer. The Battery Pack is identical to the one that came with your computer. Use it as a spare or replace- ment.
Page 56 User's Manual 1-14...
Page 57 Chapter 2 The Grand Tour Front with the display closed ... 2-1 Left side ... 2-2 Right side ... 2-3 Back side ... 2-5 Underside ... 2-7 Front with the display open ... 2-8 System indicators ... 2-9 Keyboard indicators ... 2-10 USB diskette drive ...
Page 59: Chapter 2 The Grand Tour
The Grand Tour This chapter identifies the various components of your computer. Become familiar with each component before you operate the computer. Front with the display closed Figure 2-1 shows the computer’s front with its display panel in the closed position. Figure 2-1 Front of the computer with display closed Display latch This latch secures the LCD panel in its closed position.
Page 60: Left Side
User's Manual Left side Figure 2-2 shows the computer’s left side. INK INDICATOR ACTIVE GREEN INDICATOR ORANGE PORTS JACK * Some models are not equipped with a SD card slot or a i.LINK (IEEE1394) port. Figure 2-2 The left side of the computer LAN active This indicator glows orange when data is being exchanged indicator (orange)
Page 61: Right Side
NOTE: Operation of all functions of all USB devices has not been confirmed. Some functions might not execute properly. i.LINK (IEEE1394) Connect an external device, such as a digital video camera port to this port for high-speed data transfer. You must connect the AC adaptor when you use i.LINK.
Page 62 User's Manual Fixed Optical The computer is configured with a full-size optical media media drive drive module that lets you run either 12 cm (4.72") or 8 cm (3.15") disks without using an adaptor. Refer to the Optical media drive specifications on each drive and to Chapter 4, Basics, for information on using the drive and caring for disks.
Page 63: Back Side
Microphone jack A standard 3.5 mm mini microphone jack enables connec- tion of a monaural microphone or other device for audio input. When you connect an external microphone, the internal microphone is automatically disabled. Headphone jack A standard 3.5 mm mini headphone jack enables connec- tion of a stereo headphone (16 ohm minimum) or other device for audio output.
Page 64 User's Manual Universal Two Universal Serial Bus ports are on the back side. Serial Bus The port comply with the USB 2.0 standard, which (USB 2.0) ports enables data transfer speed 40 times faster than the USB 1.1 standard. (The ports also support USB 1.1.) Also two ports are on the left side.
Page 65: Underside
Underside Figure 2-5 shows the underside of the computer. Make sure the display is closed before turning over your computer. EMORY MODULE COVER ATTERY SAFETY LOCK Figure 2-5 The underside of the computer Battery release Slide this latch to release the battery pack for removal. latch For detailed information on removing the battery packs, refer to Chapter 6,...
Page 66: Front With The Display Open
User's Manual Front with the display open Figure 2-6 shows the front of the computer with the display open. To open the display, slide the display latch on the front of the display to the right of the computer and lift up. Position the display at a comfortable viewing angle. ISPLAY HINGE TEREO SPEAKER LEFT...
Page 67: System Indicators
Halts play. Next track/chapter/data. Refer to Chapter 4, * Audio/Video control buttons are provided with some models. NOTE: If Random is selected in TOSHIBA Media Player, selecting Next or Previous advances to a random selection. Power button Press the power button to turn the computer’s power on and off.
Page 68: Keyboard Indicators
User's Manual Battery The Battery indicator shows the condition of the battery’s charge: Green indicates full charge, orange indicates battery charging and flashing orange indicates a low battery charge. Refer to Chapter 6, Modes. Built-in HDD The Built-in HDD indicator glows green when the computer is accessing the hard disk.
Page 69: Usb Diskette Drive
When the CapsLock indicator glows the keyboard is in all-caps mode. Figure 2-9 CapsLock indicator Caps Lock This indicator glows green when the alphabet keys are locked in uppercase. USB diskette drive A 3 1/2" diskette drive accommodates 1.44-megabyte or 720-kilobyte diskettes. It connects to the USB port.
Page 70: Fixed Optical Media Drive
User's Manual Eject button When a diskette is fully seated in the drive, the eject button pops out. To remove a diskette, push in the eject button and the diskette pops out partially for removal. CAUTION: Check the Disk-In-Use indicator when you use the diskette drive.
Page 71: Writable Discs
Writable discs This section describes the types of writable CD/DVD discs. Check the specifica- tions for your drive to for the type of discs it can write. Use Drag'n Drop CD+DVD to write compact discs. Refer to Chapter 4, ❑ CD-R discs can be written only once. The recorded data cannot be erased or changed.
Page 72: Dvd-Rom Drive
User's Manual DVD-ROM drive The full- size DVD-ROM drive module lets you record data to rewritable CD/DVDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor. NOTE: The read speed is slower at the center of a disc and faster at the outer edge.
Page 73: Dvd Multi Drive
DVD Multi drive The full-size DVD Multi drive module lets you record data to rewritable CD/DVDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor. NOTE: The read speed is slower at the center of a disc and faster at the outer edge.
Page 74: Ac Adaptor
CAUTION: Use only the AC adaptor that came with the computer or an equivalent optional adaptor. Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case. WARNING: Use only the AC adaptor supplied as an accessory. Other AC adaptors have different voltage and terminal polarities and use of them may produce heat and smoke or even result in fine or rupture.
Page 75 Chapter 3 Getting Started Setting up your work space ... 3-1 General conditions ... 3-2 Placement of the computer ... 3-2 Seating and posture ... 3-3 Lighting ... 3-4 Work habits ... 3-4 Connecting the AC adaptor ... 3-5 Opening the display ... 3-6 Turning on the power ...
Page 77: Chapter 3 Getting Started
Getting Started This chapter provides basic information to get you started using your computer. It covers the following topics: ❑ Setting up your work space — for your health and safety NOTE: Be sure also to read Instruction Manual for Safety & Comfort. This guide, which is included with the computer, explains product liability.
Page 78: General Conditions
User's Manual ❑ Seating and posture ❑ Lighting ❑ Work habits General conditions In general, if you are comfortable, so is your computer, but read the following to make sure your work site provides a proper environment. ❑ Make sure there is adequate space around the computer for proper ventilation. ❑...
Page 79: Seating And Posture
❑ Allow adequate space behind the computer to let you freely adjust the display. The display should be angled to reduce glare and maximize visibility. ❑ If you use a paper holder, set it at about the same height and distance as the computer.
Page 80: Lighting
User's Manual ❑ Adjust the back of your chair so it supports the lower curve of your spine. ❑ Sit straight so that your knees, hips and elbows form approximately 90 degree angles when you work. Do not slump forward or lean back too far. Lighting Proper lighting can improve legibility of the display and reduce eye strain.
Page 81: Connecting The Ac Adaptor
1. Use only the AC adaptor supplied with your computer or an equivalent adaptor that is compaible. Use of any incompatible adaptor could damage your computer. TOSHIBA assumes no liability for any damage caused by use of an incompatible adaptor.
Page 82: Opening The Display
User's Manual 1. Connect the power cord to the AC adaptor. Figure 3-2 Connecting the power cord to the AC adaptor 2. Connect the AC adaptor’s DC output plug to the DC IN 15V input port on the back of the computer. DC IN 15V Figure 3-3 Connecting the adaptor to the computer 3.
Page 83: Turning On The Power
2. Lift the display panel up and adjust it to the best viewing angle for you. CAUTION: Use reasonable care when opening and closing the display panel. Opening it vigorously or slamming it shut could damage the computer. NOTE: When you open the display, hold it with both hands and lift up slowly.
Page 84: Starting Up For The First Time
User's Manual 3. Press and hold the computer’s power button for two or three seconds. Figure 3-5 Turning on the power Starting up for the first time When you first turn on the power, the computer’s initial screen is the Microsoft Windows XP Startup Screen Logo.
Page 85: Hibernation Mode
NOTE: For the computer to shut down in hibernation mode, the hiberna- tion feature must be enabled in two places : the hibernate tab in Power Options and Setup Action tab in TOSHIBA Power Saver. Otherwise, the computer will shut down in Standby mode. If battery power becomes depleted, data saved in Standby will be lost.
Page 86: Starting Hibernation
3. Select the Hibernate window, in Power Option property select the Enable Hibernation check box and click the Apply button. 4. Open TOSHIBA Power Saver. 5. Select the Setup Action window. 6. Enable the desired Hibernation settings for When I press the power button and When I close the lid.
Page 87: Standby Mode
Standby. 4. To prevent the computer from automatically entering Standby mode, disable Standby in TOSHIBA Power Saver. That action, however, will nullify the computer’s Energy Star compliance.
Page 88 2. Close the display panel. This feature must be enabled. Refer to the Setup Action tab in Power Saver Utility described in the Control Panel. Open Performance and Maintenance and open TOSHIBA Power Saver. 3. Press the power button. This feature must be enabled. Refer to the Setup Action tab in Power Saver Utility described in the Control Panel.
Page 89: Restarting The Computer
NOTES: 1. When the computer is shut down in standby mode, the power indicator flashes orange. 2. If you are operating the computer on battery power, you can lengthen the operating time by shutting down in hibernation mode. Standby mode consumes more power. Standby limitations Standby will not function under the following conditions: ❑...
Page 90: Restoring The Preinstalled Software From The Product Recovery Dvd-Rom
2. Hold down the F12 key and turn on the power. When In Touch with Tomorrow TOSHIBA appears, release the F12 key. 3. Use the left or right cursor key to select the DVD-ROM icon in the display menu.
Page 91 Chapter 4 Operating Basics Using the Touch Pad ... 4-1 Using the USB diskette drive ... 4-2 Connecting 3 1/2" diskette drive ... 4-2 Disconnecting 3 1/2" diskette drive ... 4-3 Using optical media drives ... 4-3 Loading discs ... 4-4 Removing discs ...
Page 92 Connecting ... 4-21 Disconnecting ... 4-22 Wireless LAN ... 4-22 Security ... 4-23 Wireless communication switch ... 4-23 Wireless communication Indicator ... 4-24 LAN ... 4-24 LAN cable types ... 4-24 Connecting LAN cable ... 4-25 Disconnecting LAN cable ... 4-26 Cleaning the computer ...
Page 93: Chapter 4 Operating Basics
Operating Basics This chapter gives information on basic operations including using the Touch Pad, the external diskette drive, optical media drives, Audio/video controls, Sound System, the internal modem, the wireless communication and LAN. It also provides tips on caring for your computer and on heat dispersal. Using the Touch Pad To use the Touch Pad, simply touch and move your finger tip across it in the direction you want the on-screen pointer to go.
Page 94: Using The Usb Diskette Drive
User's Manual Drag and drop 1. Hold down the left control button and move the cursor 2. Lift your finger to drop the item where you want it. Scroll Vertical: Move your finger up or down the right edge of the Touch Pad.
Page 95: Disconnecting 3 1/2" Diskette Drive
Disconnecting 3 1/2" diskette drive When you have finished using the diskette drive, follow the procedures below to disconnect it: 1. Wait for the indicator light to go out to make sure all diskette activity has stopped. CAUTION: If you disconnect the diskette drive or turn off the power while the computer is accessing the drive you may lose data or damage the diskette or the drive.
Page 96: Loading Discs
User's Manual Loading discs To load CD/DVDs, follow the steps below and refer to figures 4-3 to 4-7. 1. a. When the power is on, press the eject button to open the drawer slightly. Figure 4-3 Pressing the eject button b.
Page 97 2. Pinch the drawer gently and pull until it is fully opened. Figure 4-5 Pulling the drawer open 3. Lay the CD/DVD, label side up, in the drawer. Figure 4-6 Inserting a CD/DVD NOTE: When the drawer is fully opened, the edge of the computer will extend slightly over the CD/DVD tray.
Page 98: Removing Discs
User's Manual CAUTIONS: 1. Do not touch the laser lens. Doing so could cause misalignment. 2. Do not keep foreign matter from entering the drive. Check the back edge of the tray to make sure it carries no debris before closing the drive. 4.
Page 99: Audio/Video Controls
Previous Press the icon to advances to the previous track, chapter or data. NOTE: If Random is selected in TOSHIBA Media Player, selecting Next or Previous advances to a random selection. Audio/Video controls...
Page 100: Play/Pause And Stop Buttons
CD/DVD control Os is running and you press Play/Pause. If an audio CD is in the opticalmedia drive,TOSHIBA Media Player starts and CD audio play begins. If a DVD is in the optical media drive, the DVD Video player starts and DVD Video play begins.
Page 101: Before Writing Or Rewriting
CD-RW: MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. TOSHIBA has confirmed the operation of CD-R and CD-RW media of the manufac- turers above. Operation of other media cannot be guaranteed. ❑ CD-RW can generally be rewritten about 1,000 times. However, the actual number of rewrites is affected by the quality of the media and the way it is used.
Page 102: Writing Cd/Dvds On Dvd±Rw Drive (Dvd Dual Drive)
If you fail to do so, the DVD±RW drive may not function properly, and you may fail to write or rewrite, lose data or incur other damage. Disclaimer TOSHIBA does not bear responsibility for the following: ❑ Damage to any CD-R/RW or DVD-R/-RW/+R/+RW disc that may be caused by writing or rewriting with this product.
Page 103: Writing Cd/Dvds On Dvd-R/-Rw Drive
NOTE: Also refer to the disc-writing instructions in the next section, Writing CD/DVDs on DVD Multi drive. Disclaimer TOSHIBA does not bear responsibility for the following: ❑ Damage to any CD-R/RW or DVD-R/-RW disc that may be caused by writing or rewriting with this product.
Page 104: Writing Cd/Dvds On Dvd Multi Drive
Based on TOSHIBA’s limited compatibility testing, we suggest the following manufacturers of CD-R/RW and DVD-R/-RW/-RAM disc. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.
Page 105 CD-R: TAIYOYUDEN CO., LTD. MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. Hitachi Maxell Ltd. CD-RW: MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. DVD Specifications for Recordable Disc for Gen- DVD-R: eral Version 2.0 TAIYOYUDEN CO., LTD. PIONEER VIDEO CORPORATION MITSUBISHI CHEMICAL CORPORATION DVD Specifications for Re-recordable Disc for DVD-RW: Version 1.0 or Version 1.1...
Page 106 User's Manual ❑ Other DVD-ROM drives for computers or other DVD players may not be able to read DVD-R/-RW discs. ❑ You cannot overwrite data that has been previously written to a DVD-RW disc. ❑ You cannot partially delete any data written to a DVD-RW disc. ❑...
Page 107: Drag'n Drop Cd+Dvd
❑ Write from the computer's HDD to the CD/DVD. Do not try to write from shared devices such as a LAN server or any other network device. Drag’n Drop CD+DVD Note the following limitations when you use Drag’n Drop CD+DVD: ❑...
Page 108: Data Verification
User's Manual Data verification To verify that data is written or rewritten correctly, follow the steps below before you write or rewrite a Data CD/DVD. 1. Right-click Data BOX and select Options to display the DATA DISC Option window. 2. Mark the Record and Verify check box and select Byte compare. 3.
Page 109: Diskettes
Diskettes 1. Store your diskettes in the container they came in to protect them and keep them clean. If a diskette is dirty, do not use cleaning fluid. Clean it with a soft damp cloth. 2. Do not slide back the diskette’s protective metal covering or touch the diskette’s magnetic surface.
Page 110: Soundmax Control Panel
User's Manual 1. Click Start, point to All Programs, point to Accessories, point to Enter- tain ment and click Volume Control. 2. Click Properties, check the Microphone checkbox and click OK. 3. Click Options and select Advanced Controls. 4. Click Advanced. 5.
Page 111: Modem
To select a region, follow the steps below. 1. Click start, point to All Programs, point to TOSHIBA point to Network- ing and click Modem Region Select. NOTE: Do not use the Country/Region Select function in the Modem setup utility in the Control Panel if the function is available.
Page 112: Properties Menu
User's Manual 2. The Region Selection icon will appear in the Windows Task Bar. Figure 4-9 The Region Selection icon 3. Click the icon with the primary mouse button to display a list of regions that the modem supports. A sub menu for telephony location information will also be displayed.
Page 113: Connecting
Setting You can enable or disable the following settings: AutoRun Mode The Region Select utility starts automatically when you start up the operating system. Open the Dialing Properties dialog box after selecting region. The dialing properties dialog box will be displayed automatically after you select the region.
Page 114: Disconnecting
User's Manual CAUTIONS: 1. In case of a lightning storm, unplug the modem cable from the telephone jack. 2. Do not connect the modem to a digital telephone line. A digital line will damage the modem. 1. Plug one end of the modular cable into the modem jack. 2.
Page 115: Security
TOSHIBA strongly recommend the customer to enable the WEP function. 2. TOSHIBA is not liable for the eavesdropping of data due to the use of Wireless LAN and the damage thereof.
Page 116: Wireless Communication Indicator
W-LAN. Open or click the following: start, Control Panel, System, Hardware Device Manager, Network adapters, TOSHIBA Wireless LAN Mini PCI Card or Atheros AR5001X+ Wireless Network Adapter and enable. LAN circuits support Ethernet LAN (10 megabits per second, 10BASE-T) and Fast Ethernet LAN (100 megabits per second, 100BASE-TX).
Page 117: Connecting Lan Cable
Connecting LAN cable To connect the LAN cable, follow the steps below. CAUTIONS: 1. Connect the AC adaptor before connecting the LAN cable. The AC adaptor must remain connected during LAN use. If you disconnect the AC Adaptor while the computer is accessing a LAN, the system may hang up.
Page 118: Disconnecting Lan Cable
User's Manual Disconnecting LAN cable To disconnect the LAN cable, follow the steps below. CAUTION: Make sure the LAN Active indicator (orange LED) is out before you disconnect the computer from the LAN. 1. Pinch the lever on the connector in the computer’s LAN jack and pull out the connector.
Page 119: Heat Dispersal
CPU speed. Or, by lowering the CPU speed first, then if necessary, turning on the fan. Use the Cooling Method item of the Basic Setup tab in TOSHIBA Power Saver. Maximum...
Page 120 User's Manual 4-28...
Page 121 Chapter 5 The Keyboard Typewriter keys ... 5-1 F1 … F12 function keys ... 5-2 Soft keys: Fn key combinations ... 5-2 Emulating keys on enhanced keyboard ... 5-2 Hotkeys ... 5-4 Fn Sticky key ... 5-6 Windows special keys ... 5-7 Keypad overlay ...
Page 123: Chapter 5 The Keyboard
The Keyboard The computer’s keyboard layouts are compatible with a 101/102-key enhanced keyboard. By pressing some keys in combination, all the 101/102-key keyboard functions can be executed on the computer. The number of keys on your keyboard depends on which country/region’s key- board layout your computer is configured with.
Page 124: F1 ... F12 Function Keys
Soft keys: Fn key combinations The Fn (function) is unique to TOSHIBA computers and is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.
Page 125 Soft keys: Fn key combinations The keyboard is designed to provide all the features of the 101-key enhanced keyboard, shown in figure 5-1. The 101/102-key enhanced keyboard has a numeric keypad and scroll lock key. It also has additional Enter and Ctrl keys to the right of the main keyboard.
Page 126: Hot Keys
User's Manual Hot keys Hot keys (Fn + a function or Esc key) let you enable or disable certain features of the computers. Sound mute: Pressing Fn + Esc in a Windows environment turns sound on or off. When you press these hot keys, the current setting will change and be displayed as an icon.
Page 127 Soft keys: Fn key combinations Standby: When you press Fn + F3, the computer enters Standby. To avoid entering Standby unexpectedly, a dialog box appears for verification. However, if you select the check box, it will not appear in the future. Hibernation: When you press Fn + F4, the computer enters Hibernation.
Page 128: Fn Sticky Key
Fn Sticky key You can use the TOSHIBA Accessibility Utility to make the Fn key sticky, that is, you can press it once, release it, and then press an “F number” key. To start the TOSHIBA Accessibility Utility, click start, point to All Programs, point to TOSHIBA, point to Utilities and click Accessibility.
Page 129: Windows Special Keys
Windows special keys Windows special keys The keyboard provides two keys that have special functions in Windows : one activates the start menu and the other has the same function as the secondary mouse button. This key activates the Windows start menu. This key has the same function as the secondary mouse button.
Page 130: Temporarily Using Normal Keyboard (Overlay On)
User's Manual Numeric mode To turn on the Numeric mode, press Fn + F11. The Numeric mode F11 indicator lights. Now try numeric data entry using the keys in figure 5-2. Press Fn + F11 again to turn off the overlay. Figure 5-2 The numeric keypad overlay Temporarily using normal keyboard (overlay on)
Page 131: Temporarily Using Overlay (Overlay Off)
Temporarily using overlay (overlay off) While using the normal keyboard, you can temporarily use the keypad overlay without turning it on: 1. Press and hold down Fn. 2. Check the keyboard indicators. Pressing Fn turns on the most recently used overlay.
Page 132 User's Manual 5-10...
Page 133 Chapter 6 Power and Power-Up Modes Power conditions ... 6-1 Power indicators ... 6-2 Battery indicators ... 6-2 DC IN 15V indicator ... 6-3 Power indicator ... 6-3 Battery types ... 6-3 Battery pack ... 6-4 Real Time Clock battery ... 6-4 Care and use of the battery pack ...
Page 135: Chapter 6 Power And Power-Up Modes
Power and Power-Up Modes The computer’s power resources include the AC adaptor and internal batteries. This chapter gives details on making the most effective use of these resources including charging and changing batteries, tips for saving battery power, and power up modes.
Page 136: Power Indicators
User's Manual Table 6-1 Power conditions continued Battery • Operates adaptor charge is • LED: Battery off above low connected battery trigger point Battery • Operates charge is • LED: Battery below low battery trigger point Battery Computer goes charge is into resume mode exhausted shuts down...
Page 137: Dc In 15V Indicator
NOTE: If the battery becomes too hot while it is being charged, the charge will stop and the battery indicator will go out. When the battery’s temperature falls to a normal range, charge will resume. This occurs whether the computer’s power is on or off. DC IN 15V indicator Check the DC IN 15V indicator to determine the power status with the AC adaptor connected:...
Page 138: Battery Pack
Dispose of the battery as required by local ordinances or regulations. Use only batteries recom- mended by TOSHIBA as replacements. 2. Do not remove the battery pack while the computer is in Standby mode. Data is stored in RAM, so if the computer loses power it will be lost.
Page 139: Care And Use Of The Battery Pack
Press [F1] key to set Date/Time. CAUTION: The computer’s RTC battery is a nickel metal hydride battery and should be replaced only by your dealer or by a TOSHIBA service representative. The battery can explode if not properly replaced, used, handled or disposed of.
Page 140 User's Manual 2. Never try to disassemble, repair or otherwise tamper with a battery pack. The battery pack will overheat and ignite. Leakage of caustic alkaline solution or other electrolytic substances will cause fire or injury, possibly resulting in death or serious injury. 3.
Page 141 Never use the computer again until it has been checked by a TOSHIBA service provider. It might generate smoke or fire, or the battery pack might rupture.
Page 142: Charging The Batteries
The Battery indicator glows orange when the battery is being charged. CAUTION: Use only the computer connected to an AC power source or the optional TOSHIBA Battery charger to charge the battery pack. Never attempt to charge the battery pack with any other charger.
Page 143 Time The following table shows the approximate time required to fully charge a dis- charged battery. Battery type Power on Battery pack 8400mAh 7 to 20 or longer RTC battery NOTES: 1. The charging time when the computer is on is affected by ambient temperature, the temperature of the computer and how you use the computer.
Page 144: Monitoring Battery Capacity
How you configure the computer, for example, whether you enable battery- power saving options. The computer provides a battery save mode, which can be set in TOSHIBA Power Saver, to conserve battery power. This mode has the following options: • CPU Precessing speed •...
Page 145: Retaining Data With Power Off
• Monitor Power off • HDD Power off ❑ How often and how long you use the hard disk and the diskette drive. ❑ How much charge the battery contained to begin with. ❑ How you use optional devices, such as a PC card, to which the battery supplies power.
Page 146: Replacing The Battery Pack
User's Manual 4. Connect the AC adaptor to the computer and the power cord to a power outlet. The DC IN 15V indicator should glow green, and the Battery indicator should glow orange to indicate that the battery pack is being charged.
Page 147 ATTERY SAFETY LOCK ATTERY RELEASE LATCH Figure 6-1 Releasing the battery pack CAUTION: For environmental reasons, do not throw away a spent battery pack. Please return spent battery packs to your TOSHIBA dealer. Replacing the battery pack ATTERY PACK 6-13...
Page 148: Installing The Battery Pack
Dispose of the battery as required by local ordinances or regulations. Use only batteries recom- mended by TOSHIBA as replacements. 2. Do not touch the latch while holding the computer. Or you may get injured by the dropped battery by unintentional release of the latch.
Page 149: Starting The Computer By Password
Chapter 3, Getting Started. the power Windows utilities You can specify the setting in TOSHIBA Power Saver. Hot keys You can use hot keys Fn + F3 to enter Standby mode and Fn + F4 to enter The Keyboard Hibernation.
Page 150: Panel Power Off
User's Manual Panel power on/off You can set up your computer so that power turns off automatically when you close the display panel. When you open the panel, power turns on in Standby or Hibernation mode but not in boot mode. NOTE: If the panel power off function is enabled and you use Shut down Windows, do not close the display until the shut down function is completed.
Page 151: Hw Setup
Chapter 7 HW Setup and Passwords HW Setup ... 7-1 Accessing HW Setup ... 7-1 HW Setup window ... 7-1 Supervisor password ... 7-10...
Page 153: Chapter 7 Hw Setup And Passwords
HW Setup and Passwords This chapter explains how to use TOSHIBA HW Setup program to configure your computer and how to set passwords. HW Setup TOSHIBA HW Setup lets you configure settings for Display, CPU, Boot Priority, Keyboard, USB, LAN, General, Password, Device Config and Parallel/Printer.
Page 154 User's Manual General This window displays the BIOS version and contains two buttons: Default and About. Return all HW Setup values to the factory settings. Default Display the HW Setup version. About Setup This field displays BIOS Version and date. Password User Password This option allows you to set or reset the user password for power on.
Page 155 If they do not match, the following message appears. You must repeat from step 1. Entry Error!!! To delete a user password: 1. Select Not Registered to display the following prompt: Enter Password: 2. Enter the currently registered password. The character string you enter is displayed as a string of asterisks.
Page 156: Device Config
User's Manual NOTE: It is a good idea to create more than one Key FD in case a Key FD is damaged or lost. To create a Key FD follow the steps below. 1. Turn off the computer’s power. 2. Connect the diskette drive to a USB port on the computer. 3.
Page 157 Parallel Port Mode The options in this tab are ECP and Standard Bi-directional. Sets the port type to Extended Capabilities Port (ECP). For most printers, the port should be set to ECP. (Default) This setting should be used with some other parallel Standard devices.
Page 158: Boot Priority
User's Manual HT Technology This tab is available only on the models with the CPU that supports Hyper- Threading Technology (HTT). You can enable or disable the HTT feature (includ- ing control for PM when enabling it) using this tab. Enabled with PM* without PM* Select this option to enable the HTT feature with Enabled...
Page 159 * In this computer, CD-ROM refers to the Fixed optical media drive. NOTES: 1. PC card HDD boot is supported only by slot 0 on the computer. Support is guaranteed only for TOSHIBA PC card HDDs. 2. When you assign a PC card HDD top priority, “PC” is not displayed.
Page 160: Supervisor Password
HW Setup. 4. Support of PC (ATA) card boot is guaranteed only for TOSHIBA PC card HDDs. 5. A PC (ATA) card takes the position of HDD in the Boot Priority Options list.
Page 161 NOTE: The Wake-up on LAN function consumes power even when the system is off. Leave the universal AC adaptor connected while using this feature. Keyboard Wake-up on Keyboard When this feature is enabled and the computer is in Standby mode, you can turn on the computer by pressing any key.
Page 162: Supervisor Password
User's Manual Supervisor password Refer to the readme file of the Supervisor Password Utility for instructions on setting the Supervisor Password. The path to the readme file is C:\Program Files\TOSHIBA\Windows Utilities\SVPWTool. In the SVPWTool directory, open the readme.htm file. 7-10...
Page 163 Chapter 8 Optional Devices PC cards ... 8-2 Inserting a PC card ... 8-2 Removing a PC card ... 8-3 SD cards ... 8-4 Formatting an SD card ... 8-4 Installing an SD card ... 8-4 Removing an SD card ... 8-5 SD card care ...
Page 165: Chapter 8 Optional Devices
Optional Devices Optional devices can expand the computer’s capabilities and its versatility. This chapter describes connection or installation of the following devices, which are available from your TOSHIBA dealer: Cards/memory PC cards SD cards Memory expansion Power devices Battery pack...
Page 166: Pc Cards
The computer is equipped with a PC card expansion slot that can accommodate one 5 mm Type II card. Any PC card that meets industry standards (manufactured by TOSHIBA or other vendor) can be installed. The slot supports 16-bit PC cards, including PC card 16’s multifunction card and CardBus PC cards.
Page 167: Removing A Pc Card
3. Check the configuration in the HW Setup window to make sure it is appropri- ate for your card. After installing the card, refer to the card’s documentation and check the configura- tion in Windows to make sure it is appropriate for your card. Removing a PC card To remove the PC card, follow the steps below.
Page 168: Sd Cards
TOSHIBA SD memory card format, not in the format defined as the Windows standard format. In order to run TOSHIBA SD memory card format, click windows start button, point to All Programs, point to TOSHIBA, point to Utilities and click SD memory card Format.
Page 169: Inserting An Sd Card
2. Press gently to ensure a firm connection. CARD Figure 8-3 Inserting an SD card CAUTION: Make sure the SD card is oriented properly before you insert Removing an SD card To remove an SD card, follow the steps below. 1.
Page 170: Sd Card Care
User's Manual CAUTIONS: 1. Make sure the SD card indicator is out before you remove the card or turn off the computer’s power. If you remove the card or turn off the power while the computer is accessing the card you may lose data or damage the card.
Page 171: Installing Memory Module
CAUTIONS: 1. Refer to General Precautions for the attention when keyboard brace is removed. 2. Use only memory modules approved by TOSHIBA. 3. Do not try to install or remove a memory module under the following conditions. You can damage the computer and the module.
Page 172 User's Manual 5. Insert a thin object under the rim of the keyboard brace and lift out the brace. Figure 8-5 Removing the keybord brace Remove two screws securing the keyboard and one screw securing the metal brace. Lift off the metal brace. NOTE: Use a point size 0 Phillips screwdriver.
Page 173 8. Lift into the left the insulation sheet covering the memory module and secure the sheet with tape to keep it out of your way. CAUTION: Do not touch the connectors on the memory module or on the computer. Debris on the connectors may cause memory access problems. NOTE: The slot A is reserved for main memory.
Page 174: Removing Memory Module
User's Manual 10. Seat the insulation sheet to cover the module. NOTE: Be sure to check that the insulation sheet is returned to the original position to cover the memory module. 11. Insert tabs on the front of the keyboard into corresponding notches on the computer and seat the keyboard.
Page 175: Battery Pack
CAUTIONS: 1. If you use the computer for a long time, the memory modules and the circuits locating close to the memory modules will become hot. In this case, let them cool to room temperature before you replace them. Or you will get burnt if you touch any of them.
Page 176: Usb Diskette Drive
User's Manual USB diskette drive The 3 1/2" external diskette drive module can be connected to the USB port. For details on connecting the 3 1/2" external diskette drive module, refer to Chapter 4, Operating Basics. External monitor An external analog monitor can be connected to the external monitor port on the computer.
Page 177: I.link (Ieee1394)
Make a back-up of your data before transferring it to the computer. There is a possibility that the original data will be damaged. There is a particular risk that some frames will be deleted in the case of digital video transfer. TOSHIBA assumes no liability for such loss of data.
Page 178: Connecting
User's Manual You may not use any copyrighted video or music data copied from a video camera except for your personal enjoyment. If you connect/disconnect an i.LINK device to/from another i.LINK device that is currently exchanging data with the computer, data frames might be dropped. Make sure data transfer has ended or turn off the computer, before you: •...
Page 179: Disconnecting
Disconnecting 1. Open the Safely Remove Hardware icon on the Task Bar. 2. Point to i.LINK (IEEE1394) device and click. 3. Disconnect the cable from the computer then from the i.LINK device. NOTE: Refer also to the documentation that came with your i.LINK device. Security lock A security lock enables you to anchor your computer to a desk or other heavy object to help prevent unauthorized removal of the computer.
Page 180 User's Manual 8-16...
Page 181 Monitor ... 9-25 Modem ... 9-25 Standby/Hibernation ... 9-27 LAN ... 9-27 Wireless LAN ... 9-27 i.LINK (IEEE1394) ... 9-28 Real Time Clock ... 9-28 Printer ... 9-29 TOSHIBA support ... 9-30 Before you call ... 9-30 Where to write ... 9-30...
Page 183: Chapter 9 Troubleshooting
Troubleshooting TOSHIBA designed the computer for durability. However, should problems occur, following the procedures in this chapter can help to determine the cause. All readers should become familiar with this chapter. Knowing what might go wrong can help prevent problems from occurring.
Page 184: Analyzing The Problem
User's Manual ❑ Check that your diskette or CD/DVD-ROM is correctly inserted and that the diskette’s write protect tab is correctly set. Make notes of your observations and keep them in a permanent error log. This will help you describe your problems to your dealer. If a problem recurs, the log will help you identify the problem faster.
Page 185: Hardware And System Checklist
Hardware If you cannot find a software problem, check your hardware. First run through the items in the preliminary checklist above. If you still cannot correct the problem, try to identify the source. The next section provides checklists for individual components and peripherals. Hardware and system checklist This section discusses problems caused by your computer’s hardware or attached peripherals.
Page 186: Self Test
If the self test is successful, the computer tries to load the operating system, depending on how the Boot Priority is set in the TOSHIBA HW Setup program. If any of the following conditions are present, the self test failed: ❑...
Page 187: Overheating Power Down
Overheating power down If the computer’s internal temperature becomes too high, the computer will automati- cally enter Hibernation or Resume mode and shut down. Problem Procedure Computer shuts down Leave the computer off until the DC IN 15V and DC IN 15V indicator stops blinking.
Page 188: Battery
User's Manual Check the condition of the cord and terminals. If the cord is frayed or damaged, replace it. If the terminals are soiled, wipe them with cotton or a clean cloth. If the AC adaptor still does not power the com- puter, contact your dealer.
Page 189: Password
Fully discharge the battery, then try to charge it again. Check the power consumption settings in TOSHIBA Power Saver utility. Consider using a power saving mode. Password Problem Procedure Cannot enter Contact your dealer.
Page 190 User's Manual Problem Procedure Some letter keys Check that the numeric keypad overlay is not produce numbers selected. Press Fn + F10 and try typing again. Output to screen Make sure the software you are using is not is garbled remapping the keyboard.
Page 191 Hardware and system checklist RESS FROM THE UPSIDE ROJECTING PRING ROJECTING • Follow the steps below when a plastic spring is out of place together with a key- top. 1. Remove the plastic spring from the key-top.
Page 192: Lcd Panel
User's Manual 2. Attach the plastic spring to the keyboard with its flat face downward after confirming the direction. LAT FACE DOWNWARD 3. Press from the upside until you hear a click after replacing the key-top to the right position. LCD panel Apparent LCD problems may be related to the computer’s setup.
Page 193: Hard Disk Drive
Problems above Refer to your software’s documentation to remain unresolved determine if the software is causing the or other problems difficulty. occur Contact your dealer if the problems continue. Hard disk drive Problem Procedure Computer does not Check if a diskette is in the diskette drive or a boot from hard disk CD-ROM is in the optical media drive.
Page 194: Dvd-Rom Drive
User's Manual DVD-ROM drive For more information, refer to Chapter 4, Problem Procedure You cannot access Make sure the drive’s drawer is securely a CD/DVD in the drive closed. Press gently until it clicks into place. Open the drawer and make sure the CD/DVD is properly seated.
Page 195: Cd-Rw/Dvd-Rom Drive
Check the region code on the DVD. It must match that on the DVD-ROM drive. Region codes are listed in the 2, The Grand Tour. If problems persist, contact your dealer. CD-RW/DVD-ROM drive For more information, refer to Chapter 4, Problem Procedure You cannot access...
Page 196: Dvd-R/-Rw Drive
Cannot write correctly If you have trouble writing, make sure you are observing the following precautions: • Use only media recommended by TOSHIBA. • Do not use the mouse or keyboard during • Use only the software supplied with the •...
Page 197 Chapter 2, The Grand Tour. Cannot write correctly If you have trouble writing, make sure you are observing the following precautions: • Use only media recommended by TOSHIBA. Hardware and system checklist Media care section in Chapter 4 DVD-ROM, DVD-Video...
Page 198: Dvd Multi Drive
User's Manual • Do not use the mouse or keyboard during • Use only the software supplied with the • Do not run or start other software during • Do not jar the computer during writing. • Do not connect/ disconnect external devices or If problems persist, contact your dealer.
Page 199 Cannot write correctly If you have trouble writing, make sure you are observing the following precautions: • Use only media recommended by TOSHIBA. • Do not use the mouse or keyboard during • Use only the software supplied with the •...
Page 200: Dvd±Rw Drive (Dvd Dual Drive)
User's Manual DVD±RW drive (DVD Dual drive) For more information, refer to Chapter 4, Problem Procedure You cannot access Make sure the drive's drawer is securely closed. a CD/DVD in the drive Press gently until it clicks into place. Open the drawer and make sure the CD/DVD is properly seated.
Page 201: Diskette Drive
Region codes are listed in the Optical media section in Chapter 2, The Grand Tour. Use only media recommended by TOSHIBA. Do not use the mouse or keyboard during writing. Use only the software supplied with the computer for recording.
Page 202: Pc Card
User's Manual PC card Refer also to Chapter 8, Optional Problem Procedure PC card Reseat the PC card to make sure it is error occurs firmly connected. Make sure the connection between the external Check the card’s documentation. If problems persist, contact your dealer. SD card Refer also to Chapter 8, Optional...
Page 203: Pointing Device
Pointing device If you are using a USB mouse, also refer to the your mouse documentation. Touch Pad Problem Procedure On-screen pointer The system might be busy. If the pointer is does not respond to shaped as an hourglass, wait for it to standby Pad operation its normal shape and try again to move it.
Page 204: Usb Mouse
User's Manual Touch pad is sensitive 1. Open the Control Panel. or blunt. 2. Click the Printers icon and then the Other 3. Click the Mouse icon. 4. Click the Device Setting tab. 5. Click the Setting button. 6. The Properties for Synaptics Touchpad on PS/2 7.
Page 205: Usb
2. Click the Buttons tab. 3. Set the double-click speed as instructed and The mouse pointer Try changing the speed setting in the mouse moves too fast or control utility. too slow 1. Open the Control Panel, select the Mouse 2.
Page 206: Memory Expansion
User's Manual Memory expansion Refer also to Chapter 8, Optional modules. Problem Procedure Beep sounds. Make sure the memory module installed in the (If slot A, two beeps. expansion slot is compatible with the computer. If slot B, three beeps. If an incompatible module has been installed, If both, two and three follow the steps below.
Page 207: Monitor
Monitor Refer also to Chapter 8, Optional Problem Procedure Monitor does not Make sure that the external monitor’s power turn on switch is on. Confirm that the external monitor’s power cable is plugged into a working power outlet. No display Try adjusting the contrast and brightness controls on the external monitor.
Page 208 User's Manual You can also use the ATX command. Refer to Appendix C, You place a call, Make sure the settings are correct in your but a connection communications application. can’t be made After making a call Make sure the tone or pulse selection in your you can’t hear a ring communications application is set correctly.
Page 209: Standby/Hibernation
Standby/Hibernation Problem Procedure The system will Is Windows Media™ Player open? The system not enter might not enter Standby/Hibernation, if Windows Standby/Hibernation Media Player is either playing a selection or finished playing a selection. Close Windows Media Player before you select Standby/Hiberna- tion.
Page 210: I.link (Ieee1394)
User's Manual i.LINK (IEEE1394) Problem Procedure i.LINK device does Make sure the cable is securely connected to not function the computer and to the device. Make sure the device’s power is turned on. Reinstall the drivers. Open the Windows Control Panel and double-click the Add New Hardware icon.
Page 211: Printer
Printer Refer also to the Parallel printer the troubleshooting and other relevant sections in your printer and software documentation. Problem Procedure Printer does not Check that the printer is connected to an electric turn on. outlet. Make sure the outlet is supplying power by plugging in an appliance.
Page 212: Toshiba Support
User's Manual TOSHIBA support If you require any additional help using your computer or if you are having problems operating the computer, you may need to contact TOSHIBA for addi- tional technical assistance. Before you call Some problems you experience may be related to software or the operating system, it is important to investigate other sources of assistance first.
Page 213 Outside of Europe Australia TOSHIBA Australia Pty. Ltd. Information Systems Division 84-92 Talavera Road North Ryde N.S.W. 2113 Sydney Canada TOSHIBA of Canada Ltd. 191 McNabb Street, Markham, Ontario L3R 8H2 China TOSHIBA Computer Systems (Shanghai) Co., Ltd. Bldg. 33, No. 351, Jinzang Road,...
Page 214 User's Manual 9-32...
Page 215: Appendixes
Appendixes Appendix A Specifications ... A-1 Appendix B Display Controller and Modes ... B-1 Appendix C AT Commands ... C-1 Appendix D S-registers ... D-1 Appendix E V.90 ... E-1 Appendix F Internal Modem Guide ... F-1 Appendix G Wireless LAN ... G-1 Appendix H AC Power Cord and Connectors ...
Page 217: Physical Dimensions
Specifications This appendix summarizes the computer’s technical specifications. Physical Dimensions Size 337 (w) x 298 (d) x40/46 (h) millimeters (not including parts that extend beyond the main body) Weight 3.5 kilograms, configured with: 15"XGA-TFT, CD-RW/ DVD-ROM drive, Modem, LAN, IEEE1394, Wireless LAN Weight will vary with other configurations.
Page 218 User's Manual Built-in Modem Network control unit (NCU) Type of NCU Type of line Telephone line (analog only) Type of dialing Pulse Tone Control command AT commands EIA-578 commands Monitor function Computer’s speaker Communication specifications Communication Data: system Fax: Communication Data protocol ITU-T-Rec...
Page 219: Display Controller And Modes
Appendix B Display Controller and Modes Display controller The display controller interprets software commands into hardware commands that turn particular pels on or off. The controller is an advanced Video Graphics Array (VGA) that provides Extended Graphics Array (XGA) and Super Extended Graphics Array Plus (SXGA+) support for the internal LCD and external monitors.
Page 220: Video Modes
User's Manual Video modes The computer supports video modes defined in the tables below. If your application offers a selection of mode numbers that do not match the numbers on the table, select a mode based on mode type, resolution, character matrix, number of colors and refresh rates.
Page 221 Table1 Video modes (VGA) continued Video Type Resolution mode 320 × 200 Grph Pels 640 × 200 Grph Pels 640 × 350 Grph Pels 640 × 350 Grph Pels 640 × 480 Grph Pels 640 × 480 Grph Pels 320 × 200 Grph Pels Character LCD...
Page 222 User's Manual Table 2 Video modes (XGA) Resolution colors 640 × 480 256/256K 800 × 600 256/256K 1024 × 768 256/256K 1280 × 1024 256/256K (Virtual) 1400 × 1050 256/256K (Virtual) 1600 × 1200 256/256K (Virtual) 1920 × 1440 256/256K (Virtual) 2048 ×...
Page 223 Table 2 Video modes (XGA) continued Resolution colors 640 × 480 64K/64K 800 × 600 64K/64K 1024 × 768 64K/64K 1280 × 1024 64K/64K (Virtual) 1400 × 1050 64K/64K (Virtual) 1600 × 1200 64K/64K (Virtual) 1920 × 1440 64K/64K (Virtual) 2048×...
Page 224 User's Manual Table 2 Video modes (XGA) continued Resolution colors 640 × 480 16M/16M 800 × 600 16M/16M 1024 × 768 16M/16M 1280 × 1024 16M/16M (Virtual) 1400 × 1050 16M/16M (Virtual) 1600 × 1200 16M/16M (Virtual) 1920 × 1440 16M/16M (Virtual) 2048 ×...
Page 225 Table 3 Video modes (Super XGA+) Resolution colors 640 × 480 256/256K 800 × 600 256/256K 1024 × 768 256/256K 1280 × 1024 256/256K 1400 × 1050 256/256K 1600 × 1200 256/256K (Virtual) 1920 × 1440 256/256K (Virtual) 2048 × 1536 256/256K (Virtual) CAUTION: Some SVGA modes are not supported at LCD+CRT simulta-...
Page 226 User's Manual Table 3 Video modes (Super XGA+) continued Resolution colors 640 × 480 64K/64K 800 × 600 64K/64K 1024 × 768 64K/64K 1280 × 1024 64K/64K 1400 × 1050 64K/64K 1600 × 1200 64K/64K (Virtual) 1920 × 1440 64K/64K (Virtual) 2048 ×...
Page 227 Table 3 Video modes (Super XGA+) continued Resolution colors 640 × 480 16M/16M 800 × 600 16M/16M 1024 × 768 16M/16M 1280 × 1024 16M/16M 1400 × 1050 16M/16M 1600 × 1200 16M/16M (Virtual) 1920 × 1440 16M/16M (Virtual) 2048 × 1536 16M/16M (Virtual) CAUTION: Some SVGA modes are not supported at LCD+CRT simulta-...
Page 228: Display Settings
User's Manual Display Settings 1. You cannot move from the [Settings] tab of [Display Properties] to the multi-monitor when you are using the display of the computer and an external CRT display at the same time. The [Settings] tab is displayed in the following steps; a.
Page 229 The way to move to multi-monitor a. Press [Ctrl] + [Alt] + [F12] keys to make [Intel(R) 82852/82855 GM/GME Graphics Controller Prope...] displayed. (See FigureB-2) b. Click in the left of [Devices] tab (See FigureB-2), then select [Extended Desktop]. c. Check that the Primary Device is fixed into Note Book (the display of the computer) and the Secondary Device is being fixed into Monitor (CRT display).
Page 230 User's Manual 2. Some reproduced DVD picture may not be displayed when the display of the computer and a CRT display are used at the same. Reduce the resolution, use the display of the computer only, use the CRT display only or set display device in the multi-monitor, then play DVD.
Page 231 c. The following [Set up] screen is displayed, then remove the check of [Use Hardware Decode Acceleration] (The check of [Use Hardware Color Acceleration] is removed automatically). d. Click [OK] button(The [Set up] tab closes automatically). 4. The DVD video overlay is not displayed when the display mode of CRT display is set to high resolution and hifh refresh rate mode at LCD/CRT simultinous or multi-monitor.
Page 232 User's Manual 5. A DVD-reproduced image may not be displayed in correct position when you press Fn+F1 to enter into Instant Security mode while a DVD is playing under WinDVD 4.0, and then move the mouse or press the key to exit Instant Security mode.
Page 233: At Commands
AT Commands In most cases, you will not need to type AT commands manually. However, there might be some occasions when you will need to do so. This chapter describes AT commands for data mode. Fax and voice commands are taken care of by application software. The format for entering AT commands is: ATXn where X is the AT command, and n is the specific value for that command.
Page 234 User's Manual Answer command This command instructs the modem to go off-hook and answer an incoming call. Communication standard setting This command determines the communication standard CCITT or Bell. Selects CCITT V.22 mode when the modem is at 1200 bps. Selects Bell 212A when the modem is at 1200 bps (default).
Page 235 Return to command mode. Causes the modem to return to command mode after dialing a number, without disconnecting the call. Dial a telephone number previously stored using the &Zn=X command (See &Zn=X command for more information). The range is 0-3. Echo command This command controls whether or not the characters entered from your computer keyboard are displayed on your monitor (echoed) while...
Page 236 User's Manual Monitor speaker volume This command sets speaker volume to low, medium, or high. Low volume. Low volume. (Same as L0) Medium volume (default). High volume. Result Codes: n=0,1,2,3 ERROR Otherwise Monitor speaker mode This command turns the speaker on or off. The speaker is off.
Page 237 Result Codes: n=0,1 ERROR Otherwise Return on-line to data mode Instructs the modem to exit on-line command mode and return to data mode (see AT escape sequence, +++). This command issues a retrain before returning to on-line data mode. This command issues a rate renegotiation before returning to on-line data mode.
Page 238 User's Manual Select tone dialing This command instructs the modem to send DTMF tones while dialing. Dialed digits are tone dialed until a P command or dial modifier is received. This is the default setting. DCE response format This command controls whether result codes (including call progress and negotiation progress messages) are displayed as words or their numeric equivalents.
Page 239 Enable Enable Dial tone detect Disabled: The modem dials a call regardless of whether it detects a dial tone. Enabled: The modem dials only upon detection of a dial tone, and disconnects the call if the dial tone is not detected within 10 seconds.
Page 240 User's Manual &C0 The state of the carrier from the remote modem is ignored. DCD circuit is always on. &C1 DCD turns on when the remote modem’s carrier signal is detected, and off when the carrier signal is not detected (default).
Page 241 &Gn V.22bis guard tone control This command determines which guard tone, if any, to transmit while transmitting in the high band (answer mode). This command is only used in V.22 and V.22bis mode. This option is not used in North America and is for international use only.
Page 242 User's Manual &T0 Abort. Stops any test in progress. &T1 Local analog loop. This test verifies modem operation, as well as the connection between the modem and computer. Any data entered at the local DTE is modulated, then demodulated, and returned to the local DTE. To work properly, the modem must be off-line.
Page 243 Error control mode selection This command determines the type of error control used by the modem when sending or receiving data. Buffer mode. No error control. Direct mode. MNP or disconnect mode. The modem attempts to connect using MNP2-4 error control procedures. If this fails, the modem disconnects.
Page 244 User's Manual Protocol result code Disable protocol result code appended to DCE speed. Enable protocol result code appended to DCE speed (default). Result Codes: n=0,1 ERROR Otherwise View numbers in blacklist If blacklisting is in effect, this command displays the numbers for which the last call attempted in the past two hours failed.
Page 245: Appendix D S-Registers
S-registers S-registers contain the settings that determine how a number of functions of the internal modem operate. For example, how many times to let the telephone ring before the modem answers and how long to wait before it hangs up if a connec- tion fails.
Page 246 User's Manual Auto answer ring number This register determines the number of rings the modem will count before automatically answering a call. Enter 0 (zero) if you do not want the modem to automatically answer at all. When disabled, the modem can only answer with an ATA command.
Page 247 Response formatting character (user defined) This register determines the ASCII value used as the line feed charac- ter. The modem uses a line feed character in command mode when it responds to the computer. Range: 0-127, ASCII decimal Default: 10 (line feed) Units: ASCII Command line editing character (user defined)
Page 248 User's Manual Connection completion time-out This register sets the time, in seconds, that the modem must wait before hanging up because carrier is not detected. The timer is started when the modem finishes dialing (originate), or goes off-hook (an- swer). In originate mode, the timer is reset upon detection of an answer tone if allowed by county restriction.
Page 249 Dial line rate S37 = 0 (default) S37 = 1 S37 = 2 S37 = 3 S37 = 4 S37 = 5 S37 = 6 S37 = 7 S37 = 8 S37 = 9 S37 = 10 S37 = 11 S37 = 12 S37 = 13 S37 = 14...
Page 250 User's Manual AT command set result codes The following table shows the result codes. The result code summary Result Code CONNECT RING NO CARRIER ERROR CONNECT 1200 EC* NO DIAL TONE BUSY NO ANSWER CONNECT 2400 EC* CONNECT 4800 EC* CONNECT 9600 EC* CONNECT 14400 EC* CONNECT 19200 EC*...
Page 251 Result Code DELAYED* BLACKLISTED* BLACKLIST FULL* *1: EC only appears when the Extended Result Codes configuration option is enabled. EC is replaced by one of the following symbols, depending upon the error control method used: V.42bis - V.42 error control and V.42bis data compression. V.42 - V.42 error control only.
Page 252 User's Manual...
Page 253 V.90 The TOSHIBA internal modem uses V.90 technology. The modem is capable of downstream speeds of 56Kbps (kilobits per second) when connected to an Internet service provider that supports V.90. As with any modem, the actual throughput (speed of data transfer) depends on analog telephone line conditions, which can vary considerably.
Page 254 User's Manual Table E-1 Result codes for a V.90 connection Result code CONNECT 32000 EC* CONNECT 36000 EC* CONNECT 40000 EC* CONNECT 44000 EC* CONNECT 48000 EC* CONNECT 52000 EC* CONNECT 56000 EC* CONNECT 28000 EC* CONNECT 29333 EC* CONNECT 30666 EC* CONNECT 33333 EC* CONNECT 34666 EC* CONNECT 37333 EC*...
Page 255 * EC stands for the Error Control method, which appears only when the extended result codes configuration option is enabled. EC is replaced by one of the following symbols, depending on the error control method used. V42bis V.42 error control and V.42bis data compression V.42 error control only NoEC No error control protocol...
Page 256 User's Manual...
Page 257: Appendix F Internal Modem Guide
Internal Modem Guide This appendix describes how to install and the remove the internal modem. CAUTION: Do not disassemble the computer beyond the steps described in this instruction or touch any components not specifically described. Installing the internal modem NOTE: The internal modem is preinstalled. The following is for informa- tion only.
Page 258 User's Manual Remove two screws, which you use later to secure the modem board. Connect the modem board cable and seat the modem board. Secure the modem board with two screws removed in step 9. Seat the insulation sheet to cover the modem board. Insert tabs on the front of the keyboard into corresponding notches on the computer and seat the keyboard.
Page 259 14. Two screws secure the keyboard and one screw secures the metal brace. 15. Seat the keyboard brace and press to secure latches. 16. Install the battery pack. Refer to Replacing the battery pack section in Chapter 6, Power and Power-Up Modes, for details. Refer to the installation procedures for details.
Page 260 User's Manual...
Page 261: Wireless Lan
Wireless LAN Card Specifications Form Factor Compatibility Network Operating System Media Access l Protocol Data Rate Radio Characteristics Radio Characteristics of Wireless LAN Cards may vary according to: ❑ Country/region where the product was purchased ❑ Type of product Wireless communication is often subject to local radio regulations. Although Wireless LAN Wireless networking products have been designed for operation in the license-free 2.4GHz and 5GHz band, local radio regulations may impose a number of limitations to the use of wireless communication equipment.
Page 262 Subject to the radio regulations that apply in the countries/regions, your Wireless LAN Card may support a different set of 5GHz / 2.4GHz channels. Consult your Authorized Wireless LAN or TOSHIBA Sales office for information about the radio regulations that apply in the countries/regions.
Page 263 *1 Factory-set default channels *2 Refer to the sheet Approved Countries/Regions for use for the countries/ regions. that in which these channels can be used. When installing Wireless LAN Cards, the channel configuration is managed as follows: ❑ For wireless clients that operate in a Wireless LAN Infrastructure, the Wireless LAN Card will automatically start operation at the channel identified by the Wireless LAN Access Point, When roaming between different access points the station can dynamically switch to another channel if required.
Page 264 User's Manual Wireless Channels Sets (Turbo Mode) Frequency Range Channel ID *1: Available Area: US (USA, CANADA) only 5150-5850 MHz Note 5210 US only *1 5250 US only *1 5290 US only *1 5760 US only *1 5800 US only *1...
Page 265: Ac Power Cord And Connectors
AC Power Cord and Connectors The power cord’s AC input plug must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Length: Wire size: Current rating:...
Page 266: Usa And Canada
User's Manual The following illustrations show the plug shapes for the U.S.A. and Canada, the United Kingdom, Australia and Europe. USA and Canada UL approved CSA approved Australia AS approved United Kingdom BS approved Europe Approved by the appropriate agency...
Page 267: Appendix I Parts Numbers
Appendix I Parts Numbers The computer configuration and parts numbers, printed on a label on the bottom of the computer, indicate the CPU, LCD, memory, HDD, ODD, communication, mini PCI and indent devices.
Page 268 User's Manual Configurations The following table shows the computer configuration indicated on a label. Shaded areas indicate abbreviations used on the label. The explanations are to the left of the shading. Abbreviations are not limited to those in this chart. They may change without notice.
Page 269: Glossary
Glossary The terms in this glossary cover topics related to this manual. Alternate naming is included for reference. Abbreviations AC: alternating current AGP: accelerated graphics port ANSI: American National Standards Institute APM: advanced power manager ASCII: American Standard Code for Information Interchange BIOS: basic input output system CD-ROM: Compact Disc-Read Only...
Page 270 adaptor RAM: random access memory RGB: red, green, and blue (Abbreviations continued) ROM: read only memory RTC: real time clock SCSI: small computer system interface SIO: serial input/output SXGA+: super extended graphics array plus TFT: thin-film transistor UART: universal asynchronous receiver/transmitter USB: Universal Serial Bus VESA: Video Electronic Standards...
Page 271: Cache Memory
ASCII: American Standard Code for Information Interchange. ASCII code is a set of 256 binary codes that represent the most commonly used letters, numbers, and symbols. async: Short for asynchronous. asynchronous: Lacking regular time relationship. As applied to computer communications, asynchronous refers to the method of transmitting data that does not require a steady stream of bits to be transmitted at regular time...
Page 272 capacity memory, which saves time. The computer has two cache levels. Level one is incorporated into the processor and level two resides in external memory. capacity: The amount of data that can be stored on a magnetic storage device such as a diskette (floppy disk) or hard disk.
Page 273: Dialog Box
computer system: A combination of hardware, software, firmware, and peripheral components assembled to process data into useful information. configuration: The specific compo- nents in your system (such as the terminal, printer, and disk drives) and the settings that define how your system works.
Page 274: Disk Drive
disk drive disk drive: The device that randomly accesses information on a disk and copies it to the computer’s memory. It also writes data from memory to the disk. To accomplish these tasks, the unit physically rotates the disk at high speed past a read-write head.
Page 275 (FDD): An electro- mechanical device that reads and writes to floppy disks. See also diskette. Fn-esse: A TOSHIBA utility that lets you assign functions to hot keys. hardware folder: An icon in Windows used to store documents or other folders.
Page 276 Fn, can be used to set system parameters, such as speaker volume. HW Setup: A TOSHIBA utility that lets you set the parameters for various hardware components. icon: A small graphic image displayed on the screen or in the indicator panel.
Page 277 K: Taken from the Greek word kilo, meaning 1000; often used as equiva- lent to 1024, or 2 raised to the 10th power. See also byte and kilobyte. KB: See kilobyte. keyboard: An input device contain- ing switches that are activated by manually pressing marked keys.
Page 278 motherboard monitor: A device that uses rows and columns of pixels to display alphanu- meric characters or graphic images. See also CRT. motherboard: A name sometimes used to refer to the main printed circuit board in processing equipment. It usually contains integrated circuits that perform the processor’s basic functions and provides connectors for adding other boards that perform...
Page 279 The electrical connection through which the computer sends and receives data to and from devices or other computers. Power Saver Utility: A TOSHIBA utility that lets you set the parameters for various power-saving functions. printed circuit board (PCB): A...
Page 280 A Class A device is sufficient for office use. Class B provides a more stringent classifica- tion for home equipment use. TOSHIBA portable computers comply with Class B computing device regulations. Random Access Memory (RAM): High speed memory within the computer circuitry that can be read or written to.
Page 281 Touch Pad: A pointing device integrated into the TOSHIBA com- puter palm rest. TTL: Transistor-transistor logic. A logic circuit design that uses switch- ing transistors for gates and storage.
Page 282 Glossary-14...
Page 283: Index
Index AC adaptor 1-3, 2-16 DC IN 15V port 2-6 connecting 3-5 universal 1-13 ASCII characters 5-9 Auto power on, See Power Battery, See also Battery pack charging 6-8 extending life 6-11 indicator 2-10, 6-2 monitoring capacity 6-10 real time clock 1-3, 6-4 safety precautions 6-5 save mode 1-10 types 6-3...
Page 284 User's Manual Ergonomics lighting 3-4 seating and posture 3-3 work habits 3-4 Expansion memory, See Memory expansion Fn + Ctrl (enhanced keyboard simulation) 5-3 Fn + Enter 5-3 Fn + Esc (sound mute) 5-4 Fn-esse 1-11 Fn + F1 (instant security) 5-4 Fn + F2 (power save mode) 5-4 Fn + F3 (standby) 5-5 Fn + F4 (hibernation) 5-5...
Page 285 jack location 2-2 using 4-24 LCD, See Display, Video modes and Monitor external Lock, security, See Security lock Main battery, See Battery pack Memory 1-3 expansion 1-13, 8-6 installing 8-7 removing 8-10 slots 1-3 video RAM 1-3 Microphone, See sound system, microphone Microprocessor, See Processor Modem 1-8, 4-19...
Page 286 2-8 Volume control 2-4 Standby 1-11 System automatic Standby/Hibernation 1-10 TOSHIBA TOSHIBA Power Saver 1-11 TOSHIBA Touch and Launch 1-12 TOSHIBA Utilities 1-9 Touch Pad 1-7, 2-9 control buttons 2-9, 4-1 using 4-1 Troubleshooting, See Problems Utilities list 1-11...
