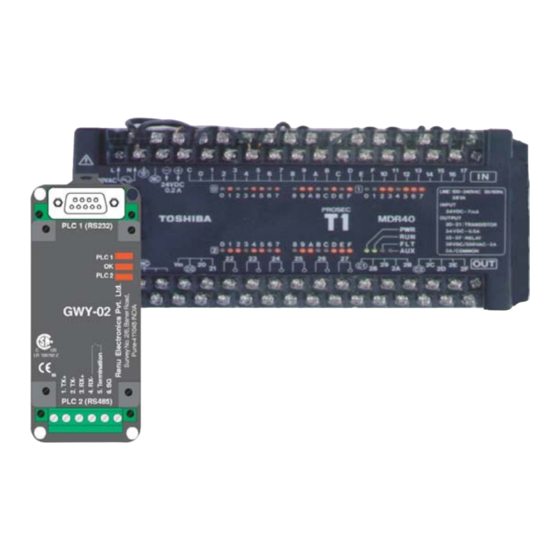

GATEWAY with Toshiba T1-40 PLC
CAN WE TALK
Everyone Always Wants to Know
What Everyone Else is Doing
Higher Level Controller
Computer
DCS
PLC
Don't Let Anyone Work Alone!
Programmable Controllers
Motor
Protection
Relays
?
Adjustable
Speed Drives

Advertisement

Table of Contents

   Related Manuals for Toshiba T1-40 PLC

   Summary of Contents for Toshiba T1-40 PLC

  • Page 1 GATEWAY Protocol Converters for Toshiba PLCs Temperature Controllers Everyone Always Wants to Know What Everyone Else is Doing Don’t Let Anyone Work Alone! GATEWAY with Toshiba T1-40 PLC CAN WE TALK Higher Level Controller Computer Programmable Controllers Motor Protection Relays...
  • Page 2 ♦ Description Gateway is a protocol converter that allows any device with a modbus RTU protocol to talk to a Toshiba T-Series PLC. In some cases Gateway allows the Toshiba PLC to communicate directly with other devices using the other device’s native protocol. Gateway setup software is used to map the registers between the other devices/controllers to registers in the Toshiba PLC.
  • Page 3: Specifications

    For Modbus, the 400001 numbered holding registers can be mapped directly to D data registers in the Toshiba PLC. In the above example, 5 data registers in the T1 PLC starting at D101 are written into PID controller modbus registers starting with holding register 400001.
  • Page 4: Order Information

    Cable, Connects Gateway to T2 programming port, 2m. ADJUSTABLE SPEED DRIVES MOTORS CONTROLS UPS INSTRUMENTATION PLC DCS INTERNATIONAL CORPORATION 13131 West Little York Rd Houston, TX 77041 Ph: 713-466-0277 Fax: 713-466-8773 US: 800-231-1412 Canada: 800-872-2192 Email: plc@tic.toshiba.com Website: Rev 2003.5.1 Mexico: 001-800-527-1204 www.tic.toshiba.com Page 4 Available Through:...
