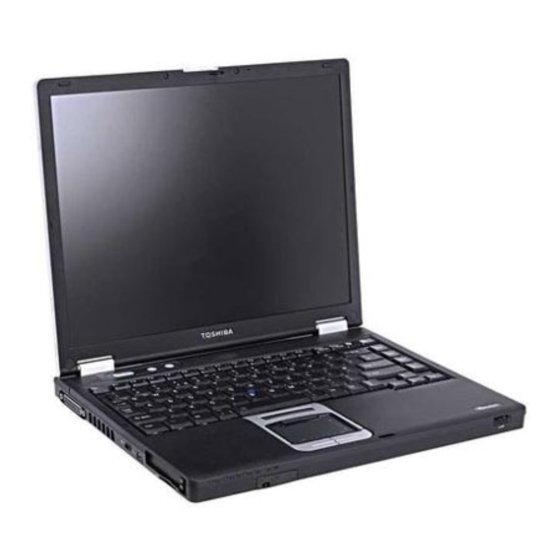

Page 1 TECRA M2 User’s Manual Tecra M2 M2 TECRA M2 Choose freedom. Choose freedom. computers.toshiba-europe.com TOSHIBA Portable Personal Computer User’s Manual TECRA M2 TECRA M2 TECRA M2...
Page 2 © 2004 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.
Page 3 EU Declaration of Conformity This product is carrying the CE-Mark in accordance with the related European Directives. Responsible for CE-Marking is TOSHIBA Europe GmbH, Hammfelddamm 8, 41460 Neuss, Germany. The complete and official EU Declaration of Conformity can be found on TOSHIBA’s web site http://epps.toshiba-teg.com on the Internet.
Page 4 This computer is equipped with the optical drive in the following list according to the model. Manufacturer HITACHI TOSHIBA TEAC Panasonic Communications HITACHI Panasonic Communications TEAC Pioneer TECRA M2 ± ± RW drive that is used in this computer is equipped with Type GDR-8082N SD-C2612 DW-224E UJDA750 GCC-4241N UJ-811B...
Page 5: General Precautions
General Precautions TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer. Be certain to read the general precautions below and to note the cautions included in the text of the manual.
Page 6 EMC (Electromagnetic compatibility) and safety standards. However, TOSHIBA should not guarantee that this product still observes these EMC standards if options or cables not produced by TOSHIBA are connected or implemented. In this case the persons who have connected / implemented those options / cables have to assure that the system (PC plus options / cables) still fulfils the required standards.
Page 7 This product was designed to fulfil the EMC (electromagnetic compatibility) requirements to be observed for so-called “Residential, commercial and light industry environments”. TOSHIBA do not approve the use of this product in working environments other than the above mentioned “Residential, commercial and light industry environments”.
Page 8: Wireless Lan And Your Health
Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
Page 9 ■ Traffic control equipment for air, railroad, road, marine transport, etc. ■ Equipment used in atomic power plants etc. ■ Equipment corresponding to that mentioned above. TECRA M2...
Page 10 Do not use the product in the following places: Places near a microwave oven where a magnetic field generates and places where static electricity or radio interference generates. Depending on environment, radio waves can not reach to the product. TECRA M2...
Page 11: Table Of Contents
TECRA M2 Table of Contents General Precautions Preface Manual contents ........xvi Conventions .
Page 12 Chapter 4: Operating Basics TOSHIBA Dual Pointing Device ......4-1 Using the USB floppy disk drive (optional) ....4-3 Changing Slim Select Bay modules.
Page 13 Hardware and system checklist......9-3 TOSHIBA support ........9-21...
Page 14 Appendix A: Specifications Appendix B: AC Power Cord and Connectors Appendix C: Display Controller and Modes Appendix D: If your computer is stolen Appendix E: ASCII Character Codes Appendix F: Wireless LAN Appendix G: Internal Modem Guide Glossary Index TECRA M2...
Page 15: Preface
This manual tells how to set up and begin using your TECRA M2 computer. It also provides detailed information on configuring your computer, basic operations and care, using optional devices and troubleshooting.
Page 16: Manual Contents
Chapter 4, Operating Basics, includes instructions on using the following devices: TOSHIBA Dual Pointing Device, USB floppy disk drive, Slim Select Bay modules, optical media drives, sound system, modem, Wireless communication features, and LAN. It also provides tips on care of the computer, diskettes and CD/DVDs.
Page 17: Conventions
C. If three keys are used, hold down the first two and at the same time press the third. Display TECRA M2 When procedures require an action such as clicking an icon or entering text, the icon’s name or the text you are to type in is represented in the type face you see to the left.
Page 18 Pay attention! A caution informs you that improper use of equipment or failure to follow instructions may cause data loss or damage your equipment. Please read. A note is a hint or advice that helps you make best use of your equipment. TECRA M2 Preface xviii...
Page 19: Chapter 1: Introduction
Some of the features described in this manual may not function properly if you use an operating system that was not preinstalled by TOSHIBA. Equipment checklist Carefully unpack your computer. Save the box and packing materials for future use.
Page 20 Modem driver ■ Display Driver for Windows ■ TOSHIBA Utilities ■ Wireless LAN driver ■ Bluetooth driver ■ TOSHIBA SD Memory Boot Utility ■ Sound Driver for Windows ■ DVD Video Player ■ LAN Driver ■ Infrared Device Driver ■...
Page 21: Features
Features The computer uses TOSHIBA’s advanced Large Scale Integration (LSI), Complementary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage, and high reliability. This computer incorporates the following features and benefits: Processor Built-in Some models of this series carry Intel...
Page 22 Slim Select Bay. The available optical media drives are described below. DVD-ROM drive TECRA M2 The universal AC adaptor provides power to the system and recharges the batteries when they are low. It comes with a detachable power cord.
Page 23 CD-RW/DVD-ROM drive DVD Multi drive TECRA M2 Some models are equipped with a full-size, CD-RW/DVD-ROM drive module that lets you run CD/DVDs without using an adaptor. It reads DVD- ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. It writes CD-R at up to 24 speed and CD-RW at up to 24 speed.
Page 24 Built-in Graphics controller Keyboard Built-in TECRA M2 Some models are equipped with a full- size DVD±R/±RW drive module that lets you record data to rewritable CD/DVDs as well as run either 12cm (4.72") or 8cm (3.15") CD/DVDs without using an adaptor.
Page 25 TOSHIBA Dual Pointing Device Built-in Touch pad Built-in AccuPoint Ports Parallel External monitor Universal Serial Bus (USB 2.0) Docking interface i.LINK™ (IEEE1394) Infrared Slots PC card SD card TECRA M2 A Touch pad and control buttons in the palm rest enable control of the on-screen pointer and scrolling of windows.
Page 26 (S-Video) Headphone jack Microphone jack Communications Modem Bluetooth TECRA M2 Windows sound system compatible sound system provides internal speakers and microphone as well as jacks for an external microphone and headphone. This jack lets you transfer video data to external devices.
Page 27 DVD-ROM drive, CD-RW/DVD- ROM drive, DVD Multi drive, DVD±R/±RW drive, secondary hard disk drive or secondary battery pack. The TOSHIBA Mobile Extension enables hot insertion of modules when you are using a plug and play operating system. Introduction...
Page 28: Special Features
Slim Select Bay lock Software Operating System TOSHIBA Utilities Plug and Play Special features The following features are either unique to TOSHIBA computers or are advanced features, which make the computer more convenient to use. TOSHIBA Console button TOSHIBA Presentation button...
Page 29 Power is restored when the hard disk is accessed. You can specify the time in the HDD power off item of the Basic Setup tab in TOSHIBA Power Saver. This feature automatically shuts down the system in standby mode or Hibernation mode when there is no input or hardware access for a time specified.
Page 30 Use the Fan item of the Basic Setup tab in TOSHIBA Power Saver. ■ Maximum Turns on fan first, then if...
Page 31: Utilities
WinDVD 4, then click InterVideo WinDVD 4. This software enables communication between remote Bluetooth devices. The TOSHIBA SD memory boot utility is a utility which can create SD memory card to a boot disk. You can boot TOSHIBA SD Memory Boot Utility from the menu bar as follows.
Page 32 Drag’n Drop CD+DVD TOSHIBA Console TOSHIBA PC DiagnosticTool TOSHIBA Mobile Extension TOSHIBA ConfigFree ConfigFree is a suite of utilities to allow easy TOSHIBA Dual Pointing Device utility TOSHIBA IP Phone TECRA M2 This easy-to-use software lets you record CD/ DVDs with just a few mouse clicks. You can create...
Page 33: Options
(PC2100 / PC2700 DDR) can easily be installed in the computer. An additional battery pack can be purchased from your TOSHIBA dealer. Use it as a spare or replacement. An additional battery pack can be purchased from your TOSHIBA dealer. Use it as a spare or replacement.
Page 34 (DVD Dual drive) Slim Select Bay HDD adaptor (Black) Hard disk drive TECRA M2 The Advanced Port Replicator III provides the ports available on the computer in addition to separate PS/2 mouse and PS/2 keyboard ports, a digital visual interface (DVI) port, i.LINK™...
Page 35 Slim Select Bay 2nd battery pack TECRA M2 The secondary battery increases your computer’s battery power and operating time when a main battery is also installed. Introduction 1-17...
Page 36: Chapter 2: The Grand Tour
TECRA M2 The Grand Tour This chapter identifies the various components of your computer. Become familiar with each component before you operate the computer. Front with the display closed The figure below shows the computer’s front with its display panel in the closed position.
Page 37: Left Side
Keep foreign objects out of the SD card slot. A pin or similar object can damage the computer’s circuitry. TECRA M2 Slide this switch to the left to turn off Wireless LAN and Bluetooth functions. Slide it to the right to turn on the functions (Wireless model or Wireless LAN ready model only).
Page 38: Right Side
EADPHONE JACK Microphone jack Headphone jack Slim Select Bay TECRA M2 A PC card slot can accommodate two 5 mm Type II cards or one Type III card. The slot supports 16-bit PC cards and CardBus PC cards. A security cable attaches to this slot. The optional security cable anchors your computer to a desk or other large object to deter theft.
Page 39 Operation of all functions of all USB devices has not been confirmed. Some functions might not execute proper TECRA M2 video display. The ports comply with the USB 2.0 standard, which enables data transfer speeds 40 times faster than the USB 1.1 standard (The ports also...
Page 40: Backside
DC IN 15V DC IN 15V LAN jack Ether Link indicator (green) This indicator glows green when the computer is LAN active indicator (orange) TECRA M2 ODEM JACK ACTIVE INK INDICATOR INDICATOR ORANGE GREEN The backside of the computer Plug an S-Video cable into this jack for video-out.
Page 41: Underside
PACK COVER SCREW Battery lock Battery pack Notches Battery release latch Docking interface TECRA M2 OTCHES ATTERY PACK The underside of the computer Slide this lock to release the battery pack for removal. The battery pack powers the computer when the AC adaptor is not connected.
Page 42 Slim Select Bay Slim Select Bay lock screw TECRA M2 This cover protects one of the memory module sockets. One or no module is preinstalled. Another memory module is under the keyboard. Refer to the Memory expansion section in Chapter 8, Optional Devices.
Page 43: Front With The Display Open
To open the display, push the display latch on the front of the display and lift up. Position the display at a comfortable viewing angle. Display hinge Microphone Display screen Stereo speakers TECRA M2 ICROPHONE ISPLAY HINGE ONSOLE RESENTATION OINT...
Page 44 LCD and CRT. You can also return to single display by pressing this button twice. The setting of TOSHIBA Presentation button can be changed through the property of TOSHIBA Console. Display mode is changed to the multi- monitor display by selecting "Different Image"...
Page 45 Hibernation mode. Use the TOSHIBA Power Saver Utility to enable or disable this feature. The default is “enabled”. Refer to the TOSHIBA Power Saver Utility and Panel Power Off/On items in Chapter 1, Introduction, for details on settings.
Page 46: System Indicators
DC IN 15V SD card DC IN 15V Power Battery Disk Slim Select Bay TECRA M2 Power Battery Disk System indicators The SD card indicator glows blue when the computer is accessing the SD card slot. The DC IN 15V indicator glows in green when DC power is supplied from the AC power adaptor.
Page 47: Keyboard Indicators
When the F11 key indicator glows the keypad overlay lets you enter numbers. RROW NDICATOR When the Caps Lock indicator glows the keyboard is in all-caps mode. TECRA M2 The Wireless communication indicator glows when the Bluetooth and wireless LAN functions are turned on. Some models are equipped with a Wireless communication indicator.
Page 48: Usb Floppy Disk Drive (Optional)
Doing so could destroy data and damage the diskette or the drive. TECRA M2 This indicator glows green when the alphabet keys are locked in uppercase.
Page 49: Optical Media Drives
CD-RW discs can be recorded more than once. Use either 1, 2, or 4 multi speed CD-RW discs or high-speed 4- to 10-speed discs. The write speed of the ultra-speed CD-RW discs (Ultra-speed is CD-RW/DVD- ROM drive only) is maximum 24-speed. TECRA M2 Region Canada, United States Japan, Europe, South Africa, Middle East...
Page 50 The read speed is slower at the center of a disc and faster at the outer edge. DVD read CD read CD-R write CD-RW write TECRA M2 (single/multi-session) 8 speed (maximum) 24 speed (maximum) 8 speed (maximum) 24 speed (maximum)
Page 51 DVD read DVD-R write DVD-RW write DVD+R write DVD+RW write CD read CD-R write CD-RW write TECRA M2 8 speed (maximum) 2 speed 1 speed 2 speed 24 speed (maximum) 16 speed (maximum) 8 speed (maximum, high-speed media) 8 speed (maximum)
Page 52: Ac Adaptor
Use only the AC adaptor that came with the computer or an equivalent optional adaptor. Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case. Use only the AC adaptor supplied as an accessory. Other AC adaptors have different voltage and terminal polarities and use of them may produce heat and smoke or even result in fire or rupture.
Page 53: Chapter 3: Getting Started
TECRA M2 Getting Started This chapter provides basic information to get you started using your computer. It covers the following topics: ■ Setting up your work space — for your health and safety Be sure also to read the Safety Instruction Manual. This guide, which is included with the computer, explains product liability.
Page 54: General Conditions
Allow adequate space behind the computer to let you freely adjust the display. The display should be angled to reduce glare and maximize visibility. ■ If you use a paper holder, set it at about the same height and distance as the computer. TECRA M2 Getting Started...
Page 55: Seating And Posture
If possible, use soft, indirect lighting in your computer work area. Use a lamp to illuminate your documents or desk, but be sure to position the lamp so that it does not reflect off the display or shine in your eyes. TECRA M2 Posture and positioning of the computer Getting Started 90°...
Page 56: Connecting The Ac Adaptor
Chapter 6, Power and Power-Up Modes. Use only the AC adaptor supplied as an accessory. Other AC adaptors have different voltage and terminal polarities and use of them may produce heat and smoke or even result in fire or rupture. TECRA M2 Getting Started...
Page 57: Opening The Display
Use only the AC adaptor supplied with your computer or an equivalent adaptor that is compatible. Use of any incompatible adaptor could damage your computer. TOSHIBA assumes no liability for any damage caused by use of an incompatible adaptor. ■...
Page 58: Turning On The Power
2. Open the display. 3. Press and hold the computer’s power button for two or three seconds. TECRA M2 Opening the display Turning on the power Getting Started...
Page 59: Windows Xp Setup
Do not install or remove a memory module while the computer is in hibernation mode. Data will be lost. Benefits of hibernation The hibernation feature provides the following benefits: ■ Saves data to the hard disk when the computer automatically shuts down because of a low battery. TECRA M2 Getting Started...
Page 60 For the computer to shut down in hibernation mode, the hibernation feature must be enabled in two places : the Hibernate tab in Power Options and Setup Action tab in TOSHIBA Power Saver. Otherwise, the computer will shut down in Standby mode. If battery power becomes depleted, data saved in Standby mode will be lost.
Page 61: Standby Mode
■ When the AC adaptor is connected, the computer will go into Standby mode according to the settings in the TOSHIBA Power Saver utility. ■ To restore operation from Standby mode, press the power button or press any key. The latter action works only if Wake-up on Keyboard is enabled in HW Setup.
Page 62: Restarting The Computer
1. Click Start, click Turn Off Computer and click Stand by. 2. Close the display panel. This feature must be enabled. Refer to the Setup Action tab in TOSHIBA Power Saver Utility described in the Control Panel. Open Performance and Maintenance and open TOSHIBA Power Saver.
Page 63: Restoring The Preinstalled Software
Restoring TOSHIBA utilities and drivers If Windows is working properly, individual drivers or applications can be separately restored. Use the Tools & Utilities CD-ROM according to instructions in the booklet contained in the CD box to reinstall TOSHIBA utilities and drivers. TECRA M2...
Page 64: Chapter 4: Operating Basics
Operating Basics This chapter gives information on basic operations including using the TOSHIBA Dual Pointing Devices, USB floppy disk drive, the sound system, the optical media drives, the internal modem, wireless communication, LAN, and changing Slim Select Bay modules. It also provides tips on caring for your computer, diskettes and CD/DVDs.
Page 65 There is a sudden temperature change. ■ Strong stress is applied to the AccuPoint. If an error message appears, reboot the computer. If an error message does not appear, wait a moment for the pointer to stop, then continue operation. TECRA M2 Operating Basics...
Page 66: Using The Usb Floppy Disk Drive (Optional)
Make sure the connector is right side up and properly aligned with the socket. Do not try to force the connection; doing so can damage the connecting pins. TECRA M2 Removing the AccuPoint cap Connecting the USB floppy disk drive...
Page 67: Changing Slim Select Bay Modules
Before removing or inserting a second battery pack, turn off the computer’s power. The TOSHIBA Mobile Extension is preinstalled to support hot swapping under Windows. Refer to Chapter 1, Introduction for information on using this utility to change modules while the computer’s power is on.
Page 68: Inserting A Module
2. If you want to lock the Slim Select Bay module, set the Slim Select Bay lock screw in the hole for the lock position. The lock screw is inserted in the unlock position at the time of purchasing. TECRA M2 Removing the DVD-ROM drive CREW...
Page 69: Using Optical Media Drives
Loading discs To load CD/DVDs, follow the steps below and refer to next figures. 1. a. When the power is on, press the DVD-ROM eject button to open the drawer slightly. JECT UTTON Pressing the DVD-ROM eject button TECRA M2...
Page 70 2. Pinch the drawer gently and pull until it is fully opened. 3. Lay the CD/DVD, label side up, in the drawer. TECRA M2 Manual release with the eject hole Pulling the drawer open Inserting a CD/DVD...
Page 71 5. Push the center of the drawer to close it. Press gently until it locks into place. If the CD/DVD is not seated properly when the drawer is closed, the CD/DVD might be damaged. Also, the drawer might not open fully when you press the eject button. TECRA M2 Closing the DVD-ROM drawer Operating Basics...
Page 72: Removing Discs
2. The CD/DVD extends slightly over the sides of the drawer so you can hold it. Hold the CD/DVD gently and lift it out. 3. Push the center of the drawer to close it. Press gently until it locks into place. TECRA M2 Removing a CD/DVD Operating Basics...
Page 73: Writing Cds On Cd-Rw/Dvd-Rom Drive
MITSUBISHI CHEMICAL CORPORATION, RICOH Co., Ltd. ■ Ultra-Speed CD-ROM: MITSUBISHI CHEMICAL CORPORATION TOSHIBA has confirmed the operation of CD-R and CD-RW media of the manufacturers above. Operation of other media cannot be guaranteed. ■ CD-RW can generally be rewritten about 1,000 times. However, the actual number of rewrites is affected by the quality of the media and the way it is used.
Page 74: Writing Cd/Dvds On Dvd Multi Drive
-RW/-RAM discs. The following applications for writing are supplied on CD-ROM: Drag'n Drop CD+DVD, licensed by Easy Systems Japan Ltd., and DigiOn Inc., InterVideo WinDVD Creator 2 Platinum, which is a product of InterVideo, Inc. TECRA M2 Operating Basics 4-11...
Page 75: Writing Cd/Dvds On Dvd±R/±Rw Drive (Dvd Dual Drive)
DVD±RW drive may not function properly, and you may fail to write or rewrite, lose data or incur other damage. Disclaimer (DVD Multi drive) TOSHIBA does not bear responsibility for the following: ■ Damage to any CD-R/-RW or DVD-R/-RW/-RAM disc that may be caused by writing or rewriting with this product.
Page 76 Based on TOSHIBA's limited compatibility testing, we suggest the following manufacturers of CD-R/RW and DVD-R/+R/-RW/+RW/-RAM disc. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates...
Page 77 They may cause unstable operation and data damage. ■ Write from the computer's HDD to the CD/DVD. Do not try to write from shared devices such as a LAN server or any other network device. TECRA M2 Operating Basics 4-14...
Page 78: Drag'n Drop Cd+Dvd
You cannot backup a CD-ROM or CD-R/RW to DVD-R/-RW or DVD+R/+RW using the DISC Backup function of Drag'n Drop CD+DVD. ■ You cannot back up DVD-ROM, DVD-Video or DVD-R/-RW or DVD+R/+RW to CD-R/RW using the DISC Backup function of Drag'n Drop CD+DVD. TECRA M2 Operating Basics 4-15...
Page 79 The “Record and Verify” function automatically checks whether data has been correctly recorded onto a CD/DVD. "Byte compare" compares the original data file with the data recorded on the CD/DVD and checks that the data completely matches. TECRA M2 Operating Basics 4-16...
Page 80 You will need 2 GB of empty hard disk space for every hour to write to a DVD-R/-RW disc. ■ You cannot edit DVD-RAM video data that has copyright protection, using InterVideo WinDVD Creator 2 Platinum. TECRA M2 Operating Basics 4-17...
Page 81: Media Care
5. Do not eat, smoke, or use erasers near your diskettes. Foreign particles inside the diskette’s jacket can damage the magnetic surface. 6. Magnetic energy can destroy the data on your diskettes. Keep your diskettes away from speakers, radios, television sets and other sources of magnetic fields. TECRA M2 Operating Basics 4-18...
Page 82: Sound System
The audio controller can be powered down when the audio function is idle. To enable the Audio Power Management, follow the steps below. 1. Clicked the Power Management tab. 2. Select the Normal Power Savings in the Power Mode pull-down list. TECRA M2 Operating Basics 4-19...
Page 83 TOSHIBA Audio Effect will reduce these echoes generated on your computer. Form more information on using the TOSHIBA Audio Effect, refer to its help. TECRA M2...
Page 84: Modem
To select a region, follow the steps below. 1. Click start, point to All Programs, point to TOSHIBA Internal Modem and click Region Select Utility. Do not use the Country/Region Select function in the Modem setup utility in the Control Panel if the function is available.
Page 85 To connect the modem cable, follow the steps below. The modular cable that comes with the computer must be used to connect a modem. Connect the end of the modular cable with the core to the computer. TECRA M2 Operating Basics 4-22...
Page 86 1. Pinch the lever on the connector in the telephone jack and pull out the connector. 2. Disconnect the cable from the computer in the same manner. 3. In the same way, pull the cable’s other connector out of the computer. TECRA M2 Connecting the internal modem Operating Basics 4-23...
Page 87: Wireless Communications
TOSHIBA strongly recommend the customer to enable the WEP function. 2. TOSHIBA is not liable for the eavesdropping of data due to the use of wireless LAN and the damage thereof. TECRA M2...
Page 88 Slide the switch to the right to turn it on and to the left to turn it off. Set the switch to off in airplanes and hospitals. Check the indicator. It will stop glowing when the wireless communication function is off. TECRA M2 Operating Basics 4-25...
Page 89 Manager, Network adapters, Atheros AR5001X+ Wireless Network Adaptor or Intel PRO/Wireless LAN 2100 3B Mini PCI Adaptor or Intel PRO/Wireless LAN 2100A LAN Mini PCI Adaptor and enable. TECRA M2 Indication Wireless communication switch is set to off. Automatic power down because of overheating.
Page 90: Lan
1. Turn off the power to the computer and to all external devices connected to the computer. 2. Plug one end of the cable into the LAN jack. Press gently until you hear the latch click into place. TECRA M2 Connecting the LAN cable Operating Basics 4-27...
Page 91: Cleaning The Computer
Never use harsh or caustic chemical products to clean the computer. ■ Remove the dust from the cooling vents on the Left side of the computer regularly with vacuum cleaner. See Chapter 2, The Grand Tour, Left side. TECRA M2 Operating Basics 4-28...
Page 92: Moving The Computer
CPU temperature by turning on the fan first, then if necessary, lowering the CPU speed. Or, by lowering the CPU speed first, then if necessary, turning on the fan. Use the Cooling Method item of the Basic Setup tab in TOSHIBA Power Saver. Maximum Performance...
Page 93: Chapter 5: The Keyboard
TECRA M2 The Keyboard The computer’s keyboard layouts are compatible with a 101/102-key enhanced keyboard. By pressing some keys in combination, all the 101/ 102-key keyboard functions can be executed on the computer. The number of keys on your keyboard depends on which country/region’s keyboard layout your computer is configured with.
Page 94: F1 ... F12 Function Keys
Soft keys: Fn key combinations The Fn (function) is unique to TOSHIBA computers and is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.
Page 95 Press Fn + F12 (ScrLock) to lock the cursor on a specific line. The power on default is off. Press Fn + Enter to simulate Enter on the enhanced keyboard’s numeric keypad. Press Fn + Ctrl to simulate the enhanced keyboard’s right Ctrl key. TECRA M2...
Page 96: Hot Keys
Continue holding down Fn and press F2 again to change the setting. You can also change this setting through the profile item in TOSHIBA Power Saver. Standby: When you press Fn + F3, the computer enters Standby. To avoid entering Standby unexpectedly, a dialog box appears for verification.
Page 97 You can also change this setting through the Screen brightness item of the Basic Setup tab in TOSHIBA Power Saver. LCD Display Brightness: Pressing Fn + F7 increases the display brightness in increments.
Page 98: Fn Sticky Key
Fn key. Fn Sticky key You can use the TOSHIBA Accessibility Utility to make the Fn key sticky, that is, you can press it once, release it, and then press an “F number” key. To start the TOSHIBA Accessibility Utility, click start, point to All Programs, point to TOSHIBA, point to Utilities and click Accessibility.
Page 99: Windows Special Keys
To turn on the Numeric mode, press Fn + F11. The Numeric mode F11 indicator lights. Now try numeric data entry using the keys in next figure. Press Fn + F11 again to turn off the overlay. TECRA M2 The Keyboard...
Page 100 If the computer is in Numeric mode, you can switch temporarily to Arrow mode by pressing a shift key. If the computer is in Arrow mode, you can switch temporarily to Numeric mode by pressing a shift key. TECRA M2 The numeric keypad overlay The Keyboard...
Page 101: Generating Ascii Characters
3. Release Alt, and the ASCII character appears on the display screen. With the overlay off: 1. Hold down Alt + Fn. 2. Using the overlay keys, type the ASCII code. 3. Release Alt + Fn, and the ASCII character appears on the display screen. TECRA M2...
Page 102: Chapter 6: Power And Power-Up Modes
TECRA M2 Power and Power-Up Modes The computer’s power resources include the AC adaptor and internal batteries. This chapter gives details on making the most effective use of these resources including charging and changing batteries, tips for saving battery power, and power up modes.
Page 103 2nd battery charge is exhausted No 2nd battery is installed TECRA M2 Power on • Operates • No charge • LED: 2nd Battery green DC IN 15V green • Operates • Charge • LED: 2nd battery orange DC IN 15V green •...
Page 104 For the computer to shut down in hibernation mode, the hibernation feature must be enabled in two places in TOSHIBA Power Saver: the Hibernate window and the Battery Alarm item of the Alarm window. If a main battery and a 2nd battery are installed, the computer does not shut down until the charge in both batteries is exhausted.
Page 105: Power Indicators
Check the DC IN 15V indicator to determine the power status with the AC adaptor connected: Green Flashing orange No light TECRA M2 Power and Power-Up Modes The battery charge is low. The AC adaptor must be connected to recharge the battery. Indicates the AC adaptor is connected and charging the battery.
Page 106: Battery Types
Dispose of the battery as required by local ordinances or regulations. Use only batteries recommended by TOSHIBA as replacements. ■ Do not remove the battery pack while the computer is in Standby mode.
Page 107: High Capacity Battery
Press [F1] key to set Date/Time. The computer’s RTC battery is a lithium ion battery and should be replaced only by your dealer or by a TOSHIBA service representative. The battery can explode if not properly replaced, used, handled or disposed of. Dispose of the battery as required by local ordinances or regulations.
Page 108: Care And Use Of The Battery Pack
7. Never subject a battery pack to heat, such as storage near a heat source. Exposure to heat can cause the battery pack to ignite, explode or leak caustic liquid and cause death or serious injury. It could also fail or malfunction causing data loss. TECRA M2 Power and Power-Up Modes...
Page 109 Never use the computer again until it has been checked by a TOSHIBA service provider. It might generate smoke or fire, or the battery pack might rupture.
Page 110: Charging The Batteries
The Battery indicator glows orange when the battery is being charged. Use only the computer connected to an AC power source or the optional TOSHIBA Battery charger to charge the battery pack. Never attempt to charge the battery pack with any other charger.
Page 111 Leaving the AC adaptor connected will shorten battery life. At least once a month, run the computer on battery power until the battery is fully discharged, then recharge the battery. TECRA M2 Power and Power-Up Modes Power on Power off about 5.0 to 11.0 about 2.5...
Page 112: Monitoring Battery Capacity
Therefore, an often used, older battery will not operate for as long as a new battery even when both are fully charged. In this case, TOSHIBA Power Saver will indicate a 100% charge for both the old and new battery, but the displayed estimated time remaining will be shorter for the older battery.
Page 113: Extending Battery Life
If you are not going to use the computer for more than eight hours, disconnect the AC adaptor. ■ Store spare battery packs in a cool dry place out of direct sunlight. TECRA M2 Power and Power-Up Modes about 16 days (Standby mode) about 50 days (Boot mode)
Page 114: Replacing The Battery Pack
1. Save your work. 2. Turn the computer’s power off. Make sure the Power indicator is off. 3. Remove all cables connected to the computer. 4. Turn the computer upside down. TECRA M2 Power and Power-Up Modes 6-13...
Page 115: Installing The Battery Pack
ATTERY For environmental reasons, do not throw away a spent battery pack. Please return spent battery packs to your TOSHIBA dealer. Installing the battery pack To install a battery, follow the steps below.
Page 116 Power and Power-Up Modes 4. Secure the battery pack lock. Switch the battery safety lock into lock position.(in right direction) ATTERY ATTERY Securing the battery cover TECRA M2 6-15...
Page 117: Toshiba Password Utility
SD card of any capacity, but it must be formatted correctly. If an unformatted card or one with an incompatible format is inserted, you will be prompted to format it with a tool named TOSHIBA SD Memory Card Format.To start the format tool, point to or click the following items: Start ->...
Page 118: Supervisor Password
Register, delete or change the supervisor password. ■ Create or invalidate a supervisor password token This function in the TOSHIBA Password Utility lets you invalidate only supervisor tokens or all tokens, including user and supervisor tokens. ■ Specify restrictions for general users.
Page 119: Power-Up Modes
Refer also to the sections Turning on the power and Turning off the power in Chapter 3, Getting Started. Windows utilities You can specify the setting in TOSHIBA Power Saver. Hot keys You can use hot keys Fn + F3 to enter Standby mode and Fn + F4 to enter Hibernation.
Page 120: Chapter 7: Hw Setup
TECRA M2 HW Setup This chapter explains how to use the TOSHIBA HW Setup program to configure your computer. TOSHIBA HW Setup lets you configure settings for Display, CPU, Boot Priority, Keyboard, USB, LAN, General, Device Config and Parallel/Printer. Some models are not equipped with Parallel/Printer tab and/or CPU tab.
Page 121: Device Config
Standard VGA mode and not available on Windows Desktop) Auto-Selected LCD + Analog RGB TECRA M2 BIOS sets all devices. Operating system sets devices that it can control. (Default) Sets the port type to Extended Capabilities Port (ECP).
Page 122 This option lets you choose from the following settings: Dynamically Switchable Always High Always Low TECRA M2 CPU power consumption and clock speed automatic switching function is enabled. When the computer is in use, CPU operation is automatically switched when necessary. (Default) CPU power consumption and clock speed automatic switching function is disabled.
Page 123: Boot Priority
SD memory card is set as the boot disk, external FDD is looked for first. Next, SD memory card is looked for. In this computer, CD-ROM refers to the Slim Select Bay optical media drive. TECRA M2 The computer looks for bootable files in the following order: HDD, floppy disk drive* CD-ROM* and LAN.
Page 124 HW Setup. ■ Support of PC (ATA) card boot is guaranteed only for TOSHIBA PC card HDDs ■ A PC (ATA) card takes the position of HDD in the Boot Priority Options list.
Page 125 [RPL] Sets RPL as the protocol. ■ PC card HDD boot is supported only by the PC card slot on the computer. Support is guaranteed only for TOSHIBA PC card HDDs. ■ When you assign a PC card HDD top priority, “PC” is not displayed.
Page 126 Do not install or remove an optional memory module while Wake-up on LAN is enabled. The Wake-up on LAN function consumes power even when the system is off. Leave the AC adaptor connected while using this feature. TECRA M2 No Fn key equivalent (Default) Left Ctrl Left Alt...
Page 127 Use this option to enable or disable USB-FDD Legacy Emulation. Enabled Disabled However, the USB port 3 does not support USB KB/Mouse and USB-FDD Legacy Emulation. TECRA M2 Enables Built-in LAN functions. (Default) Disables Built-in LAN functions. Enables the USB KB/Mouse Legacy Emulation. (Default) Disables the USB KB/Mouse Legacy Emulation.
Page 128: Chapter 8: Optional Devices
TECRA M2 Optional Devices Optional devices can expand the computer’s capabilities and its versatility. This chapter describes connection or installation of the following devices, which are available from your TOSHIBA dealer: Cards/memory ■ PC cards ■ SD cards ■ Memory expansion Power devices ■...
Page 129: Pc Cards
The computer is equipped with a PC card expansion slot that can accommodate one 5 mm Type II card. Any PC card that meets industry standards (manufactured by TOSHIBA or other vendor) can be installed. The slot supports 16-bit PC cards, including PC card 16’s multifunction card and CardBus PC cards.
Page 130: Sd Cards
For this reason, you cannot copy or playback protected material on another computer or other device. You may not use the reproduction of any copyrighted material except for your personal enjoyment. TECRA M2 CARD Removing the PC card Optional Devices...
Page 131: Formatting An Sd Card
SD memory cards are sold with format in conformity to the Standards of SD memory card. If you format the SD card again, be sure to format it with the utility of TOSHIBA SD memory card format, not in the format defined as the Windows standard format.
Page 132: Sd Card Care
8. Do not touch the metal part or expose it to liquids or let it get dirty. Creation of a boot disk In TOSHIBA SD Memory Boot Utility, a boot disk can be created with SD memory card. Refer to the Utilities section in Chapter 1, Introduction, for details.
Page 133: Memory Expansion
Slot B than A. c. It is strongly recommended to leave the replacing of memory module preinstalled in Slot A to TOSHIBA dealer because the installing or replacing of memory module in Slot A needs skill.
Page 134 6. Insert a thin object under the rim of the keyboard brace and lift out the brace. Remove a keyboard brace after surely performing step 4. If step 4 is not performed, there is a possibility of damaging a keyboard brace. 7. Remove two screws securing the keyboard. TECRA M2 Removing the screw Optional Devices...
Page 135 Do not try to disconnect this cable. 9. One screw of Metal brace which is pressing down the keyboard cable is removed. Metal brace is removed. TECRA M2 Rotate the keyboard Removing the metal brace Optional Devices...
Page 136 Chapter 6, Power and Power-up Modes, for details. 16. Turn the power on and make sure the added memory is recognized. Open System Properties in the Control Panel and click the General tab. TECRA M2 Installing the memory module Optional Devices...
Page 137 Debris on the connectors may cause memory access problems. 6. Rotate the keyboard back into place and secure the keyboard brace as described in the previous section. 7. Turn the computer upside down and replace the battery pack. TECRA M2 Removing the memory module Optional Devices ATCHES...
Page 138 (sides with grooves). 6. Reinstall the cover of the memory module slot. Fasten the screw you loosened in Step 4. Be sure that the cover is closed firmly. TECRA M2 Removing the memory module cover Installing a module Optional Devices...
Page 139 7. Reinstall the battery pack. After installing a memory module, turn the power of the computer on to see a total memory size. The system will calculate the total memory size. TECRA M2 Seating the memory module cover Removing the memory module...
Page 140: Hard Disk Drive Pack
7. Raise the HDD’s plastic tab, pinch it and slide the HDD pack to disconnect from the connector. Be sure to slide the HDD pack first and confirm that the HDD pack has disconnected. TECRA M2 Removing the HDD pack cover Optional Devices 8-13...
Page 141: Installing The Hdd Pack
2. Fold over the plastic tab so that it goes into the HDD space. Press the HDD to ensure a firm connection. 3. Seat the cover and press down until the latches click into place. 4. Secure the cover with a screw. TECRA M2 Removing the HDD pack Installing the HDD pack Optional Devices...
Page 142: Additional Battery Pack
To remove the 2nd battery from the adaptor, follow the steps below. 1. Slide the latch in the direction of the arrow shown below. 2. Push the 2nd battery pack up from the bottom and lift it out. TECRA M2 Inserting the secondary battery pack in the adaptor Optional Devices...
Page 143: Additional Ac Adaptor
To install an HDD in the Slim Select Bay HDD adaptor follow the steps below. 1. Slide the lock to the unlock position and open the lid. TECRA M2 Removing the 2nd battery pack from the adaptor Opening the lid...
Page 144: External Monitor
To change the display settings, press Fn + F5. If you disconnect the monitor before you turn the computer off, be sure to press Fn + F5 to switch to the internal display. Refer to Chapter 5, The Keyboard, for details on using hot keys to change the display setting. TECRA M2 8-17...
Page 145: Displaying Movies On A Tv Or Crt
Chapter 5, The Keyboard. When changing to "TV OUT" by "TOSHIBA Console button", it is "TOSHIBA controls" and it is necessary to set "TV OUT" as "TOSHIBA Console button" beforehand. If a television is connected to the computer, set the TV type in Display Properties.
Page 146: I.link (Ieee1394)
There is a particular risk that some frames will be deleted in the case of digital video transfer. TOSHIBA assumes no liability for such loss of data. ■ Do not transfer data in areas where static electricity is easily generated or in areas subjected to electronic noise.
Page 147 1. Open the Safety Remove Hardware icon on the Task Bar. 2. Point to i.LINK (IEEE1394) device and click. 3. Disconnect the cable from the computer then from the i.LINK device. Refer also to the documentation that came with your i.LINK device. TECRA M2 Optional Devices 8-20...
Page 148: Advanced Port Replicator Iil
Serial port ■ PS/2 mouse port ■ PS/2 keyboard port ■ DC IN 15V socket ■ Security lock slot ■ Audio line-in, line-out jacks ■ Universal Serial Bus (four) ■ IEEE 1394 port ■ DVI port TECRA M2 Optional Devices 8-21...
Page 149: Parallel Printer
1. Turn the computer so the right side faces you. 2. Align the holes for the security lock and attach the lock. TECRA M2 . To connect a printer, follow these Security lock...
Page 150: Chapter 9: Troubleshooting
TECRA M2 Troubleshooting TOSHIBA designed the computer for durability. However, should problems occur, following the procedures in this chapter can help to determine the cause. All readers should become familiar with this chapter. Knowing what might go wrong can help prevent problems from occurring.
Page 151: Preliminary Checklist
Do you hear any beeps? How many? Are they long or short? Are they high pitched or low? Is the computer making any unusual noises? Write down what you hear. Record your observations so you can describe them to your dealer. TECRA M2 Troubleshooting...
Page 152: Hardware And System Checklist
■ Floppy disk drive ■ SD card TECRA M2 The problems may be caused by your software or disk. If you cannot load a software package, the media may be damaged or the program might be corrupted. Try loading another copy of the software.
Page 153: Self Test
This message remains on the screen for a few seconds. If the self test is successful, the computer tries to load the operating system, depending on how the Boot Priority is set in the TOSHIBA HW Setup program. If any of the following conditions are present, the self test failed: ■...
Page 154: Ac Power
Battery indicator. For information on indicators and battery operation see Chapter 6, Power and Power-Up Modes. Problem Battery doesn’t power the computer TECRA M2 Indicates a problem with the heat dispersal system. Please contact your dealer. Procedure Check the connections. Make sure the cord is firmly connected to the computer and a power outlet.
Page 155 Fully discharge the battery, then try to charge it again. Check the power consumption settings in Power Saver utility. Consider using a power saving mode. Procedure Refer to the TOSHIBA Password Utility section in Chapter 6, Power and Power-Up Modes. Troubleshooting...
Page 156: Lcd Panel
Problem Computer does not boot from hard disk drive Slow performance TECRA M2 Procedure Check that the numeric keypad overlay is not selected. Press Fn + F11 and try typing again. Make sure the software you are using is not remapping the keyboard.
Page 157 You cannot access a CD/ DVD in the drive Some CD/DVDs run correctly, but others do not TECRA M2 Procedure Make sure the drive’s drawer is securely closed. Press gently until it clicks into place. Open the drawer and make sure the CD/DVD is properly seated.
Page 158 You cannot access a CD/DVD in the drive Some CD/DVDs run correctly, but others do not TECRA M2 Procedure Make sure the drive’s drawer is securely closed. Press gently until it clicks into place. Open the drawer and make sure the CD/DVD is properly seated.
Page 159 TECRA M2 Procedure If you have trouble writing, make sure you are observing the following precautions: ■ Use only media recommended by TOSHIBA. ■ Do not use the mouse or keyboard during writing. ■ Use only the software supplied with the computer for recording.
Page 160 You cannot access a CD/DVD in the drive Some CD/DVDs run correctly, but others do not TECRA M2 Procedure Make sure the drive’s drawer is securely closed. Press gently until it clicks into place. Open the drawer and make sure the CD/DVD is properly seated.
Page 161 TECRA M2 Procedure If you have trouble writing, make sure you are observing the following precautions: ■ Use only media recommended by TOSHIBA. ■ Do not use the mouse or keyboard during writing. ■ Use only the software supplied with the computer for recording.
Page 162: Floppy Disk Drive
Optical media section in Chapter 2, The Grand Tour. If you have trouble writing, make sure you are observing the following precautions: ■ Use only media recommended by TOSHIBA. ■ Do not use the mouse or keyboard duringwriting. ■...
Page 163: Sd Card
Refer also to the documentation for your IrDA compatible device and related software. Problem Infrared devices do not work as expected TECRA M2 Procedure Reseat the SD card to make sure it is firmly connected. Check the card’s documentation. Make sure the card is not write protected.
Page 164 Then click the Detail Setting button and click the Device Select tab. Check that the Touch pad is not selected. Pressing Fn + F9 to enables TOSHIBA Dual Pointing Device. The system might be busy. If the pointer is shaped as an hourglass, wait for it to resume its normal shape and try again to move it.
Page 165 Refer also to your USB device’s documentation. Problem USB device does not work TECRA M2 Procedure Try changing the double-click speed setting in the mouse control utility. 1. Open the Control Panel, select the Mouse icon and press Enter.
Page 166 Refer also to documentation for your audio devices. Problem No sound is heard Annoying sound is heard TECRA M2 Procedure Make sure the memory module installed in the expansion slot is compatible with the computer. If an incompatible module has been installed, follow the steps below.
Page 167 You can hear a dial tone but can’t make a call TECRA M2 Procedure Make sure that the external monitor’s power switch is on. Confirm that the external monitor’s power cable is plugged into a working power outlet.
Page 168 You cannot receive an incoming call Problem Cannot access LAN Wake-up on LAN does not work TECRA M2 Procedure Make sure the settings are correct in your communications application. Make sure the tone or pulse selection in your communications application is set correctly.
Page 169 Displayed on the LCD: RTC battery is low or CMOS checksum is inconsistent. Press [F1] key to set Date/ Time. TECRA M2 Procedure Make sure the computer’s wireless communication switch is set to on. If problems persist, contact your LAN administrator. Procedure Make sure the computer’s wireless...
Page 170: Toshiba Support
TOSHIBA support If you require any additional help using your computer or if you are having problems operating the computer, you may need to contact TOSHIBA for additional technical assistance. Before you call Some problems you experience may be related to software or the operating system, it is important to investigate other sources of assistance first.
Page 171: Specifications
TECRA M2 Specifications This appendix summarizes the computer’s technical specifications. Physical Dimensions Weight (typical) Size Environmental Requirements Conditions Operating Non-operating Thermal Gradient Wet-bulb temperature Conditions Operating Non-operating User’s Manual Appendix A 2.26 kilograms, configured with: 14"XGA, 256MB RAM, 40GB HDD, DVD-ROM drive, modem, LAN(100 Mbit), Wireless LAN, 6cell battery.
Page 172 Type of dialing Control command Monitor function Communication specifications Communication system Communication protocol Communication speed TECRA M2 100-240 volts AC 50 or 60 hertz (cycles per second) 15 VDC 5.0 amperes Telephone line (analog only) Pulse Tone AT commands EIA-578 commands Computer’s speaker...
Page 173 Transmitting level Receiving level Input/output impedance Error correcting Data compression Power supply TECRA M2 -10 dBm -10 to -40 dBm 600 ohms ±30% MNP class 4 and ITU-T V.42 MNP class 5 and ITU-T V.42bis +3.3V (supplied by computer) Specifications...
Page 174: Ac Power Cord And Connectors
TECRA M2 AC Power Cord and Connectors The power cord’s AC input plug must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following...
Page 175 The following illustrations show the plug shapes for the U.S.A. and Canada, the United Kingdom, Australia and Europe. USA and Canada UL approved CSA approved Australia AS approved TECRA M2 AC Power Cord and Connectors Switzerland: United Kingdom: United Kingdom BS approved Europe...
Page 176: Display Controller And Modes
TECRA M2 Display Controller and Modes Display controller The display controller interprets software commands into hardware commands that turn particular pels on or off. The controller is an advanced Video Graphics Array (VGA) that provides Super VGA (SVGA) and Extended Graphics Array (XGA), Super Extended Graphics Array (SXGA), Super Extended Graphics Array plus (SXGA+), support for the internal LCD and external monitors.
Page 177 Pels 640 × 200 Grph Pels 80 × 25 Text Characters 80 × 25 Text Characters TECRA M2 Display Controller and Modes matrix colors (pels) 8 × 8 16 of 256K 16 of 256K 8 × 8 16 of 256K 16 of 256K 8 ×...
Page 178 Grph Pels 640 × 480 Grph Pels 640 × 480 Grph Pels 320 × 200 Grph Pels TECRA M2 Display Controller and Modes Character matrix colors colors (pels) 8 × 8 16 of 16 of 256K 256K 8 × 8...
Page 179 800 × 600 1024 × 768 1280 × 1024 1600 × 1200 1920 × 1440 2048 × 1536 Some SVGA modes are not supported at LCD+CRT simultaneous mode and LCD+CRT Multi Monitor mode. TECRA M2 colors 256/256K 256/256K 256/256K 256/256K 256/256K 256/256K...
Page 180 800 × 600 1024 × 768 1280 × 1024 1600 × 1200 1920 × 1440 2048 × 1536 Some SVGA modes are not supported at LCD+CRT simultaneous mode and LCD+CRT Multi Monitor mode. TECRA M2 colors colors 64K/64K 64K/64K 64K/64K 64K/64K 64K/64K...
Page 181 800 × 600 1024 × 768 1280 × 1024 1600 × 1200 1920 × 1440 2048 × 1536 Some SVGA modes are not supported at LCD+CRT simultaneous mode and LCD+CRT Multi Monitor mode. TECRA M2 colors colors 16M/16M 16M/16M 16M/16M 16M/16M 16M/16M...
Page 182 Table 3 Video modes (Super XGA+) Resolution 640 × 480 800 × 600 1024 × 768 1280 × 1024 1400 × 1050 1600 × 1200 1920 × 1440 2048 × 1536 TECRA M2 colors colors 256/256K 256/256K 256/256K 256/256K 256/256K 256/256K 256/256K...
Page 183 Table 3 Video modes (Super XGA+) continued Resolution 640 × 480 800 × 600 1024 × 768 1280 × 1024 1400 × 1050 1600 × 1200 1920 × 1440 2048 × 1536 TECRA M2 colors colors 64K/64K 64K/64K 64K/64K 64K/64K 64K/64K 64K/64K 64K/64K...
Page 184 1024 × 768 1280 × 1024 1400 × 1050 1600 × 1200 1920 × 1440 2048 × 1536 Some SVGA modes are not supported at LCD+CRT simultaneous mode and LCD+CRT Multi Monitor mode. TECRA M2 colors colors 16M/16M 16M/16M 16M/16M 16M/16M 16M/16M...
Page 185: If Your Computer Is Stolen
What is your address, phone, and fax number? To register the theft, please follow these procedures: ■ Fill in the TOSHIBA Theft Registration form (or a copy of it) below. ■ Attach a copy of your receipt showing where your computer was purchased.
Page 186 TOSHIBA Theft Registration Send to: Fax number: Country stolen: Machine type: (e.g. Tecra M2) Model number: (e.g. PTM20 YXT) Serial number: (e.g. 70123456E) Date stolen: Warranty seal: (e.g. 9813 123456 049) Owner’s details Name: Company: Street: Postal Code/City: Country: Phone:...
Page 187 TECRA M2 ASCII Character Codes This appendix shows the American Standard Code for Information Interchange (ASCII) on the following pages. The characters in the IBM char column appear on your display when you type the corresponding ASCII code (as described in Chapter 5, Keyboard). The characters that are printed, however, depend on the software you are using.
Page 188 TECRA M2 Sort code char ¶ § ▲ ▼ ASCII Character Codes Ctrl char...
Page 189 “ & ’ < > TECRA M2 Sort code code ASCII Character Codes Sort char...
Page 190 ’ TECRA M2 Sort code code ASCII Character Codes Sort char Ç ü é â ä à å ç ê ë è ï î ì Ä Å É æ Æ ô ö ò û ù ÿ Ö...
Page 191 á í ó ú ñ Ñ ¿ ¡ « » TECRA M2 Sort code code ASCII Character Codes Sort char...
Page 192 TECRA M2 Sort code char ß ASCII Character Codes...
Page 193: Wireless Lan
TECRA M2 Wireless LAN Card Specifications Form Factor Compatibility Network Operating System Media Access Protocol Data Rate User’s Manual Appendix F Mini PCI TypeIII ■ IEEE 802.11 Standard for Wireless LANS ■ Wi-Fi (Wireless Fidelity) certified by the Wi-Fi Alliance.
Page 194: Radio Characteristics
■ Range is also impacted due to "obstacles" in the signal path of the radio that may either absorb or reflect the radio signal. TECRA M2 ■ Band 5GHz (5150-5850 MHz) (Revision A, Turbo Mode) ■...
Page 195 Subject to the radio regulations that apply in the countries/regions, your Wireless LAN card may support a different set of 5GHz / 2.4GHz channels. Consult your Authorized Wireless LAN or TOSHIBA Sales office for information about the radio regulations that apply in the countries/regions.
Page 196 Wireless IEEE 802.11 Channels Sets (Revision A) Frequency Range Channel ID Wireless Channels Sets (Turbo Mode) Frequency Range Channel ID * Available Area: US (USA, CANADA) only TECRA M2 5150-5850 MHz Note 5180 5200 5220 5240 5260 5280 5300 5320...
Page 197: Internal Modem Guide
TECRA M2 Internal Modem Guide This appendix describes how to install and the remove the internal modem. Do not disassemble the computer beyond the steps described in this instruction or touch any components not specifically described. Installing the internal modem The internal modem is preinstalled.
Page 198: Removing The Internal Modem
5. Remove the modem cover. 6. Remove two screws and remove the modem board. 7. Disconnect the modem cable. 8. Secure the modem cover with one screw. 9. Install the battery pack. Refer to the installation procedures for details. TECRA M2...
Page 199 Glossary The terms in this glossary cover topics related to this manual. Alternate naming is included for reference. AccuPoint: A pointing device integrated into the TOSHIBA computer keyboard. adaptor: A device that provides an interface between two dissimilar electronic devices. For example, the AC adaptor modifies the power from a wall outlet for use by the computer.
Page 200 An interface for transmission of signals, data or electric power. byte: The representation of a single character. A sequence of eight bits treated as a single unit; also the smallest addressable unit within the system. TECRA M2 Glossary...
Page 201 1) The ability of one computer to accept and process data in the same manner as another computer without modifying the data or the media upon which it is being transferred. 2) the ability of one device to connect to or communicate with another system or component. TECRA M2 Glossary...
Page 202 To remove data from a disk or other data storage device. Synonymous with erase. device driver: A program that controls communication between a specific peripheral device and the computer. dialog box: A window that accepts user input to make system settings or record other information. TECRA M2 Glossary...
Page 203 A time before and after an escape code is sent to the modem which distinguishes between escapes that are part of the transmitted data, and escapes that are intended as a command to the modem. TECRA M2 Glossary...
Page 204 (FDD): An electromechanical device that reads and writes to floppy disks. See also diskette. Fn-esse: A TOSHIBA utility that lets you assign functions to hot keys. folder: An icon in Windows used to store documents or other folders.
Page 205 Fn, can be used to set system parameters, such as speaker volume. HW Setup: A TOSHIBA utility that lets you set the parameters for various hardware components. icon: A small graphic image displayed on the screen or in the indicator panel.
Page 206 A method of operation, for example, the boot mode, standby mode or the hibernation mode. modem: Derived from modulator/demodulator, a device that converts (modulates) digital data for transmission over telephone lines and then converts modulated data (demodulates) to digital format where received. TECRA M2 Glossary...
Page 207 (integers) both of which are either on or off; odd or even; 0 or 1. 2) In serial communications, an error detection bit that is added to a group of data bits making the sum of the bits even or odd. Parity can be set to none, odd, or even. TECRA M2 Glossary...
Page 208 The electrical connection through which the computer sends and receives data to and from devices or other computers. Power Saver Utility: A TOSHIBA utility that lets you set the parameters for various power-saving functions. printed circuit board (PCB): A hardware component of a processor to which integrated circuits and other components are attached.
Page 209 A disk that has been formatted with an operating system. For MS-DOS the operating system is contained in two hidden files and the COMMAND.COM file. You can boot a computer using a system disk. Also called an operating system disk. TECRA M2 Glossary...
Page 210 TFT display: A liquid crystal display (LCD) made from an array of liquid crystal cells using active-matrix technology with thin film transistor (TFT) to drive each cell. TouchPad: A pointing device integrated into the TOSHIBA computer palm rest. TTL: Transistor-transistor logic. A logic circuit design that uses switching transistors for gates and storage.
Page 211 TECRA M2 Index AC adaptor 1-4, 2-17 Connecting 3-4 AC Power Cord B-1 Accessing HW Setup 7-1 AccuPoint 2-9, 4-2 Advanced Port Replicator III 1-16, 8-21 Analyzing a problem 9-2 ASCII Character Codes E-1 ASCII characters E-1 Backside 2-5 Battery...
Page 212 Headphone 2-3 Heat dispersal 4-29 Hibernation mode 3-7 Hot keys 5-4 HW Setup LAN 7-8 HW Setup 7-1 TECRA M2 i.LINK 2-2, 8-19, 8-22 Indicator Battery 6-4 Power 6-5 Infrared port 2-1 Inserting a PC card 8-2 Installing an SD card 8-4...
Page 213 Modem 9-18 Monitor 9-18 Password 9-6 PC card 9-14 Power 9-4 SD card 9-14 Sound system 9-17 TOSHIBA Dual Pointing Device 9-15 USB 9-16 Wireless LAN 9-20 TECRA M2 Processor 1-3 Product Recovery DVD-ROM 3-11 Region codes DVD drives 2-14...
Page 214 TOSHIBA Audio Effect 1-15 TOSHIBA ConfigFree 1-14 TOSHIBA Console 1-14 TOSHIBA Console button 2-9 TOSHIBA Controls 1-13 TOSHIBA Dual Pointing Device 1-7, 4-1 TOSHIBA IP Phone 1-14 TOSHIBA Mobile Extension 1-14 TOSHIBA PC DiagnosticTool 1-14 TOSHIBA Power Saver 1-13 TOSHIBA Presentation button 2-9...

This manual is also suitable for:

Ptm20c-00v0v Tecra m2-s319 Tecra m2-s339 Tecra m2-s410 Tecra m2-s430

Toshiba TECRA M2 User Manual

General Precautions

Preface

Chapter 1: Introduction

Chapter 2: The Grand Tour

Chapter 3: Getting Started

Chapter 4: Operating Basics

Chapter 5: The Keyboard

Chapter 6: Power and Power-Up Modes

Chapter 7: HW Setup

Chapter 8: Optional Devices

Chapter 9: Troubleshooting

Quick Links

Related Manuals for Toshiba TECRA M2

Summary of Contents for Toshiba TECRA M2

This manual is also suitable for:

Table of Contents
