Klark Teknik DN 30T Quick Manual

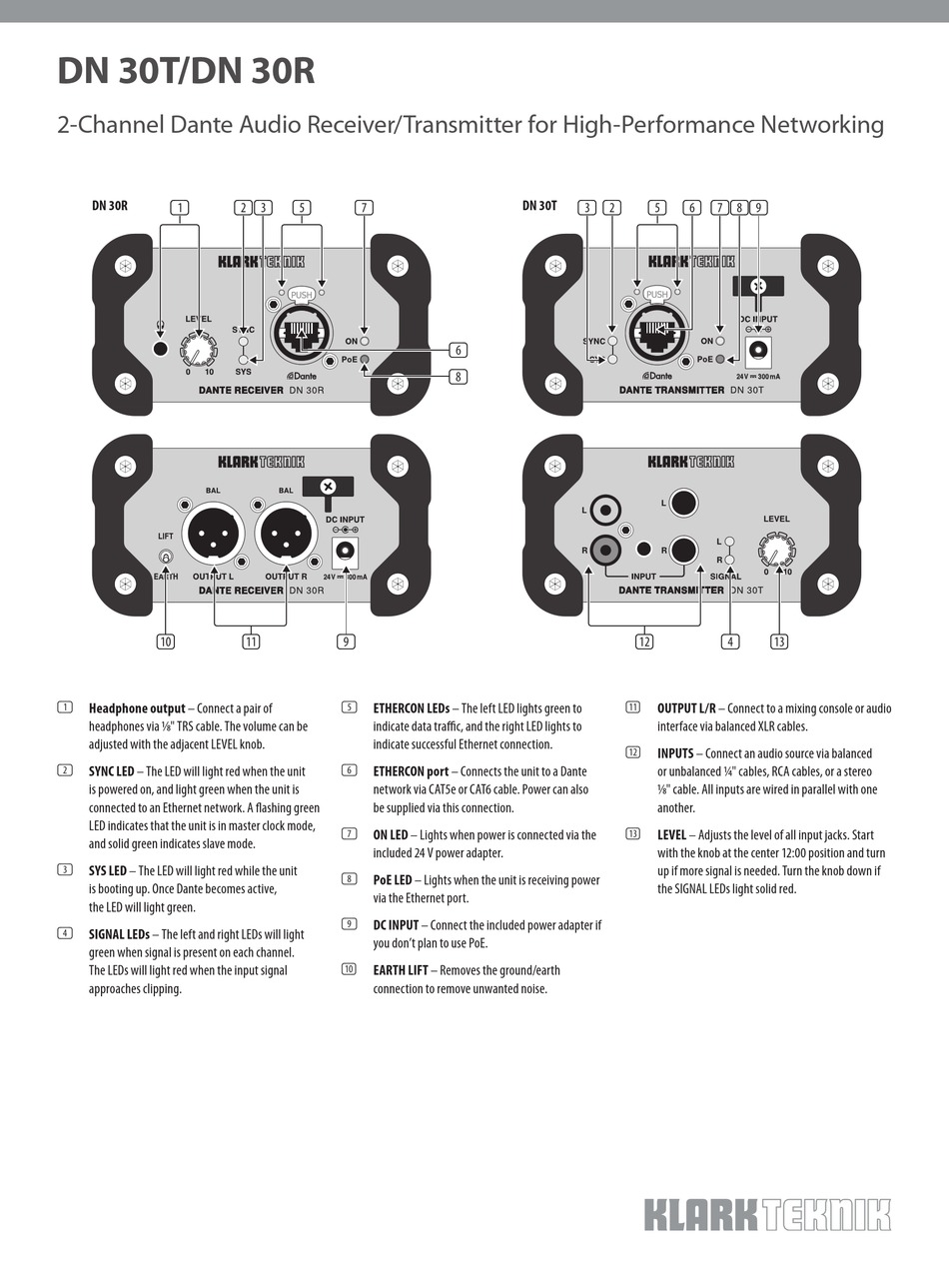

DN 30T/DN 30R
2-Channel Dante Audio Receiver/Transmitter for High-Performance Networking
DN 30R
(1) (2)(3) (5)
(10)
Headphone output – Connect a pair of
(1)
headphones via 1/8" TRS cable. The volume can be
adjusted with the adjacent LEVEL knob.
SYNC LED – The LED will light red when the unit
(2)
is powered on, and light green when the unit is
connected to an Ethernet network. A flashing green
LED indicates that the unit is in master clock mode,
and solid green indicates slave mode.
SYS LED – The LED will light red while the unit
(3)
is booting up. Once Dante becomes active,
the LED will light green.
SIGNAL LEDs – The left and right LEDs will light
(4)
green when signal is present on each channel.
The LEDs will light red when the input signal
approaches clipping.
(7)
(11) (9)
ETHERCON LEDs – The left LED lights green to
(5)
indicate data traffic, and the right LED lights to
indicate successful Ethernet connection.
ETHERCON port – Connects the unit to a Dante
(6)
network via CAT5e or CAT6 cable. Power can also
be supplied via this connection.
ON LED – Lights when power is connected via the
(7)
included 24 V power adapter.
PoE LED – Lights when the unit is receiving power
(8)
via the Ethernet port.
DC INPUT – Connect the included power adapter if
(9)
you don't plan to use PoE.
EARTH LIFT – Removes the ground/earth
(10)
connection to remove unwanted noise.
DN 30T
(3) (2)
(6)
(8)
(11)
(12)
(13)
(5) (6) (7) (8) (9)
(12) (4) (13)
OUTPUT L/R – Connect to a mixing console or audio
interface via balanced XLR cables.
INPUTS – Connect an audio source via balanced
or unbalanced ¼" cables, RCA cables, or a stereo
1/8" cable. All inputs are wired in parallel with one
another.
LEVEL – Adjusts the level of all input jacks. Start
with the knob at the center 12:00 position and turn
up if more signal is needed. Turn the knob down if
the SIGNAL LEDs light solid red.
