Summary of Contents for SHOWTEC City Painter 575

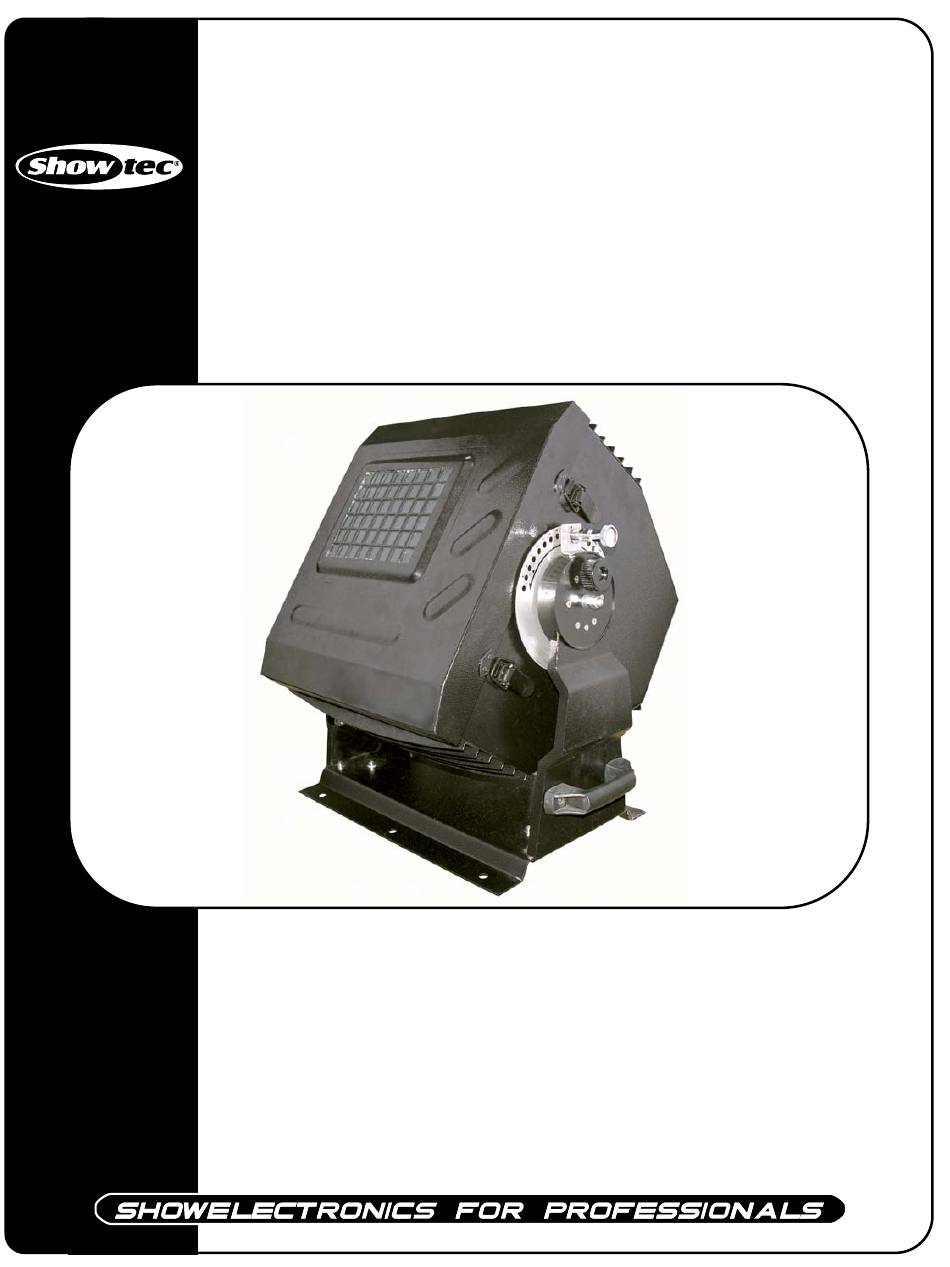

- Page 1 City Painter 575 ORDERCODE 40905...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec City Painter 575 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec City Painter 575 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… One City Painter .................………………………………………… Multiple City Painters…................………………………………….. Control Mode…...........…………………………………………………………….. DMX 512 Mode / Master Mode / Slave Mode………………….……………………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. - Page 5 The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 1.5 meter. The maximum ambient temperature t = 45°C must never be exceeded. - Page 7 Mounting a clamp to the underside of the City Painter moving head 1. Always bolt at least 2 clamps to the holes on the base of the fixture. 2. Use 2 or 3 clamps to secure the City Painter to the truss. There are three M10 holes on the base of the fixture to fasten the clamps.
-
Page 8: Description
Description of the device Features The Showtec City Painter 575 is a colourchanger with high output and great effects. • DMX-control via standard DMX-controller • 8 DMX-control channels required • IP-54 Protection degree • Stand-alone control or Master–Slave control • Dimmer: 0-100% •... -
Page 9: Installation
Installation Installing the Lamp The Showtec City Painter 575 uses the MSR 575 (ordercode 80915P / 80915O) bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 10: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One City Painter 1. - Page 11 Signal Amplifier 50347 If the lines have a total length over 150 meters, it is recommended to use a signal amplifier. The usage of a normal microphone or audio cable is suggested only for lines of max. 100 meter. Note : Link all cables before connecting electric power Multiple City Painters Set Up DMX-Set up Master/Slave Set up...
-
Page 12: Control Mode
Control Mode There are 3 modes to operate the City Painter 575: DMX 512 Mode Master Mode Slave Mode DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the first channel from which the City Painter will respond to the controller. -
Page 13: Master Automatic Dip Switch Settings
Master Automatic Dip Switch Settings Channel 0 – White Channel 1 – Red Channel 2 – Orange Channel 3 – Green Channel 4 – Sky Blue Channel 5 – Light Blue Channel 6 – Blue Channel 7 – Dark Blue Channel 8 –... -
Page 14: Dmx Dip Switch Setting
DMX Dip Switch Setting Channel 1 – Control Speed 0-255 CMY / Dimmer Control Speed (from Fast to Slow) Channel 2 – Yellow 0-255 Yellow from 0 –100 % Channel 3 – Magenta 0-255 Magenta from 0 –100 % Channel 4 – Cyan 0-255 Cyan from 0 –100 % Channel 5 –... -
Page 15: Beam Angle
Beam Angles... -
Page 16: Structure Of The Fixture
Structure of the Fixture... -
Page 17: Electrical Wiring Diagram
Electrical Wiring Diagram... -
Page 18: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec City Painter 575 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 19: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. - Page 20 Common Problems Problem Testing Analysis Solution Check that the power supply is the No mains power Connect the power No power to fixture, same as that specified on the unit. fans not turning. Power cable / Replace the power cable and connection incorrect.
-
Page 21: Product Specifications
Product Specification Model: Showtec City Painter 575 Voltage: 240V-50Hz (CE) Power: 250W Weight: 47 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) Set Up and Addressing: DIP Switches DMX Channels: 8 Lamp Allowed lamp models*: Philips MSR 575 (1000 hr;...
