MVE105H

USER MANUAL

HEVC H.265 HDMI Encoder

Import, Manufacturing and Distribution by

vuetec.tv UG

(haftungsbeschränkt)

Hasselbusch 124a | Henstedt-Ulzburg | Germany

0700 - 883 832 88 | www.vuetec.tv

Table of Contents

Need help?

Do you have a question about the MVE105H and is the answer not in the manual?

Questions and answers

Summary of Contents for DIVAR MVE105H

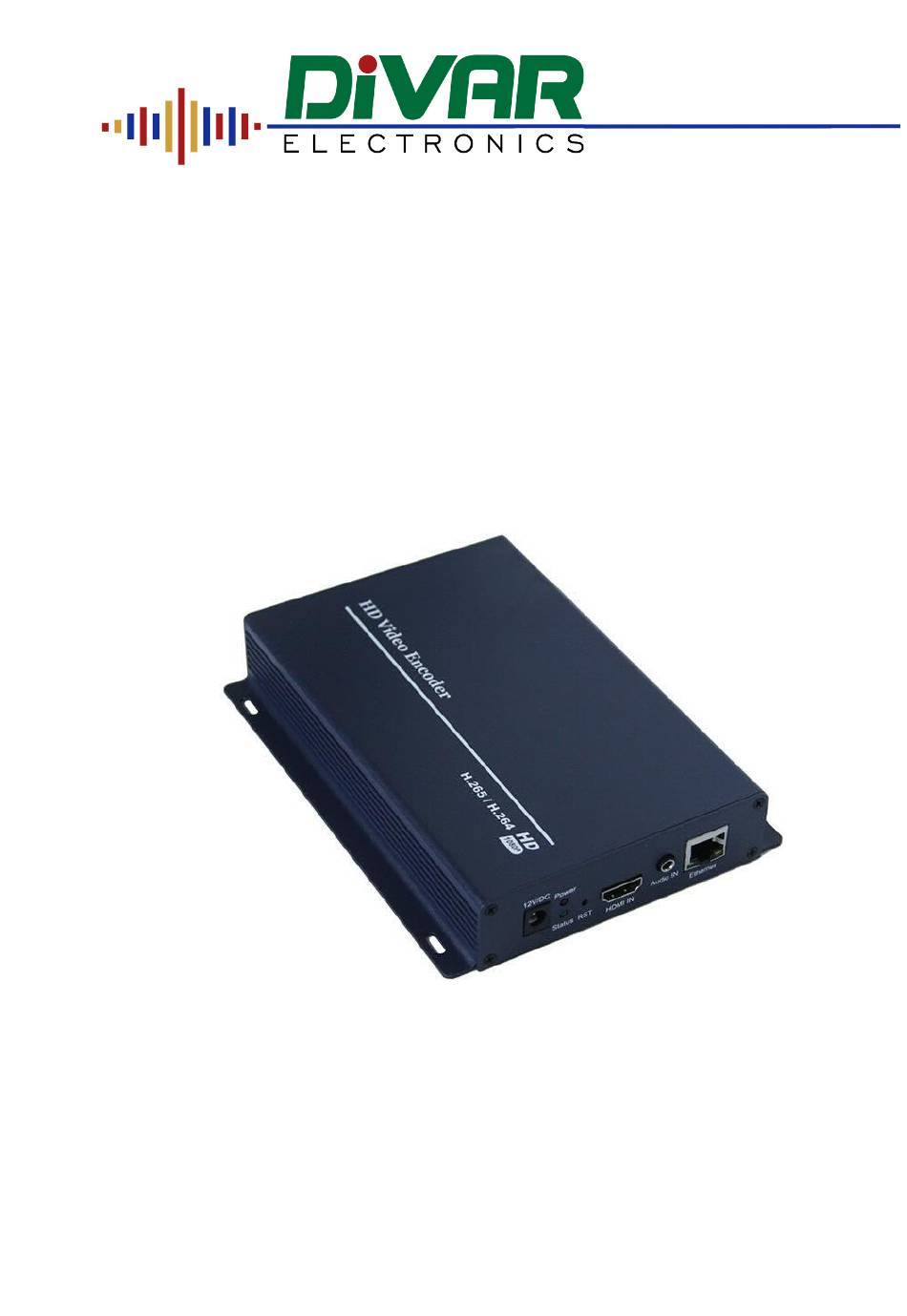

Page 1 MVE105H USER MANUAL HEVC H.265 HDMI Encoder Import, Manufacturing and Distribution by vuetec.tv UG (haftungsbeschränkt) Hasselbusch 124a | Henstedt-Ulzburg | Germany 0700 - 883 832 88 | www.vuetec.tv...
Page 2 MVE105H - HEVC H.265 Video + Audio Encoder The HEVC encoder MVE105H is a hardware device used for high-definition video signal (720P / 1080P, etc.) encoding and network transmission, using the latest and high-efficient high-definition digital video compression technology H.265, with the characteristics of reliable, high-definition, low bit rate and low latency.
Page 3 The Encoder Hardware The transport-stream hardware encoder MVE105H features; • Support standard H.265\H.264 encoding • Save bandwidth up to 33% when choose H.265 codec, i.e 1.5 MBps bandwidth will be workable to transport 1080P video. • Audio coding support MPEG1 Audio Layer2 •...
Page 4: Specifications
< 5 W Dimensions: 165 mm × 85 mm × 24 mm Weight: 300 g Environmental: Operating Temperature: -20°C ~ +60°C Storage Temperature: -20°C ~ +80°C Relative Humidity: 0% ~ 95% (non-condensing) MTBF: >100,000 hours MVE105H HEVC H.265 Encoder Page 4...
Page 5: Operating System
Operating System The MVE105H can be controlled by the WEB GUI interface. Connect the encoder to a PC using the Ethernet connection and a standard Cat5/6 LAN cable. To access a standard WEB browser is best. Log-In to the System Standard Log-In Change the administrator’s computer IP address (in case of WINDOWS) as : 192.168.1.* to avoid IP...
Page 6: Language Selector
The Footer contains the selection switches to open the several menus. Language Selector On the Header's right hand side a selector allows to toggle between different languages. This selection is available only on the Status Display page. Function Value OSD Language English | Deutsch MVE105H HEVC H.265 Encoder Page 6...
Page 7: Status Display
Status Display Click the STATUS button to open the Status Display. The Status Display shows the device current settings and functions. System Status The Systems Status window shows an overview about the device basic conditions. MVE105H HEVC H.265 Encoder Page 7...
Page 8: Main Stream Settings
ULR, etc.. Sub Stream Settings The Sub Stream Settings window shows an overview about the device Sub Stream settings, like type of encoder selected, bit rate, streaming ULR, etc.. MVE105H HEVC H.265 Encoder Page 8...
Page 9 192.168.1.168 (default) Netmask Enter your individual netmask 255.255.255.0 Gateway Enter your individual gateway address 192.168.1.1 The device physical address. After you 00:13:14:01:7F:7C reset this, it will change DNS 1 Enter your individual DNS address 8.8.8.8 MVE105H HEVC H.265 Encoder Page 9...
Page 10 Enter your individual HTTP port 8080 (default) RTSP Port Enter your individual RTSP port 8554 (default) WiFi Device In case this encoder is a WiFi version of MVE105H an additional window WIFI SETTINGS appears. Item Function Value DHCP Enables DHCP mode...
Page 11 720x576 | … | 176x144 H.264 Level Selector for H.264 profile Baseline | Main | High Bitrate Control Selector for type of bit rate control CBR | VBR TS ULR Enter your TS ULR /0.ts MVE105H HEVC H.265 Encoder Page 11...
Page 12 Enter your RTMP(S) /RTSP ULR rtmp://192.168.1.50/live/0 MultiCast IP Enter your IP address for MultiCast 238.0.0.1 MultiCast Port Enter your port address for MultiCast 1~65535 NOTE: WHEN THE INPUT RESOLUTION IS 1080I50, CHOOSE 25 FPS AS FRAME RATE. MVE105H HEVC H.265 Encoder Page 12...
Page 13 Defines the vertical point of start 0~1080 lines Scroll Speed Defines the speed for scrolling text 0~30 fps Your Text Enter your individual text Font Size Select the size of text characters 8~72 lines (default 36) MVE105H HEVC H.265 Encoder Page 13...
Page 14 Confirm the individual settings clicking the SET UP button once. NOTE: THE LOGO FILE HAVE TO BE PNG OR BMP FORMAT. THE SIZE IS LIMITED TO 500 KBYTE. THE FILE NAME IS LOGO1.PNG OR LOGO1.BMP. MVE105H HEVC H.265 Encoder Page 14...
Page 15 Open the explorer to search for your logo file and upload NOTE: THE LOGO FILE HAVE TO BE PNG OR BMP FORMAT. THE SIZE IS LIMITED TO 500 KBYTE. THE FILE NAME IS LOGO2/3/4.PNG OR LOGO2/3/4.BMP. MVE105H HEVC H.265 Encoder Page 15...
Page 16: Image Quality Settings
Defines the contrast correction 0~100 (default 50) Defines the hue correction 0~100 (default 50) Saturation Defines the saturation correction 0~100 (default 50) NOTE: THE DEFAULT VALUE IS 50. CORRECTION CAN BE +/- 100 % MVE105H HEVC H.265 Encoder Page 16...
Page 17 Sub Stream Encoding Click the SUB STREAM button to open the Sub Stream settings. The MVE105H encoder offers a second stream from the incoming source. This stream is independent from any setting at the Main Stream section. The Sub Stream menu allows to configure the device to operate using the individual set up.
Page 18 Enter your RTMP(S) /RTSP ULR rtmp://192.168.1.50/live/0 MultiCast IP Enter your IP address for MultiCast 238.0.0.1 MultiCast Port Enter your port address for MultiCast 1~65535 NOTE: WHEN THE INPUT RESOLUTION IS 1080I50, CHOOSE 25 FPS AS FRAME RATE. MVE105H HEVC H.265 Encoder Page 18...
Page 19 0~128 OSD Zone 1, 2 , 3 , 4 The OSD capability for Zone 1 to 4 is identical. Item Function Value Zone Enable OSD for Zone 1, 2, 3, 4 Enable | disable MVE105H HEVC H.265 Encoder Page 19...
Page 20 Open the explorer to search for your logo file and upload NOTE: THE LOGO FILE HAVE TO BE PNG OR BMP FORMAT. THE SIZE IS LIMITED TO 500 KBYTE. THE FILE NAME IS LOGO1/2/3/4.PNG OR LOGO1/2/3/4.BMP. MVE105H HEVC H.265 Encoder Page 20...
Page 21: Audio Settings
MP3 | MP2 | AC3 Bitrate Selector for bit rate 48 k ~ 320 k Analog Volume Defines the audio level 0~100 (default 50) G711A Enable audio over RTSP Disable | Enable | enable and resample with 8k MVE105H HEVC H.265 Encoder Page 21...
Page 22: System Settings
Confirm the individual settings clicking the MODIFICATION button once. Item Function Old Password min. character a~z, A~Z, 1~0 New Password min. character a~z, A~Z, 1~0 Confirm New Password min. character a~z, A~Z, 1~0 MVE105H HEVC H.265 Encoder Page 22...
Page 23: Advanced Settings
Both fields | bottom field only | field to frame Net drop Select the threshold for net drops 50~50000 Threshold TS One Pack Select the number of TS packs 3~128 TS ID Select the transport stream ID 1~65535 MVE105H HEVC H.265 Encoder Page 23...
Page 24 In this section the serial port settings are accessible. Confirm the individual settings clicking the SET UP button once. Item Function Value Baud rate Select the baud rate for serial port 300 ~ 115200 Bd TCP Port Select the TCP Port 1~65335 MVE105H HEVC H.265 Encoder Page 24...
Page 25: Schedule Restart
Confirm the individual settings clicking the SET UP button once. Item Function Value Enable NTP sync function Disable | enable NTP Server Enter address of NTP server time.windows.com (default) Time Zone Select your local time zone UTC +/- 12 MVE105H HEVC H.265 Encoder Page 25...
Page 26 When the procedure is finish the device waits for a restart. Item Function Value Select Upload Search the PC for upload file up.rar NOTE: CHOOSE THE COMPRESSED UPGRADE PACKAGE(*.RAR FILE) WITHOUT DECOMPRESSING PACKAGES. DO NOT REFRESH THE PAGE AND OTHER OPERATIONS DURING THE UPGRADE. MVE105H HEVC H.265 Encoder Page 26...
Page 27 To reload the factory settings click RESET. The system will reboot after confirming a security question and start again using the default settings. Item Function Value Reboot Reboot the system to confirm User settings individual settings Reset Reset the system to factory default Default settings MVE105H HEVC H.265 Encoder Page 27...
Page 28 VLC Operation The MVE105H is compatible to be used with VLC open media player software. Start the VLC application at your PC and open the Network Stream. Enter the IP address of the encoder to play the stream video. Click PLAY to start the video.
Page 29: Frequently Asked Questions
RTMP protocol. Please kindly note that you need set the DNS same as your router’s by network setting. Q: Does the encoder support push stream to WOWZA? A: YES MVE105H HEVC H.265 Encoder Page 29...
Page 30: Power Supply
AC power adapters, similar to the shown above power supply above. NOTE: THE MVE105 FEATURES ENVIRONMENTALLY CONSCIOUS PACKAGING MATERIAL TO PROTECT THE MVE105H SYSTEM DURING TRANSPORTATION AND CAN BE USED FOR TEMPORARY STORAGE WHEN BETTER FORMS OF STORAGE ARE NOT AVAILABLE.
Page 31: Safety Precautions
• Service: Do not attempt to open or service this unit yourself as opening or removing covers may expose you to dangerous voltage of other hazards. • There are no user-serviceable parts inside the unit. If the unit requires service please contact your authorized dealer, or an authorized repair service company. MVE105H HEVC H.265 Encoder Page 31...
Page 32: Conformity Declaration
The following national or international norms (or parts/clauses from this) and specifications were used: • DIN EN 6099 Verbindungsmaterial für Niederspannungsstromkreise für Haushalt und ähnliche Zwecke; Teil 1: Allgemeine Anforderungen • IEC 127-6 Geräteschutzsicherungen Henstedt-Ulzburg, 29.09.2016 Dipl. Ing. Erwin W. Lissy MVE105H HEVC H.265 Encoder Page 32...
