Bodart & Gonay Cosmos Series Instructions For Use And Maintenance Manual

Hide thumbs

Table Of Contents

Quick Links

Instructions for use

and maintenance

Cosmos

Hélios

Solaris

Attention: Remove the instructions from the ﬁ replace and give them to the client,

10.08

along with the necessary instructions (explanations and demonstrations).

07DHCOSA

Cosmos - Helios - Solaris 1

Table of Contents

Need help?

Do you have a question about the Cosmos Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Bodart & Gonay Cosmos Series

Page 1 Instructions for use and maintenance Cosmos Hélios Solaris Attention: Remove the instructions from the ﬁ replace and give them to the client, 10.08 along with the necessary instructions (explanations and demonstrations). 07DHCOSA Cosmos - Helios - Solaris 1...
Page 2 Dear Client, We thank you and congratulate you on the purchase of one of our products. Your supplier and we will not rest until we have given you complete satisfaction. Your safety and comfort depend above all on the reasonable manner in which you use this appliance. To help you, we recommend that you read these instructions immediately and keep them in a safe place.
Page 3: Guarantee
1 GUARANTEE 1 GUARANTEE DURATION AND LIMITATION - no guarantee on: glass, seals, gravel, and logs. - 2 years guarantee on: valve, command box, thermocouple and pilot light, gas accessories, remote con- trol, fan. - 2 years guarantee on: removable parts and internal items, other than those mentioned above. - 6 years guarantee on the overall structure.
Page 4: Data Sheet
DATA SHEET Type COSMOS 145 Gas N° 47GV14E.. Double Cat. II , II 2E+3P 2H3P LPG gas Cat.I Natural gas Cat.I 2ELL - Category of gas G20 - 20 mbar (gaz nat.) G25 - 25 mbar (gaz nat.) G31 - 37 mbar (propane) G25 - 20 mbar (gaz nat.) - Type - CE Eﬃ...
Page 5 Type COSMOS 100 Gas N° 47GV14E.. Double Cat. II , II 2E+3P 2H3P LPG gas Cat.I Natural gas Cat.I 2ELL - Category of gas G20 - 20 mbar (gaz nat.) G25 - 25 mbar (gaz nat.) G31 - 37 mbar (propane) G25 - 20 mbar (gaz nat.) - Type - CE Eﬃ...
Page 6 Type HELIOS Gas N° 47GV14E.. Double Cat. II , II 2E+3P 2H3P LPG gas Cat.I Natural gas Cat.I 2ELL - Category of gas G20 - 20 mbar (gaz nat.) G25 - 25 mbar (gaz nat.) G31 - 37 mbar (propane) G25 - 20 mbar (gaz nat.) - Type - CE Eﬃ...
Page 7 Type SOLARIS Gas N° 47GV14E.. Double Cat. II , II 2E+3P 2H3P LPG gas Cat.I Natural gas Cat.I 2ELL - Category of gas G20 - 20 mbar (gaz nat.) G25 - 25 mbar (gaz nat.) G31 - 37 mbar (propane) G25 - 20 mbar (gaz nat.) - Type - CE Eﬃ...
Page 8: Dimensions And Space Requirements

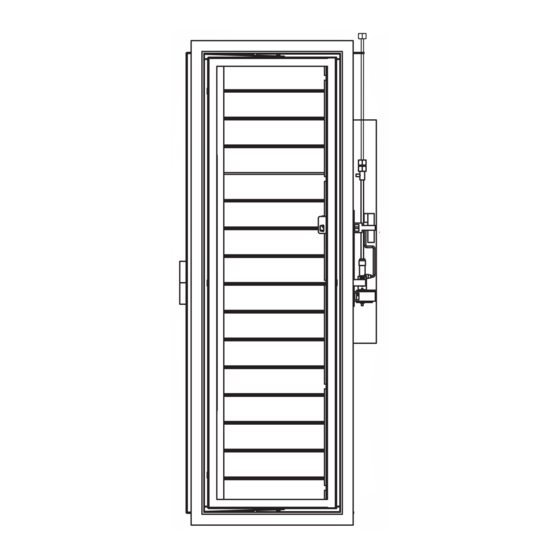

DIMENSIONS AND SPACE REQUIREMENTS COSMOS 145 8 Cosmos - Helios - Solaris...
Page 9 COSMOS 100 Cosmos - Helios - Solaris 9...
Page 10 HELIOS 10 Cosmos - Helios - Solaris...
Page 11 SOLARIS Cosmos - Helios - Solaris 11...
Page 12: Description
DESCRIPTION FRONT VIEW AND DESCRIPTION 1 Door 2 Burner 3 Control box and reception sensor 4 Decorative plate 5 Concentric fume exhaust ﬂ ue 6 Warm air duct and connection nozzle 7 Finish frame 8 Gravel 9 Pilot light + thermocouple + electrode 10 Stone support 11 Door-opening/anti-explosion system 12 Baﬄ...
Page 13: Exploded View
EXPLODED VIEW COSMOS 145 - COSMOS 100 - HELIOS - SOLARIS Cosmos - Helios - Solaris 13...
Page 14 OPCIONES Y RECAMBIOS COSMOS 145 OPTIONS AND SPARE PARTS COSMOS 145 RECAMBIOS / SPARE PARTS Concepto Description Code MOUNTED WINDOW FRAME + SCREEN COSMOS 37GV14027 SIDE DECORATING PLATE STAINLESS STEAL CO 37GV14020 BOTTOM DECORATION PLATE STAINLESS STEA 37GV14021 eje manilla Phenix-Cosmos HANDLE AXIS PHENIX-COSMOS CFR PLAN 07QA0200 ROD FOR SHORT DOOR FL COSMOS/HELIOS/SOL...
Page 15 OPCIONES Y RECAMBIOS COSMOS 100 OPTIONS AND SPARE PARTS COSMOS 100 RECAMBIOS / SPARE PARTS Concepto Description Code MOUNTED WINDOW FRAME+SCREEN COSMOS 1 37GV10007 BOTTOM DECORATION PLATE STAINLESS STEA 37GV10021 SIDE DECORATING PLATE STAINLESS STEAL CO 37GV14020 eje manilla Phenix-Cosmos HANDLE AXIS PHENIX-COSMOS CFR PLAN 07QA0200 ROD FOR SHORT DOOR FL COSMOS/HELIOS/SOL...
Page 16 OPCIONES Y RECAMBIOS HELIOS OPTIONS AND SPARE PARTS HELIOS RECAMBIOS / SPARE PARTS Concepto Description Code MOUNTED WINDOW FRAME FL HELIOS 640 BF 37GV64011 eje manilla Phenix-Cosmos HANDLE AXIS PHENIX-COSMOS CFR PLAN 07QA0200 ROD FOR SHORT DOOR FL COSMOS/HELIOS/SOL 27GV14058 trampilla visita coneccion gas COSMOS 145/10 SLUDGE HATCH GAS LINK COSMOS 145/100 B/FL 37GV14014...
Page 17 OPCIONES Y RECAMBIOS SOLARIS OPTIONS AND SPARE PARTS SOLARIS RECAMBIOS / SPARE PARTS Concepto Description Code MONTED WINDOW FRAME FL SOLARIS 790 BF 37GV79011 BOTTOM DECORATING PLATE INOX SOLARIS 37GV79024 SIDE DECORATING PLATE STAINLESS STEAL SO 37GV79025 eje manilla Phenix-Cosmos HANDLE AXIS PHENIX-COSMOS CFR PLAN 07QA0200 ROD FOR SHORT DOOR FL COSMOS/HELIOS/SOL...
Page 18: Important Recommendations
IMPORTANT RECOMMENDATIONS Check that there is always at least 1cm between the door and the frame or masonry. Keep all readily inﬂ ammable objects away from the appliance (nylon fabrics, inﬂ ammable liquids, etc.). Furniture items must be kept at a minimum distance of 1m from the appliance. ATTENTION: children and people who do not know how to operate the air-vent gas ﬁ...
Page 19 Cosmos - Helios - Solaris 19...
Page 20: Maintenance
MAINTENANCE Never clean the glass when it is hot! Wait for it to cool down. Dusting: do not use an aggressive product or liquid; a dry cloth is recommended. Soiled areas can be restored using SPECIAL HIGH TEMPERATURE (Bodart&Gonay) spray paints available from your supplier.
Page 21 CHANGING TO THERMOSTAT MODE: “Cosmos Me2.2 and 2.3” diagram To change to “thermostat” mode, press twice on the left (SET) button, and then choose the temperature required using the plus and minus buttons. Temperature information for adjusting the appliance is gathered every 6 minutes. You are advised not to leave the remote control too near the ﬁ...
Page 22 22 Cosmos - Helios - Solaris...
Page 23 Cosmos - Helios - Solaris 23...
Page 24 Bodart & Gonay s.a. Parc Artisanal de Harzé - Rue de Lambinon, 3 - B - 4920 HARZE (Aywaille) +32(0)4 239 93 93 info@b-g.be www.b-g.be 24 Cosmos - Helios - Solaris...
Page 25 INSTALLATION INSTRUCTIONS Cosmos Hélios Solaris Attention: Remove the instructions from the ﬁreplace and give them to the 10.08 client, 07DHCOSA Cosmos - Helios - Solaris...
Page 26 IMPORTANT RECOMMENDATIONS - Check that the appliance installed is right for the type of gas used (the appliance can be installed for natural gas or propane). - Your supplier is the SPECIALIST chosen by BODART&GONAY to represent your region. For your SAFETY and SATISFACTION, we recommend that you have them carry out your installation.
Page 27 - Plan for gas inlet pipes (outlet ½” female) on the inside right of the appliance in accordance with NBN 51/003 or NBN D51/006 regulations. - Clean the gas ﬂues before connecting the appliance. - Warm air must be released by the ducts ﬁxed on the top of the ﬁreplace. Heat can be dissipated by natural draught with a duct of at least 1m in height and a maximum canting of 0.5m.
Page 28 - Check that there is always at least 1cm between the door and the frame or masonry. - Keep all readily inﬂammable objects away from the appliance (nylon fabrics, inﬂammable liquids, etc.). Furniture items must be kept at a minimum distance of 1m from the appliance. - ATTENTION: children and people who do not know how to operate the air-vent gas ﬁreplace must completely refrain from using it.
Page 29 CHIMNEY INSTALLATION - The only two permitted ﬂues are: Ontop system US diam. 130/200 or POUJOLAT 130/200 EI Ontop system US diam. 100/150 or POUJOLAT 100/150 EI - The gas outlet must be protected mechanically by a grill if it is positioned less than 2.2 m from the ground.
Page 30 Reduction kit: With or without reduction, the screws must always be on the ﬁreplace. Reductie kit / Kit de réduction. 37GV14019 / 37GV10019 n°7  Avec ou sans réduction, les vis doivent toujours être sur le foyer.  Met of zonder reductie, de vyzen moeten altijd op het toestel blijven.
Page 31 INSTALLING AND CONNECTING THE FIREPLACE - Plan for the gas intake on the right of the appliance. - Clean the gas ﬂues before connecting the appliance. - Place the appliance in the ventilated alcove. - Connect the chimney ﬂue to the outside of the ﬁreplace (“ONTOP” or “POUJOLAT” ﬂue). Attention: the temperatures of the outer surfaces of the chimney ﬂue can reach 200°C.
Page 32 - Remove the stone supports and burner. - Remove the right ﬂap (gas connection). - Connect the connection tube to the gas pipe (on the right of the appliance) (1/2” gas). The gas pipes must be free of dirt. Check there are no leaks, turn oﬀ all gas appliances and check that the meter does not move for 5 minutes.
Page 33 Changement de l'injecteur de la veilleuse Verandering van de sproeier van de waakvlam Changing the pilotlight-injector KIT LPG N°10 N°11 07DHCOSIV Cosmos - Helios - Solaris...
Page 34 INITIALISATION 36 Cosmos - Helios - Solaris...
Page 35 Important: warning! The initialisation operation must only be done by a qualiﬁed person and must only be done in rare cases. It also requires work on the remote control and on the switch 1/0. Cosmos - Helios - Solaris...
Page 36 Kit bûches/ Houtblokken kit/ Woodlog set NOT OK! ou/of/or Zone veilleuse dégagée: Waakvlamszone vrijgemaakt: Clear pilot light area: Min 5 cm Min 5 cm...
Page 37: Table Of Contents
CONTENTS INSTRUCTIONS FOR USE AND MAINTENANCE GUARANTEE DATA SHEET DIMENSIONS AND SPACE REQUIREMENTS DESCRIPTION EXPLODED VIEW IMPORTANT RECOMMENDATIONS MAINTENANCE USING THE APPLIANCE AND REMOTE CONTROL INSTALLATION INSTRUCTIONS IMPORTANT RECOMMENDATIONS SOFT HEATING SYSTEM CHIMNEY INSTALLATION INSTALLING AND CONNECTING THE FIREPLACE CHANGING THE INJECTOR FROM NATURAL GAS TO LPG Bodart &...

This manual is also suitable for:

Cosmos 145 Hélios series Solaris series Cosmos 100
