Summary of Contents for Philips FWM570/19

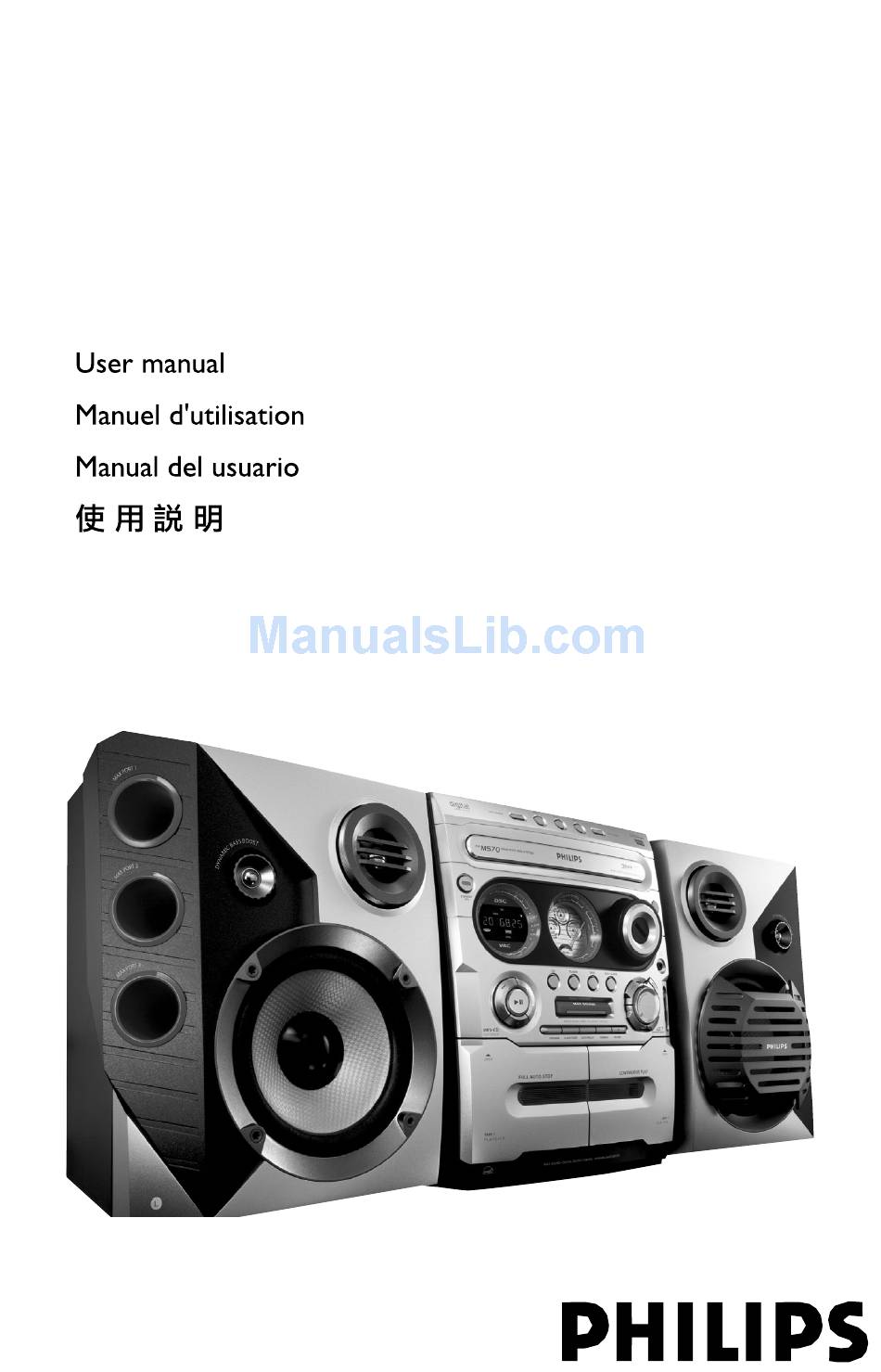

- Page 1 FWM570...
- Page 2 País de Origen: China Nº de Serie: LEA CUIDADOSAMENTE ESTE INSTRUCTIVO AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
- Page 4 Energy Star As an ENERGY STAR Partner, Philips has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
- Page 5 Index English ------------------------------------------------ 6 Français -------------------------------------------- 27 Español --------------------------------------------- 48 -------------------------------------------------------- 69...
-
Page 6: Table Of Contents
Contents General Information Supplied accessories ... 7 Environmental information ... 7 Care and safety information ... 7 Functional Overview Main unit and remote control ... 8~9 Control buttons available on the remote control only ... 9 Connections Step 1: Connecting FM/ MW antennas ... 11 Step 2: Connecting the speakers ... -
Page 7: General Information
IMPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM. Supplied accessories (page 3 – P1) –... -
Page 8: Functional Overview
Functional Overview ∞ Main unit and remote control STANDBY ON B / ECO POWER – Switches to the Eco Power standby mode or turns on the system. – *Switches to the standby mode. Display screen CD / TUNER / TAPE(TAPE1/2) / AUX•GAME –... -
Page 9: Control Buttons Available On The Remote Control Only
CLOCK•TIMER (CLK/TIMER) – *Enters clock or timer setting mode. AUTO REPLAY – Selects continuous playback in either AUTO PLAY or ONCE mode only. OPEN 3 – Opens the tape deck TAPE1 / TAPE2 – Tape deck 1 and tape deck 2. DUBBING –... -
Page 10: Connections
Connections Speaker Speaker VOLTAGE SELECTOR 110V- 127V 220V- 240V NOT FOR ALL VERSIONS Rear panel Game console Front panel... -
Page 11: Step 1: Connecting Fm/Mw Antennas
Warning! – Use only the supplied speakers. The combination of the main unit and speakers provides the best sound. Using other speakers can damage the unit and sound quality will be negatively affected. – Never make or change connections with the power switched on. –... -
Page 12: Step 5: Inserting Batteries Into The Remote Control
Connections Step 5: Inserting batteries into the remote control Open the battery compartment cover. Insert two batteries type R06 or AA, following the indications (+/-) inside the compartment. Close the cover. Using the remote control to operate the system Aim the remote control directly at the remote sensor (iR) on the main unit. -
Page 13: Gameport Operations
About Gameport Gameport allows you to connect your game console to this audio system which enables you to enjoy a total game immersion experience through powerful sound output. Preparation before use Rear panel Front panel Connect your game console’s video and audio output to the GAMEPORT video and audio inputs respectively (refer to “Connections - Connecting to game console). -
Page 14: Basic Operations
Basic Operations Switching on/off Switching to active mode ● Press CD, TUNER, TAPE or AUX/GAME. Switching to Eco Power standby mode ● Press B. ➜ ECO POWER button lights up. ➜ The display screen will go blank. Switching to standby mode (view clock) ●... -
Page 15: Dimming System's Display Screen
Dimming the system’s display You can select the desired brightness for the display panel. ● In any active mode, press DIM on the remote control repeatedly to turn on/off dim mode. ➜ is shown, except for DIM OFF mode. Volume control ●... -
Page 16: Disc Operations
Disc Operations IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the changer mechanism. – Do not load more than one disc onto each tray. -
Page 17: Playing An Mp3 Disc
Playing an MP3 disc Load an MP3 disc. ➜ The disc reading time may exceed 10 seconds due to the large number of songs compiled into one disc. ➜ “AXX TYYY” is displayed. XX is the current album number and YYY is the current title number. -
Page 18: Programming The Disc Tracks
Disc Operations Programming the disc tracks Programming tracks is possible when playback is stopped. Up to 99 tracks can be stored in the memory in any order. IMPORTANT! It is only possible to programme from the current selected disc tray. Load the desired discs into the disc trays (refer to “Loading discs”). -
Page 19: Tuner Operations
IMPORTANT! Make sure the FM and MW antennas are connected. Tuning to radio stations Press TUNER to enter tuner mode. To select another waveband (FM or MW), press TUNER again. Press and hold 4 or ¢ (or 1 / ¡ on the remote control) until the frequency indication starts to change, then release. -
Page 20: Selecting A Preset Radio Station
Tuner Operations Selecting a preset radio station ● In tuner mode, press – or + (or í/ë on the remote control). ➜ The preset number, radio frequency, and waveband are displayed. Deleting a preset radio station ● Press and hold Ç until “PRESET DELETED” is displayed. -
Page 21: Tape Operation/Recording
IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – Store tapes at room temperature and do not put them too close to a magnetic field (for example, a transformer, TV set or speaker). -
Page 22: Preparation For Recording
Tape Operation/Recording IMPORTANT! – Recording is permissible if copyright or other rights of third parties are not infringed upon. – Recording is possible only in tape deck. Preparation for recording Press TAPE (TAPE 1•2) to select TAPE 2. Load a recordable tape into tape deck 2 with the full spool to the left. -
Page 23: Timer Operations
Setting the timer The system can switch on to CD, TUNER or TAPE mode automatically at a preset time, serving as an alarm to wake you up. IMPORTANT! – Before setting the timer, ensure that the clock is set correctly. –... -
Page 24: Setting The Sleep Timer
Timer Operations Setting the sleep timer The sleep timer enables the system to switch to standby mode automatically at a preset time. Press SLEEP repeatedly until it reaches the desired preset turn-off time. ➜ Following options are available (time in minutes): 15 ™... -
Page 25: Specifications
AMPLIFIER Output power ... 2 x 300 W PMPO ... 2 x 110 W RMS* Signal-to-noise ratio ... ≥ 62 dBA (IEC) Frequency response ... 63 – 16000 Hz, –3 dB Input sensitivity AUX In ... 640 m V Gameport ... 310 mV Output Speakers ... -
Page 26: Troubleshooting
✔ Point the remote control directly toward the IR sensor. ✔ Set the clock correctly. ✔ Press TIMER ON/OFF to switch on the timer. ✔ Press and hold DEMO STOP on the main unit to switch off the demonstration mode. “www.audio.philips.com” for latest update on FAQ. Solution...
