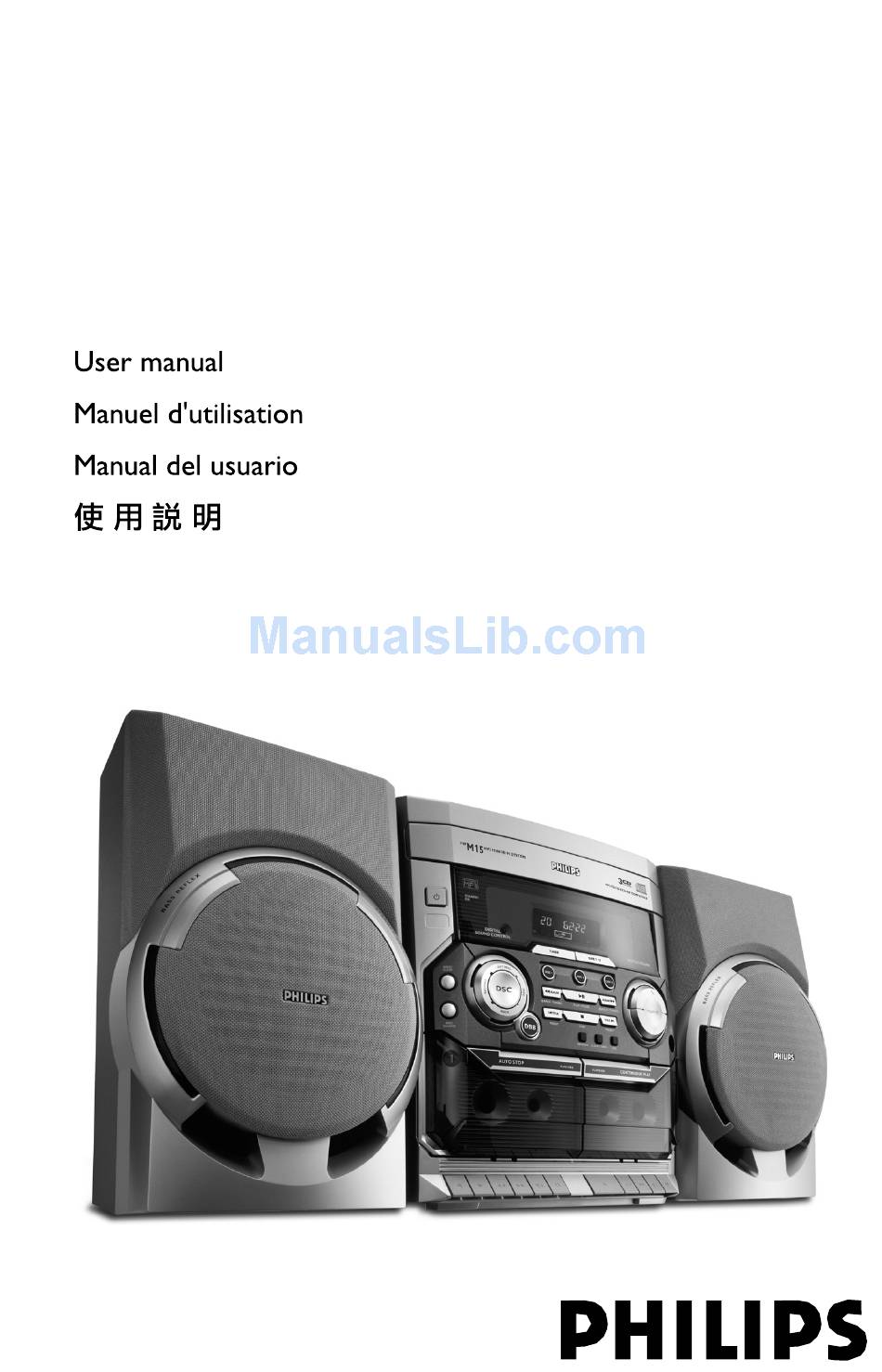

- Page 1 Mini HiFi System FWM15...
- Page 2 País de Origen: China Nº de Serie: LEA CUIDADOSAMENTE ESTE INSTRUCTIVO AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
- Page 3 ¡ ™ &...
- Page 4 (for tuner installation)
- Page 5 Index English ------------------------------------------------ 6 Français -------------------------------------------- 29 Español --------------------------------------------- 52 -------------------------------------------------------- 75...
-
Page 6: Table Of Contents
Contents General Information Supplied accessories ... 7 Acknowledgement ... 7 Environmental information ... 7 Safety information ... 7 Preparations Rear connections ... 8–9 Power Antennas connection Speakers connection Inserting batteries into the remote control ... 9 Controls Controls on the system and remote control ... -
Page 7: General Information
IMPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM. Supplied accessories – 2 speaker boxes –... -
Page 8: Preparations
Preparations speaker (right) AC power cord Rear connections The type plate is located at the rear of the system. Power – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. – If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage. -
Page 9: Speakers Connection
FM Antenna ● For better FM stereo reception, connect an outdoor FM antenna to the FM ANTENNA terminal. Speakers Connection Front Speakers Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-". -
Page 10: Controls On The System And Remote Control
Controls (illustrations on page 3) Controls on the system and remote control STANDBY ON y – to switch the system on or to standby mode. TUNER (BAND) – to select waveband : FM or MW. TAPE (TAPE 1•2) – to select tape mode. DISC 1/ DISC 2/ DISC 3 (CD 1/2/3) –... - Page 11 Display screen – to view the current status of the system. & Disc tray REPEAT – to playback track(s)/disc(s)/programme repeatedly. SHUFFLE – to playback all available tracks/programme of the current disc in random order. MUTE – to interrupt or resume sound reproduction. ¡...
-
Page 12: Basic Functions
Basic Functions IMPORTANT! Before you operate the system, complete the preparation procedures. Plug and Play (for tuner installlation) Plug and Play allows you to store all available radio stations automatically. First time setup/power up When you turn on the main supply, "AUTO INSTALL - PRESS PLAY"... -
Page 13: Demonstration Mode
Demonstration mode The system has a demonstration mode that shows the various features offered by the system. To activate the demonstration ● In standby mode, press and holdÇon the system until " WELCOME" is displayed. ➜ The demonstration will begin. To deactivate the demonstration ●... -
Page 14: Volume Control
Basic Functions Volume control Press MASTER VOLUME v or w (VOL + or - on the remote control) to increase or decrease the volume level. To listen through the headphones ● Connect the headphones plug to the n socket at the front of the system. -
Page 15: Cd/Mp3-Cd Operations
IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the changer mechanism. – Do not load more than one disc into each tray. -
Page 16: Loading Discs
CD/MP3-CD Operations Sound Quality Take note that MP3-CD compilations should best contain only MP3 tracks (*.mp3). To achieve a good MP3 quality, a bit rate of 128 kbps is recommended. Loading discs Press OPEN/CLOSE to open the disc tray. Load up to two discs on the individual disc trays. To load the third disc, press DISC CHANGE. -
Page 17: Selecting A Desired Track/Passage
Selecting a desired track/passage To search for a particular passage during playback Press à or á until the desired passage is located. To select a desired track ● Press í or ë repeatedly until the desired track is displayed. ● If playback is stopped, pressÉ... -
Page 18: Erasing The Programme
CD/MP3-CD Operations Press í or ë repeatedly to select the desired track. ● For MP3 disc, press ALBUM -/+ and TITLE -/+ to select the desired album and title for programming. Press PROG to store the track. ● Repeat steps 5–6 to store other tracks. To end programming, press Ç... -
Page 19: Radio Reception
Tuning to radio stations Press TUNER to select TUNER mode. ➜ "TUNER" is displayed. A few seconds later, the current radio frequency will appear on the display. ➜ If an FM station is received in stereo, displayed. Press TUNER again to select the desired waveband : FM or MW. -
Page 20: Manual Preset Programming
Radio Reception To stop storing the automatic preset ● Press PROGRAM or Ç on the system. Note: – If no preset number is selected, automatic preset will begin from preset (1) and all your former presets will be overridden. Manual Preset Programming Tune to your desired radio station (refer to “Tuning to radio stations”). -
Page 21: Tape Operation/Recording
IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – C-120 tape is extremely thin and is easily deformed or damaged. It is not recommended for use in this system. -
Page 22: Rewinding/Fast Forwarding
Tape Operation/Recording Fast forwarding/rewinding Press à or á until you reach your desired passage. Press 70 to stop rewinding/fast forwarding. Notes: During fast forwarding/rewinding, the keys will not be released at the end of a tape. To switch off the set, make sure the cassette keys are also released. -
Page 23: Cd Synchronised Start Recording
CD Synchronised start recording Press CD 1/2/3 to select the disc. ● You can programme the tracks in the order you want them to be recorded (refer to “CD Operation - Programming the disc tracks”). Press ● on tape deck 1 to start recording. ➜... -
Page 24: Clock/Timer
Clock/Timer View clock The clock (if it is set) will be shown in standby mode. To view the clock in any source mode (CD or TUNER for example) ● Press CLOCK•TIMER. ➜ The clock is displayed for a few seconds. ➜... -
Page 25: Deactivating The Timer
Press CD 1/2/3, or TUNER to select the desired source. ➜ “CD1 [or 2, 3] XX:XX" indicates the CD mode is selected. ➜ “TU XX:XX” indicates the Tuner mode is selected. ● Before setting timer, make sure the music source has been prepared. -
Page 26: Specifications
Specifications AMPLIFIER Output power ... 600 W PMPO ... 2 x 10 W RMS Signal-to-noise ratio ... ≥ 67 dBA (IEC) Frequency response ... 50 – 15000 Hz Impedance loudspeakers ... 4 Ω Impedance headphones ... 32 Ω – 1000 Ω (1)(4Ω, 1 kHz, 10% THD) CD PLAYER Number of programmable tracks ... -
Page 27: Maintenance
