Summary of Contents for Philips FWM57/19

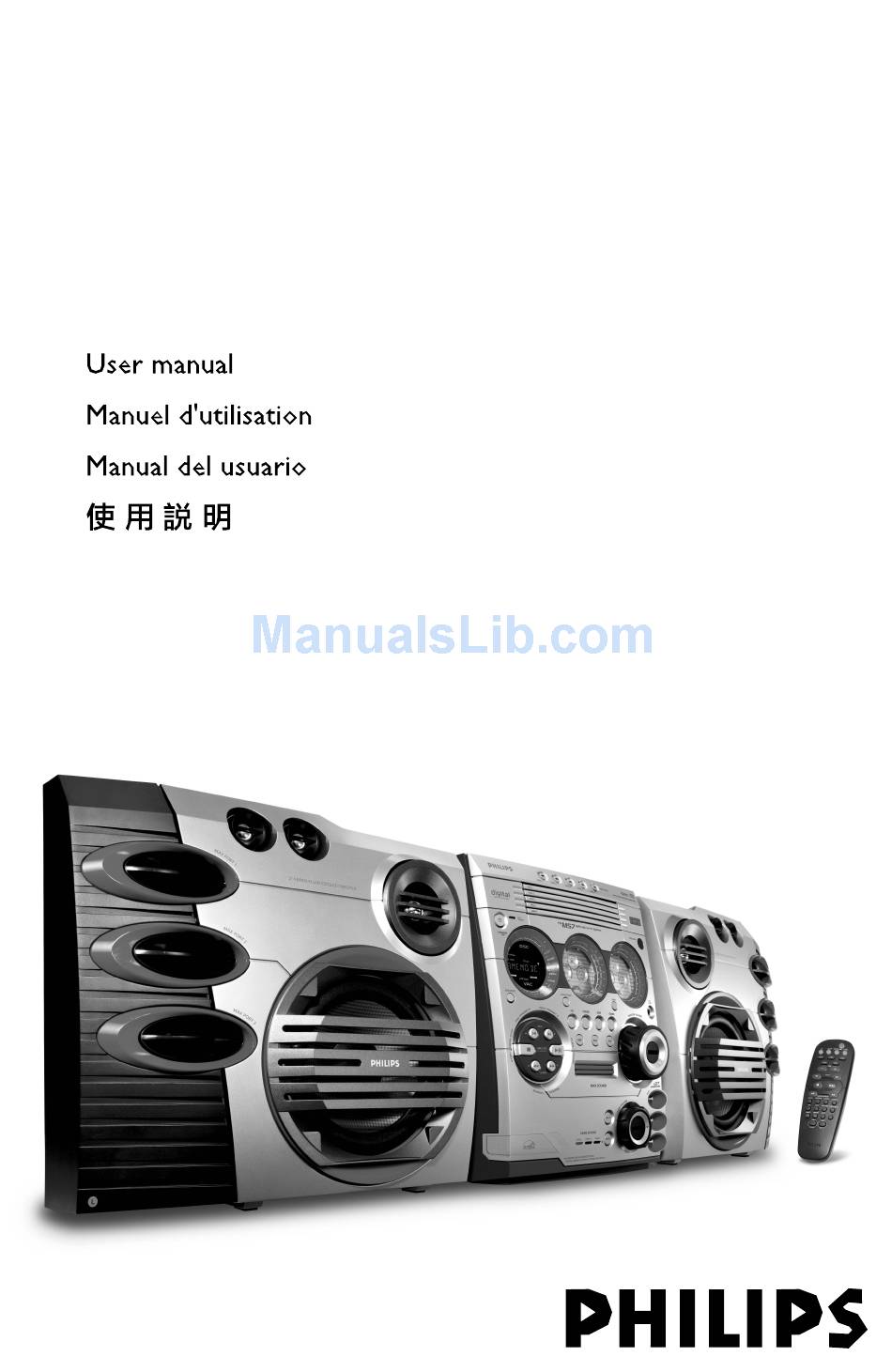

- Page 1 FWM57 Mini HiFi System...
- Page 2 País de Origen: China Nº de Serie: LEA CUIDADOSAMENTE ESTE INSTRUCTIVO AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
- Page 4 Energy Star As an ENERGY STAR Partner, Philips has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
- Page 5 Index English ------------------------------------------------ 6 Français -------------------------------------------- 25 Español --------------------------------------------- 44 -------------------------------------------------------- 63...
-
Page 6: Table Of Contents
Contents General Information Supplied accessories ... 7 Environmental information ... 7 Care and safety information ... 7 Functional Overview Main unit and remote control ... 8–9 Control buttons available on the remote control only ... 9 Connections Step 1: Connecting FM/ MW antennas ... 11 Step 2: Connecting the speakers ... -
Page 7: General Information
Refer to the type plate on the rear of the system for identification and supply ratings. Supplied accessories (page 3 – P1) – Remote control and two AA batteries. – MW loop antenna – FM wire antenna – Video cinch cable (yellow) –... -
Page 8: Functional Overview
Functional Overview Main unit and remote control ECO POWER indicator – Lights up when the system is in the Eco Power standby mode. STANDBY ON B – Switches to the Eco Power standby mode or turns on the system. – *Switches to standby mode. -
Page 9: Control Buttons Available On The Remote Control Only
PLAY•PAUSE É Å – CD: starts/pauses playback. (only on the main unit) TUNER: *enters Plug & Play mode and/or starts – preset radio station installation. MAX SOUND (MAX ON/OFF) – Turns on/off the optimal mix of various sound features. MIX IT (GAME MIX IT) –... -
Page 10: Connections
Connections MW loop antenna Speaker (right) Front panel FM wire antenna VOLTAGE SELECTOR 110V- 127V 220V- 240V NOT FOR ALL VERSIONS Rear panel Speaker (left) AC power cord Game console... -
Page 11: Step 1: Connecting Fm/Mw Antennas
Warning! – Use only the supplied speakers. The combination of the main unit and speakers provides the best sound. Using other speakers can damage the unit and sound quality will be negatively affected. – Never make or change connections with the power switched on. –... -
Page 12: Step 5: Inserting Batteries Into The Remote Control
Connections Step 5: Inserting batteries into the remote control Open the battery compartment cover. Insert two batteries type R06 or AA, following the indications (+-) inside the compartment. Close the cover. Using the remote control to operate the system Aim the remote control directly at the remote sensor (iR) on the main unit. -
Page 13: Gameport Operations
About Gameport Gameport allows you to connect your game console to this mini system which enables you to enjoy a total game immersion experience through powerful sound output. Preparation before use rear panel front panel Connect your game console’s video and audio output to the GAMEPORT video and audio inputs respectively (refer to “Connections - Connecting to game console). -
Page 14: Basic Operations
Basic Operations Switching on/off Switching to active mode Press CD, TUNER, or AUX. Switching to the Eco Power standby mode Press B. ECO POWER button lights up. The display screen will go blank. Switching to standby mode (view clock) Press and hold B. The clock is displayed. -
Page 15: Dimming System's Display Screen
Dimming the system’s display You can select the desired brightness for the display panel. In any active mode, press DIM on the remote control or DIM MODE on the system repeatedly to turn on/off dim mode. is shown, except for DIM OFF mode. Volume control Adjust MASTER VOLUME (or press VOL +/- on the remote control) to increase... -
Page 16: Disc Operations
Disc Operations IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the changer mechanism. – Do not load more than one disc onto each tray. -
Page 17: Playing An Mp3 Disc
Playing an MP3 disc REPEAT Load an MP3 disc. The disc reading time may exceed 10 seconds due to the large number of songs compiled into one disc. Display shows: “AXX TYYY” followed by “DISC Z”. XX is the current album number; YYY is the current title number;... -
Page 18: Programming The Disc Tracks
Disc Operations Programming the disc tracks Programming tracks is possible when playback is stopped. Up to 99 tracks can be stored in the memory in any order. IMPORTANT! It is only possible to programme from the current selected disc tray. REPEAT Load the desired discs into the disc trays (refer to “Loading discs”). -
Page 19: Tuner Operations
IMPORTANT! Make sure the FM and MW antennas are connected. Tuning to radio stations Press TUNER to enter tuner mode. To select another waveband (FM or MW), press TUNER again. Press and hold à or á until the frequency indication starts to change, then release. The system automatically tunes to the next strong signal radio reception. -
Page 20: Selecting A Preset Radio Station
Tuner Operations Selecting a preset radio station In the tuner mode, press í or ë. The preset number, radio frequency, and waveband are displayed. Deleting a preset radio station Press and hold Ç until “PRESET DELETED” is displayed. The current preset radio station will be deleted. -
Page 21: Timer Operations
Setting the timer The system can switch on to the CD or TUNER mode automatically at a preset time, serving as an alarm to wake you up. IMPORTANT! – Before setting the timer, ensure that the clock is set correctly. –... -
Page 22: Setting The Sleep Timer
Timer Operations Setting the sleep timer The sleep timer enables the system to switch to Eco Power standby mode automatically at a preset time. Press SLEEP repeatedly until it reaches the desired preset turn-off time. Following options are available (time in minutes): 15 ™... -
Page 23: Specifications
AMPLIFIER Output power ... 6500 W PMPO ... 2 x 200 W RMS Signal-to-noise ratio ... ≥ 62 dBA (IEC) Frequency response ... 63 – 16000 Hz, ≤–3 dB Input sensitivity AUX In ... 1100 m V Gameport ... 1100 mV Output Speakers ... -
Page 24: Troubleshooting
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
