- Page 1 PD1 combi PD1+ combi operating instructions...

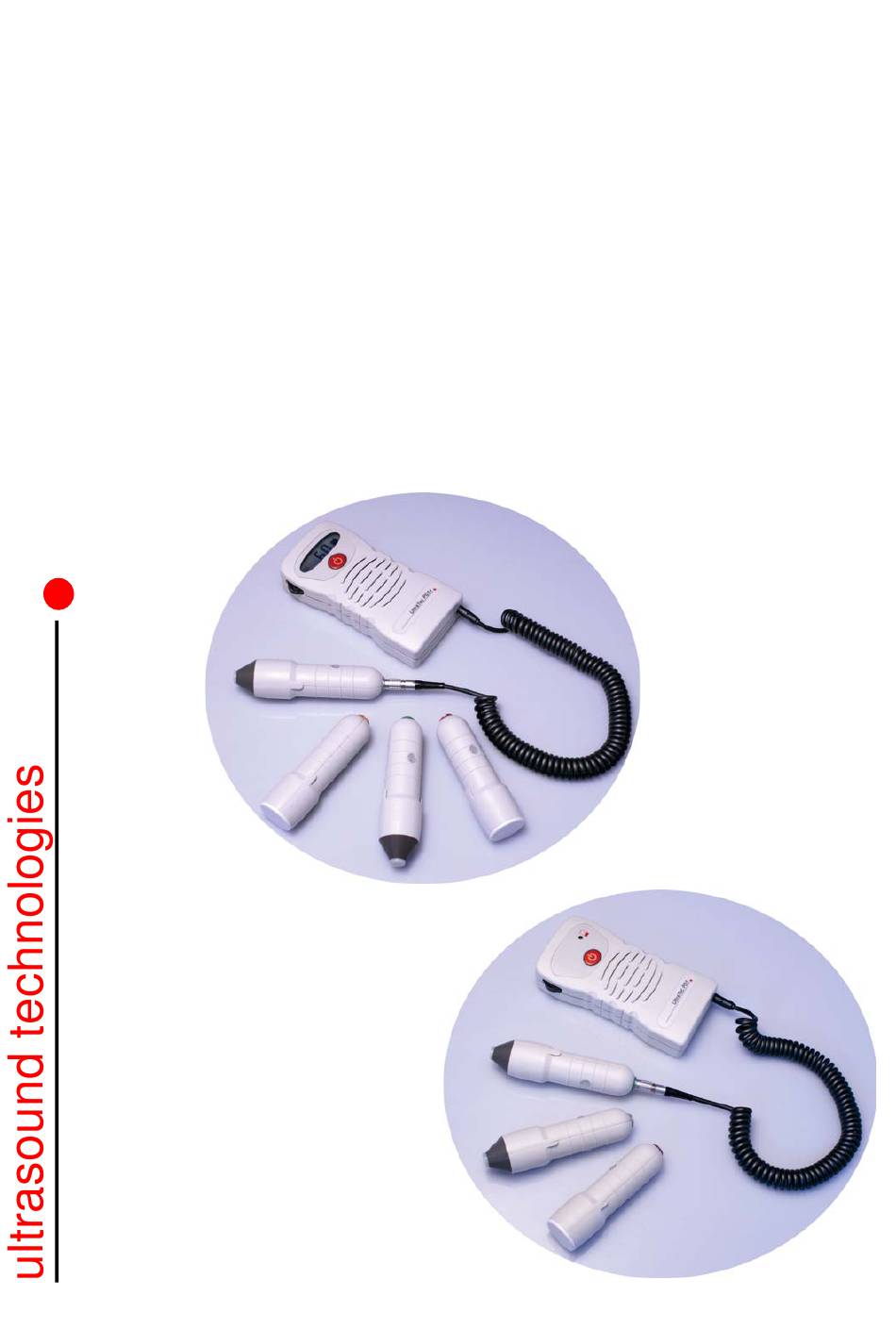

- Page 3 General Practitioner and clinic where multiple disciplines require interchangeable transducers. The PD1 combi and PD1+ combi can take a choice of 4 transducers, 2 for fetal heart rate detection (2 and 3 MHz) and 2 for vascular flow detection (5 and 8MHz).
- Page 4 PD1 combi The PD1 combi is powered from a single 9 volt alkaline battery (type 6LR61). To insert or change the battery, slide off the battery cover (A) from the back of the unit and withdraw the battery and connector. Carefully remove the battery from the connector and snap the new battery into position taking care to ensure correct orientation.
- Page 5 PD1+ combi The PD1+ combi operates in a similar manner to the PD1 combi. The unit is turned on by pressing the on/off control (B), the system micro-controller monitors the detected signal and turns the unit off when no signal has been detected for approximately 2 minutes.
- Page 6 Fetal heart detection The PD1 combi / PD1+ combi can be used to detect the beating fetal heart from approximately the 10th week of gestation, though this will vary between patients. Apply a liberal amount of coupling gel to the area just above the symphysis pubis and position the transducer face flat against the abdomen.
- Page 7 The optional headset helps to eliminate ambient noise, making it easier to detect the weaker signals. It is also usual for the PD1 combi / PD1+ combi to be used in association with a pressure cuff and sphygmomanometer to indicate the location and extent of arterial occlusion in the form of ankle/ brachial pressure index and segmental pressures.
-
Page 8: Specification
Specification PD1 combi PD1+ combi Ultrasound Frequency 2, 3, 5, 8 MHz continuous wave 2, 3, 5, 8 MHz continuous wave Transducer 2 crystal narrow beam 2 crystal narrow beam (interchangeable) (interchangeable) Output Power <10mW/cm2 <10mW/cm2 Audio Response 300Hz—1KHz ( 2, 3 MHz) 300Hz—1KHz ( 2, 3 MHz) -
Page 9: Simple Fault Finding
Ultrasound Technologies Ltd or its authorised representative freight pre-paid. Under no circumstances whatsoever shall Ultrasound Technologies Ltd have any liability... - Page 10 EM disturbance is identified and its emissions reduced. If the user has any doubt regarding the identification and resolution of adverse EM conditions, please seek advise from Ultrasound Technologies Ltd. Ultrasound Technologies Ltd Lodge Way...
